Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

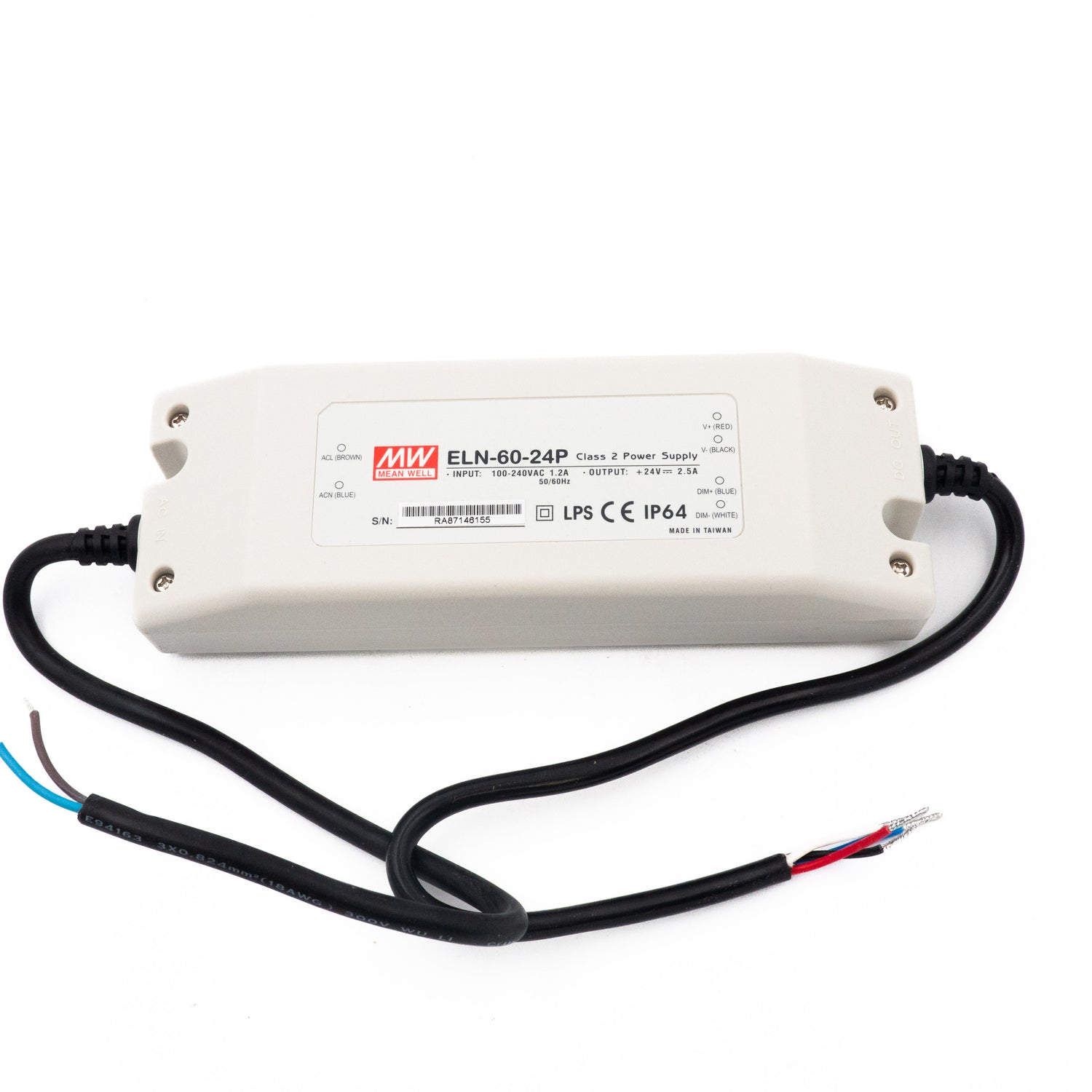

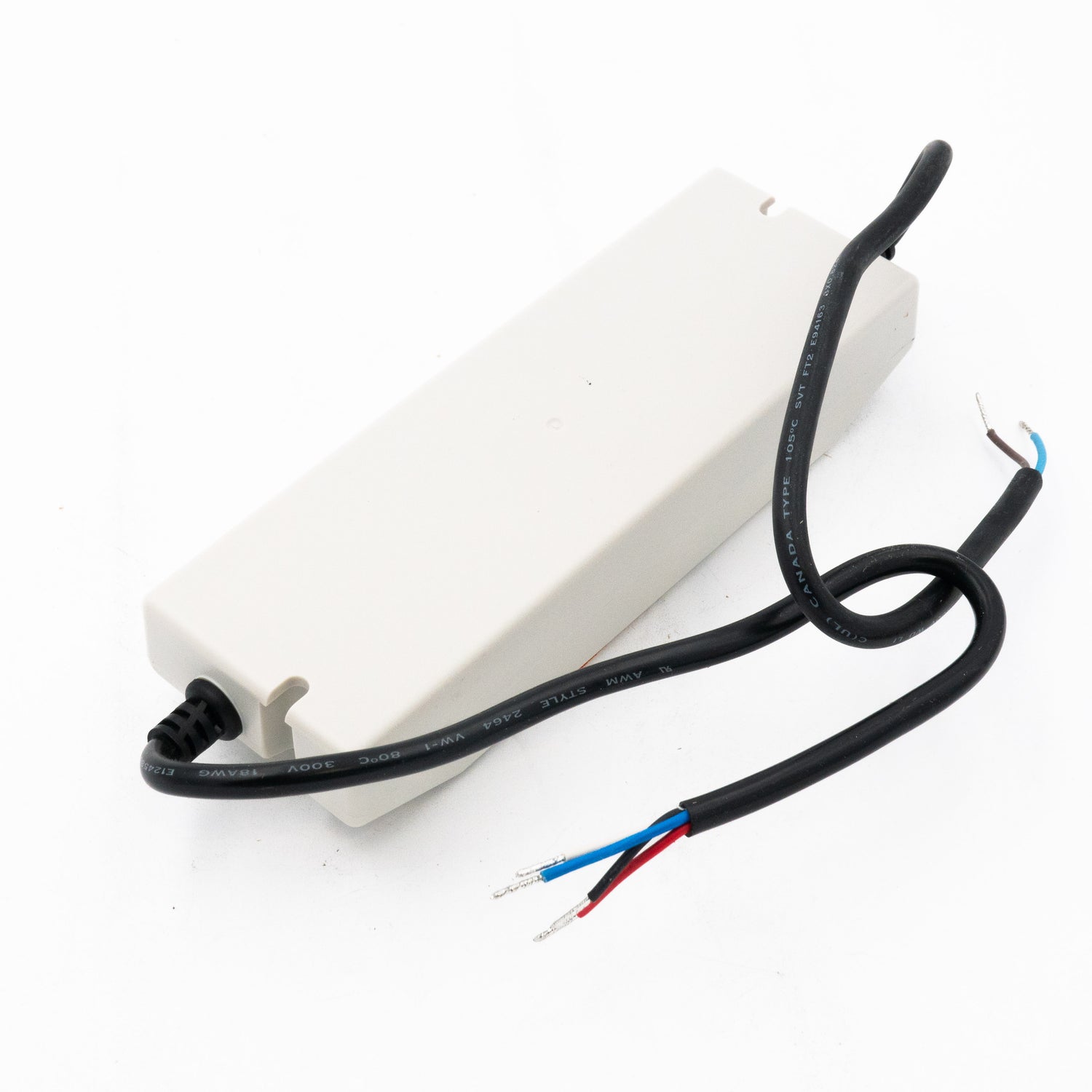

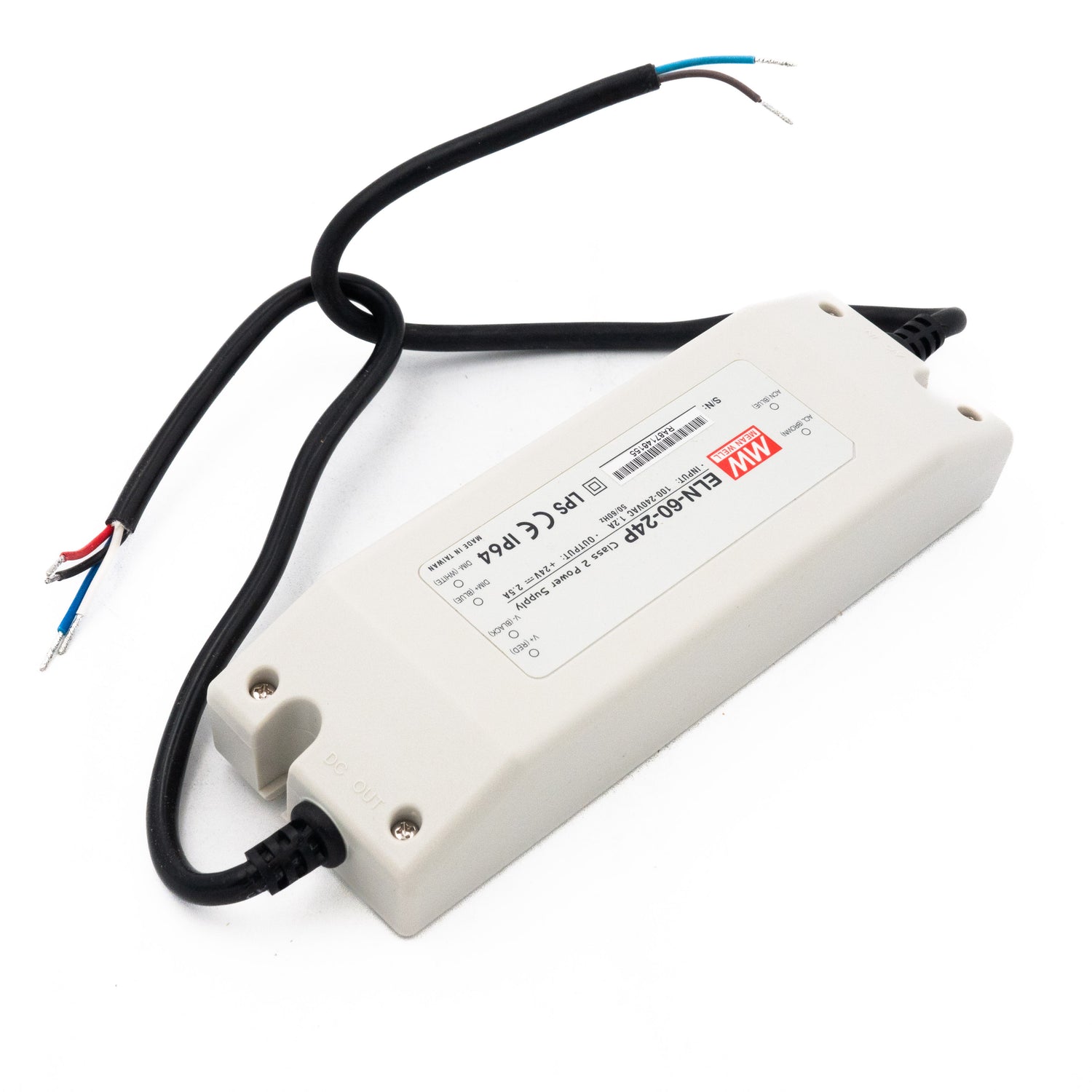

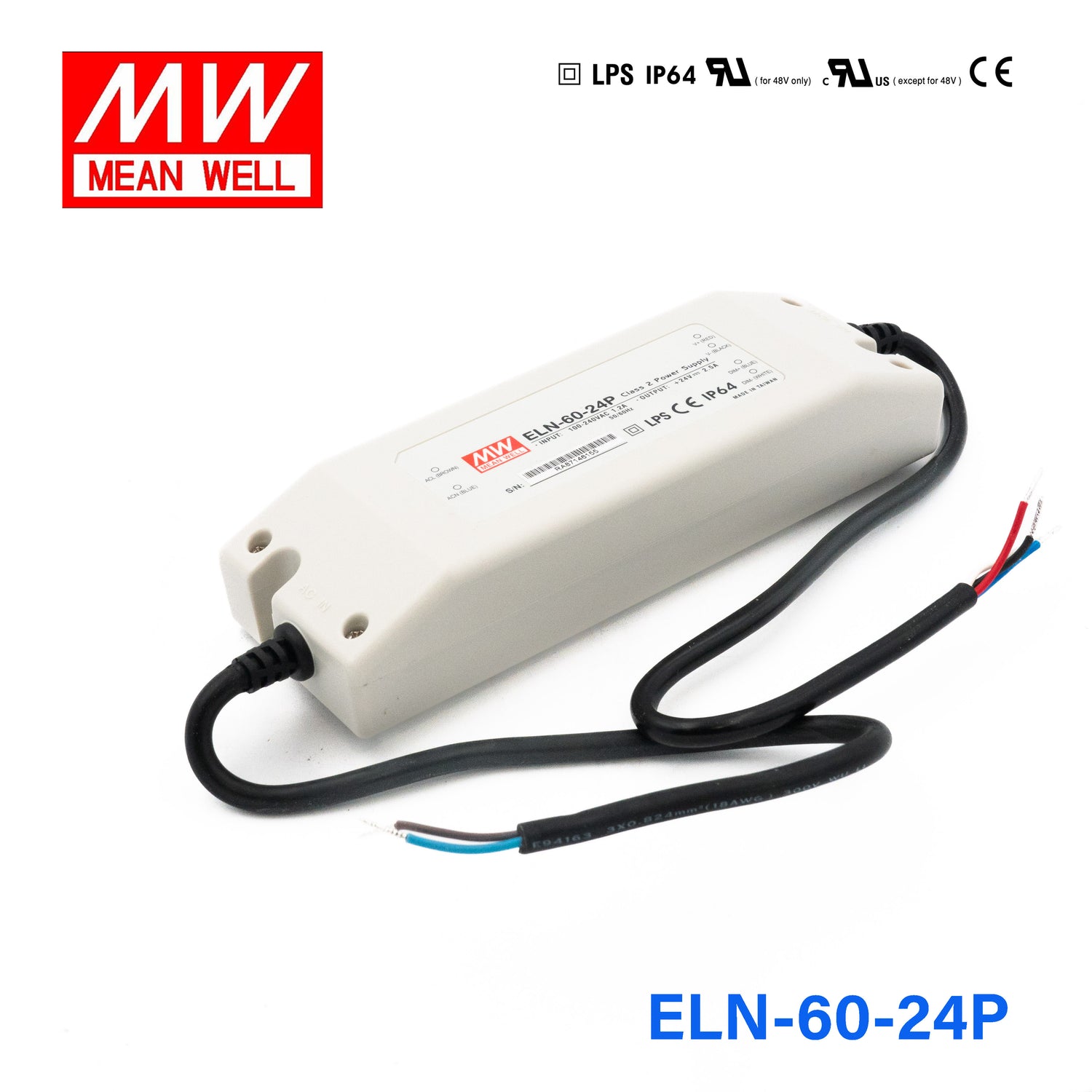

Mean Well ELN-60-24P LED Power Supply 60W
$19.05 USD
Unit price /
Unavailable
Description
Description
AC-DC Single output LED driver Constant Current (CC); Output 24Vdc at 2.5A; Dimming with PWM; ELN-60-24P is succeeded by HLG-60H-24B.
Specifications
Specifications
-
BrandMean Well
-
SeriesMean Well ELN Series
-
Power Rating60 Watt
-
Output Voltage24 Volt
-
Rated Current2.5 Ampere
-
Input Voltage110V~230V
-
Standards MetCE,EAC,ENEC,FCC,UL
-
Operation ModeConstant Current
-
Operating Temperature-20°C~60°C
-
Warranty2 Year
-
Length7.13 in
-
Width2.42 in
-
Height1.38 in
-
Weight0.88 lb
File Downloads
File Downloads
::specification::
