Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

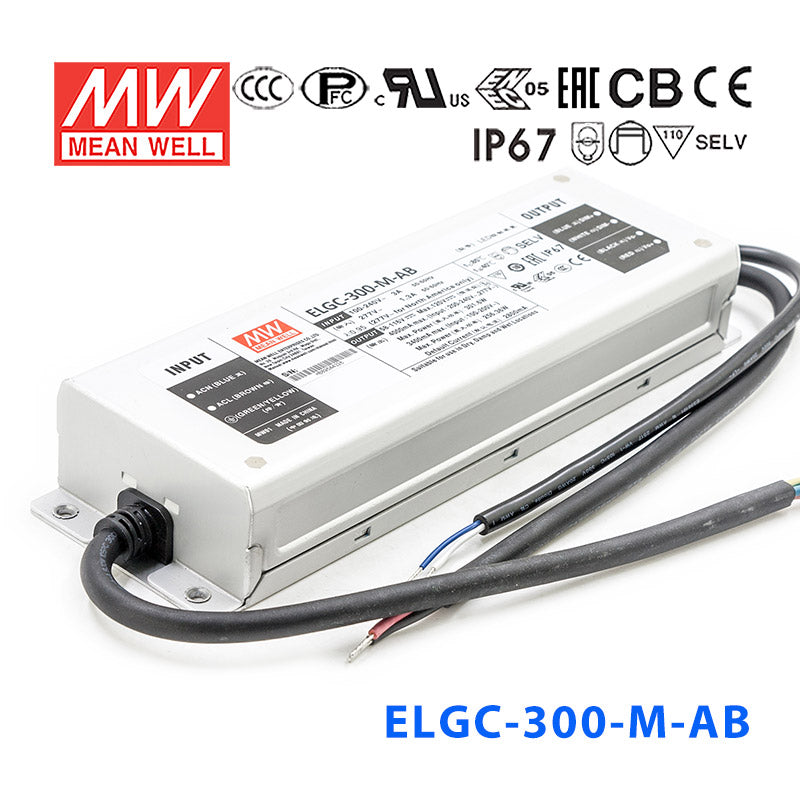

Mean Well ELGC-300-M-AB Power Supply 300W 2800mA - Adjustable and D...
$92.97 USD
Unit price /
Unavailable
Description
Description
Features
| Full power at 65~100% operation(Constant Power) |
| Protection Functions: OCP, SCP, OVP, OTP |
| IP67 design for indoor or outdoor installations |
| Function options: output adjustable via potentiometer; 3 in 1 dimming(dim-to-off); DALI-2 dimming |
| Typical lifetime>50000 hours and 5 years warranty |
| Surge protection with 6KV/4KV |
| Latest safety requirements of IEC61347/GB19510 and UL8750 |
General Specification
| AC input voltage range | 100~305VAC;142~431VDC |
| AC inrush current | Cold start, 45A at 230VAC |
| DC adjustment range | ±43% rated output current |
| Over voltage protection | <146% rated output voltage |
| Setup time | 500ms |
| Withstand voltage | I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG: 1.5kVAC |
| Working temperature | -40~+85°C |
| Safety standards | UL8750 approved |
| EMC standards | EN55015, EN61000-3-2 class C,EN61000-3-3, EN61000-4-2,3,4,5,6,8,11 |

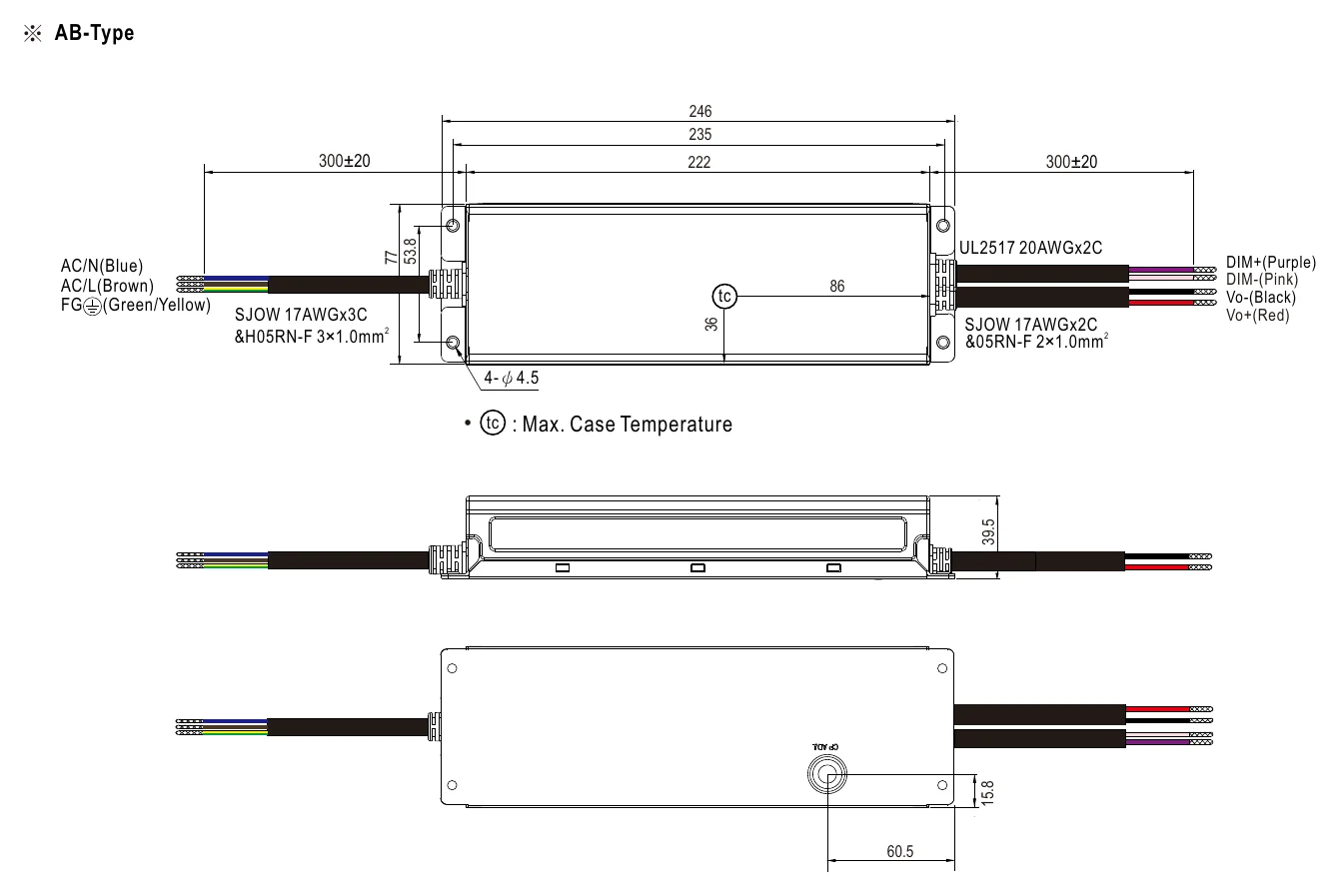

| Dimension (LxWxH) | 246x77x39.5 |
| Packing | 9pcs / 14kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesELGC-M Series
-
Power Rating301 Watt
-
Output Voltage120 Volt
-
Rated Current2.8 Ampere
-
Input Voltage100V~305V
-
Standards MetCB,CCC,CE,EAC,ENEC,KC,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length9.69 in
-
Width3.03 in
-
Height1.56 in
-
Weight3.2 lb
