Mean Well ELG-75-C500AB Power Supply | Constant Current LED Driver

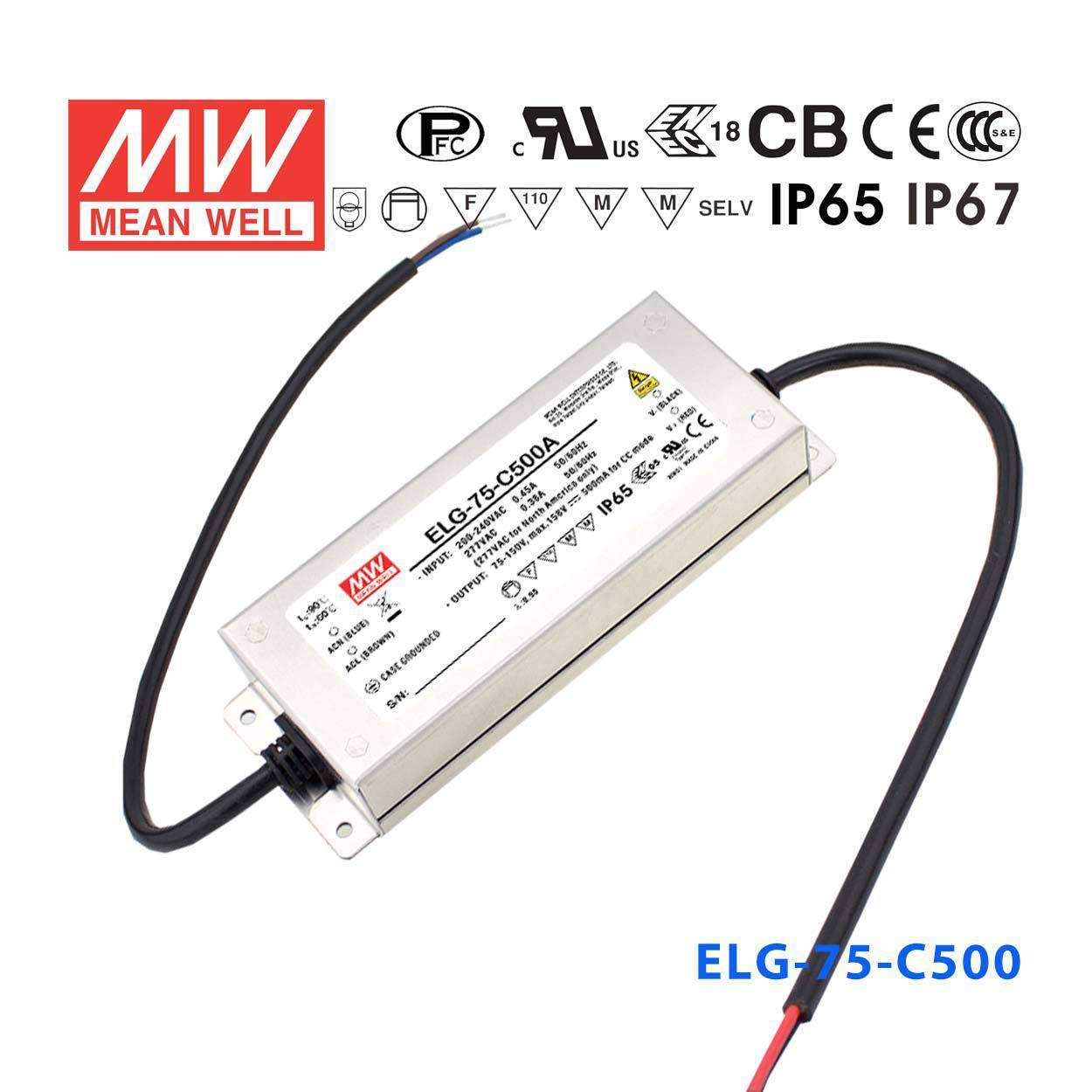

Name: Mean Well ELG-75-C500AB Power Supply 75W 500mA - Adjustable and Dimmable
Brand: Mean Well
SKU: ELG-75-C500AB
Price: 41.41 USD
Availability: InStock

Overview

ELG-75-C500AB is the model of this series: rated current 500mA, typical efficiency 91%. Type AB: Io adjustable through built-in potentiometer & 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance) (IP65).

ELG-75-C series is a 75W LED AC/DC driver featuring the constant current mode and high voltage output. ELG-75-C operates from 100~305VAC and offers models with different rated current ranging between 350mA and 1400mA. Thanks to the high efficiency up to 91%, with the fanless design, the entire series is able to operate for -40℃~+85℃ case temperature under free air convection. The design of metal housing and IP65 ingress protection level allows this series to fit both indoor and outdoor applications. ELG-75-C is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

Constant Current mode output
Metal housing design with functional Ground
Built-in active PFC function
No load / Standby power consumption <0.5W
IP65 rating for indoor or outdoor installations
Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off)
Typical lifetime>50000 hours
5 years warranty

Specifications

ELG-75-C500ABSpecifications from the official datasheet (2026-07-06 edition)

OUTPUT

RATED CURRENT: 500mA
RATED POWER 200VAC ~ 305VAC^Note.5: 75W
RATED POWER 100VAC ~ 180VAC^Note.5: 60W
CONSTANT CURRENT REGION^Note.2: 75 ~ 150V
OPEN CIRCUIT VOLTAGE(max.): 158V
CURRENT ADJ. RANGE: Adjustable for AB-Type only (via built-in potentiometer)
CURRENT ADJ. RANGE: 250 ~ 500mA
CURRENT RIPPLE: 5.0% max. @rated current
CURRENT TOLERANCE: ±5.0%
SET UP TIME^Note.4: 500ms/115VAC,230VAC

INPUT

VOLTAGE RANGE^Note.3: 100 ~ 305VAC 142 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≧0.97/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20%(@load≧50%/115VC,230VAC; @load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
EFFICIENCY (Typ.): 91%
AC CURRENT (Typ.): 0.7A / 115VAC 0.45A / 230VAC 0.38A/277VAC
INRUSH CURRENT(Typ.): COLD START 50A(twidth=350μs measured at 50% Ipeak)/230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 5 units (circuit breaker of type B) / 8 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC
NO LOAD / STANDBY POWER CONSUMPTION: No load power consumption <0.5W for Blank / A-Type Standby power consumption <0.5W for B / AB / DA -Type

PROTECTION

SHORT CIRCUIT: Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 160 ~ 190V Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: Tcase=-40 ~ +85℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP.: Tcase=+85℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 60℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL8750(type”HL”), CSA C22.2 No. 250.13-12;BS EN/EN/AS/NZS 61347-1, BS EN/EN/AS/NZS 61347-2-13 independent, BS EN/EN62384;EAC TP TC 004;BIS IS15885(for 700A/700B/700DA/1050A only);IP65; GB/T19510.1, GB/T19510.213;KC61347-1,KC61347-2-13 approved
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2.0KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55015,BS EN/EN61000-3-2 Class C (@load≧50%) ; BS EN/EN61000-3-3; GB/T 17743, GB17625.1;EAC TP TC 020; KC KN15,KN61547
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level(surge immunity:Line-Earth: 6KV,Line-Line:4KV); EAC TP TC 020; KC KN15,KN61547

OTHERS

MTBF: 3523.7K hrs min. Telcordia SR-332 (Bellcore) 305.3Khrs min. MIL-HDBK-217F (25℃)
DIMENSION: 180*63*35.5 mm (L*W*H)
PACKING: 0.8Kg;16pcs/13.4Kg/0.67CUFT

Certifications & ratings

Type: Type HL

MODEL ENCODING

Blank: Io fixed; IP67
A: Io adjustable through built-in potentiometer; IP65
B: 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance); IP67
AB (this model): Io adjustable through built-in potentiometer & 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance); IP65
DA: DALI control technology; IP67

Test conditions and notes11

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Please refer to "DRIVING METHODS OF LED MODULE".
3. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
4. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
5. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
6. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 80℃ or less.
7. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
9. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
10. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.
11. For AB type need to consider build in using to comply with Type HL application.

Technical drawings

ELG-75-C500AB BLOCK DIAGRAM — BLOCK DIAGRAM

ELG-75-C500AB DIMMING OPERATION — DIMMING OPERATION

ELG-75-C500AB OUTPUT LOAD vs TEMPERATURE(Note.7) — OUTPUT LOAD vs TEMPERATURE(Note.7)

ELG-75-C500AB STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

ELG-75-C500AB TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

ELG-75-C500AB Illustration (page 9) — Illustration (page 9)

ELG-75-C500AB Recommend Mounting Direction — Recommend Mounting Direction

Typical applications

LED street lighting
LED harbor lighting
LED bay lighting
LED greenhouse lighting
LED flood lighting
Type “HL” for use in Class I, Division 2 hazardous (Classified) location.

Downloads

Datasheet1

ELG-75-C500AB datasheetELG-75-C-SPEC.PDF · 2026-07-06 edition PDF Download

Certificates5

EMC Certificate (ELG-75)(EN) PDF Download

UL Certificate (ELG-75-C)(EN) PDF Download

CB Certificate (ELG-75-C)(EN) PDF Download

EMC Certificate (ELG-75-C)(EN) PDF Download

ENEC Certificate (ELG-75-C)(EN) PDF Download

Test reports1

Test Report (ELG-75-C500)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can the ELG-75-C500AB power LED downlights in a building with a 0–10V lighting control system?

Yes. The AB-suffix combines output current adjustment with three-in-one dimming, which includes 0–10V, 10V PWM, and resistance interfaces. This makes it compatible with standard 0–10V dimming systems used in commercial downlight retrofits. Output current is 500mA with a CC voltage range of 75–150V.

Is the ELG-75-C500AB suitable for outdoor LED signage requiring dimming control?

The ELG-75-C500AB is rated IP65 water-resistant, suitable for outdoor signage cabinets protected from direct rain but not submersion. Its -40°C to +85°C working case temperature (Tcase) range and 100–305VAC input cover most outdoor signage environments worldwide. The built-in dimming interface enables schedule-based brightness control for signage.

Can this driver be used in a small LED array for a refrigerated display case?

Yes. With a minimum working case temperature of -40°C and an IP65 rating, the ELG-75-C500AB is appropriate for refrigerated display lighting. Note that the working humidity rating is 20–95% RH non-condensing.

How many LEDs can I connect to the ELG-75-C500AB in series?

The CC voltage range is 75–150V. The number of LEDs in the series string depends on the forward voltage of each individual LED. Add up the forward voltages of your intended string and confirm the total falls within 75–150V before finalizing the design.

What is the difference between the ELG-75-C500AB and the ELG-75-C500B?

Both are 75W, 500mA constant current drivers with three-in-one dimming and a 75–150V CC range. The ELG-75-C500AB adds a potentiometer for output current adjustment and is rated IP65 (water-resistant), while the ELG-75-C500B is rated IP67 (waterproof, including temporary immersion). Choose the C500B for applications requiring higher ingress protection.

What certifications does the ELG-75-C500AB hold?

The ELG-75-C500AB meets UL8750 (Type HL), CSA C22.2 No. 250.13-12, BS EN/EN/AS/NZS 61347-1 and 61347-2-13, BS EN/EN62384, GB/T19510, EAC and KC safety standards, supporting compliance in North American, European, Australian, and Chinese markets.
