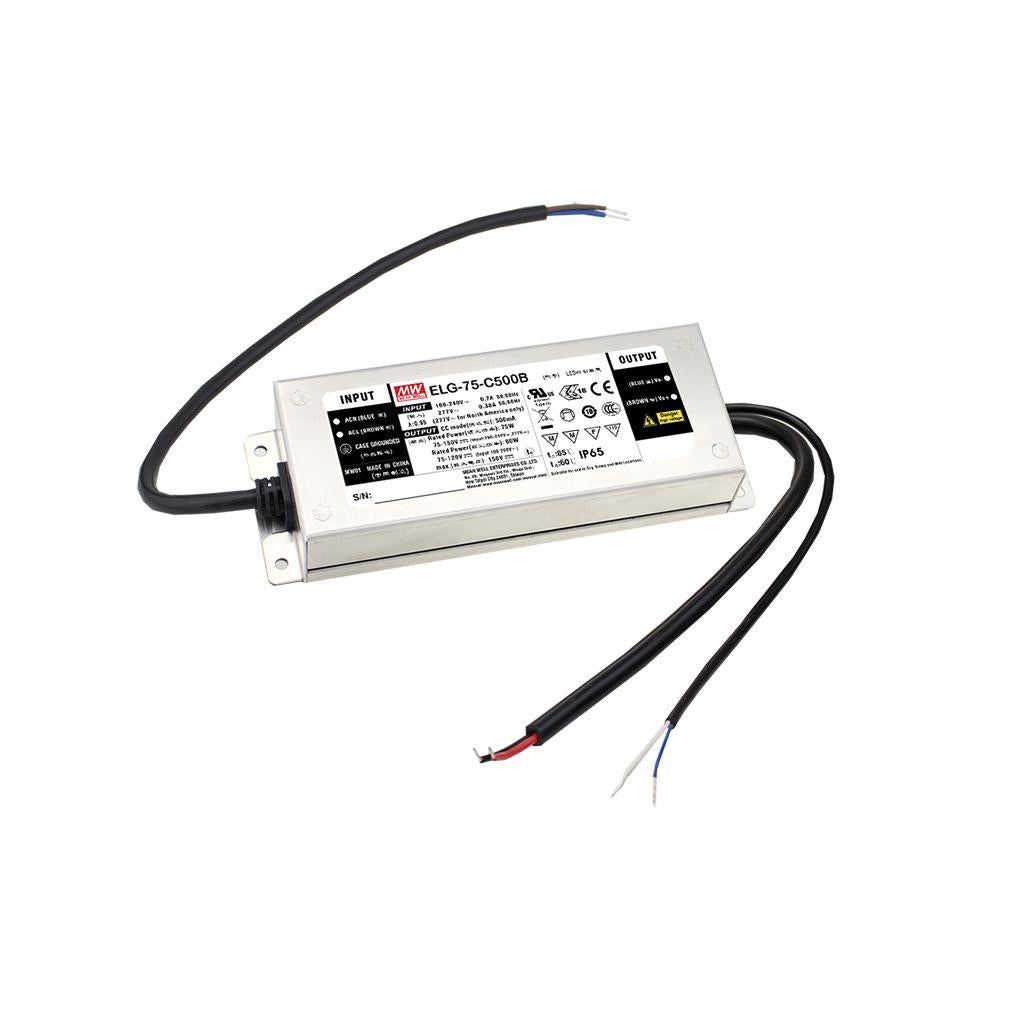

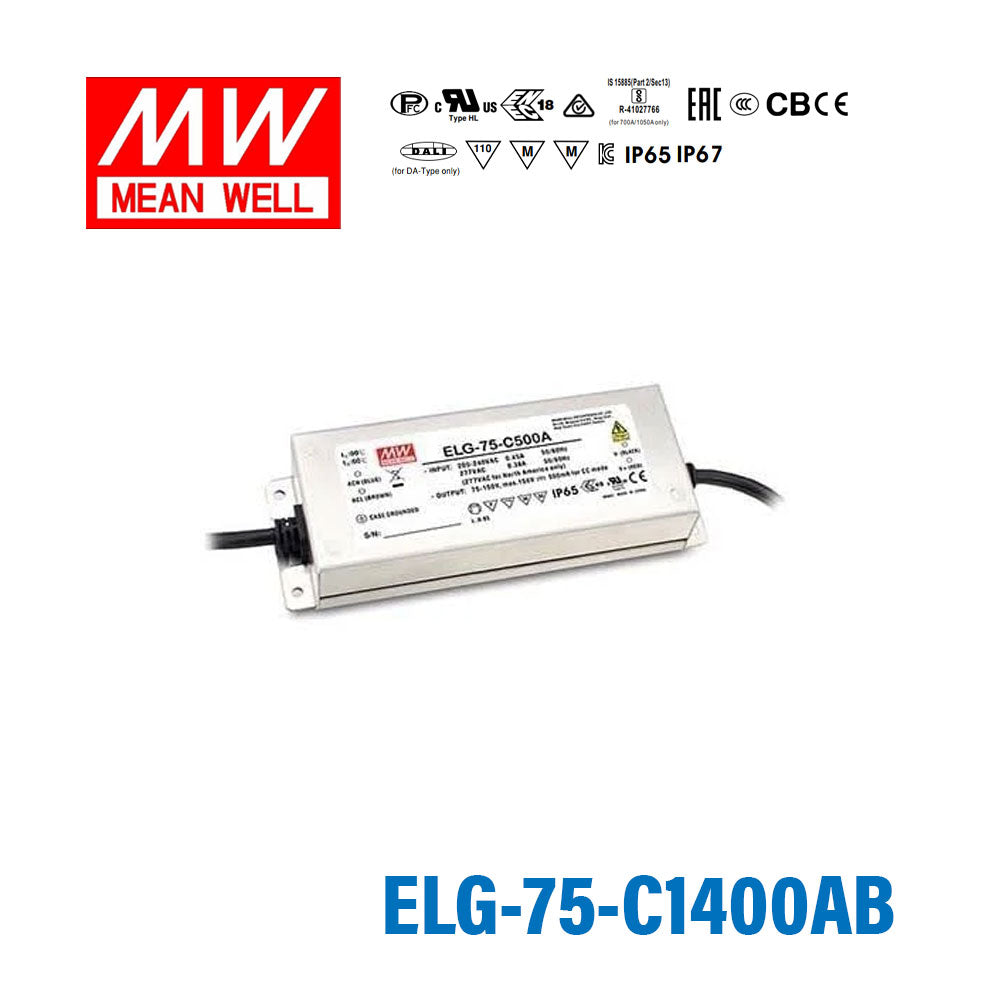

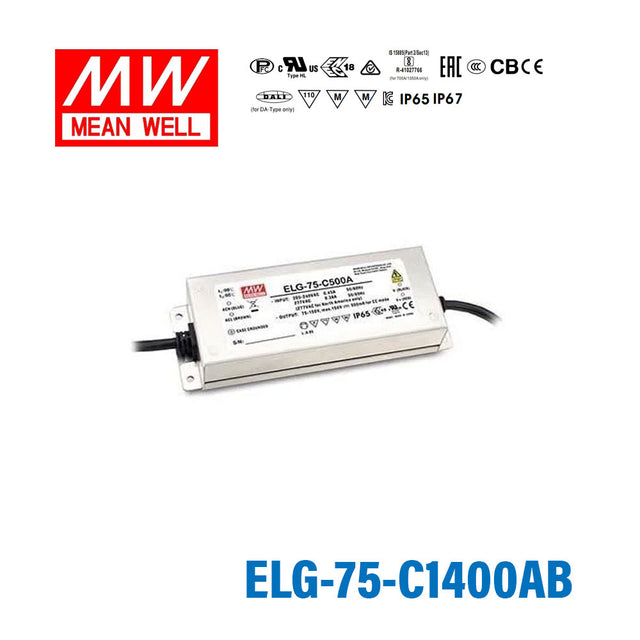

Name: Mean Well ELG-75-C1400AB Power Supply 75W 1400mA - Adjustable and Dimmable
Brand: Mean Well
SKU: ELG-75-C1400AB
Price: 41.41 USD
Availability: InStock

Overview

ELG-75-C1400AB is the model of this series: rated current 1400mA, typical efficiency 90%. Type AB: Io adjustable through built-in potentiometer & 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance) (IP65).

ELG-75-C series is a 75W LED AC/DC driver featuring the constant current mode and high voltage output. ELG-75-C operates from 100~305VAC and offers models with different rated current ranging between 350mA and 1400mA. Thanks to the high efficiency up to 91%, with the fanless design, the entire series is able to operate for -40℃~+85℃ case temperature under free air convection. The design of metal housing and IP65 ingress protection level allows this series to fit both indoor and outdoor applications. ELG-75-C is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

Constant Current mode output
Metal housing design with functional Ground
Built-in active PFC function
No load / Standby power consumption <0.5W
IP65 rating for indoor or outdoor installations
Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off)
Typical lifetime>50000 hours
5 years warranty

Specifications

ELG-75-C1400ABSpecifications from the official datasheet (2026-07-06 edition)

OUTPUT

RATED CURRENT: 1400mA
RATED POWER 200VAC ~ 305VAC^Note.5: 75.6W
RATED POWER 100VAC ~ 180VAC^Note.5: 60.2W
CONSTANT CURRENT REGION^Note.2: 27 ~ 54V
OPEN CIRCUIT VOLTAGE(max.): 61V
CURRENT ADJ. RANGE: Adjustable for AB-Type only (via built-in potentiometer)
CURRENT ADJ. RANGE: 700 ~ 1400mA
CURRENT RIPPLE: 5.0% max. @rated current
CURRENT TOLERANCE: ±5.0%
SET UP TIME^Note.4: 500ms/115VAC,230VAC

INPUT

VOLTAGE RANGE^Note.3: 100 ~ 305VAC 142 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≧0.97/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20%(@load≧50%/115VC,230VAC; @load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
EFFICIENCY (Typ.): 90%
AC CURRENT (Typ.): 0.7A / 115VAC 0.45A / 230VAC 0.38A/277VAC
INRUSH CURRENT(Typ.): COLD START 50A(twidth=350μs measured at 50% Ipeak)/230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 5 units (circuit breaker of type B) / 8 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC
NO LOAD / STANDBY POWER CONSUMPTION: No load power consumption <0.5W for Blank / A-Type Standby power consumption <0.5W for B / AB / DA -Type

PROTECTION

SHORT CIRCUIT: Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 64 ~ 79V Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: Tcase=-40 ~ +85℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP.: Tcase=+85℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 60℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL8750(type”HL”), CSA C22.2 No. 250.13-12;BS EN/EN/AS/NZS 61347-1, BS EN/EN/AS/NZS 61347-2-13 independent, BS EN/EN62384;EAC TP TC 004;BIS IS15885(for 700A/700B/700DA/1050A only);IP65; GB/T19510.1, GB/T19510.213;KC61347-1,KC61347-2-13 approved
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2.0KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55015,BS EN/EN61000-3-2 Class C (@load≧50%) ; BS EN/EN61000-3-3; GB/T 17743, GB17625.1;EAC TP TC 020; KC KN15,KN61547
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level(surge immunity:Line-Earth: 6KV,Line-Line:4KV); EAC TP TC 020; KC KN15,KN61547

OTHERS

MTBF: 3523.7K hrs min. Telcordia SR-332 (Bellcore) 305.3Khrs min. MIL-HDBK-217F (25℃)
DIMENSION: 180*63*35.5 mm (L*W*H)
PACKING: 0.8Kg;16pcs/13.4Kg/0.67CUFT

Certifications & ratings

Type: Type HL

MODEL ENCODING

Blank: Io fixed; IP67
A: Io adjustable through built-in potentiometer; IP65
B: 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance); IP67
AB (this model): Io adjustable through built-in potentiometer & 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance); IP65
DA: DALI control technology; IP67

Test conditions and notes11

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Please refer to "DRIVING METHODS OF LED MODULE".
3. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
4. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
5. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
6. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 80℃ or less.
7. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
9. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
10. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.
11. For AB type need to consider build in using to comply with Type HL application.

Technical drawings

ELG-75-C1400AB BLOCK DIAGRAM — BLOCK DIAGRAM

ELG-75-C1400AB DIMMING OPERATION — DIMMING OPERATION

ELG-75-C1400AB OUTPUT LOAD vs TEMPERATURE(Note.7) — OUTPUT LOAD vs TEMPERATURE(Note.7)

ELG-75-C1400AB STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

ELG-75-C1400AB TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

ELG-75-C1400AB Illustration (page 9) — Illustration (page 9)

ELG-75-C1400AB Recommend Mounting Direction — Recommend Mounting Direction

Typical applications

LED street lighting
LED harbor lighting
LED bay lighting
LED greenhouse lighting
LED flood lighting
Type “HL” for use in Class I, Division 2 hazardous (Classified) location.

Downloads

Datasheet1

ELG-75-C1400AB datasheetELG-75-C-SPEC.PDF · 2026-07-06 edition PDF Download

Certificates5

EMC Certificate (ELG-75)(EN) PDF Download

UL Certificate (ELG-75-C)(EN) PDF Download

CB Certificate (ELG-75-C)(EN) PDF Download

EMC Certificate (ELG-75-C)(EN) PDF Download

ENEC Certificate (ELG-75-C)(EN) PDF Download

Test reports1

Test Report (ELG-75-C1400)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can I use the ELG-75-C1400AB to drive LED downlights in a commercial ceiling installation?

Yes. The ELG-75-C1400AB outputs 1400mA constant current across a 27–54V operating range, making it compatible with LED downlight arrays that fall within that voltage window. At 75.6W total capacity, it suits small to mid-size LED downlight clusters where individual LED forward voltage determines how many can be driven in series.

Is the ELG-75-C1400AB suitable for powering LED signage modules outdoors?

The ELG-75-C1400AB carries an IP65 water-resistance rating, which provides protection against dust ingress and low-pressure water jets. It is appropriate for sheltered outdoor signage enclosures but should not be directly exposed to rain or submersion; for fully exposed outdoor installations, the IP67-rated ELG-75-C1400B would be a better fit.

Can I connect this driver to a 0–10V dimming system for lighting control?

Yes. The AB suffix indicates this unit includes both the output-adjustment potentiometer (A feature) and the built-in 3-in-1 dimming interface (B feature), supporting 0–10V, 10V PWM, and resistance dimming signals. This allows integration with most commercial lighting control systems that output any of those signal types.

Will the ELG-75-C1400AB operate correctly on a 277V commercial supply?

Yes. The ELG-75-C1400AB accepts an input range of 100–305VAC, which covers 120V North American residential, 230V European, and 277V US commercial supplies without any manual voltage selection.

How does the ELG-75-C1400AB differ from the ELG-75-C1400A and ELG-75-C1400B?

All three variants share the same 75.6W / 1400mA output and 27–54V CC voltage range. The ELG-75-C1400A (adjustable only) adds an output potentiometer; the ELG-75-C1400B (dimmable only) adds a 3-in-1 dimming interface (0–10V, PWM, resistance); and the ELG-75-C1400AB combines both features. The ELG-75-C1400A and ELG-75-C1400AB are IP65 rated, while the ELG-75-C1400B is IP67 rated.

What is the operating temperature range for the ELG-75-C1400AB, and can it be used in cold storage areas?

The ELG-75-C1400AB is rated for a working case temperature (Tcase) of -40°C to +85°C. This range comfortably covers cold-storage and refrigerated warehouse environments; at high ambient temperatures the output load derates per the load vs temperature curve.
