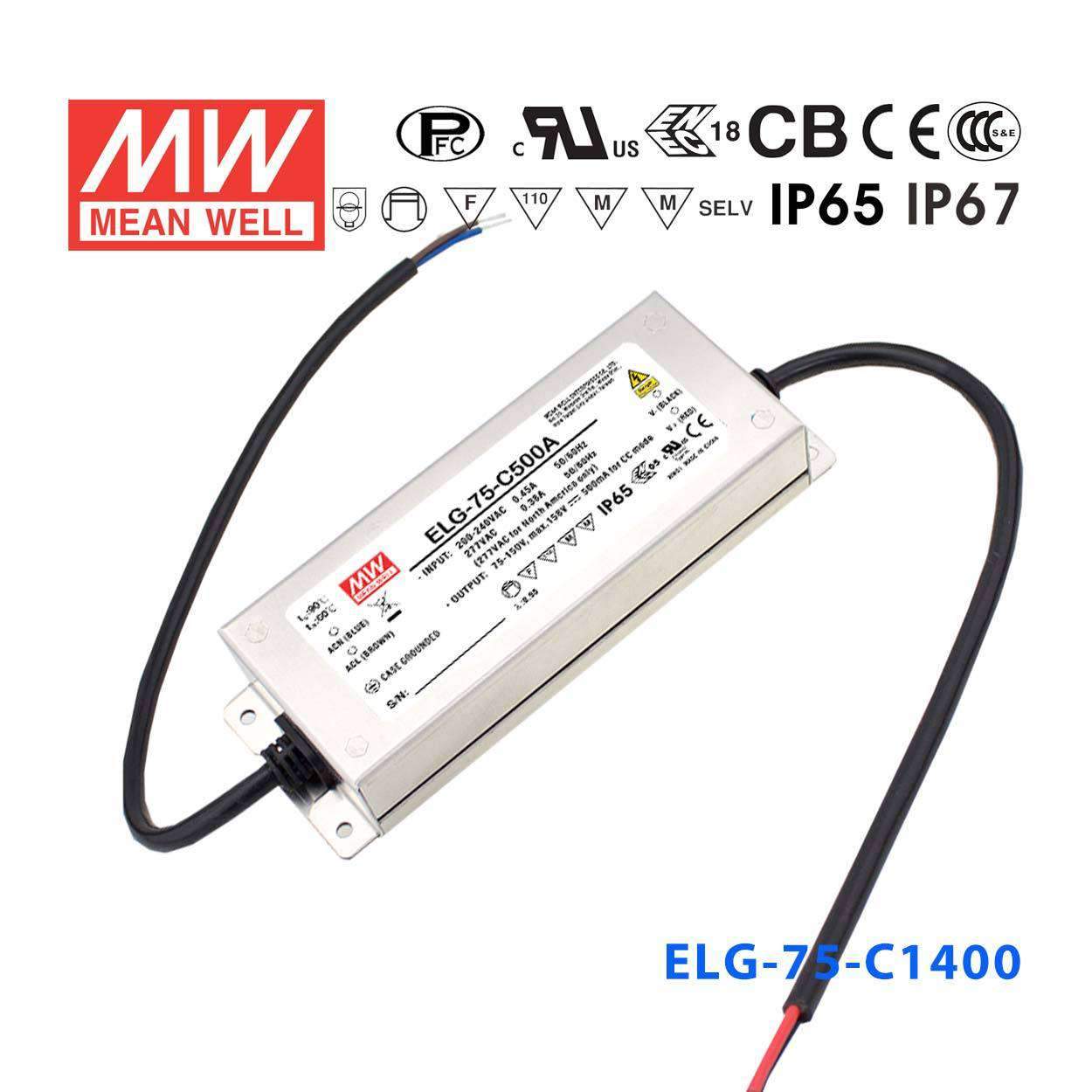

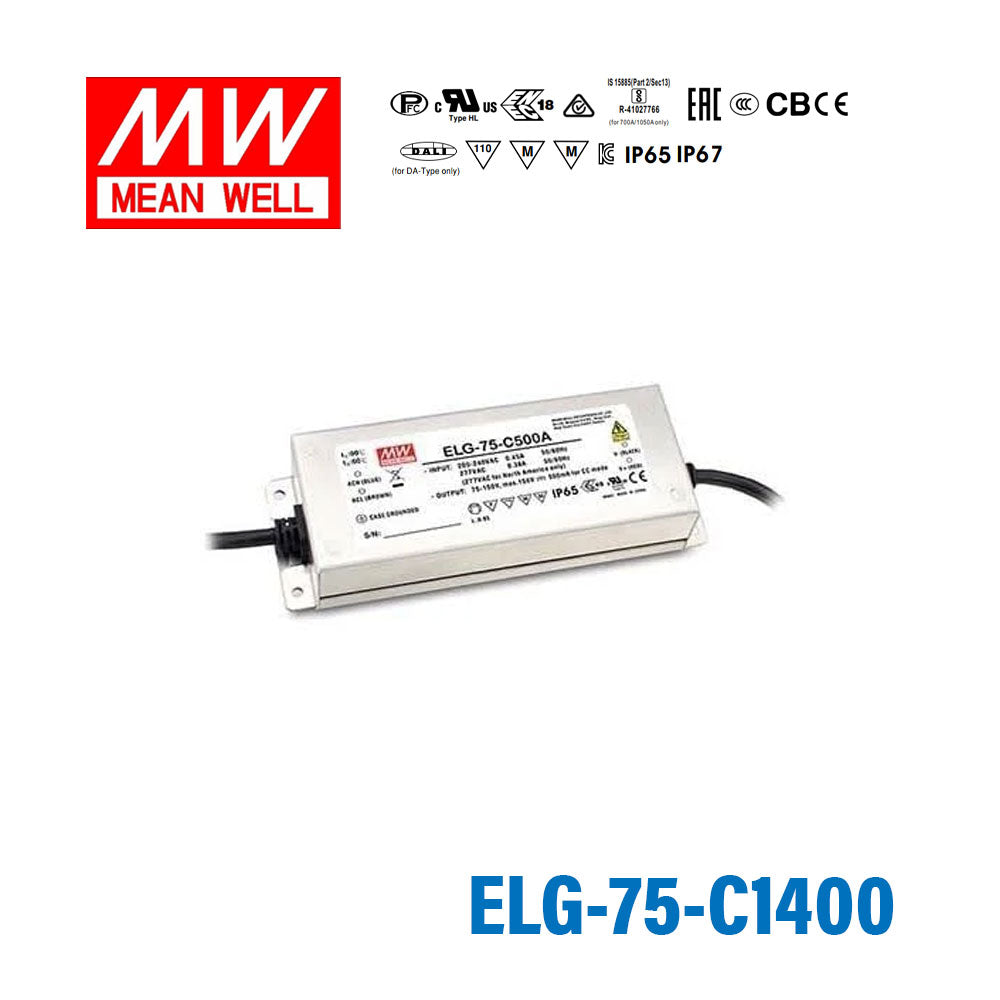

Mean Well ELG-75-C1400 Power Supply 75W 1400mA
$35.36 USD
Unit price /
Unavailable
Description
Description
The ELG-75-C1400 is a 75.6W Mean Well AC-DC constant current LED driver (input: 100~305VAC, output: 61V, operating temperature: -40~+85°C).
Key Features
- ✓ Input voltage: 100~305VAC
- ✓ Output voltage (max): 61V
- ✓ Rated output current: 1400mA
- ✓ Ingress protection: IP67
- ✓ Operating temperature: -40~+85°C
- ✓ Safety certifications: BSI, CB, CCC, CE, EAC, ENEC, RCM, UL
- ✓ 5 year warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesELG-C Series
-
Power Rating75.6 Watt
-
Output Voltage61 Volt
-
Rated Current1.4 Ampere
-
Input Voltage100V~305V
-
Standards MetBSI,CB,CCC,CE,EAC,ENEC,RCM,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length7.09 in
-
Width2.48 in
-
Height1.4 in
-
Weight1.76 lb
