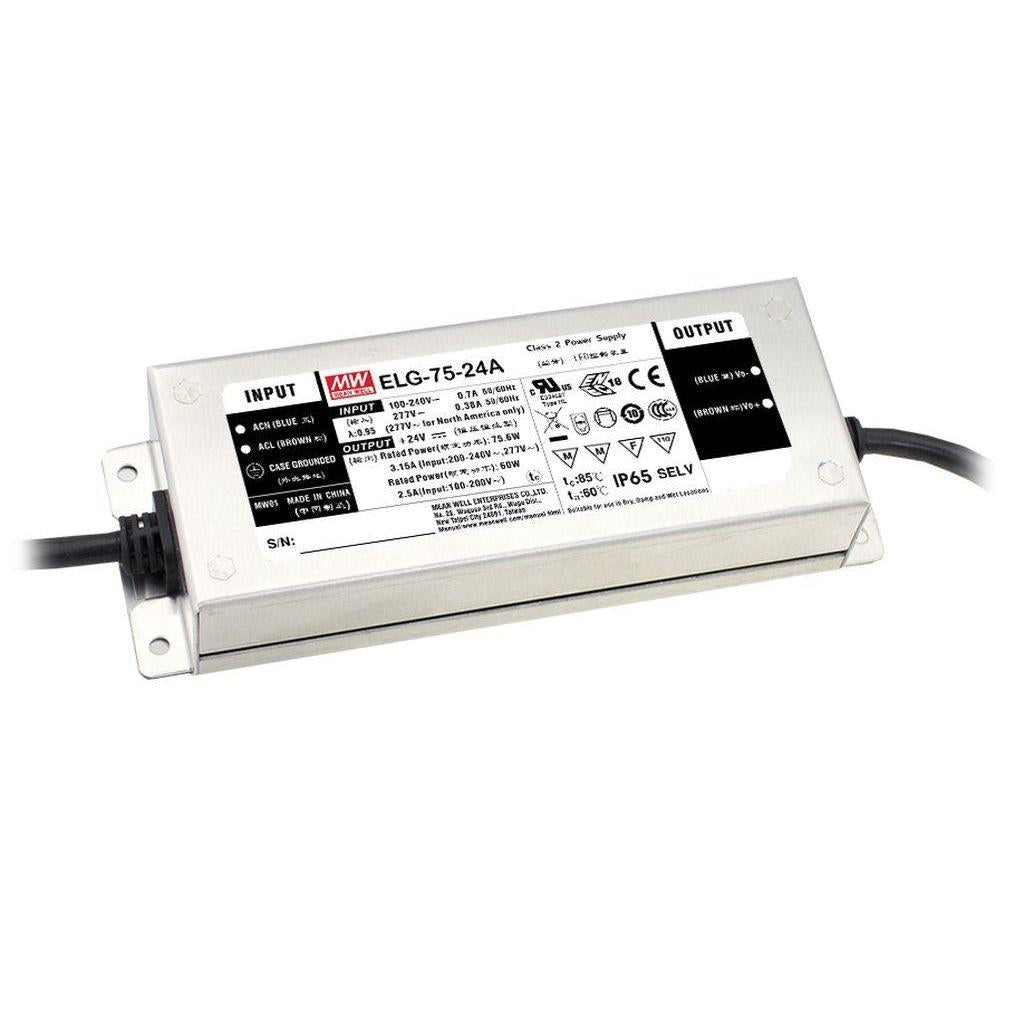

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

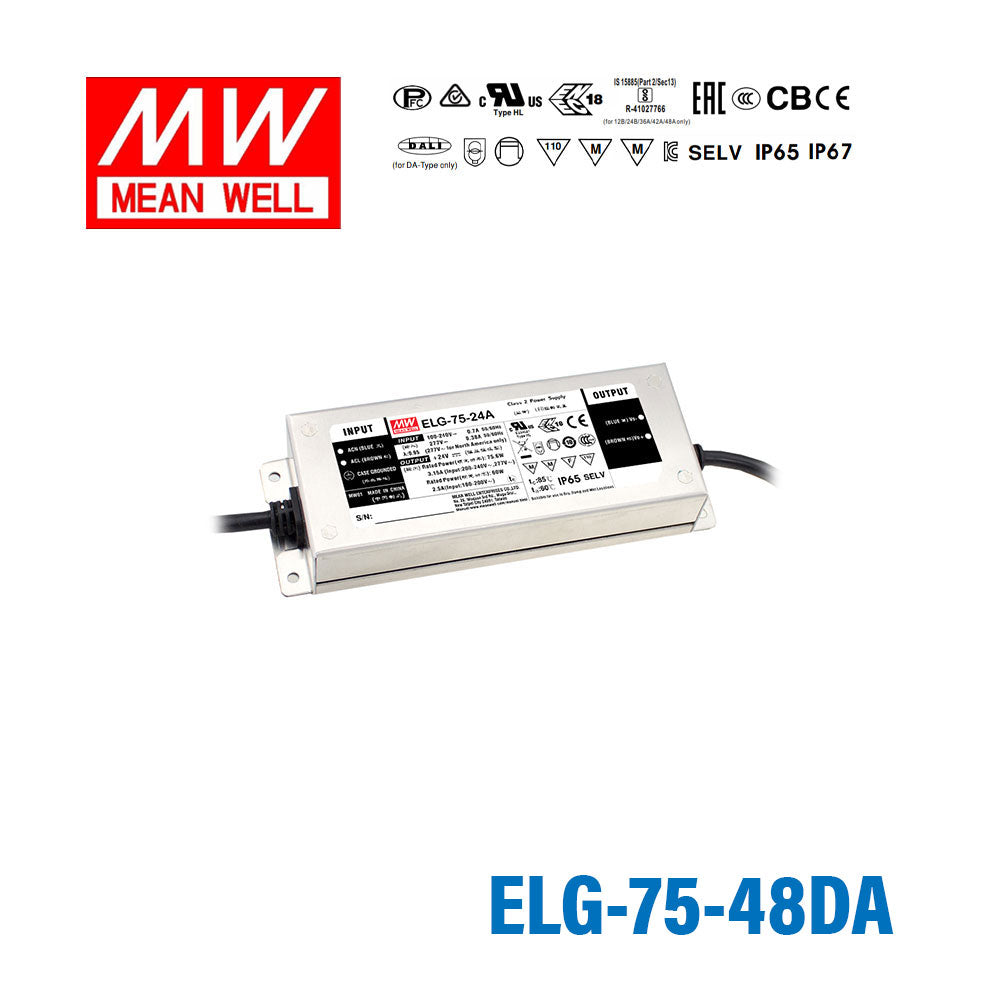

Mean Well ELG-75-48DA Power Supply 75W 48V - DALI 1.6A
Overview
ELG-75-48DA is the 48V output model of this series: rated current 1.6A, typical efficiency 90%.
ELG-75 series is a 75W AC/DC LED driver featuring the dual mode constant voltage and constant current output. ELG-75 operates from 100~305VAC and offers models with different rated voltage ranging between 12V and 48V. Thanks to the high efficiency up to 90%, with the fanless design, the entire series is able to operate for -40℃ ~ +85℃ case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. ELG-75 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system
Features
- Constant Voltage + Constant Current mode output
- Metal housing design with functional Ground
- Built-in active PFC function
- Class 2 power unit
- No load / Standby power consumption <0.5W
- IP67 / IP65 rating for indoor or outdoor installations
- Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off) ; Smart timer dimming; DALI
- Typical lifetime>50000 hours
- 5 years warranty
Specifications
OUTPUT
- DC VOLTAGE
- 48V
- CONSTANT CURRENT REGIONNote.2
- 24 ~ 48V
- RATED CURRENT
- 1.6A
- RATED POWER 200VAC ~ 305VACNote.5
- 76.8W
- RATED POWER 100VAC ~ 180VACNote.5
- 60W
- RIPPLE & NOISE (max.)Note.3
- 250mVp-p
- VOLTAGE ADJ. RANGE
- Adjustable for A/AB-Type only (via built-in potentiometer)
- VOLTAGE ADJ. RANGE
- 43.2 ~ 52.8V
- CURRENT ADJ. RANGE
- Adjustable for A/AB-Type only (via built-in potentiometer)
- CURRENT ADJ. RANGE
- 0.8 ~ 1.6A
- VOLTAGE TOLERANCENote.4
- ±2.0%
- LINE REGULATION
- ±0.5%
- LOAD REGULATION
- ±0.5%
- SETUP, RISE TIMENote.6
- 500ms, 100ms/115VAC, 230VAC
- HOLD UP TIME (Typ.)
- 10ms/ 230VAC 10ms/ 115VAC(at full load)
INPUT
- VOLTAGE RANGENote.5
- 100 ~ 305VAC 142 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
- FREQUENCY RANGE
- 47 ~ 63Hz
- POWER FACTOR
- PF≧0.97/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
- TOTAL HARMONIC DISTORTION
- THD< 20%(@load≧50%/115VC,230VAC; @load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
- EFFICIENCY (Typ.)
- 90%
- AC CURRENT
- 0.7A / 115VAC 0.45A / 230VAC 0.38A/277VAC
- INRUSH CURRENT(Typ.)
- COLD START 50A(twidth=350μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
- MAX. No. of PSUs on 16A CIRCUIT BREAKER
- 5 units (circuit breaker of type B) / 8 units (circuit breaker of type C) at 230VAC
- LEAKAGE CURRENT
- <0.75mA / 277VAC
- NO LOAD / STANDBY POWER CONSUMPTION
- No load power consumption <0.5W for Blank / A -Type Standby power consumption <0.5W for B / AB / DA-Type
PROTECTION
- OVER CURRENT
- 95 ~ 108% Constant current limiting, recovers automatically after fault condition is removed
- SHORT CIRCUIT
- Hiccup mode, recovers automatically after fault condition is removed
- OVER VOLTAGE
- 54 ~ 62V Shut down output voltage, re-power on to recover
- OVER TEMPERATURE
- Shut down output voltage, re-power on to recover
ENVIRONMENT
- WORKING TEMP.
- Tcase=-40 ~ +85℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
- MAX. CASE TEMP.
- Tcase=+85℃
- WORKING HUMIDITY
- 20 ~ 95% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +80℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.03%/℃ (0 ~ 60℃)
- VIBRATION
- 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY & EMC
- SAFETY STANDARDS
- UL8750(type”HL”), CSA C22.2 No. 250.13-12; IEC/BS EN/EN/AS/NZS 61347-1, IEC/BS EN/EN/AS/NZS 61347-2-13 independent, BS EN/EN62384;EAC TP TC 004;BIS IS15885(for 12A/12DA/12B/24A/24B/24DA/36A/36B/42A/42B/48A/48B only); IP65 or IP67; GB/T19510.1, GB/T19510.213; KC61347-1,KC61347-2-13 approved
- DALI STANDARDS
- Compliance to IEC62386-101,102,(207 by request) for DA Type only
- WITHSTAND VOLTAGE
- I/P-O/P:3.75KVAC I/P-FG:2.0KVAC O/P-FG:1.5KVAC
- ISOLATION RESISTANCE
- I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
- Compliance to BS EN/EN55015,BS EN/EN61000-3-2 Class C (@load≧50%) ; BS EN/EN61000-3-3; GB/T 17743, GB17625.1; EAC TP TC 020; KC KN15,KN61547
- EMC IMMUNITY
- Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level (surge immunity Line-Earth 6KV, Line-Line 4KV);EAC TP TC 020; KC KN15,KN61547
OTHERS
- MTBF
- 3451.7K hrs min. Telcordia SR-332 (Bellcore) 331.3Khrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 180*63*35.5mm (L*W*H)
- PACKING
- 0.8Kg;16pcs/13.4Kg/0.67CUFT
Certifications & ratings
- Type
- HL
Test conditions and notes12
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
- 2. Please refer to "DRIVING METHODS OF LED MODULE".
- 3. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
- 4. Tolerance : includes set up tolerance, line regulation and load regulation.
- 5. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
- 6. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
- 7. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
- 8. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 70℃ or less.
- 9. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
- 10. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
- 11. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
- 12. For A/AB type need to consider build in using to comply with Type HL application.
Technical drawings
Typical applications
- LED street lighting
- LED architectural lighting
- LED bay lighting
- LED floodlighting
- Type “HL” for use in Class I, Division 2 hazardous (Classified) location.
Downloads
FAQ
What does the 'DA' suffix mean on the ELG-75-48DA, and how is it different from the 'B' type?
The 'DA' suffix indicates the ELG-75-48DA includes a DALI (Digital Addressable Lighting Interface) dimming interface compliant with IEC 62386-101/102, a digital protocol widely used in commercial building automation. Unlike the 'B' type, which accepts 0–10V, 10V PWM or resistance signals, the DA type communicates over a two-wire DALI bus (DA+/DA-), enabling addressable and group-based control.
Can the ELG-75-48DA be integrated into a DALI-based building management system for 48V LED lighting?
Yes, the ELG-75-48DA is designed for DALI systems. It can be addressed and controlled individually or as part of a group via a DALI controller or BMS, allowing scene recall, occupancy-based dimming, and daylight harvesting for 48V LED installations up to 76.8W.
Is the ELG-75-48DA suitable for outdoor DALI-controlled LED signage or architectural lighting?
Yes. The ELG-75 series carries an IP65 or IP67 rating, making the ELG-75-48DA suitable for outdoor architectural lighting and signage that requires DALI control. Its -40°C to +85°C case-temperature range supports year-round outdoor deployment.
How many meters of 48V LED strip can the ELG-75-48DA power?
The ELG-75-48DA delivers up to 76.8W at 48V and 1.6A on 200–305VAC input (60W on 100–180VAC). For a 48V strip rated at 10W/m, this supports approximately 7.6 meters (76.8W ÷ 10W/m ≈ 7.6m). Check your specific strip's rated power per meter and keep total load under the rated power.
Can the ELG-75-48DA be used in a DALI-controlled 48V LED troffer or luminaire in a commercial office?
Yes, the ELG-75-48DA is well-suited for commercial office luminaires requiring DALI control. At 76.8W, 48V, and 1.6A, it can drive a 48V LED engine within a troffer or recessed fixture, and its DALI interface (IEC 62386-101/102, 16 groups and 64 addresses) enables digital dimming and group addressing.
Does the ELG-75-48DA work in cold outdoor climates for DALI-controlled landscape lighting?
Yes. The ELG-75-48DA is rated down to -40°C case temperature and the series is IP65/IP67-rated, making it appropriate for cold-climate outdoor landscapes where DALI control is needed for automated dimming at different times of night or seasonal schedules.
Can the ELG-75-48DA replace a non-DALI driver in an existing 48V lighting retrofit?
The ELG-75-48DA outputs 48V at up to 1.6A constant current (76.8W), so it can replace a non-DALI driver with matching voltage and power ratings. Adding the DALI interface requires a DALI controller or bus already present in the circuit; if no DALI infrastructure exists, a simpler 'A' or 'B' type driver may be more appropriate.
