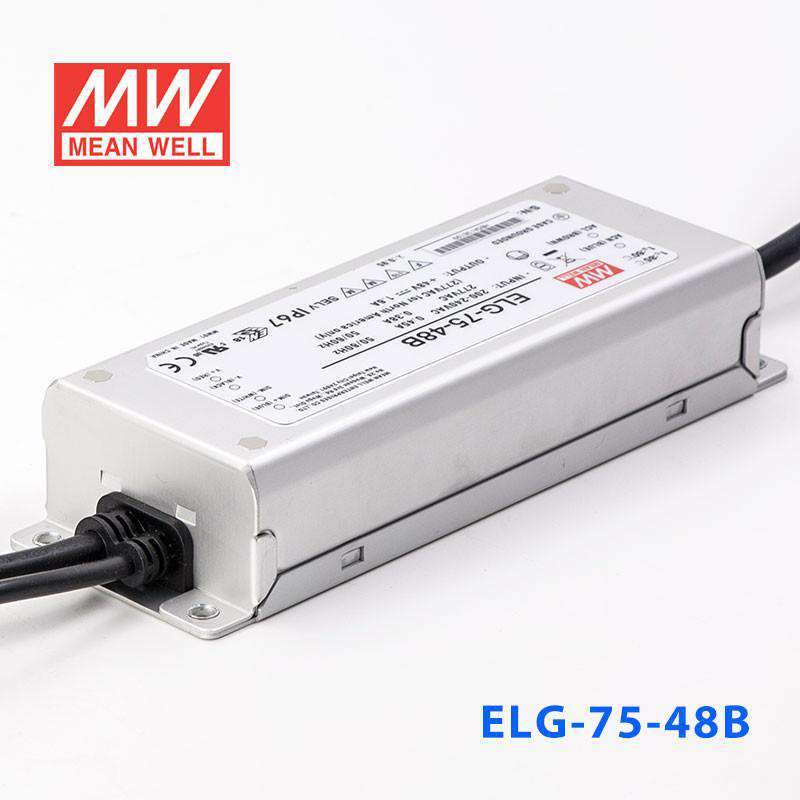

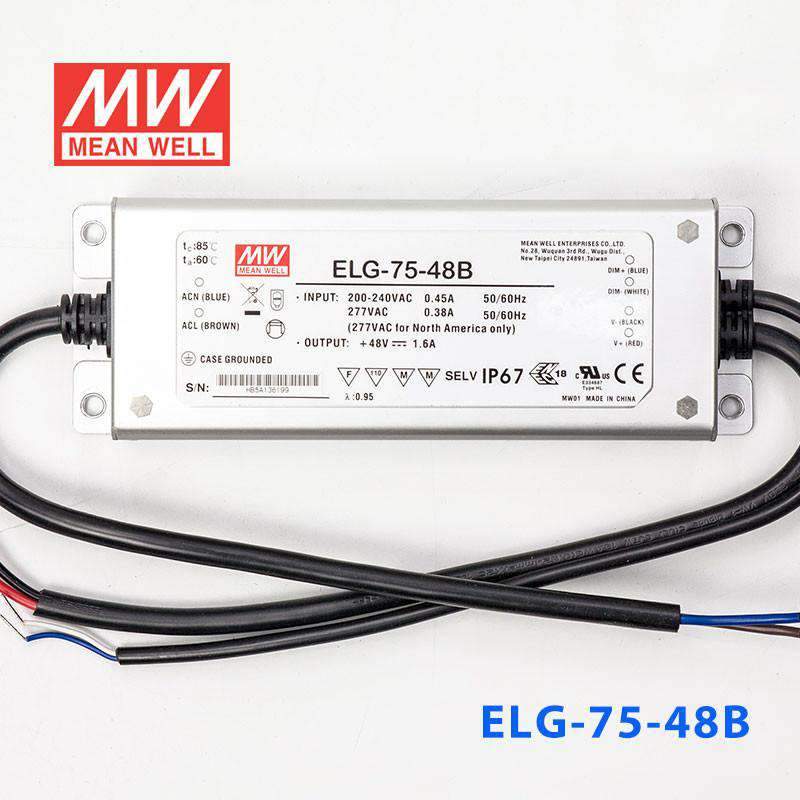

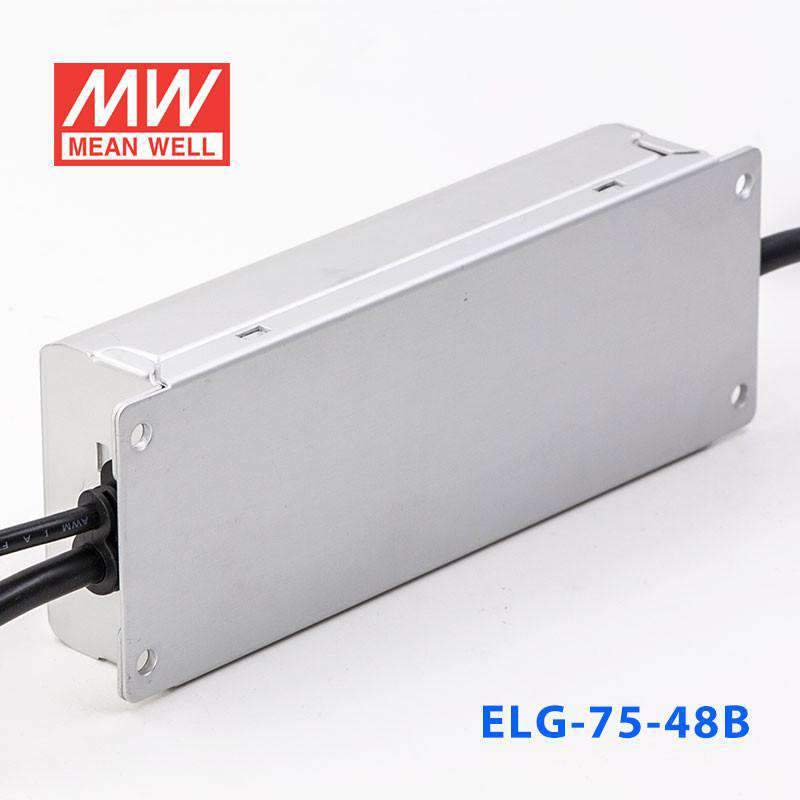

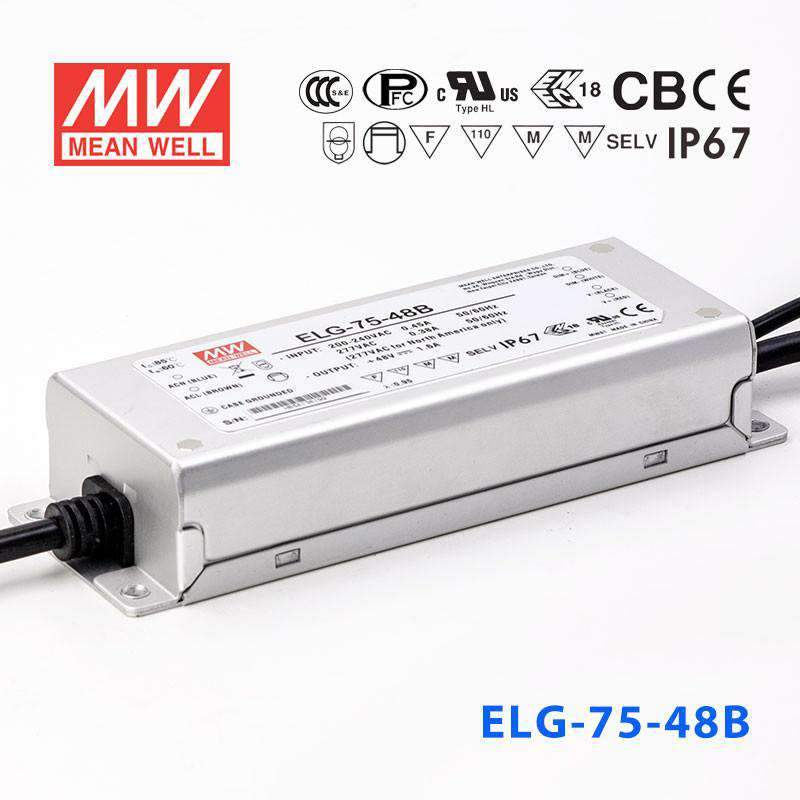

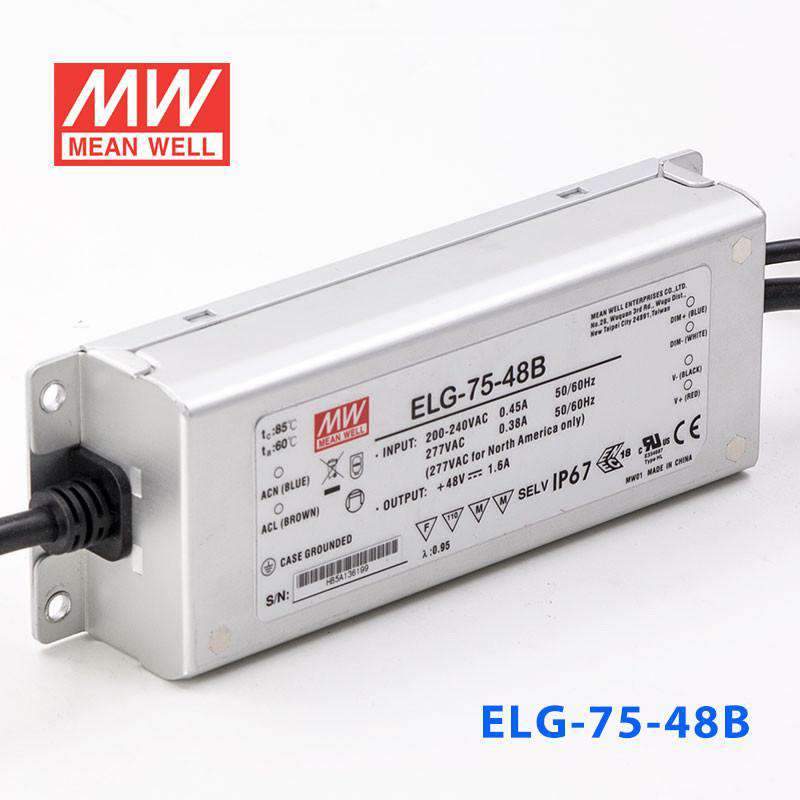

Mean Well ELG-75-48B Power Supply - 75W 48V - Dimmable

Name: Mean Well ELG-75-48B Power Supply 75W 48V - Dimmable 1.6A
Brand: Mean Well
SKU: ELG-75-48B
Price: 40.34 USD
Availability: InStock

Overview

ELG-75-48B is the 48V output model of this series: rated current 1.6A, typical efficiency 90%.

ELG-75 series is a 75W AC/DC LED driver featuring the dual mode constant voltage and constant current output. ELG-75 operates from 100~305VAC and offers models with different rated voltage ranging between 12V and 48V. Thanks to the high efficiency up to 90%, with the fanless design, the entire series is able to operate for -40℃ ~ +85℃ case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. ELG-75 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system

Features

Constant Voltage + Constant Current mode output
Metal housing design with functional Ground
Built-in active PFC function
Class 2 power unit
No load / Standby power consumption <0.5W
IP67 / IP65 rating for indoor or outdoor installations
Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off) ; Smart timer dimming; DALI
Typical lifetime>50000 hours
5 years warranty

Specifications

ELG-75-48BSpecifications from the official datasheet (2026-07-06 edition)

OUTPUT

DC VOLTAGE: 48V
CONSTANT CURRENT REGION^Note.2: 24 ~ 48V
RATED CURRENT: 1.6A
RATED POWER 200VAC ~ 305VAC^Note.5: 76.8W
RATED POWER 100VAC ~ 180VAC^Note.5: 60W
RIPPLE & NOISE (max.)^Note.3: 250mVp-p
VOLTAGE ADJ. RANGE: Adjustable for A/AB-Type only (via built-in potentiometer)
VOLTAGE ADJ. RANGE: 43.2 ~ 52.8V
CURRENT ADJ. RANGE: Adjustable for A/AB-Type only (via built-in potentiometer)
CURRENT ADJ. RANGE: 0.8 ~ 1.6A
VOLTAGE TOLERANCE^Note.4: ±2.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±0.5%
SETUP, RISE TIME^Note.6: 500ms, 100ms/115VAC, 230VAC
HOLD UP TIME (Typ.): 10ms/ 230VAC 10ms/ 115VAC(at full load)

INPUT

VOLTAGE RANGE^Note.5: 100 ~ 305VAC 142 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR: PF≧0.97/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20%(@load≧50%/115VC,230VAC; @load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
EFFICIENCY (Typ.): 90%
AC CURRENT: 0.7A / 115VAC 0.45A / 230VAC 0.38A/277VAC
INRUSH CURRENT(Typ.): COLD START 50A(twidth=350μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 5 units (circuit breaker of type B) / 8 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC
NO LOAD / STANDBY POWER CONSUMPTION: No load power consumption <0.5W for Blank / A -Type Standby power consumption <0.5W for B / AB / DA-Type

PROTECTION

OVER CURRENT: 95 ~ 108% Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT: Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 54 ~ 62V Shut down output voltage, re-power on to recover
OVER TEMPERATURE: Shut down output voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: Tcase=-40 ~ +85℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP.: Tcase=+85℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 60℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL8750(type”HL”), CSA C22.2 No. 250.13-12; IEC/BS EN/EN/AS/NZS 61347-1, IEC/BS EN/EN/AS/NZS 61347-2-13 independent, BS EN/EN62384;EAC TP TC 004;BIS IS15885(for 12A/12DA/12B/24A/24B/24DA/36A/36B/42A/42B/48A/48B only); IP65 or IP67; GB/T19510.1, GB/T19510.213; KC61347-1,KC61347-2-13 approved
DALI STANDARDS: Compliance to IEC62386-101,102,(207 by request) for DA Type only
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2.0KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55015,BS EN/EN61000-3-2 Class C (@load≧50%) ; BS EN/EN61000-3-3; GB/T 17743, GB17625.1; EAC TP TC 020; KC KN15,KN61547
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level (surge immunity Line-Earth 6KV, Line-Line 4KV);EAC TP TC 020; KC KN15,KN61547

OTHERS

MTBF: 3451.7K hrs min. Telcordia SR-332 (Bellcore) 331.3Khrs min. MIL-HDBK-217F (25℃)
DIMENSION: 180*63*35.5mm (L*W*H)
PACKING: 0.8Kg;16pcs/13.4Kg/0.67CUFT

Certifications & ratings

Type: HL

Test conditions and notes12

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Please refer to "DRIVING METHODS OF LED MODULE".
3. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
4. Tolerance : includes set up tolerance, line regulation and load regulation.
5. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
6. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
7. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
8. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 70℃ or less.
9. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
10. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
11. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
12. For A/AB type need to consider build in using to comply with Type HL application.

Technical drawings

ELG-75-48B Block Diagram — Block Diagram

ELG-75-48B DIMMING OPERATION — DIMMING OPERATION

ELG-75-48B OUTPUT LOAD vs TEMPERATURE(Note.9) — OUTPUT LOAD vs TEMPERATURE(Note.9)

ELG-75-48B STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

ELG-75-48B TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

ELG-75-48B Mechanical Specification — Mechanical Specification

ELG-75-48B Dimensions (mm) — Dimensions (mm)

ELG-75-48B ※ 3Y Model (3-wire input) — ※ 3Y Model (3-wire input)

ELG-75-48B Recommend Mounting Direction — Recommend Mounting Direction

Typical applications

LED street lighting
LED architectural lighting
LED bay lighting
LED floodlighting
Type “HL” for use in Class I, Division 2 hazardous (Classified) location.

Downloads

Datasheet1

ELG-75-48B datasheetELG-75-SPEC.PDF · 2026-07-06 edition PDF Download

Certificates4

EMC Certificate (ELG-75)(EN) PDF Download

CB Certificate (ELG-75)(EN) PDF Download

UL Certificate (ELG-75)(EN) PDF Download

EMC Certificate (ELG-75)(EN) PDF Download

Test reports1

Test Report (ELG-75-48)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

What dimming methods does the ELG-75-48B support?

The 'B' suffix on the ELG-75-48B denotes 3-in-1 dimming: the output current can be adjusted by applying 0–10VDC, a 10V PWM signal (100Hz–3KHz), or a resistance between DIM+ and DIM-. Minimum dimming level is about 8%, and the dimming source current from the driver is 100μA (typ.).

Can the ELG-75-48B power dimmable 48V LED strips in an outdoor landscape lighting circuit?

Yes. The ELG-75 series carries an IP65 or IP67 rating, making the ELG-75-48B suitable for outdoor landscape installations exposed to rain. Its 76.8W, 48V, 1.6A output (60W on 100–180VAC) drives a 48V strip load within that envelope, and the dimming input allows brightness adjustment for nighttime scenes.

Is the ELG-75-48B suitable for wet environments such as pool deck or fountain lighting?

The ELG-75 series is rated IP65 or IP67, which suits wet outdoor areas such as pool deck surrounds exposed to rain or splashing. The datasheet does not give a submersion rating, so do not install the driver where it can be immersed or sit in standing water, and follow MEAN WELL's IP installation cautions in the user manual.

How much 48V LED strip can the ELG-75-48B supply?

The ELG-75-48B outputs up to 76.8W at 48V and 1.6A on 200–305VAC input (60W on 100–180VAC). For a 48V strip consuming 14.4W/m, the driver can supply approximately 5.3 meters (76.8W ÷ 14.4W/m ≈ 5.3m). Always verify your strip's rated power per meter and leave a small buffer below the rated maximum to ensure stable operation.

Can the ELG-75-48B be used in a 48V dimmable LED stair lighting system installed outdoors?

Yes, the ELG-75-48B is a strong match for outdoor stair lighting. The series' IP65/IP67 rating handles rain and moisture exposure on exposed exterior stairs, and the 0–10V/PWM/resistance dimming input allows integration with sensors or controllers that output these signals.

Is the ELG-75-48B appropriate for powering 48V LEDs inside a refrigerated display cabinet that needs dimming?

Yes. The case-temperature rating of -40°C to +85°C and IP65/IP67 series sealing make the ELG-75-48B suitable for refrigerated display environments (keep it free of condensation; humidity rating is non-condensing), and the 3-in-1 dimming allows brightness adjustment for product presentation requirements.
