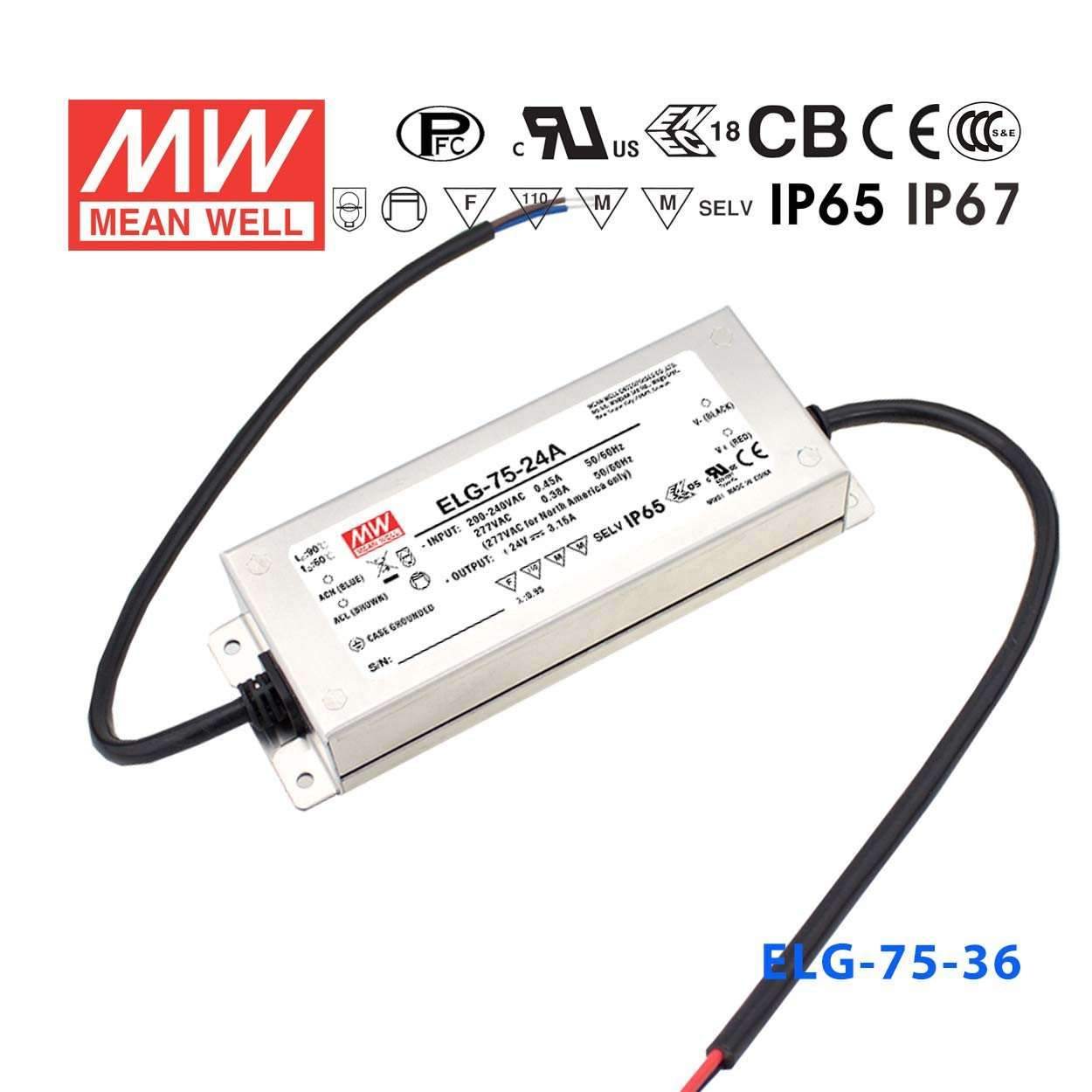

Mean Well ELG-75-36B Power Supply | 75W 36V - Dimmable

Name: Mean Well ELG-75-36B Power Supply 75W 36V - Dimmable 2.1A
Brand: Mean Well
SKU: ELG-75-36B
Price: 40.34 USD
Availability: InStock

Overview

ELG-75-36B is the 36V output model of this series: rated current 2.1A, typical efficiency 89%.

ELG-75 series is a 75W AC/DC LED driver featuring the dual mode constant voltage and constant current output. ELG-75 operates from 100~305VAC and offers models with different rated voltage ranging between 12V and 48V. Thanks to the high efficiency up to 90%, with the fanless design, the entire series is able to operate for -40℃ ~ +85℃ case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. ELG-75 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system

Features

Constant Voltage + Constant Current mode output
Metal housing design with functional Ground
Built-in active PFC function
Class 2 power unit
No load / Standby power consumption <0.5W
IP67 / IP65 rating for indoor or outdoor installations
Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off) ; Smart timer dimming; DALI
Typical lifetime>50000 hours
5 years warranty

Specifications

ELG-75-36BSpecifications from the official datasheet (2026-07-06 edition)

OUTPUT

DC VOLTAGE: 36V
CONSTANT CURRENT REGION^Note.2: 18 ~ 36V
RATED CURRENT: 2.1A
RATED POWER 200VAC ~ 305VAC^Note.5: 75.6W
RATED POWER 100VAC ~ 180VAC^Note.5: 60W
RIPPLE & NOISE (max.)^Note.3: 250mVp-p
VOLTAGE ADJ. RANGE: Adjustable for A/AB-Type only (via built-in potentiometer)
VOLTAGE ADJ. RANGE: 32.4 ~ 39.6V
CURRENT ADJ. RANGE: Adjustable for A/AB-Type only (via built-in potentiometer)
CURRENT ADJ. RANGE: 1.05 ~ 2.1A
VOLTAGE TOLERANCE^Note.4: ±2.5%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±1.0%
SETUP, RISE TIME^Note.6: 500ms, 100ms/115VAC, 230VAC
HOLD UP TIME (Typ.): 10ms/ 230VAC 10ms/ 115VAC(at full load)

INPUT

VOLTAGE RANGE^Note.5: 100 ~ 305VAC 142 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR: PF≧0.97/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20%(@load≧50%/115VC,230VAC; @load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
EFFICIENCY (Typ.): 89%
AC CURRENT: 0.7A / 115VAC 0.45A / 230VAC 0.38A/277VAC
INRUSH CURRENT(Typ.): COLD START 50A(twidth=350μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 5 units (circuit breaker of type B) / 8 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC
NO LOAD / STANDBY POWER CONSUMPTION: No load power consumption <0.5W for Blank / A -Type Standby power consumption <0.5W for B / AB / DA-Type

PROTECTION

OVER CURRENT: 95 ~ 108% Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT: Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 41 ~ 48V Shut down output voltage, re-power on to recover
OVER TEMPERATURE: Shut down output voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: Tcase=-40 ~ +85℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP.: Tcase=+85℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 60℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL8750(type”HL”), CSA C22.2 No. 250.13-12; IEC/BS EN/EN/AS/NZS 61347-1, IEC/BS EN/EN/AS/NZS 61347-2-13 independent, BS EN/EN62384;EAC TP TC 004;BIS IS15885(for 12A/12DA/12B/24A/24B/24DA/36A/36B/42A/42B/48A/48B only); IP65 or IP67; GB/T19510.1, GB/T19510.213; KC61347-1,KC61347-2-13 approved
DALI STANDARDS: Compliance to IEC62386-101,102,(207 by request) for DA Type only
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2.0KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55015,BS EN/EN61000-3-2 Class C (@load≧50%) ; BS EN/EN61000-3-3; GB/T 17743, GB17625.1; EAC TP TC 020; KC KN15,KN61547
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level (surge immunity Line-Earth 6KV, Line-Line 4KV);EAC TP TC 020; KC KN15,KN61547

OTHERS

MTBF: 3451.7K hrs min. Telcordia SR-332 (Bellcore) 331.3Khrs min. MIL-HDBK-217F (25℃)
DIMENSION: 180*63*35.5mm (L*W*H)
PACKING: 0.8Kg;16pcs/13.4Kg/0.67CUFT

Certifications & ratings

Type: HL

Test conditions and notes12

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Please refer to "DRIVING METHODS OF LED MODULE".
3. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
4. Tolerance : includes set up tolerance, line regulation and load regulation.
5. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
6. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
7. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
8. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 70℃ or less.
9. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
10. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
11. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
12. For A/AB type need to consider build in using to comply with Type HL application.

Technical drawings

ELG-75-36B Block Diagram — Block Diagram

ELG-75-36B DIMMING OPERATION — DIMMING OPERATION

ELG-75-36B OUTPUT LOAD vs TEMPERATURE(Note.9) — OUTPUT LOAD vs TEMPERATURE(Note.9)

ELG-75-36B STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

ELG-75-36B TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

ELG-75-36B Mechanical Specification — Mechanical Specification

ELG-75-36B Dimensions (mm) — Dimensions (mm)

ELG-75-36B ※ 3Y Model (3-wire input) — ※ 3Y Model (3-wire input)

ELG-75-36B Recommend Mounting Direction — Recommend Mounting Direction

Typical applications

LED street lighting
LED architectural lighting
LED bay lighting
LED floodlighting
Type “HL” for use in Class I, Division 2 hazardous (Classified) location.

Downloads

Datasheet1

ELG-75-36B datasheetELG-75-SPEC.PDF · 2026-07-06 edition PDF Download

Certificates4

EMC Certificate (ELG-75)(EN) PDF Download

CB Certificate (ELG-75)(EN) PDF Download

UL Certificate (ELG-75)(EN) PDF Download

EMC Certificate (ELG-75)(EN) PDF Download

Test reports1

Test Report (ELG-75-36)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can I use the ELG-75-36B to power outdoor LED strip lighting?

Yes. The ELG-75 series carries an IP65 or IP67 rating, making it suitable for outdoor installations where the driver may be exposed to rain, dust, or splashing water. It is rated for a case temperature of -40°C to +85°C, covering cold climates and hot enclosures alike.

How many meters of 36V LED strip can the ELG-75-36B power?

The ELG-75-36B delivers 75.6W at 36V on 200–305VAC input (60W on 100–180VAC). Divide the rated power by your strip's rated wattage per meter to estimate maximum length—for example, a 10 W/m strip allows approximately 7.5 meters, while a 15 W/m strip allows about 5 meters. Always verify your strip's rated power per meter and leave a 20% safety margin.

Is the ELG-75-36B a good choice for powering 36V LED signage cabinets?

Yes. At 75.6W and 36V with the series' IP65/IP67 protection, this driver suits medium-sized outdoor sign cabinets using 36V LED modules or channel letter lighting. Its wide 100–305VAC input range is compatible with both North American and international mains.

Can the ELG-75-36B drive 36V LED strips in architectural cove lighting?

Yes. The ELG-75-36B's constant-current output at 36V with 2.1A maximum current is well matched to in-ceiling or cove installations. The 3-in-1 dimming interface (via the 'B' suffix) accepts 10V analog, PWM, or resistance signals, enabling smooth integration with common building automation systems.

What dimming methods does the ELG-75-36B support?

The 'B' suffix on the ELG-75-36B indicates 3-in-1 dimming, which accepts a 0–10VDC analog signal, a 10V PWM signal (100Hz–3KHz), or a resistance control input. This makes it compatible with a broad range of dimmers and building management systems without requiring a separate interface module.

How does the ELG-75-36B compare to other dimmable ELG-75-36 variants?

The ELG-75-36 models at 36V / 2.1A include: the base model with no dimming; the 'A' suffix with a built-in potentiometer for output adjustment; the 'B' suffix (this unit) with 3-in-1 dimming; the 'AB' with both adjustment and 3-in-1 dimming; and the 'DA' with DALI dimming. All share 75.6W output (60W on 100–180VAC); the series is rated IP65 or IP67.
