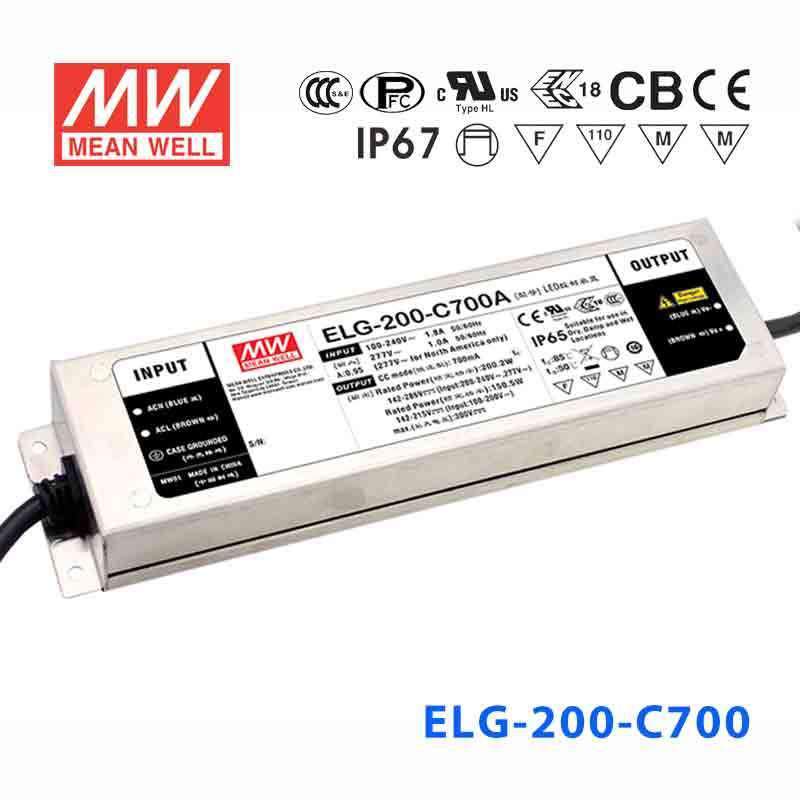

Mean Well ELG-200-C700A Power Supply | Adjustable 200W 700mA | Constant Current LED Driver

Name: Mean Well ELG-200-C700A Power Supply 200W 700mA - Adjustable
Brand: Mean Well
SKU: ELG-200-C700A
Price: 55.42 USD
Availability: InStock

Overview

ELG-200-C700A is the model of this series: rated current 700mA, typical efficiency 93%.

ELG-200-C series is a 200W LED AC/DC driver featuring the constant current mode and high voltage output. ELG-200-C operates from 100~305VAC and offers models with different rated current ranging between 700mA and 2100mA. Thanks to the high efficiency up to 93%, with the fanless design, the entire series is able to operate for -40℃~+85℃ case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. ELG-200-C is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

Constant current mode output
Metal housing design with functional Ground
Built-in active PFC function
No load / Standby power consumption <0.5W
IP67 / IP65 rating for indoor or outdoor installations
Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off); Smart timer dimming; DALI
Typical lifetime>50000 hours
5 years warranty

Specifications

ELG-200-C700ASpecifications from the official datasheet (2026-07-06 edition)

OUTPUT

RATED CURRENT: 700mA
RATED POWER 200VAC ~ 305VAC: 200.2W
RATED POWER 100VAC ~ 180VAC: 150.5W
CONSTANT CURRENT REGION^Note.2: 142 ~ 286V
OPEN CIRCUIT VOLTAGE(max.): 300V
CURRENT ADJ. RANGE: Adjustable for A/AB-Type only (via built-in potentiometer) 350 ~ 700mA
CURRENT RIPPLE: 5.0% max. @rated current
CURRENT TOLERANCE: ±5.0%
SET UP TIME^Note.4: 800ms/115VAC, 500ms/230VAC

INPUT

VOLTAGE RANGE^Note.3: 100 ~ 305VAC 142 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≧0.97/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20%(@load≧50%/115VC,230VAC; @load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
EFFICIENCY (Typ.): 93%
AC CURRENT (Typ.): 1.8A / 115VAC 1.0A / 230VAC 1.0A/277VAC
INRUSH CURRENT(Typ.): COLD START 65A(twidth=680μs measured at 50% Ipeak)/230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 2 units (circuit breaker of type B) / 4 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC
NO LOAD / STANDBY POWER CONSUMPTION: No load power consumption <0.5W for Blank / A-Type Standby power consumption <0.5W for B / AB / DA-Type

PROTECTION

SHORT CIRCUIT: Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 315 ~ 370V Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: Tcase=-40 ~ +85℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP.: Tcase=+85℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 60℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL8750(type”HL”), CSA C22.2 No. 250.13-12;BS EN/EN/AS/NZS 61347-1,BS EN/EN/AS/NZS 61347-2-13 independent, BS EN/EN62384;GB/T19510.1,GB/T19510.213;EAC TP TC 004;BIS IS15885(for 700A only); IP65 or IP67;KC61347-1,KC61347-2-13 approved
DALI STANDARDS: Compliance to IEC62386-101,102,(207 by request) for DA Type only
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2.0KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55015,BS EN/EN61000-3-2 Class C (@load≧50%) ; BS EN/EN61000-3-3; GB/T 17743, GB17625.1; EAC TP TC 020; KC KN15,KN61547
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level(surge immunity:Line-Earth:6KV, Line-Line:4KV);EAC TP TC 020; KC KN15,KN61547

OTHERS

MTBF: 2728.6K hrs min. Telcordia SR-332 (Bellcore) ;217.6K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 244*71*37.5 mm (L*W*H)
PACKING: 1.22Kg; 12pcs /15.2kg / 0.72CUFT

Certifications & ratings

Type: Type HL

Test conditions and notes11

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Please refer to "DRIVING METHODS OF LED MODULE".
3. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
4. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
5. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
6. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 85℃ or less.
7. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
9. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
10. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.
11. For A/AB type need to consider build in using to comply with Type HL application.

Technical drawings

ELG-200-C700A BLOCK DIAGRAM — BLOCK DIAGRAM

ELG-200-C700A DIMMING OPERATION — DIMMING OPERATION

ELG-200-C700A OUTPUT LOAD vs TEMPERATURE(Note.7) — OUTPUT LOAD vs TEMPERATURE(Note.7)

ELG-200-C700A STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

ELG-200-C700A TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

ELG-200-C700A LIFETIME(Kh) — LIFETIME(Kh)

ELG-200-C700A MECHANICAL SPECIFICATION — MECHANICAL SPECIFICATION

ELG-200-C700A Dimensions (mm) — Dimensions (mm)

ELG-200-C700A ※ 3Y Model (3-wire input) — ※ 3Y Model (3-wire input)

ELG-200-C700A Recommend Mounting Direction — Recommend Mounting Direction

Typical applications

LED street lighting
LED harbar lighting
LED bay lighting
LED greenhouse lighting
LED flood lighting
Type "HL" for use in Class I, Division 2 hazardous (Classified) location.

Downloads

Datasheet1

ELG-200-C700A datasheetELG-200-C-SPEC.PDF · 2026-07-06 edition PDF Download

Certificates4

UL Certificate (ELG-200-C)(EN) PDF Download

CB Certificate (ELG-200-C)(EN) PDF Download

EMC Certificate (ELG-200-C)(EN) PDF Download

ENEC Certificate (ELG-200-C)(EN) PDF Download

Test reports1

Test Report (ELG-200-C700)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can I use the ELG-200-C700A to drive LED downlights in a commercial lighting retrofit?

Yes. The ELG-200-C700A delivers 700mA constant current across a CC voltage range of 142–286V, making it well suited for series-connected LED downlight arrays in commercial fixtures. Its 200.2W capacity handles large multi-lamp installations, and IP65 water resistance allows use in damp or dust-exposed ceiling voids.

Is the ELG-200-C700A suitable for outdoor architectural LED signage?

The ELG-200-C700A carries an IP65 water-resistant rating, which protects against directed water jets and dust ingress. It can be used in outdoor signage cabinets or channel-letter modules where the driver is housed in a protected enclosure. For fully exposed or submersion-risk installations, the IP67-rated variants in the same family offer a higher protection level.

Can this driver power a large LED array in a horticultural or industrial grow-light fixture?

The ELG-200-C700A supports input voltages from 100–305VAC, is rated for a case temperature (Tcase) of -40°C to +85°C, and delivers 200.2W at 700mA, adjustable down to 350mA via its built-in potentiometer. These characteristics suit demanding industrial or horticultural LED array applications. Verify that the combined forward voltage of your series LED string is within the 142–286V CC range.

What LED loads are compatible with the ELG-200-C700A, and how many LEDs can it drive?

This driver operates in constant current mode at 700mA with a CC output voltage range of 142–286V. Compatible LED loads are those with a combined forward voltage that falls within that range when connected in series. The number of LEDs depends entirely on the forward voltage of each individual LED — do not assume a fixed LED count.

Does the ELG-200-C700A work in cold-storage or outdoor environments with low ambient temperatures?

Yes. The case temperature (Tcase) rating is -40°C to +85°C, so the driver can function in cold-storage rooms, outdoor installations, and other low-temperature environments. The IP65 rating also protects it against dust and water jets in these settings.

What is the difference between the ELG-200-C700A and the ELG-200-C700AB, ELG-200-C700B, and ELG-200-C700DA?

All four share 200W-class output (200.2W) and 700mA constant current with a 142–286V CC range. The ELG-200-C700A (this unit) is adjustable-output only (350–700mA) with IP65. The ELG-200-C700AB adds 3-in-1 dimming to the adjustable version (IP65). The ELG-200-C700B is dimmable only with IP67. The ELG-200-C700DA supports DALI dimming protocol with IP67.

Can I use the ELG-200-C700A in an enclosure or luminaire rated for wet locations?

The driver itself is rated IP65, providing protection against water jets. When installed inside a luminaire or enclosure that is itself rated for wet locations, the system-level protection depends on the enclosure rating. For direct wet-location exposure without an additional enclosure, the IP67-rated variants such as the ELG-200-C700B or ELG-200-C700DA are more appropriate.
