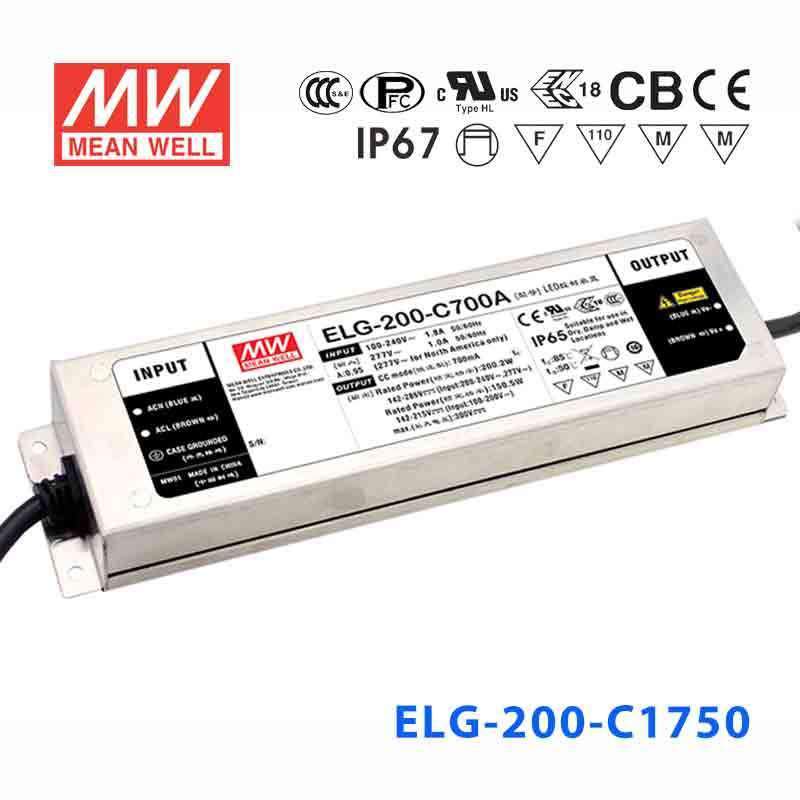

Mean Well ELG-200-C1750 Power Supply 200W 1750mA
Overview
ELG-200-C1750 is the model of this series: rated current 1750mA, typical efficiency 92%.
ELG-200-C series is a 200W LED AC/DC driver featuring the constant current mode and high voltage output. ELG-200-C operates from 100~305VAC and offers models with different rated current ranging between 700mA and 2100mA. Thanks to the high efficiency up to 93%, with the fanless design, the entire series is able to operate for -40℃~+85℃ case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. ELG-200-C is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.
Features
- Constant current mode output
- Metal housing design with functional Ground
- Built-in active PFC function
- No load / Standby power consumption <0.5W
- IP67 / IP65 rating for indoor or outdoor installations
- Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off); Smart timer dimming; DALI
- Typical lifetime>50000 hours
- 5 years warranty
Specifications
OUTPUT
- RATED CURRENT
- 1750mA
- RATED POWER 200VAC ~ 305VAC
- 199.5W
- RATED POWER 100VAC ~ 180VAC
- 150.5W
- CONSTANT CURRENT REGIONNote.2
- 57 ~ 114V
- OPEN CIRCUIT VOLTAGE(max.)
- 120V
- CURRENT ADJ. RANGE
- Adjustable for A/AB-Type only (via built-in potentiometer) 875 ~ 1750mA
- CURRENT RIPPLE
- 5.0% max. @rated current
- CURRENT TOLERANCE
- ±5.0%
- SET UP TIMENote.4
- 800ms/115VAC, 500ms/230VAC
INPUT
- VOLTAGE RANGENote.3
- 100 ~ 305VAC 142 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
- FREQUENCY RANGE
- 47 ~ 63Hz
- POWER FACTOR (Typ.)
- PF≧0.97/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
- TOTAL HARMONIC DISTORTION
- THD< 20%(@load≧50%/115VC,230VAC; @load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
- EFFICIENCY (Typ.)
- 92%
- AC CURRENT (Typ.)
- 1.8A / 115VAC 1.0A / 230VAC 1.0A/277VAC
- INRUSH CURRENT(Typ.)
- COLD START 65A(twidth=680μs measured at 50% Ipeak)/230VAC; Per NEMA 410
- MAX. No. of PSUs on 16A CIRCUIT BREAKER
- 2 units (circuit breaker of type B) / 4 units (circuit breaker of type C) at 230VAC
- LEAKAGE CURRENT
- <0.75mA / 277VAC
- NO LOAD / STANDBY POWER CONSUMPTION
- No load power consumption <0.5W for Blank / A-Type Standby power consumption <0.5W for B / AB / DA-Type
PROTECTION
- SHORT CIRCUIT
- Hiccup mode, recovers automatically after fault condition is removed
- OVER VOLTAGE
- 125 ~ 150V Shut down o/p voltage, re-power on to recover
- OVER TEMPERATURE
- Shut down o/p voltage, re-power on to recover
ENVIRONMENT
- WORKING TEMP.
- Tcase=-40 ~ +85℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
- MAX. CASE TEMP.
- Tcase=+85℃
- WORKING HUMIDITY
- 20 ~ 95% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +80℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.03%/℃ (0 ~ 60℃)
- VIBRATION
- 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY & EMC
- SAFETY STANDARDS
- UL8750(type”HL”), CSA C22.2 No. 250.13-12;BS EN/EN/AS/NZS 61347-1,BS EN/EN/AS/NZS 61347-2-13 independent, BS EN/EN62384;GB/T19510.1,GB/T19510.213;EAC TP TC 004;BIS IS15885(for 700A only); IP65 or IP67;KC61347-1,KC61347-2-13 approved
- DALI STANDARDS
- Compliance to IEC62386-101,102,(207 by request) for DA Type only
- WITHSTAND VOLTAGE
- I/P-O/P:3.75KVAC I/P-FG:2.0KVAC O/P-FG:1.5KVAC
- ISOLATION RESISTANCE
- I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
- Compliance to BS EN/EN55015,BS EN/EN61000-3-2 Class C (@load≧50%) ; BS EN/EN61000-3-3; GB/T 17743, GB17625.1; EAC TP TC 020; KC KN15,KN61547
- EMC IMMUNITY
- Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level(surge immunity:Line-Earth:6KV, Line-Line:4KV);EAC TP TC 020; KC KN15,KN61547
OTHERS
- MTBF
- 2728.6K hrs min. Telcordia SR-332 (Bellcore) ;217.6K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 244*71*37.5 mm (L*W*H)
- PACKING
- 1.22Kg; 12pcs /15.2kg / 0.72CUFT
Certifications & ratings
- Type
- Type HL
Test conditions and notes11
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
- 2. Please refer to "DRIVING METHODS OF LED MODULE".
- 3. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
- 4. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
- 5. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
- 6. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 85℃ or less.
- 7. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
- 8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
- 9. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
- 10. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.
- 11. For A/AB type need to consider build in using to comply with Type HL application.
Technical drawings
Typical applications
- LED street lighting
- LED harbar lighting
- LED bay lighting
- LED greenhouse lighting
- LED flood lighting
- Type "HL" for use in Class I, Division 2 hazardous (Classified) location.
Downloads
Datasheet1
Certificates4
Test reports1
Catalogues1
FAQ
Can the ELG-200-C1750 drive mid-voltage LED module strings in the 57–114V range?
Yes. This driver delivers constant current at 1750mA with a CC voltage range of 57–114V. It is compatible with series-connected LED modules whose combined forward voltage falls within that window; the actual number of LEDs depends on each LED's forward voltage.
Is the ELG-200-C1750 suitable for use in outdoor LED luminaires?
Yes. It carries an IP67 waterproof rating and is rated for a case temperature (Tcase) of -40°C to +85°C, making it appropriate for outdoor landscape lighting, facade illumination, or streetlight-style fixtures exposed to weather.
Can I use the ELG-200-C1750 to power LED modules in parking garage or tunnel lighting?
Yes. At 199.5W and 1750mA constant current output with a wide 100–305VAC input, this driver is well-matched to the high-power LED fixtures used in parking garages, underpasses, and tunnel lighting where robust, non-dimmable operation is needed.
What is the difference between the ELG-200-C1750 base model and the C1750A, C1750AB, C1750B, and C1750DA variants?
All variants deliver 199.5W at 1750mA. The base C1750 has no dimming or adjustment. The A adds output current adjustability (875–1750mA via built-in potentiometer). The B adds 3-in-1 dimming (0–10VDC/10V PWM/resistance). The AB combines adjustability and 3-in-1 dimming. The DA adds DALI dimming (IEC62386-101, 102).
Can this driver be used in industrial LED high-bay lighting for 24/7 operation?
Yes. The ELG-200-C1750 is a constant current driver rated IP67, with a typical life expectancy of more than 50,000 hours when the case (tc point) is kept at about 85°C or less. Its -40°C to +85°C case temperature (Tcase) rating supports continuous operation in demanding industrial environments.
Is the ELG-200-C1750 compatible with universal mains input voltages for international projects?
Yes. The driver accepts 100–305VAC input, covering both 120V and 240V mains standards, which makes it usable across North American, European, and other international electrical systems without modification.
