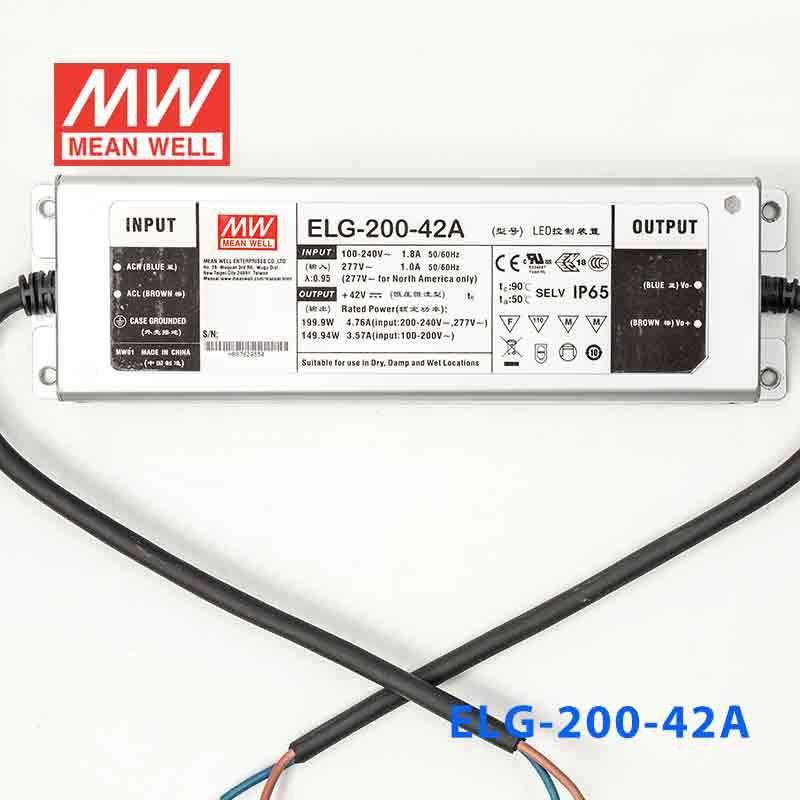

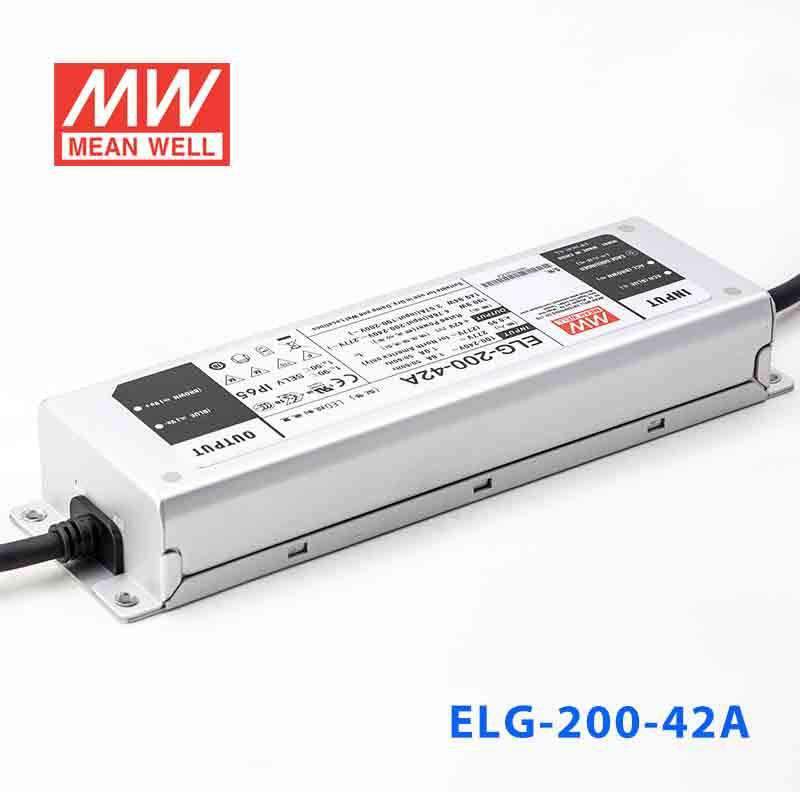

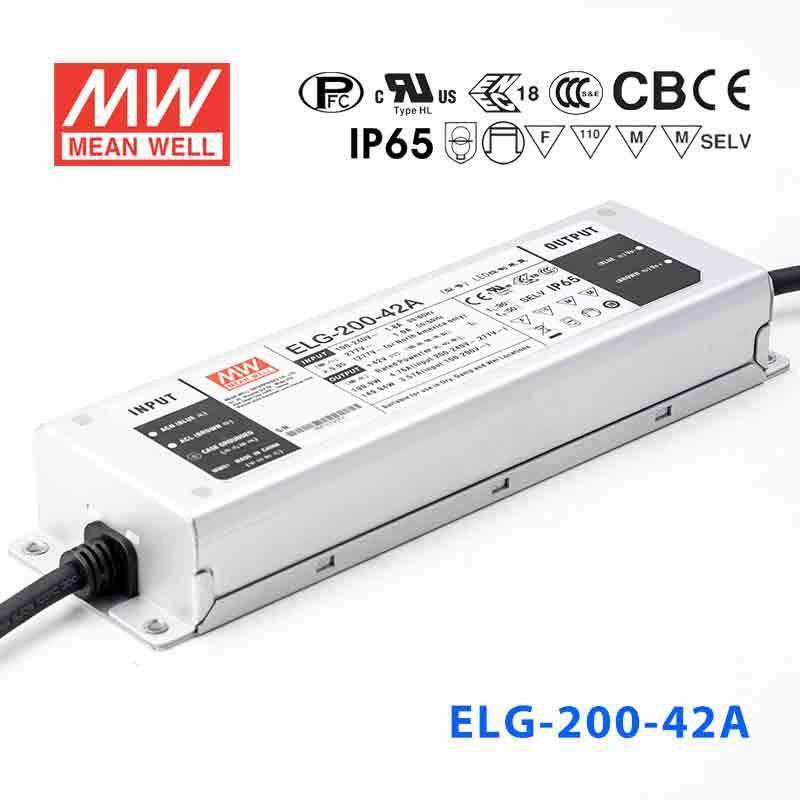

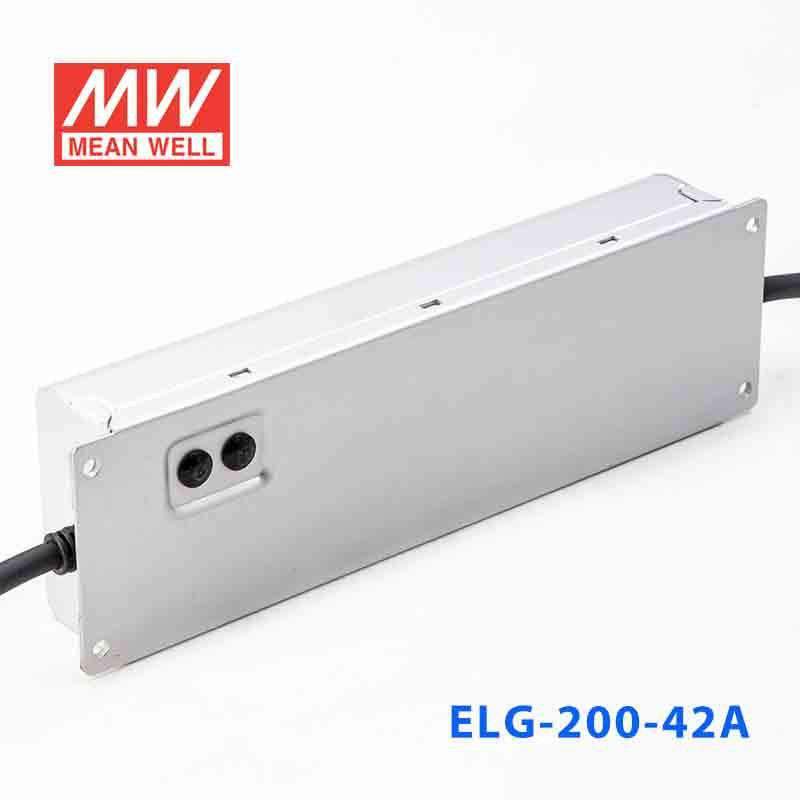

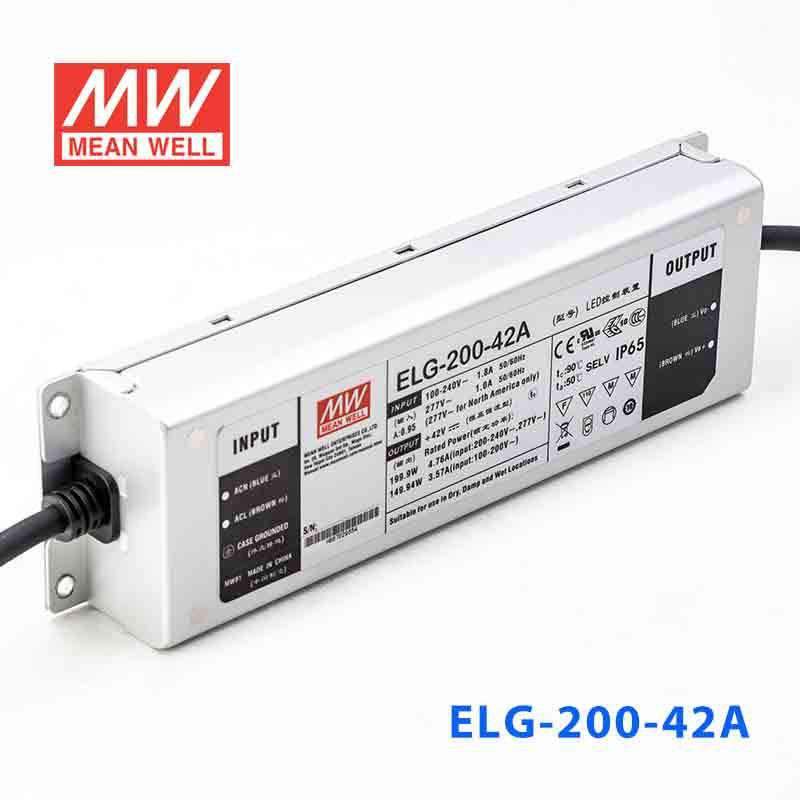

Name: Mean Well ELG-200-42A Power Supply 200W 42V - Adjustable 4.76A
Brand: Mean Well
SKU: ELG-200-42A
Price: 55.42 USD
Availability: InStock

Overview

ELG-200-42A is the 42V output model of this series: rated current 4.76A, typical efficiency 92.5%.

ELG-200 series is a 200W AC/DC LED driver featuring the dual mode constant voltage and constant current output. ELG-200 operates from 100 ~ 305VAC and offers models with different rated voltage ranging between 12V and 54V. Thanks to the high efficiency up to 93%, with the fanless design, the entire series is able to operate for -40℃ ~ +90℃ case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. ELG-200 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system

Features

Constant Voltage + Constant Current mode output
Metal housing design with functional Ground
Built-in active PFC function
No load / Standby power consumption <0.5W
IP67 / IP65 rating for indoor or outdoor installations
Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off); Smart timer dimming; DALI
Typical lifetime>50000 hours
5 years warranty

Specifications

ELG-200-42ASpecifications from the official datasheet (2026-07-06 edition)

OUTPUT

DC VOLTAGE: 42V
CONSTANT CURRENT REGION^Note.2: 21 ~ 42V
RATED CURRENT: 4.76A
RATED POWER 200VAC ~ 305VAC: 199.9W
RATED POWER 100VAC ~ 180VAC: 149.94W
RIPPLE & NOISE (max.)^Note.3: 250mVp-p
VOLTAGE ADJ. RANGE: Adjustable for A/AB-Type only (via built-in potentiometer) 39 ~ 45V
CURRENT ADJ. RANGE: Adjustable for A/AB-Type only (via built-in potentiometer) 2.38 ~ 4.76A
VOLTAGE TOLERANCE^Note.4: ±2.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±0.5%
SETUP, RISE TIME^Note.6: 500ms, 100ms/230VAC, 1000ms, 100ms/115VAC
HOLD UP TIME (Typ.): 10ms/ 230VAC 10ms/ 115VAC

INPUT

VOLTAGE RANGE^Note.5: 100 ~ 305VAC 142 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR: PF≧0.97/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20%(@load≧50%/115VC,230VAC; @load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
EFFICIENCY (Typ.): 92.5%
AC CURRENT: 1.8A / 115VAC 1.2A / 230VAC 1.0A/277VAC
INRUSH CURRENT(Typ.): COLD START 60A(twidth=510μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 4 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC
NO LOAD / STANDBY POWER CONSUMPTION^Note.7: No load power consumption <0.5W for Blank / A -Type Standby power consumption <0.5W for B / AB / DA-Type

PROTECTION

OVER CURRENT: 95 ~ 108% Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT: Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 47 ~ 54V Shut down output voltage, re-power on to recover
OVER TEMPERATURE: Shut down output voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: Tcase=-40 ~ +90℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP.: Tcase=+90℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +90℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL8750(type”HL”), CSA C22.2 No. 250.13-12;IEC/BS EN/EN/AS/NZS 61347-1, IEC/BS EN/EN/AS/NZS 61347-2-13 independent, BS EN/EN62384; EAC TP TC 004;BIS IS15885(for 12/12A/12B/12DA/24/24A/24B/24DA/36/36A/36B/42A/42B/48/48A/48B/54A/54B only); GB/T19510.1,GB/T19510.213; IP65 or IP67;KC61347-1,KC61347-2-13 approved
DALI STANDARDS: Compliance to IEC62386-101,102,(207 by request) for DA Type only
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2.0KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55015,BS EN/EN61000-3-2 Class C (@load≧50%) ;BS EN/ EN61000-3-3;GB/T 17743,GB17625.1; EAC TP TC 020; KC KN15,KN61547
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level (surge immunity Line-Earth 6KV, Line-Line 4KV);EAC TP TC 020; KC KN15,KN61547

OTHERS

MTBF: 2391.4K hrs min. Telcordia SR-332 (Bellcore) ;204.9K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 244*71*37.5mm (L*W*H)
PACKING: 1.22Kg; 12pcs / 15.2Kg / 0.72CUFT

Certifications & ratings

Type: Type HL

Test conditions and notes15

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Please refer to "DRIVING METHODS OF LED MODULE".
3. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
4. Tolerance : includes set up tolerance, line regulation and load regulation.
5. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
6. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
7. No load/standby power consumption is specified for 230VAC input.
8. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
9. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 70℃ or less.
10. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
11. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
12. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
13. BIS IS15885(for 12/12A/12B/12DA/24/24A/24B/24DA/36/36A/36B/42A/42B/48/48A/48B/54A/54B).
14. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.
15. For A/AB type need to consider build in using to comply with Type HL application.

Technical drawings

ELG-200-42A Block Diagram — Block Diagram

ELG-200-42A DIMMING OPERATION — DIMMING OPERATION

ELG-200-42A OUTPUT LOAD vs TEMPERATURE(Note.10) — OUTPUT LOAD vs TEMPERATURE(Note.10)

ELG-200-42A STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

ELG-200-42A TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

ELG-200-42A MECHANICAL SPECIFICATION — MECHANICAL SPECIFICATION

ELG-200-42A E L G - 2 0 0 series — E L G - 2 0 0 series

ELG-200-42A ‧tc : Max. Case Temperature — ‧tc : Max. Case Temperature

ELG-200-42A Dimensions (mm) — Dimensions (mm)

ELG-200-42A ※ A-Type (for other models) — ※ A-Type (for other models)

ELG-200-42A ※ AB-Type (for 12V model) — ※ AB-Type (for 12V model)

ELG-200-42A ※ AB-Type (for other models) — ※ AB-Type (for other models)

ELG-200-42A ※ B/DA-Type (for 12V model) — ※ B/DA-Type (for 12V model)

Typical applications

LED street lighting
LED architectural lighting
LED bay lighting
LED floodlighting
Type “HL” for use in Class I, Division 2 hazardous (Classified) location.

Downloads

Datasheet1

ELG-200-42A datasheetELG-200-SPEC.PDF · 2026-07-06 edition PDF Download

Certificates4

CB Certificate (ELG-200)(EN) PDF Download

UL Certificate (ELG-200)(EN) PDF Download

EMC Certificate (ELG-200)(EN) PDF Download

ENEC Certificate (ELG-200)(EN) PDF Download

Test reports1

Test Report (ELG-200-42)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can the ELG-200-42A be installed in an outdoor application under a covered overhang or in a sign cabinet?

Yes. The ELG-200-42A carries an IP65 water-resistant rating, protecting against low-pressure water jets and dust. It is well suited for covered outdoor locations such as sign cabinets, canopy soffits, and sheltered architectural fixture housings where direct rain impact is unlikely.

What does the A suffix mean on the ELG-200-42A, and how does it help in a lighting installation?

The A suffix indicates the driver has adjustable output current (2.38–4.76A) and voltage (39–45V) via a built-in potentiometer. This allows an installer to trim the output to match the LED strip's optimal operating point or to set a specific brightness level during commissioning, without adding external dimmer hardware.

How much 42V LED strip can the ELG-200-42A drive?

The driver outputs 199.9W at 4.76A. For a 42V strip rated at 20 W/m, you can run approximately 10 m per driver (199.9 W ÷ 20 W/m). For a 15 W/m strip, that extends to about 13.3 m. Always verify your strip's rated wattage per meter and apply a 10–20% derating margin.

Is the ELG-200-42A appropriate for powering 42V LED strips in a retail display or architectural cove lighting project?

Yes. The adjustable output current feature allows fine-tuning of brightness to match design intent in retail and architectural applications. At 199.9W, it supports generous strip lengths in cove or perimeter lighting layouts operating at 42V, and the 100–305VAC input range covers international projects.

Can the ELG-200-42A be used in a commercial kitchen or food-service environment?

Yes, in protected positions. The IP65 rating protects against dust and low-pressure water jets, which suits splash-prone food-service areas. Mount it away from cooking equipment: the case temperature must stay within -40°C to +90°C, and at rated current the maximum ambient is 60°C.

What is the key difference between the ELG-200-42 and ELG-200-42A?

Both deliver 199.9W at 42V DC with 4.76A output and share the same enclosure dimensions. The primary differences are IP rating and adjustability: the ELG-200-42 is IP67 (waterproof, suitable for direct outdoor rain exposure) with a fixed output, while the ELG-200-42A is IP65 (water-resistant, suitable for covered or indoor-wet locations) with an adjustable output current trim for commissioning flexibility.
