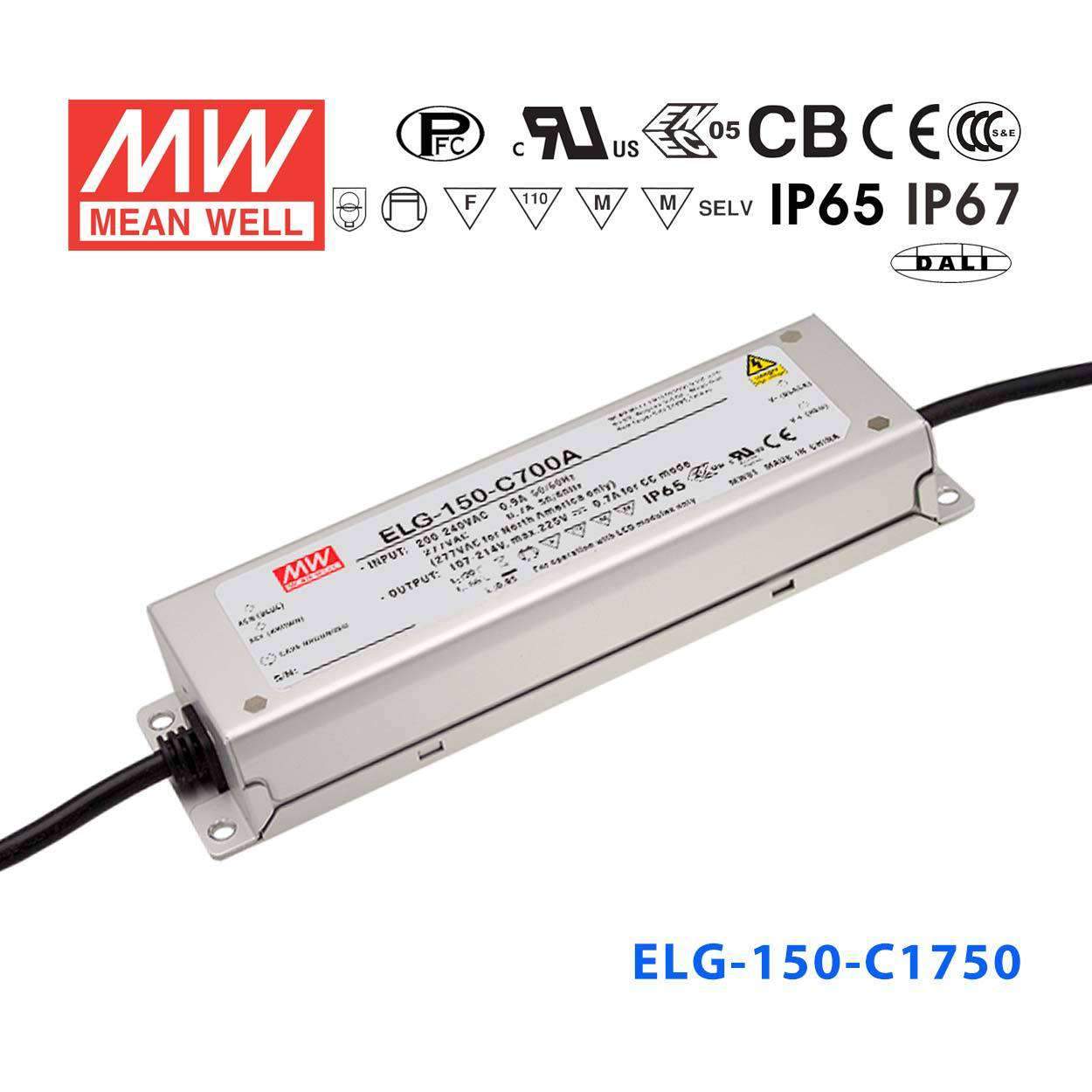

Mean Well ELG-150-C1750DA Power Supply 150W 1750mA - DALI

Name: Mean Well ELG-150-C1750DA Power Supply 150W 1750mA - DALI
Brand: Mean Well
SKU: ELG-150-C1750DA
Price: 49.64 USD
Availability: InStock

Overview

ELG-150-C1750DA is the model of this series: rated current 1750mA, typical efficiency 91%.

ELG-150-C series is a 150W LED AC/DC driver featuring the constant current mode and high voltage output. ELG-150-C operates from 100~360VAC and offers models with different rated current ranging between 500mA and 2100mA. Thanks to the high efficiency up to 92%, with the fanless design, the entire series is able to operate for -40℃~+85℃ case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. ELG-150-C is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

Constant current mode output
Metal housing design with functional Ground
Built-in active PFC function
No load / Standby power consumption <0.5W
IP67 / IP65 rating for indoor or outdoor installations
Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off) ; Smart timer dimming; DALI
Typical lifetime>50000 hours
5 years warranty

Specifications

ELG-150-C1750DASpecifications from the official datasheet (2026-07-06 edition)

OUTPUT

RATED CURRENT: 1750mA
RATED POWER 100VAC ~ 180VAC: 105W
RATED POWER 200VAC ~ 305VAC: 150.5W
CONSTANT CURRENT REGION^Note.2: 43 ~ 86V
OPEN CIRCUIT VOLTAGE (max.): 94V
CURRENT ADJ. RANGE: Adjustable for A/AB-Type only (via built-in potentiometer)
CURRENT ADJ. RANGE: 875 ~ 1750mA
CURRENT RIPPLE: 5.0% max. @rated current
CURRENT TOLERANCE: ±5.0%
SET UP TIME^Note.4: 1600ms/115VAC 500ms/230VAC

INPUT

VOLTAGE RANGE^Note.3: 100 ~ 305VAC 142 ~ 431VDC continue,320VAC for 24Hrs; 360VAC for 1Hr (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≧0.97/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20%(@load≧50%/115VC; @load≧60%/230VAC; @load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
EFFICIENCY (Typ.): 91%
AC CURRENT (Typ.): 1.7A / 115VAC 0.9A / 230VAC 0.7A/277VAC
INRUSH CURRENT(Typ.): COLD START 65A(twidth=485μs measured at 50% Ipeak)/230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 3 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC
NO LOAD / STANDBY POWER CONSUMPTION: No load power consumption <0.5W for Blank / A -Type Standby power consumption <0.5W for B / AB / DA-Type

PROTECTION

SHORT CIRCUIT: Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 96 ~ 106V Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: Tcase=-40 ~ +90℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP.: Tcase=+90℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 60℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL8750(type”HL”), CSA C22.2 No. 250.13-12;BS EN/EN/AS/NZS 61347-1,BS EN/EN/AS/NZS 61347-2-13 independent, BS EN/EN62384; GB/T19510.1,GB/T19510.213,EAC TP TC 004,BIS IS15885(for 700A, 1050A,700DA only), IP65 or IP67; KC61347-1,KC61347-2-13 approved
DALI STANDARDS: Compliance to IEC62386-101,102,(207 by request) for DA Type only
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2.0KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55015,BS EN/EN61000-3-2 Class C (@load≧60%) ; BS EN/EN61000-3-3; GB/T 17743, GB17625.1;EAC TP TC 020; KC KN15,KN61547
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level (surge immunity Line-Earth 6KV, Line-Line 4KV), EAC TP TC 020; KC KN15,KN61547

OTHERS

MTBF: 3102.4K hrs min. Telcordia SR-332 (Bellcore) ;308.5K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 219*63*35.5 mm (L*W*H)
PACKING: 0.95Kg; 16pcs / 16.0kg / 0.77CUFT

Certifications & ratings

Type: HL

Test conditions and notes11

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Please refer to "DRIVING METHODS OF LED MODULE". For DA-Type, Constant Current region is 60%~100% of maximum voltage under rated power delivery.
3. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
4. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
5. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
6. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 75℃ or less.
7. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com.
8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
9. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
10. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.
11. For A/AB type need to consider build in using to comply with Type HL application.

Technical drawings

ELG-150-C1750DA BLOCK DIAGRAM — BLOCK DIAGRAM

ELG-150-C1750DA DIMMING OPERATION — DIMMING OPERATION

ELG-150-C1750DA OUTPUT LOAD vs TEMPERATURE(Note.7) — OUTPUT LOAD vs TEMPERATURE(Note.7)

ELG-150-C1750DA STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

ELG-150-C1750DA TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

ELG-150-C1750DA MECHANICAL SPECIFICATION — MECHANICAL SPECIFICATION

ELG-150-C1750DA ※ A-Type(for 1750mA, 2100mA models) — ※ A-Type(for 1750mA, 2100mA models)

ELG-150-C1750DA ※ B/DA-Type — ※ B/DA-Type

ELG-150-C1750DA ※ AB-Type(except for 1750mA, 2100mA models) — ※ AB-Type(except for 1750mA, 2100mA models)

ELG-150-C1750DA ※ AB-Type(for 1750mA, 2100mA models) — ※ AB-Type(for 1750mA, 2100mA models)

ELG-150-C1750DA Dimensions (mm) — Dimensions (mm)

ELG-150-C1750DA ※ 3Y Model (3-wire input) — ※ 3Y Model (3-wire input)

ELG-150-C1750DA Recommend Mounting Direction — Recommend Mounting Direction

Typical applications

LED street lighting
LED harbor lighting
LED bay lighting
LED greenhouse lighting
LED flood lighting
Type “HL” for use in Class I, Division 2 hazardous (Classified) location.

Downloads

Certificates4

UL Certificate (ELG-150-C)(EN) PDF Download

CB Certificate (ELG-150-C)(EN) PDF Download

EMC Certificate (ELG-150-C)(EN) PDF Download

ENEC Certificate (ELG-150-C)(EN) PDF Download

Test reports1

Test Report (ELG-150-C1750)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Does the ELG-150-C1750DA support DALI dimming for smart building lighting?

Yes. The DA suffix indicates native DALI interface support, allowing the driver to be addressed and dimmed by DALI bus controllers. This makes it suitable for smart building projects requiring addressable, scene-controllable LED downlights or luminaires.

Can the ELG-150-C1750DA power LED downlights in a commercial office fit-out?

Yes. Operating at 1750mA constant current with a 43–86V CC range, it supports series LED arrays used in commercial downlight modules. The DALI interface enables integration with building management systems for zoned and scene-based dimming.

Is the ELG-150-C1750DA rated for outdoor installation in an exposed fixture?

Yes. With an IP67 waterproof rating, the ELG-150-C1750DA is protected against temporary immersion and can be installed in outdoor luminaires or wall-mount fixtures exposed to rain. Its -40°C to +90°C case temperature (Tcase) rating supports year-round outdoor use.

Can I use this driver for LED sign modules in a bus shelter or transit advertising display?

Yes. The constant current 1750mA output and IP67 enclosure are appropriate for transit advertising or bus shelter illuminated displays. The 100–305VAC input accommodates varying supply voltages across different sites, which simplifies deployment in hard-to-reach installations.

How many LEDs can be connected in series to the ELG-150-C1750DA?

The CC compliance range spans 43–86V. The number of series LEDs depends on each LED's forward voltage at 1750mA—you must divide the compliance window by the specific LED's Vf to determine viable string depth. A fixed LED count cannot be given because Vf varies across LED types and operating conditions.

Can this driver be used to retrofit an existing DALI-controlled downlight system?

Yes. The ELG-150-C1750DA complies with DALI standard IEC62386-101 and 102 (207 by request). If the existing system uses a standard DALI bus and controller, this driver can be added to the bus for addressable current-controlled LED loads within the 43–86V compliance range.
