Mean Well

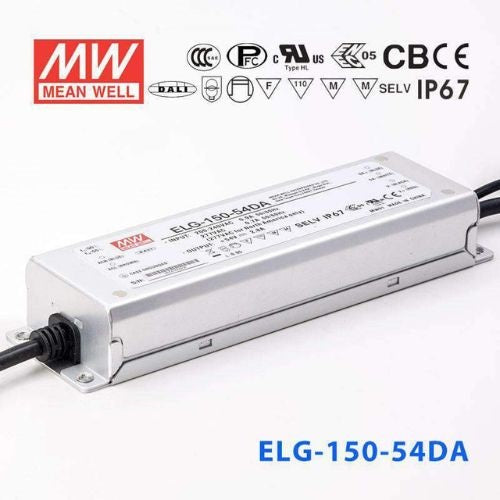

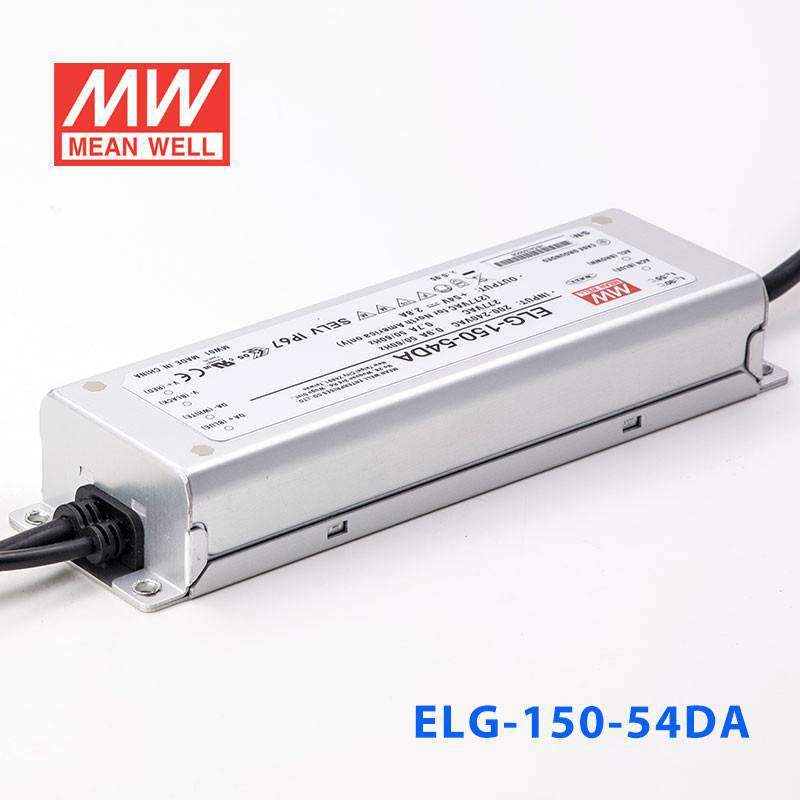

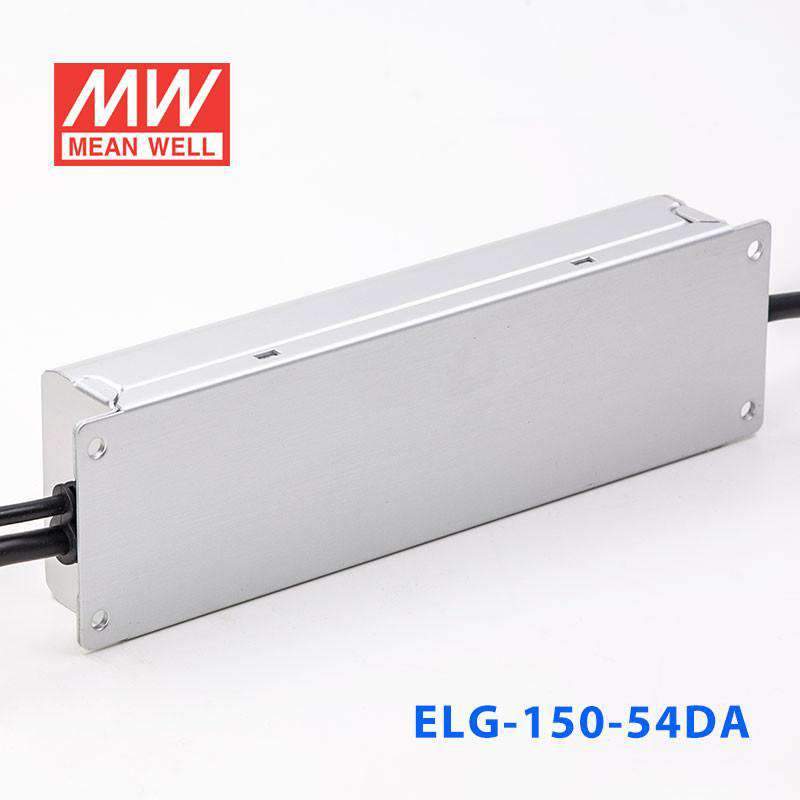

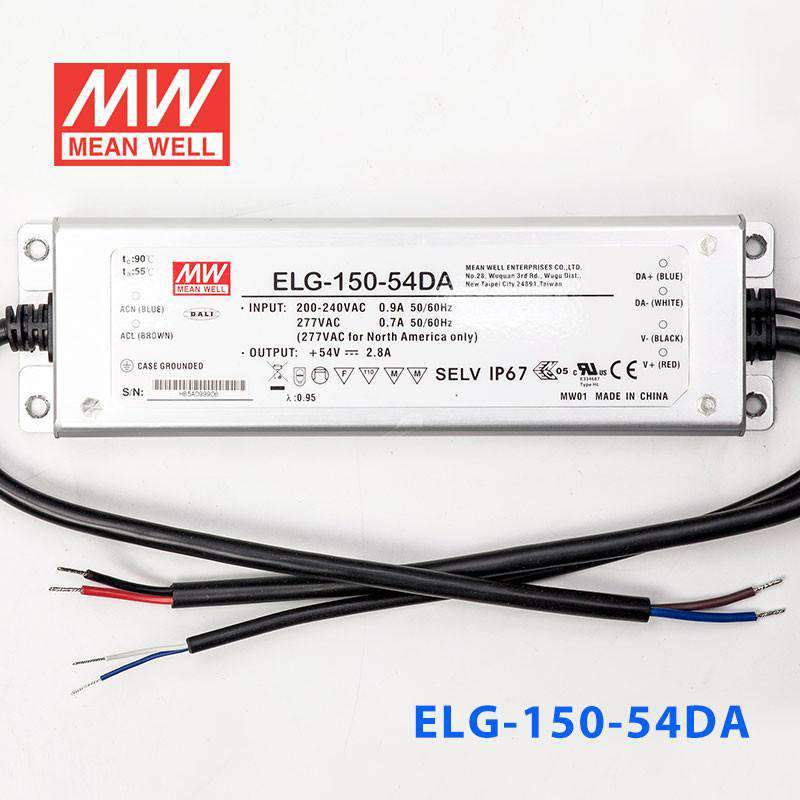

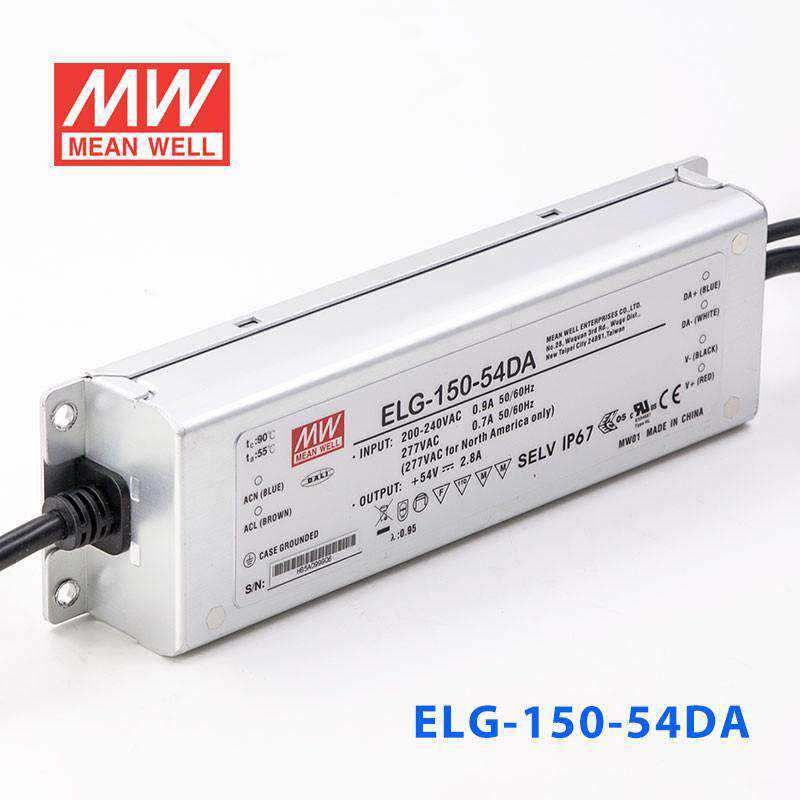

Mean Well ELG-150-54DA Power Supply 150W 54V - DALI 2.8A

metal caseIP65/IP675 years warranty
SKU ELG-150-54DA
$52.10 USD
Shipping calculated at checkout.

Select model — 20 in this family

ELG-150-54DA
Available to order
|

Overview

ELG-150-54DA is the 54V output model of this series: rated current 2.8A, typical efficiency 91%.

ELG-150 series is a 150W AC/DC LED driver featuring the dual mode constant voltage and constant current output. ELG-150 operates from 100~305VAC and offers models with different rated voltage ranging between 12V and 54V. Thanks to the high efficiency up to 91%, with the fanless design, the entire series is able to operate for -40℃ ~ +90℃ case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. ELG-150 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system

Features

  • Constant Voltage + Constant Current mode output
  • Metal housing design with functional Ground
  • Built-in active PFC function
  • No load / Standby power consumption <0.5W
  • IP67 / IP65 rating for indoor or outdoor installations
  • Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off) ; Smart timer dimming; DALI
  • Typical lifet ime>50000 hours
  • 5 years warranty

Specifications

ELG-150-54DASpecifications from the official datasheet (2026-07-06 edition)

OUTPUT

DC VOLTAGE
54V
CONSTANT CURRENT REGIONNote.2
27 ~ 54V
RATED CURRENT
2.8A
RATED POWER 100VAC ~ 180VAC
105W
RATED POWER 200VAC ~ 305VAC
151.2W
RIPPLE & NOISE (max.)Note.3
350mVp-p
VOLTAGE ADJ. RANGE
Adjustable for A/AB-Type only (via the built-in potentiometer) 49 ~ 58V
CURRENT ADJ. RANGE
Adjustable for A/AB-Type only (via the built-in potentiometer) 1.4 ~ 2.8A
VOLTAGE TOLERANCENote.4
±2.0%
LINE REGULATION
±0.5%
LOAD REGULATION
±0.5%
SETUP, RISE TIMENote.6
1600ms, 80ms/115VAC 500ms, 100ms/230VAC
HOLD UP TIME (Typ.)
10ms/115VAC, 230VAC

INPUT

VOLTAGE RANGENote.5
100 ~ 305VAC 142 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR
PF≧0.97/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION
THD< 20%(@load≧50%/115VC; @load≧60%/230VAC; @load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
EFFICIENCY (Typ.)
91%
AC CURRENT
1.7A / 115VAC 0.9A / 230VAC 0.7A/277VAC
INRUSH CURRENT(Typ.)
COLD START 65A(twidth=550μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER
3 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT
<0.75mA / 277VAC
NO LOAD / STANDBY POWER CONSUMPTION
No load power consumption <0.5W for Blank / A -Type Standby power consumption <0.5W for B / AB / DA-Type

PROTECTION

OVER CURRENT
95 ~ 108% Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT
Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE
59 ~ 68V Shut down output voltage, re-power on to recover
OVER TEMPERATURE
Shut down output voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.
Tcase=-40 ~ +90℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP.
Tcase=+90℃
WORKING HUMIDITY
20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 60℃)
VIBRATION
10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS
UL8750(type”HL”), CSA C22.2 No. 250.13-12;IEC/BS EN/EN/AS/NZS 61347-1,IEC/BS EN/EN/AS/NZS 61347-2-13 independent,BS EN/EN62384,BIS IS15885(for 12/12A/12B/12DA/24/24A/24B/24DA/36A/36B/42/42A/42B/48A/48B/54/54A/54B only), EAC TP TC 004,GB/T19510.1,GB/T19510.213; IP65 or IP67; KC61347-1,KC61347-2-13 approved
DALI STANDARDS
Compliance to IEC62386-101,102,(207 by request) for DA Type only
WITHSTAND VOLTAGE
I/P-O/P:3.75KVAC I/P-FG:2.0KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55015,BS EN/EN61000-3-2 Class C (@load≧60%) ; BS EN/EN61000-3-3; GB/T 17743,GB17625.1, EAC TP TC 020; KC KN15,KN61547
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level (surge immunity Line-Earth 6KV, Line-Line 4KV),EAC TP TC 020; KC KN15,KN61547

OTHERS

MTBF
2661.6K hrs min. Telcordia SR-332 (Bellcore) ;313.7K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
219*63*35.5mm (L*W*H)
PACKING
0.95Kg ; 16pcs/16.0kg/0.77CUFT

Certifications & ratings

Type
Type HL
Test conditions and notes14
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
  2. 2. Please refer to "DRIVING METHODS OF LED MODULE". For DA-Type, Constant Current region is 60%~100% of maximum voltage under rated power delivery.
  3. 3. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
  4. 4. Tolerance : includes set up tolerance, line regulation and load regulation.
  5. 5. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTICS” sections for details.
  6. 6. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
  7. 7. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
  8. 8. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 80℃ or less.
  9. 9. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com.
  10. 10. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
  11. 11. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
  12. 12. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.
  13. 13. ELG-150-12(except blank/A-Type) is used for any light source that exempt from the ErP-Directive (EU) 2019/2020 requirement, for example this model could be use for signalling products(including, but not limited to road-, railway-, marineorair traffic-signalling , traffic control or airfield lamps) .
  14. 14. For A/AB type need to consider build in using to comply with Type HL application.

Technical drawings

ELG-150-54DA Block Diagram
Block Diagram
ELG-150-54DA DIMMING OPERATION
DIMMING OPERATION
ELG-150-54DA OUTPUT LOAD vs TEMPERATURE(Note.9)
OUTPUT LOAD vs TEMPERATURE(Note.9)
ELG-150-54DA STATIC CHARACTERISTIC
STATIC CHARACTERISTIC
ELG-150-54DA TOTAL HARMONIC DISTORTION
TOTAL HARMONIC DISTORTION
ELG-150-54DA LIFE TIME
LIFE TIME
ELG-150-54DA Mechanical Specification
Mechanical Specification
ELG-150-54DA ※ AB-Type
※ AB-Type
ELG-150-54DA ※ B/DA-Type
※ B/DA-Type
ELG-150-54DA ※ 3Y Model (3-wire input)
※ 3Y Model (3-wire input)
ELG-150-54DA Recommend Mounting Direction
Recommend Mounting Direction

Typical applications

  • LED street lighting
  • LED architectural lighting
  • LED bay lighting
  • LED floodlighting
  • Type “HL” for use in Class I, Division 2 hazardous (Classified) location.

Downloads

FAQ

Can the ELG-150-54DA be installed in an outdoor wet location for LED strip applications?

Yes. The ELG-150-54DA carries an IP67 waterproof rating, making it fully protected against dust ingress and temporary water immersion. It is suitable for outdoor luminaires, weatherproof enclosures, or sign cabinets where direct water contact may occur.

Is the ELG-150-54DA a good fit for 54V LED strip in a commercial building lobby with DALI control?

Yes. The DA suffix designates DALI dimming, which is the standard protocol used in commercial building management systems. At 151.2W and 54V, this driver supports the extended LED strip runs typical of lobby cove, corridor, or feature lighting with full DALI integration.

How many meters of 54V LED strip can the ELG-150-54DA power?

The ELG-150-54DA outputs 151.2W at 54V. Dividing by rated strip wattage per meter: a 10 W/m strip supports approximately 15 meters; a 15 W/m strip supports approximately 10 meters. Check your strip's rated power per meter and apply a 20% derating for thermal safety.

Can the ELG-150-54DA drive 54V LED strips in an outdoor architectural uplighting installation?

Yes. The IP67 protection and -40°C to +90°C case temperature (Tcase) range make this driver durable in year-round outdoor facade and uplighting applications. The 54V output reduces current draw compared to 24V systems, which is advantageous for longer cable runs to ground-mounted or facade LED fixtures.

What certifications does the ELG-150-54DA hold, and which markets does it cover?

The sheet lists UL8750 (type HL) and CSA C22.2 No. 250.13 for North America, IEC/EN 61347 safety and EN55015/EN61547 EMC for Europe, AS/NZS 61347 for Australia/New Zealand, GB/T19510 for China, KC for South Korea, and EAC for Russia/Eurasia, making it suitable for multi-region commercial projects. The sheet's BIS listing does not include the 54DA.
