Mean Well

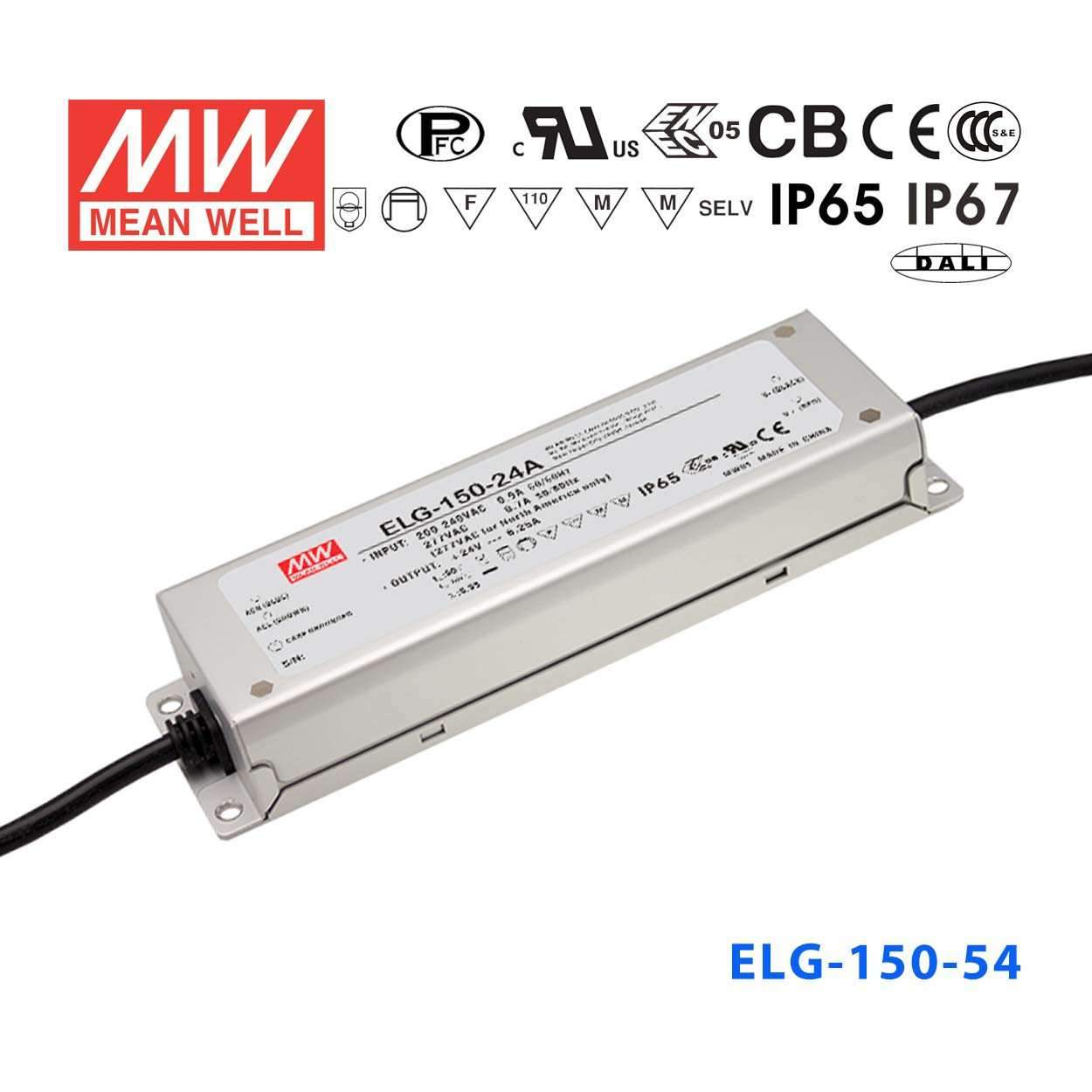

Mean Well ELG-150-54 Power Supply 150W 54V 2.8A

metal caseIP65/IP675 years warranty
SKU ELG-150-54
$44.92 USD
Shipping calculated at checkout.

Select model — 20 in this family

ELG-150-54
Available to order
|

Overview

ELG-150-54 is the 54V output model of this series: rated current 2.8A, typical efficiency 91%.

ELG-150 series is a 150W AC/DC LED driver featuring the dual mode constant voltage and constant current output. ELG-150 operates from 100~305VAC and offers models with different rated voltage ranging between 12V and 54V. Thanks to the high efficiency up to 91%, with the fanless design, the entire series is able to operate for -40℃ ~ +90℃ case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. ELG-150 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system

Features

  • Constant Voltage + Constant Current mode output
  • Metal housing design with functional Ground
  • Built-in active PFC function
  • No load / Standby power consumption <0.5W
  • IP67 / IP65 rating for indoor or outdoor installations
  • Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off) ; Smart timer dimming; DALI
  • Typical lifet ime>50000 hours
  • 5 years warranty

Specifications

ELG-150-54Specifications from the official datasheet (2026-07-06 edition)

OUTPUT

DC VOLTAGE
54V
CONSTANT CURRENT REGIONNote.2
27 ~ 54V
RATED CURRENT
2.8A
RATED POWER 100VAC ~ 180VAC
105W
RATED POWER 200VAC ~ 305VAC
151.2W
RIPPLE & NOISE (max.)Note.3
350mVp-p
VOLTAGE ADJ. RANGE
Adjustable for A/AB-Type only (via the built-in potentiometer) 49 ~ 58V
CURRENT ADJ. RANGE
Adjustable for A/AB-Type only (via the built-in potentiometer) 1.4 ~ 2.8A
VOLTAGE TOLERANCENote.4
±2.0%
LINE REGULATION
±0.5%
LOAD REGULATION
±0.5%
SETUP, RISE TIMENote.6
1600ms, 80ms/115VAC 500ms, 100ms/230VAC
HOLD UP TIME (Typ.)
10ms/115VAC, 230VAC

INPUT

VOLTAGE RANGENote.5
100 ~ 305VAC 142 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR
PF≧0.97/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION
THD< 20%(@load≧50%/115VC; @load≧60%/230VAC; @load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
EFFICIENCY (Typ.)
91%
AC CURRENT
1.7A / 115VAC 0.9A / 230VAC 0.7A/277VAC
INRUSH CURRENT(Typ.)
COLD START 65A(twidth=550μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER
3 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT
<0.75mA / 277VAC
NO LOAD / STANDBY POWER CONSUMPTION
No load power consumption <0.5W for Blank / A -Type Standby power consumption <0.5W for B / AB / DA-Type

PROTECTION

OVER CURRENT
95 ~ 108% Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT
Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE
59 ~ 68V Shut down output voltage, re-power on to recover
OVER TEMPERATURE
Shut down output voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.
Tcase=-40 ~ +90℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP.
Tcase=+90℃
WORKING HUMIDITY
20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 60℃)
VIBRATION
10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS
UL8750(type”HL”), CSA C22.2 No. 250.13-12;IEC/BS EN/EN/AS/NZS 61347-1,IEC/BS EN/EN/AS/NZS 61347-2-13 independent,BS EN/EN62384,BIS IS15885(for 12/12A/12B/12DA/24/24A/24B/24DA/36A/36B/42/42A/42B/48A/48B/54/54A/54B only), EAC TP TC 004,GB/T19510.1,GB/T19510.213; IP65 or IP67; KC61347-1,KC61347-2-13 approved
DALI STANDARDS
Compliance to IEC62386-101,102,(207 by request) for DA Type only
WITHSTAND VOLTAGE
I/P-O/P:3.75KVAC I/P-FG:2.0KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55015,BS EN/EN61000-3-2 Class C (@load≧60%) ; BS EN/EN61000-3-3; GB/T 17743,GB17625.1, EAC TP TC 020; KC KN15,KN61547
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level (surge immunity Line-Earth 6KV, Line-Line 4KV),EAC TP TC 020; KC KN15,KN61547

OTHERS

MTBF
2661.6K hrs min. Telcordia SR-332 (Bellcore) ;313.7K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
219*63*35.5mm (L*W*H)
PACKING
0.95Kg ; 16pcs/16.0kg/0.77CUFT

Certifications & ratings

Type
Type HL
Test conditions and notes14
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
  2. 2. Please refer to "DRIVING METHODS OF LED MODULE". For DA-Type, Constant Current region is 60%~100% of maximum voltage under rated power delivery.
  3. 3. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
  4. 4. Tolerance : includes set up tolerance, line regulation and load regulation.
  5. 5. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTICS” sections for details.
  6. 6. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
  7. 7. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
  8. 8. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 80℃ or less.
  9. 9. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com.
  10. 10. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
  11. 11. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
  12. 12. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.
  13. 13. ELG-150-12(except blank/A-Type) is used for any light source that exempt from the ErP-Directive (EU) 2019/2020 requirement, for example this model could be use for signalling products(including, but not limited to road-, railway-, marineorair traffic-signalling , traffic control or airfield lamps) .
  14. 14. For A/AB type need to consider build in using to comply with Type HL application.

Technical drawings

ELG-150-54 Block Diagram
Block Diagram
ELG-150-54 DIMMING OPERATION
DIMMING OPERATION
ELG-150-54 OUTPUT LOAD vs TEMPERATURE(Note.9)
OUTPUT LOAD vs TEMPERATURE(Note.9)
ELG-150-54 STATIC CHARACTERISTIC
STATIC CHARACTERISTIC
ELG-150-54 TOTAL HARMONIC DISTORTION
TOTAL HARMONIC DISTORTION
ELG-150-54 LIFE TIME
LIFE TIME
ELG-150-54 Mechanical Specification
Mechanical Specification
ELG-150-54 ※ AB-Type
※ AB-Type
ELG-150-54 ※ B/DA-Type
※ B/DA-Type
ELG-150-54 ※ 3Y Model (3-wire input)
※ 3Y Model (3-wire input)
ELG-150-54 Recommend Mounting Direction
Recommend Mounting Direction

Typical applications

  • LED street lighting
  • LED architectural lighting
  • LED bay lighting
  • LED floodlighting
  • Type “HL” for use in Class I, Division 2 hazardous (Classified) location.

Downloads

FAQ

Can the ELG-150-54 be mounted outdoors in a rain-exposed signage installation?

Yes. The ELG-150-54 is rated IP67, meaning it is fully sealed against dust ingress and can withstand temporary water immersion. It can be installed inside outdoor sign cabinets, facade-mounted enclosures, or ground-level housings exposed to rain without additional weatherproofing.

Is the ELG-150-54 suitable for powering 54V LED strip in large-format architectural cove lighting?

Yes. The 54V output and 151.2W total power make this driver a strong match for high-density 54V LED strip runs in architectural cove or valance installations. The constant-current mode with a 27–54V CC range gives consistent current through the LED load as voltage varies across the strip.

Can this driver power 54V LED strip in an outdoor LED channel letter installation?

Yes. The ELG-150-54 combines IP67 waterproof protection with 151.2W at 54V, which handles the power demand of mid-size 54V channel letter arrays. Its compact 219 × 63 × 35.5 mm housing suits sign installations; check the internal space of your raceway before specifying.

How many meters of 54V LED strip can the ELG-150-54 support?

The ELG-150-54 delivers 151.2W at 54V. Divide 151.2W by your strip's rated power per meter—for example, a 10 W/m strip allows approximately 15 meters, and a 15 W/m strip allows approximately 10 meters. Always check your strip's rated power per meter and apply a 20% derating margin for thermal reliability.

Is the ELG-150-54 appropriate for LED strip lighting in cold-storage or freezer environments?

Yes. With a case temperature (Tcase) range of -40°C to +90°C, this driver starts and runs reliably in cold-storage and freezer applications. The IP67 sealed enclosure protects against moisture, but the sheet specifies 20–95% RH non-condensing working humidity, so avoid spots where condensation forms on the driver.

What is the difference between the ELG-150-54 and the ELG-150-54B in this series?

Both the ELG-150-54 and ELG-150-54B output 151.2W at 54V / 2.8A with IP67 protection and a 27–54V CC range. The key difference is that the ELG-150-54B adds 3-in-1 dimming (0–10V, PWM, and resistance), while the ELG-150-54 has no dimming control. Choose the base model when dimming is not required.
