Can the ELG-150-48D2 be installed outdoors in a waterproof enclosure for 48V LED strip?

Yes. The ELG-150-48D2 carries an IP67 rating, making it fully dustproof and capable of withstanding temporary water immersion. It can be installed in outdoor lighting enclosures or sign cabinets exposed to rain and hosing without additional sealing.

How much 48V LED strip can the ELG-150-48D2 power?

This driver outputs 150W at 48V. For a 10 W/m strip, it can power up to 15 meters; for a 20 W/m high-output strip, up to 7.5 meters. Always confirm your strip's rated power per meter and leave a 20% margin for thermal derating.

Is the ELG-150-48D2 suitable for driving 48V LED strips in a commercial building's outdoor signage?

Yes. The combination of IP67 waterproofing, 150W at 48V, and DALI dimming makes it a strong choice for controllable outdoor signage lighting. The wide CC voltage range of 100–305V accommodates single-phase supply voltages across North America, Europe, and Asia.

Does the ELG-150-48D2 work with DALI building management systems for office or retail lighting?

Yes. The D2 suffix confirms DALI dimming support, which is the standard dimming protocol for commercial building management systems. It integrates with DALI controllers, scene panels, and occupancy sensors used in office and retail lighting networks.

Can the ELG-150-48D2 be used for 48V LED strip in cold-storage warehouse lighting?

Yes. With an operating temperature minimum of -40°C, this driver starts and runs reliably in freezer and cold-storage environments. The IP67 sealed metal housing also resists condensation that forms when equipment moves between temperature zones.

1 5

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well

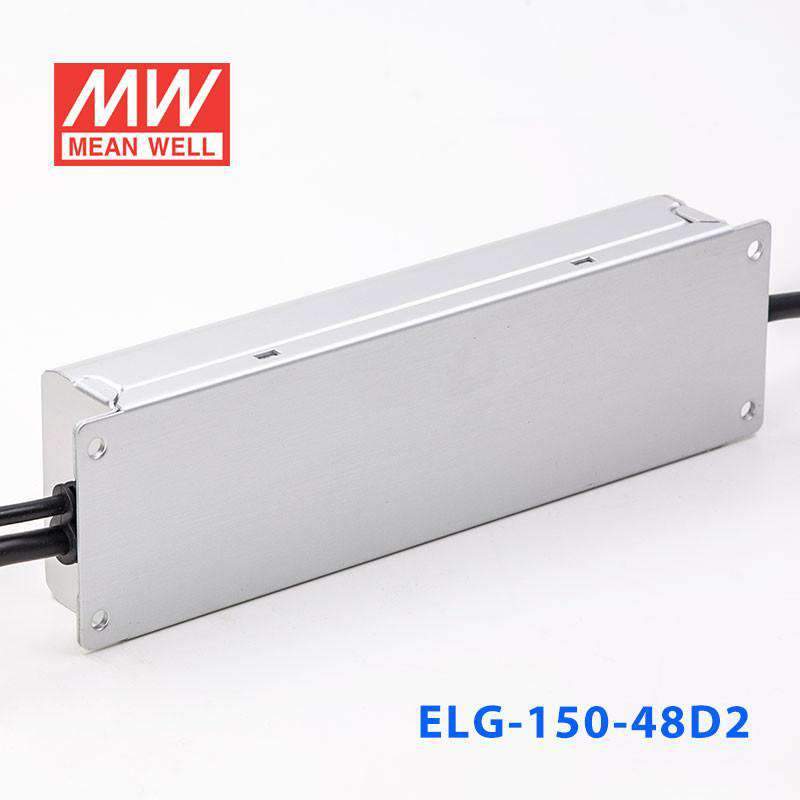

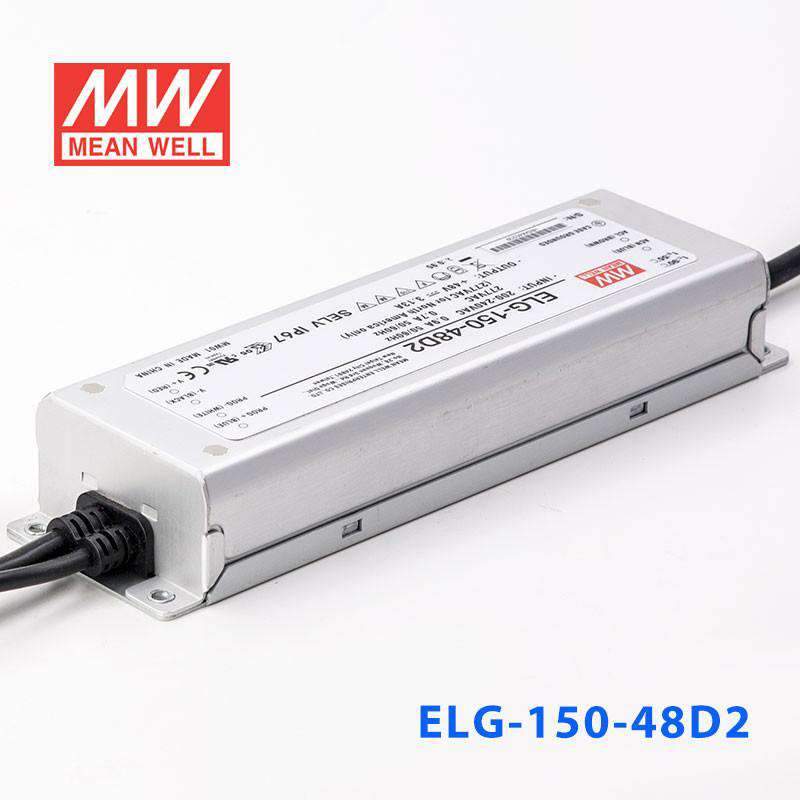

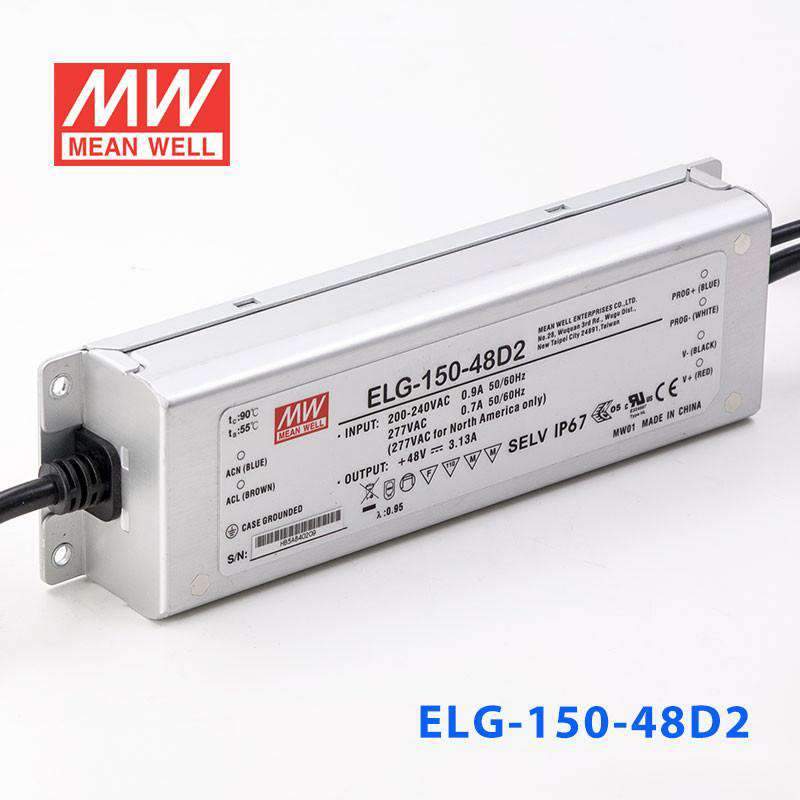

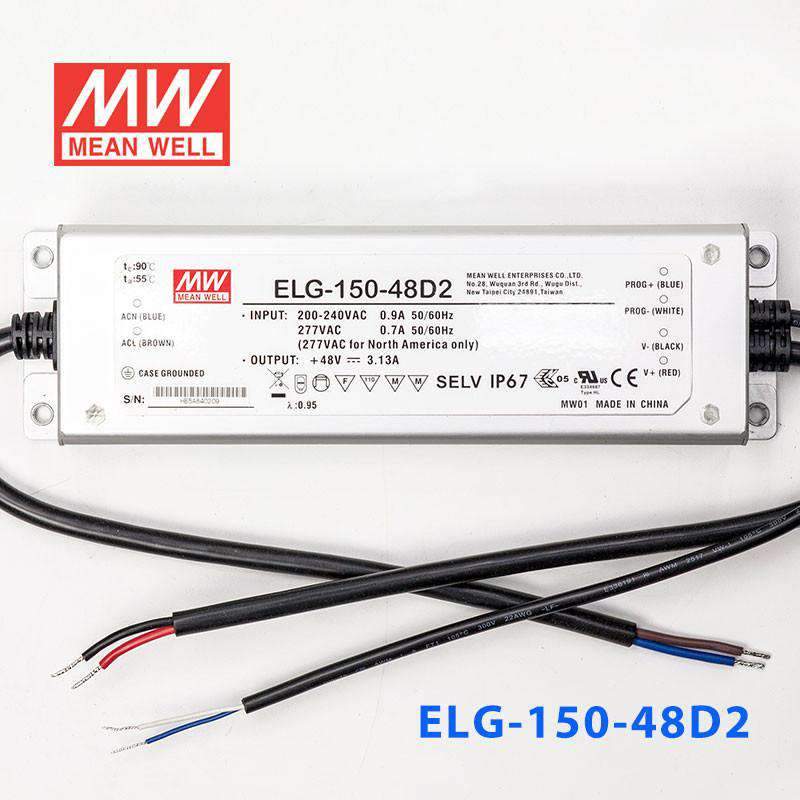

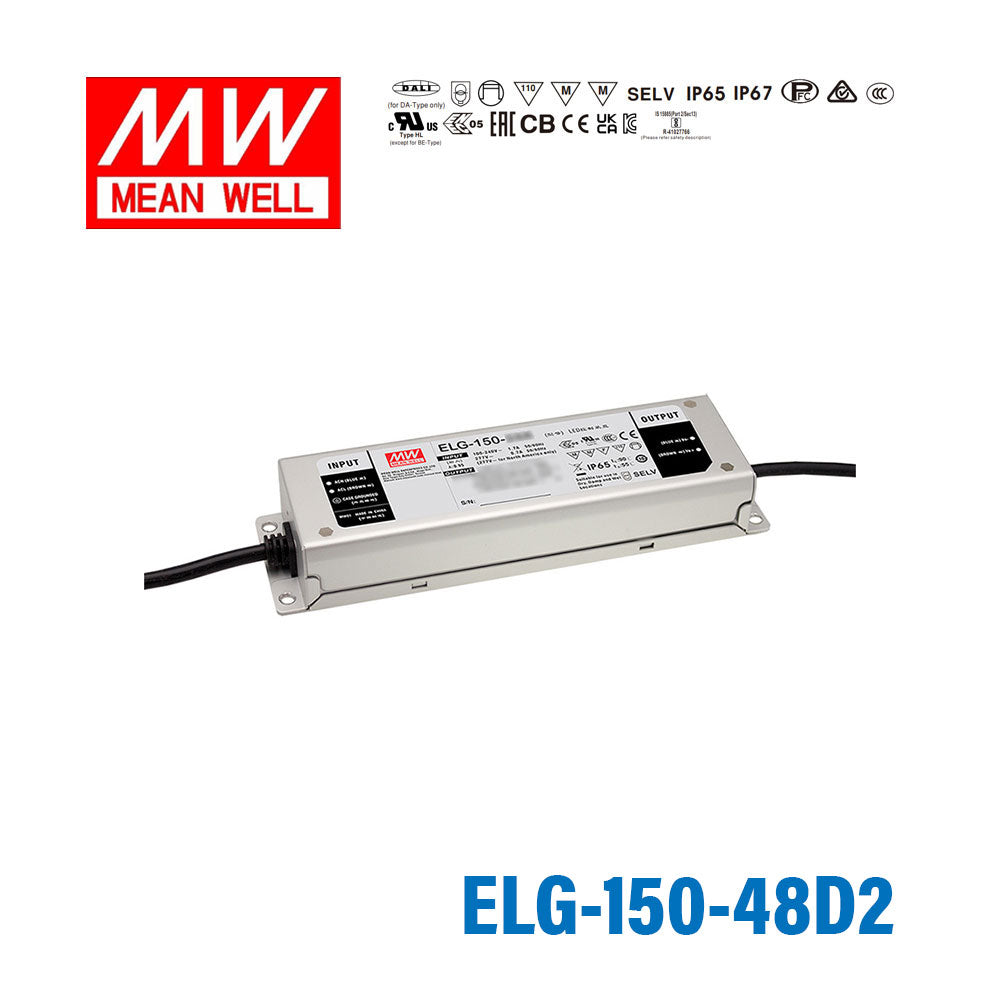

Mean Well ELG-150-48D2 AC-DC Single output LED Driver Mix Mode (CV+CC) with PFC 3.13A

Name: Mean Well ELG-150-48D2 AC-DC Single output LED Driver Mix Mode (CV+CC) with PFC 3.13A
Brand: Mean Well
SKU: ELG-150-48D2
Price: 53.15 USD
Availability: InStock

metal caseIP65/IP675 years warranty

SKU ELG-150-48D2

$53.15 USD ~~$315.90~~

Shipping calculated at checkout.

Available to order

The ELG-150 is a 150W Mean Well power converter.

Key Features

✓ DC output voltage adjustable ±10%
✓ 3.75KVAC reinforced I/O isolation
✓ Protections: Short circuit / Over voltage / Over temperature
✓ Active PFC — meets international energy efficiency regulations
✓ Safety approvals: UL8750 (type”HL”), EN61347-1, EN61347-2-13 independent, EN62384, IP65 or IP67
✓ 3 years warranty

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Please log in to write a review.

{ "id":8650148741440, "variants" :[{ "context":"default", "variant_id": 46613979791680, "sku":"ELG-150-48D2", "inventory_qty" : 0, "customer" :true, "custom_html" :"\u003cdiv class=\"price price--on-sale\"\u003e\n \u003cdiv class=\"price__default\"\u003e\n \u003cstrong class=\"price__current\"\u003e$53.15\u003c\/strong\u003e\n \u003cs class=\"price__was\"\u003e$315.90\n\u003c\/s\u003e\n \u003c\/div\u003e\n\n \u003cdiv class=\"unit-price relative\" hidden\u003e\u003cspan class=\"visually-hidden\"\u003eUnit price\u003c\/span\u003e\u003cspan class=\"unit-price__price\"\u003e\u003c\/span\u003e\u003cspan class=\"unit-price__separator\"\u003e \/ \u003c\/span\u003e\u003cspan class=\"unit-price__unit\"\u003e\u003c\/span\u003e\u003c\/div\u003e\n\n \u003cdiv class=\"price__no-variant\" hidden\u003e\n \u003cstrong class=\"price__current\"\u003eUnavailable\u003c\/strong\u003e\n \u003c\/div\u003e\n\n \u003c\/div\u003e", "volume_html" :"\u003cvolume-pricing class=\"parent-display inside_product_form\" id=\"volume-pricing-main\" \u003e\u003c\/volume-pricing\u003e" } ] }

Key Features

✓ DC output voltage adjustable ±10%

✓ 3.75KVAC reinforced I/O isolation

✓ Protections: Short circuit / Over voltage / Over temperature

✓ Active PFC — meets international energy efficiency regulations

✓ Safety approvals: UL8750 (type”HL”), EN61347-1, EN61347-2-13 independent, EN62384, IP65 or IP67

✓ 3 years warranty
