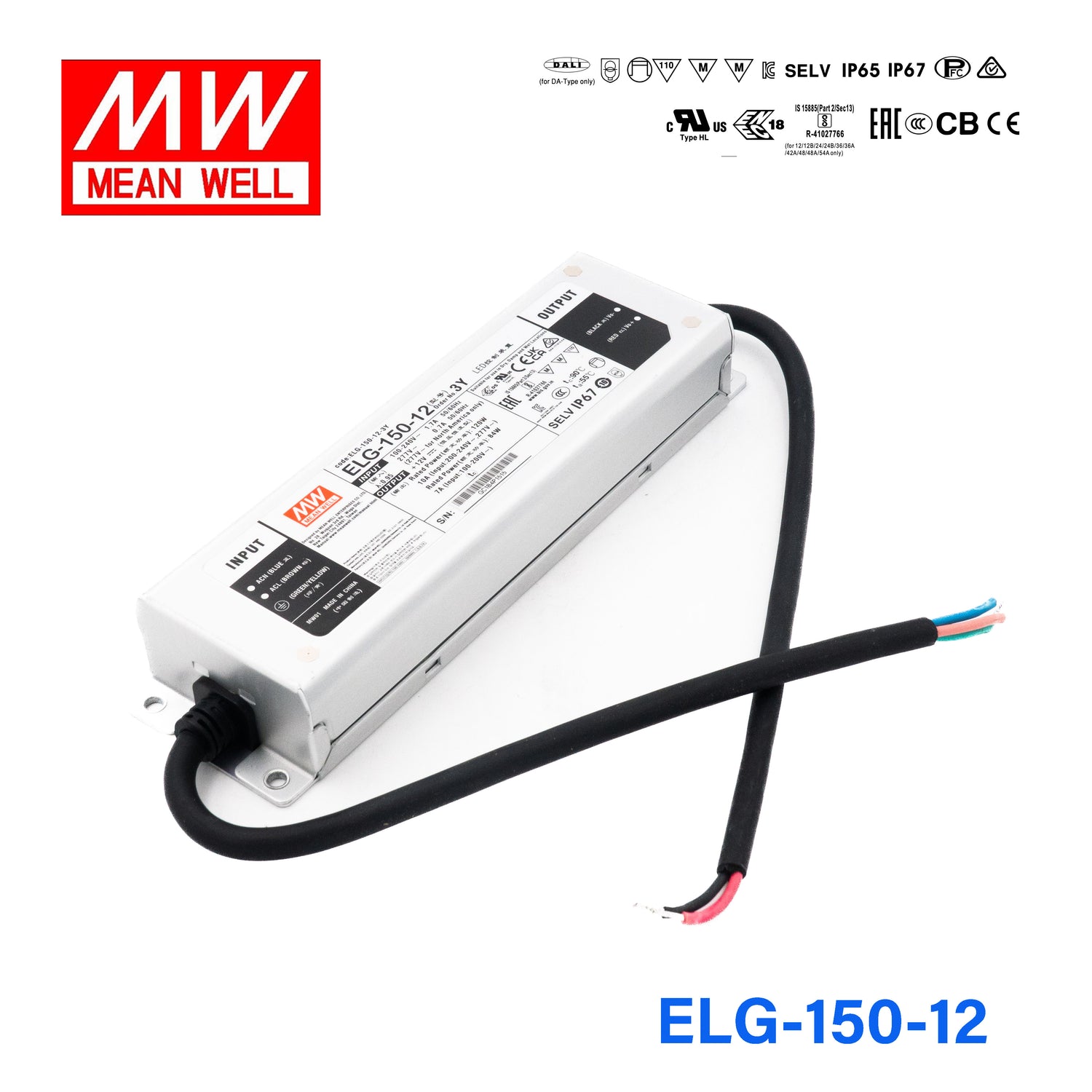

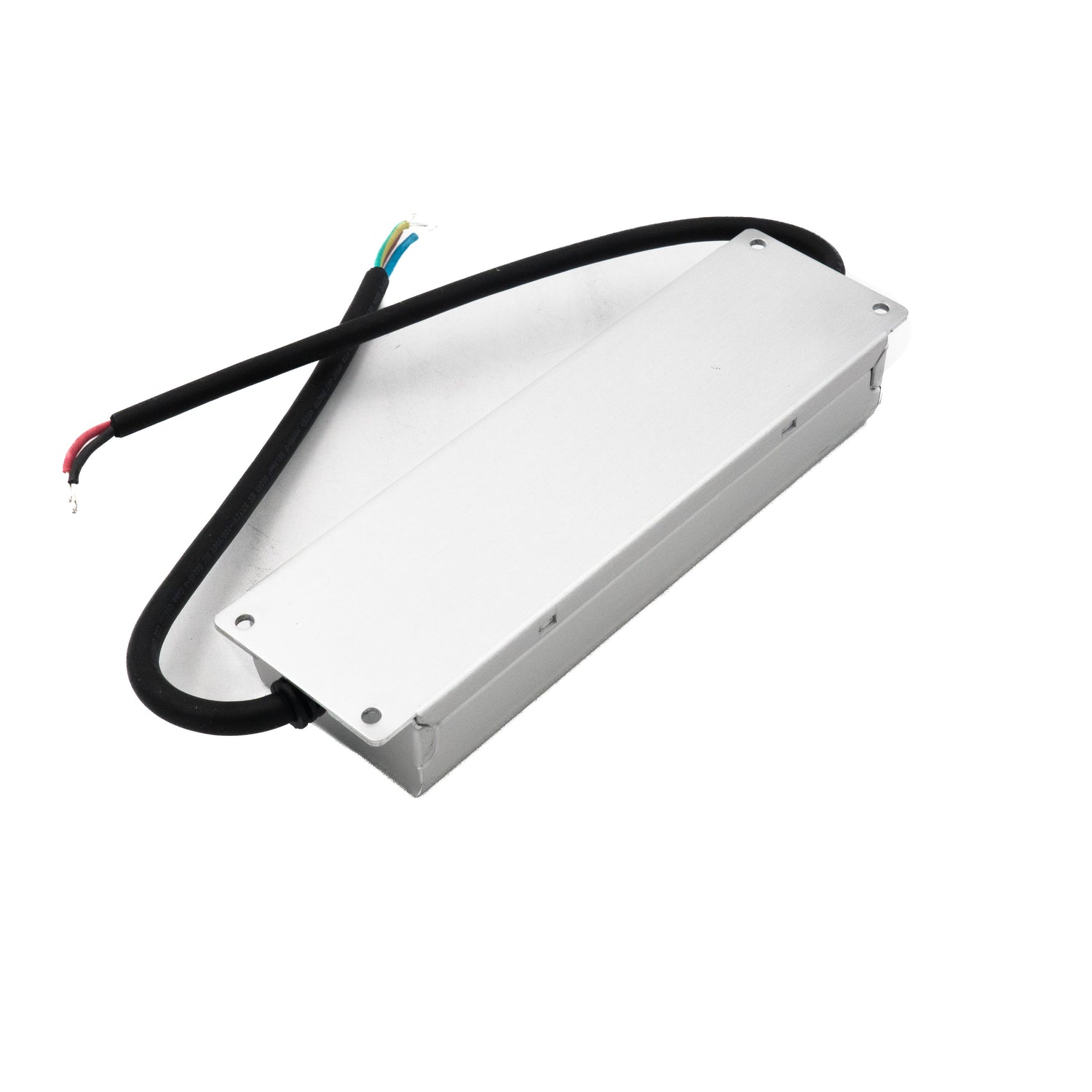

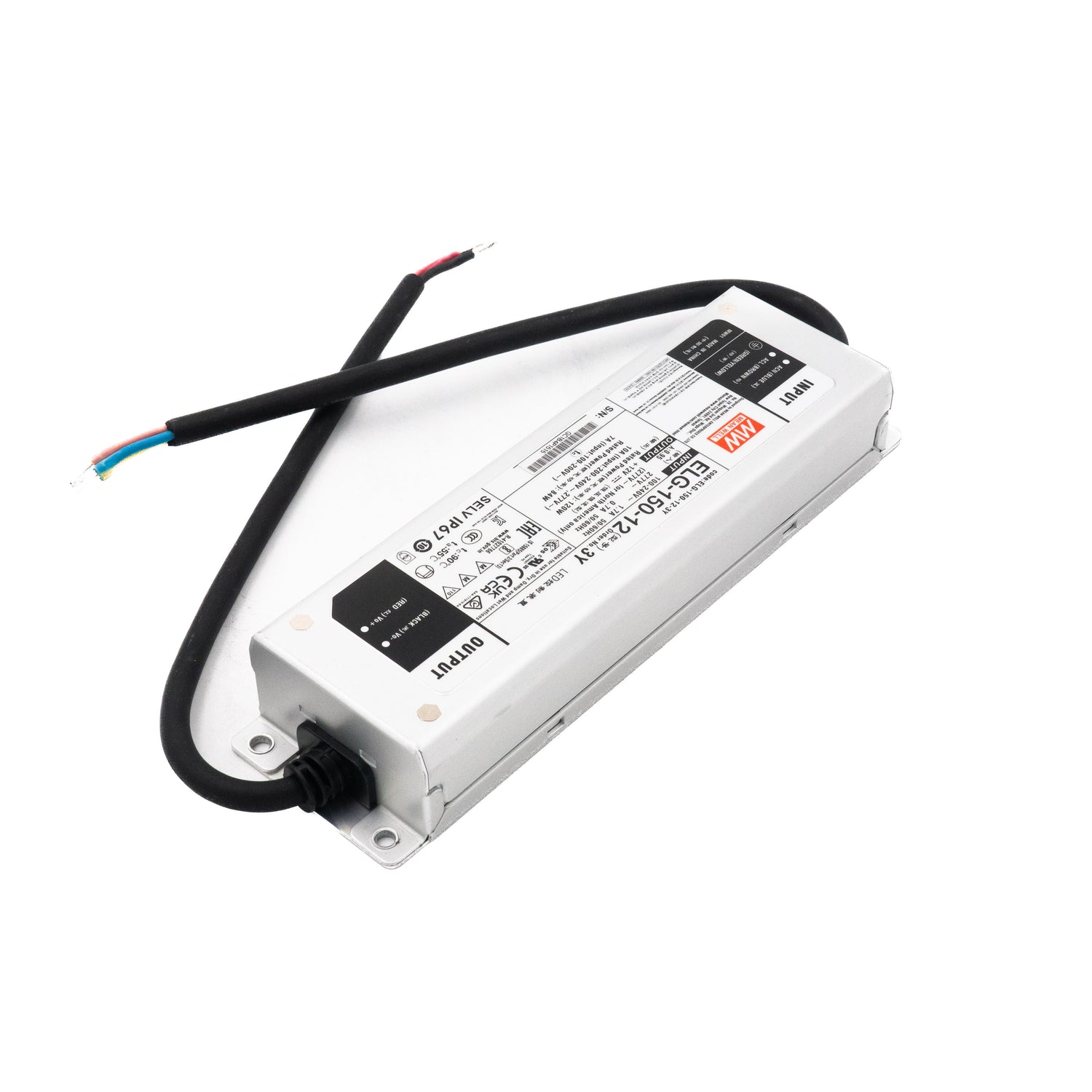

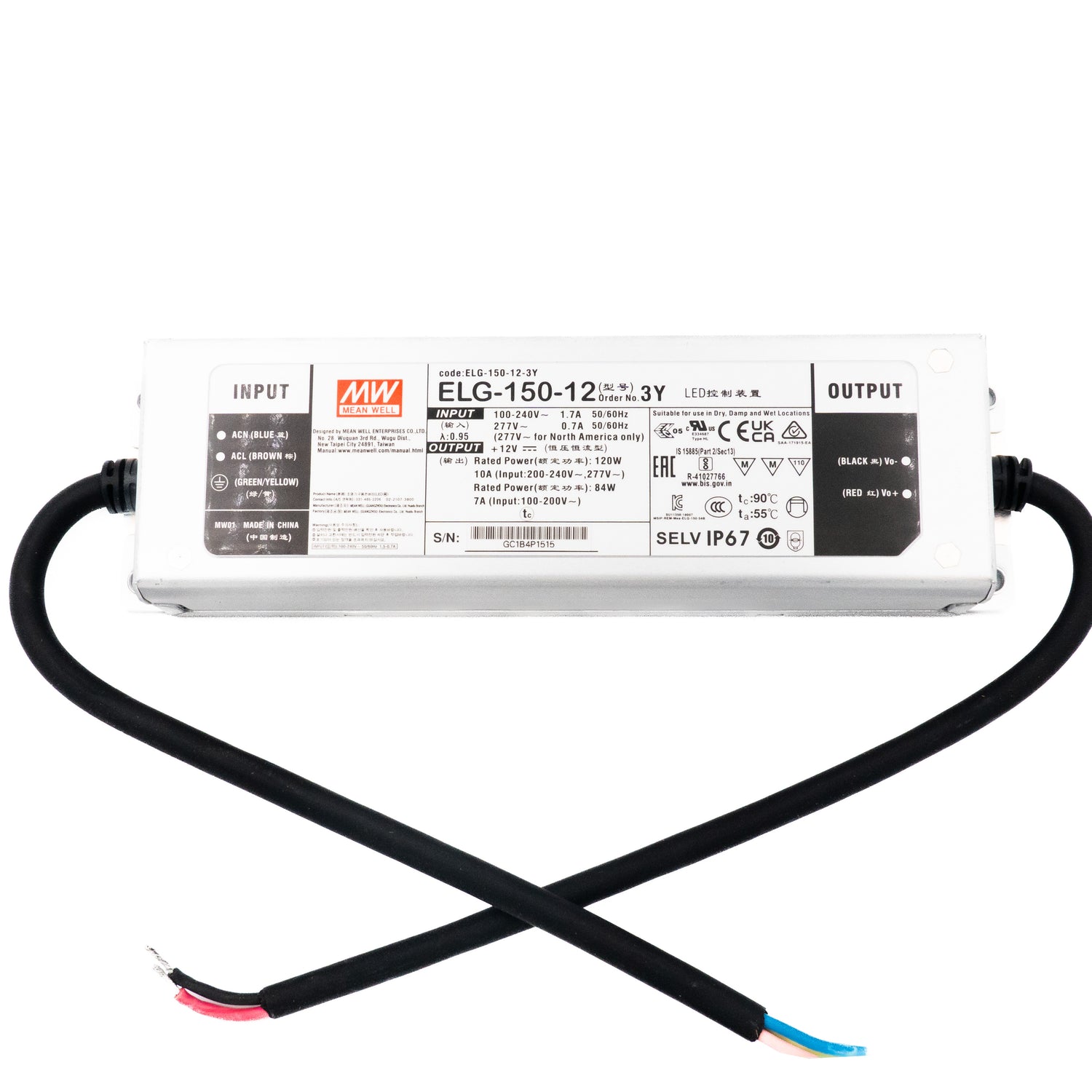

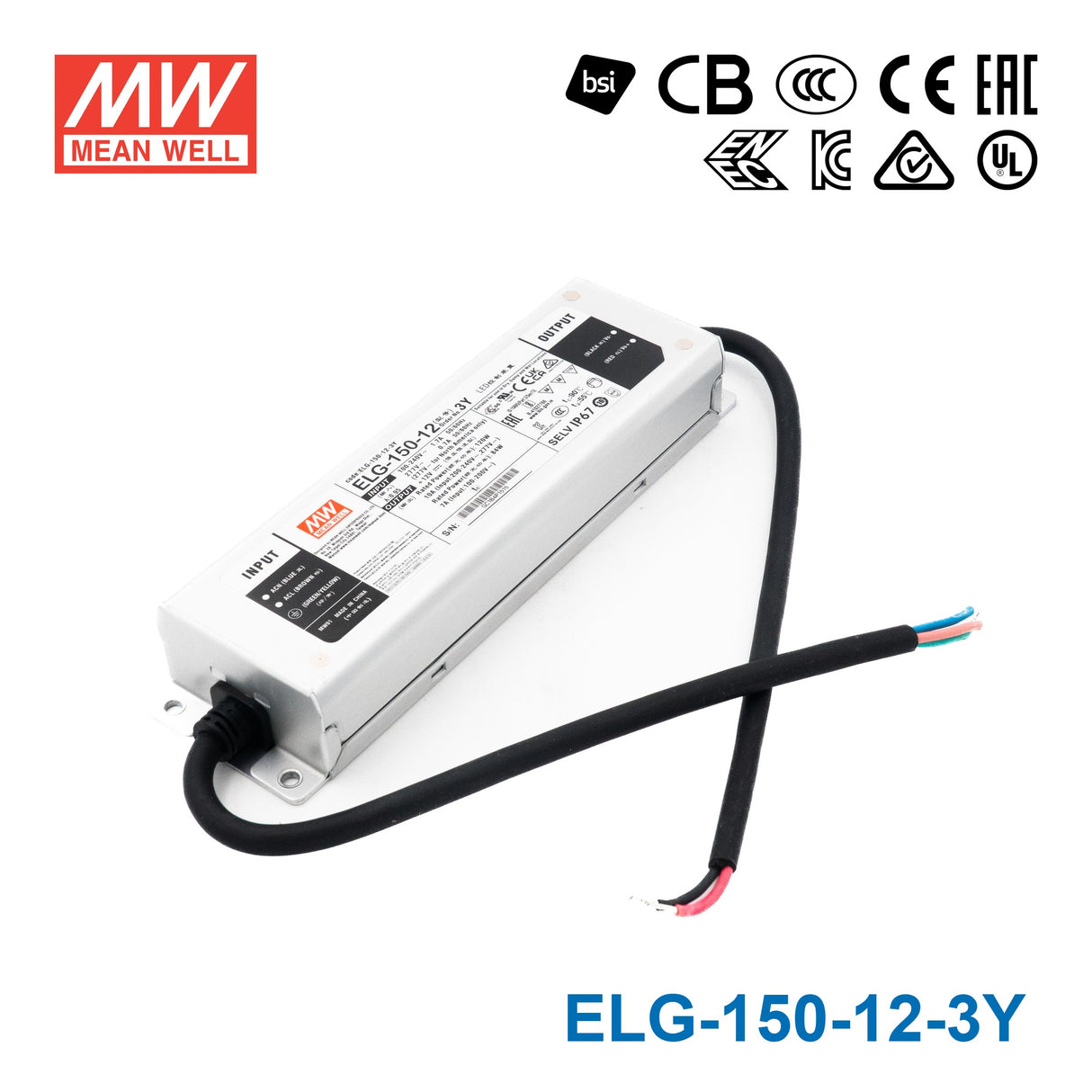

Mean Well ELG-150-12-3Y Power Supply 120W 12V 10A — 3-Wire Input (w...
$71.75 USD
Unit price /
Unavailable
Description
Description
The ELG-150 is a 120W Mean Well AC-DC LED driver (input: 100~305VAC, output: 12V, operating temperature: -40~+90°C). This is the 3Y variant, supplied with a 3-wire input cable (live, neutral and protective earth).
Key Features
- ✓ 3-wire input with protective earth (L, N + PE)
- ✓ Input voltage: 100~305VAC
- ✓ Output voltage: 12V
- ✓ Rated output current: 10A
- ✓ Ingress protection: IP67
- ✓ Operating temperature: -40~+90°C
- ✓ Safety certifications: BSI, CB, CCC, CE, EAC, ENEC, KC, RCM, UL
- ✓ 5 year warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesELG Series
-
Power Rating150 Watt
-
Output Voltage12 Volt
-
Rated Current10 Ampere
-
Input Voltage100V~305V
-
Standards MetBSI,CB,CCC,CE,EAC,ENEC,KC,RCM,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length8.62 in
-
Width2.48 in
-
Height1.4 in
-
Weight2.09 lb
