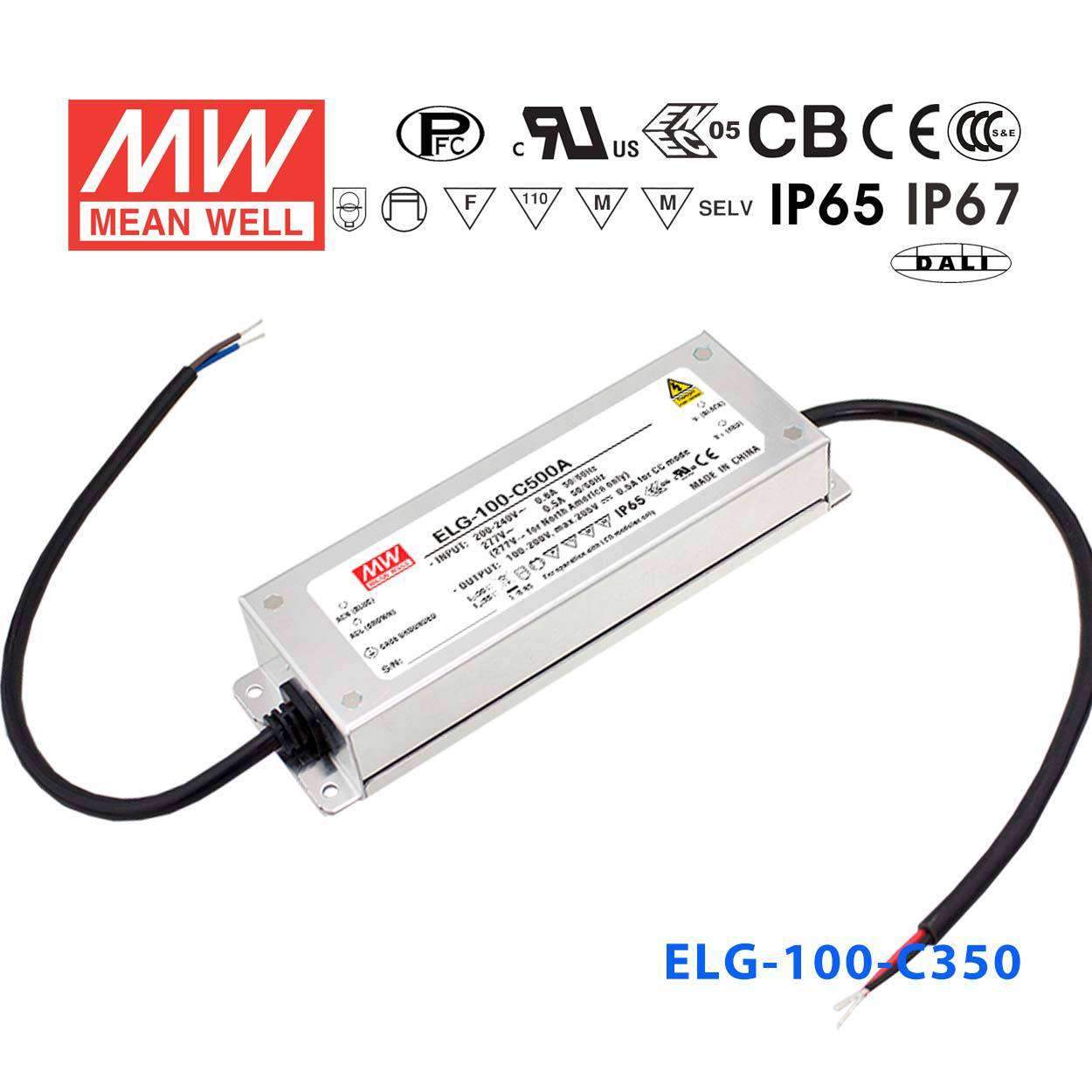

Mean Well ELG-100-C350B Power Supply 100W 350mA - Dimmable
Overview
ELG-100-C350B is the model of this series: rated current 350mA, typical efficiency 92%.
ELG-100-C series is a 100W LED AC/DC driver featuring the constant current mode and high voltage output. ELG-100-C operates from 100~360VAC and offers models with different rated current ranging between 350mA and 1400mA. Thanks to the high efficiency up to 92%, with the fanless design, the entire series is able to operate for -40℃~+90℃ case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. ELG-100-C is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.
Features
- Constant current mode output
- Metal housing design with functional Ground
- Built-in active PFC function
- No load / Standby power consumption <0.5W
- IP67 / IP65 rating for indoor or outdoor installations
- Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off) ; Smart timer dimming; DALI
- Typical lifetime>50000 hours
- 5 years warranty
Specifications
OUTPUT
- RATED CURRENT
- 350mA
- RATED POWER 200VAC ~ 305VAC
- 100.1W
- RATED POWER 100VAC ~ 180VAC
- 70W
- CONSTANT CURRENT REGIONNote.2
- 143 ~ 286V
- OPEN CIRCUIT VOLTAGE(max.)
- 297V
- CURRENT ADJ. RANGE
- Adjustable for A/AB-Type only (via built-in potentiometer)
- CURRENT ADJ. RANGE
- 175 ~ 350mA
- CURRENT RIPPLE
- 5.0% max. @rated current
- CURRENT TOLERANCE
- ±5.0%
- SET UP TIMENote.4
- 1000ms/115VAC 500ms/230VAC
INPUT
- VOLTAGE RANGENote.3
- 100 ~ 305VAC 142 ~ 431VDC continue,320VAC for 24Hrs; 360VAC for 1Hr (Please refer to "STATIC CHARACTERISTIC" section)
- FREQUENCY RANGE
- 47 ~ 63Hz
- POWER FACTOR (Typ.)
- PF≧0.97/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
- TOTAL HARMONIC DISTORTION
- THD< 20%(@load≧50%/115VC; @load≧60%/230VAC; @load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
- EFFICIENCY (Typ.)
- 92%
- AC CURRENT (Typ.)
- 1.1A / 115VAC 0.6A / 230VAC 0.5A/277VAC
- INRUSH CURRENT(Typ.)
- COLD START 40A(twidth=760μs measured at 50% Ipeak)/230VAC; Per NEMA 410
- MAX. No. of PSUs on 16A CIRCUIT BREAKER
- 3 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 230VAC
- LEAKAGE CURRENT
- <0.75mA / 277VAC
- NO LOAD / STANDBY POWER CONSUMPTION
- No load power consumption <0.5W for Blank / A-Type Standby power consumption <0.5W for B / AB / DA-Type
PROTECTION
- SHORT CIRCUIT
- Hiccup mode, recovers automatically after fault condition is removed
- OVER VOLTAGE
- 305 ~ 333V Shut down o/p voltage, re-power on to recover
- OVER TEMPERATURE
- Shut down o/p voltage, re-power on to recover
ENVIRONMENT
- WORKING TEMP.
- Tcase=-40 ~ +90℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
- MAX. CASE TEMP.
- Tcase=+90℃
- WORKING HUMIDITY
- 20 ~ 95% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +80℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.03%/℃ (0 ~ 60℃)
- VIBRATION
- 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY & EMC
- SAFETY STANDARDS
- UL8750(type”HL”), CSA C22.2 No. 250.13-12;BS EN/EN/AS/NZS 61347-1, BS EN/EN/AS/NZS 61347-2-13 independent, BS EN/EN62384; EAC TP TC 004;BIS IS15885(for 700A,1050A only);GB/T19510.1, GB/T19510.213; IP65 or IP67; KC61347-1,KC61347-2-13 approved
- DALI STANDARDS
- Compliance to IEC62386-101,102,(207 by request) for DA Type only
- WITHSTAND VOLTAGE
- I/P-O/P:3.75KVAC I/P-FG:2.0KVAC O/P-FG:1.5KVAC
- ISOLATION RESISTANCE
- I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
- Compliance to BS EN/EN55015,BS EN/EN61000-3-2 Class C (@ load≧60%) ; BS EN/EN61000-3-3; GB/T 17743, GB17625.1; EAC TP TC 020; KC KN15,KN61547
- EMC IMMUNITY
- Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level (surge immunity Line-Earth 6KV, Line-Line 4KV); EAC TP TC 020; KC KN15,KN61547
OTHERS
- MTBF
- 3070.8K hrs min. Telcordia SR-332 (Bellcore) 300.7Khrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 199*63*35.5 mm (L*W*H)
- PACKING
- 0.85kg; 16pcs/14.2kg/0.72CUFT
Test conditions and notes11
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
- 2. Please refer to "DRIVING METHODS OF LED MODULE". For DA-Type, Constant Current region is 60%~100% of maximum voltage under rated power delivery.
- 3. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
- 4. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
- 5. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
- 6. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 80℃ or less.
- 7. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
- 8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
- 9. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
- 10. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.
- 11. For A/AB type need to consider build in using to comply with Type HL application.
Technical drawings
Typical applications
- LED street lighting
- LED harbor lighting
- LED bay lighting
- LED greenhouse lighting
- LED flood lighting
- Type “HL” for use in Class I, Division 2 hazardous (Classified) location.
Downloads
Datasheet1
Certificates4
Test reports1
Catalogues1
FAQ
Can I use the ELG-100-C350B to drive LED modules in outdoor signage applications?
Yes. The ELG-100-C350B carries an IP67 waterproof rating, so it can withstand rain and dust ingress in exposed outdoor signage installations. It delivers a constant 350mA across a CC voltage range of 143–286V, making it suitable for series strings of high-voltage LED modules used in channel letters and illuminated signs.
Is the ELG-100-C350B suitable for powering LED downlights in a recessed ceiling fixture?
Yes. The driver operates over a wide input range of 100–305VAC and maintains a constant 350mA output, which is appropriate for mid-power LED downlight engines designed for that current. Its metal case and IP67 rating also support installation inside tight fixture enclosures where heat and moisture can accumulate.
Can I use this driver for an LED array installed in a cold-storage or refrigerated environment?
Yes. The ELG-100-C350B is rated for a case temperature (Tcase) down to -40°C, making it compatible with cold-storage rooms, freezer corridors, and similar low-temperature environments. Note that its working humidity rating is 20–95% RH non-condensing.
How many LEDs can the ELG-100-C350B drive in series?
The driver supports a CC voltage range of 143–286V. The number of LEDs that can be connected in series depends on the forward voltage of each individual LED — divide the usable voltage range by the forward voltage of your LED to determine the compatible string length. The driver will regulate at a constant 350mA regardless of the exact string voltage within that range.
Does the ELG-100-C350B support dimming?
Yes. The B-suffix variant indicates built-in dimming capability. It supports three-in-one dimming (0–10VDC, 10V PWM signal, and resistance), allowing integration with standard lighting control systems without additional dimming hardware.
What is the difference between constant current ELG-100-C350B and the constant voltage variants in the ELG-100 series?
The ELG-100-C350B is a constant current driver that outputs a fixed 350mA and allows the voltage to vary between 143–286V depending on the LED load. A constant voltage driver instead holds a fixed output voltage and lets the current vary; constant voltage models are not covered by the ELG-100-C datasheet. Constant current drivers are preferred for direct LED string driving where precise current control is needed to prevent overcurrent.
