Mean Well ELG-100-54B Power Supply - Dimmable | 54V LED Driver - United States

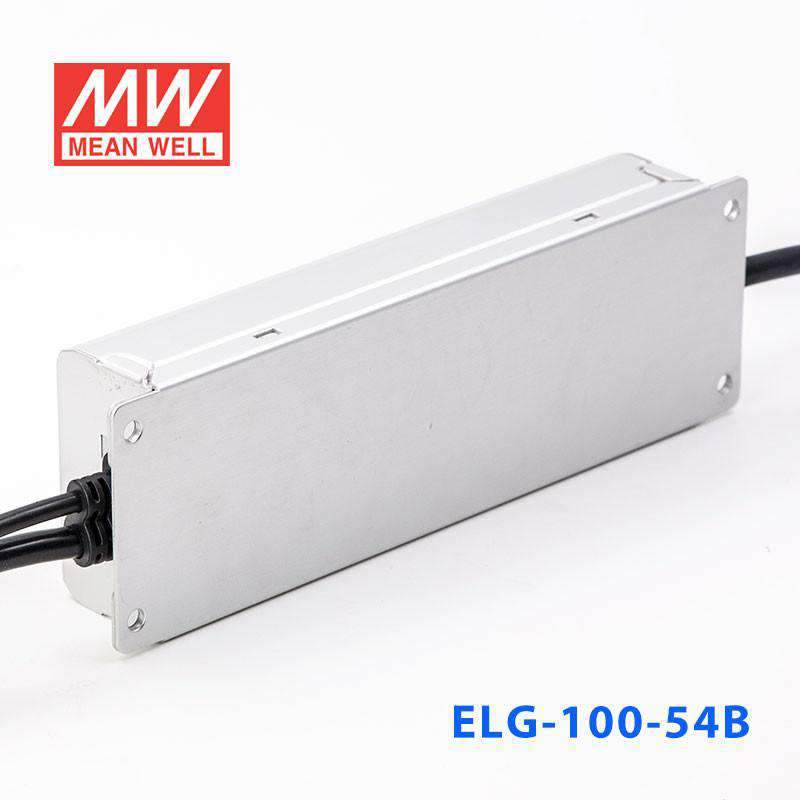

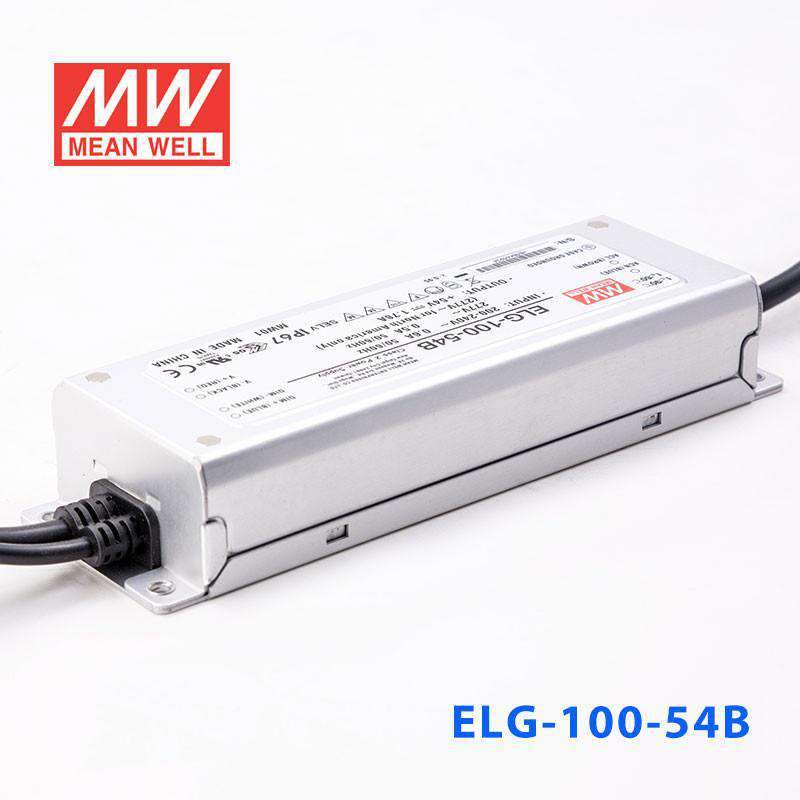

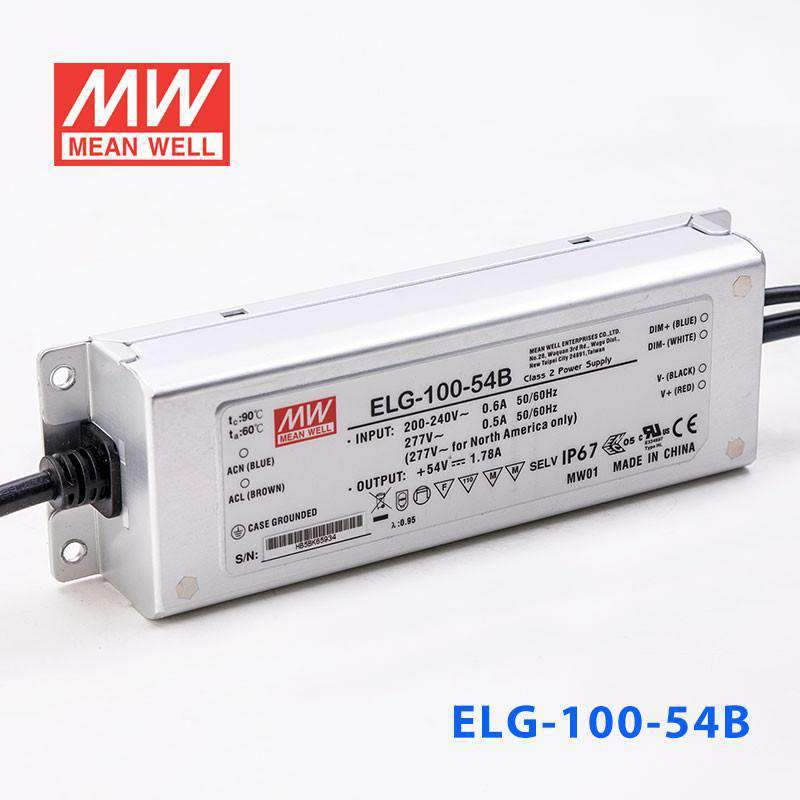

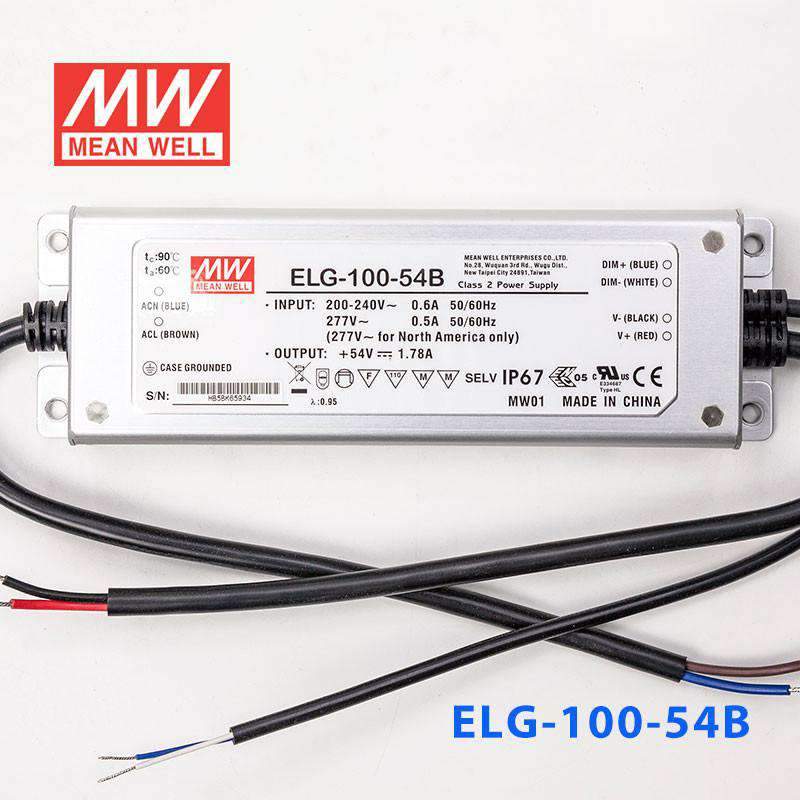

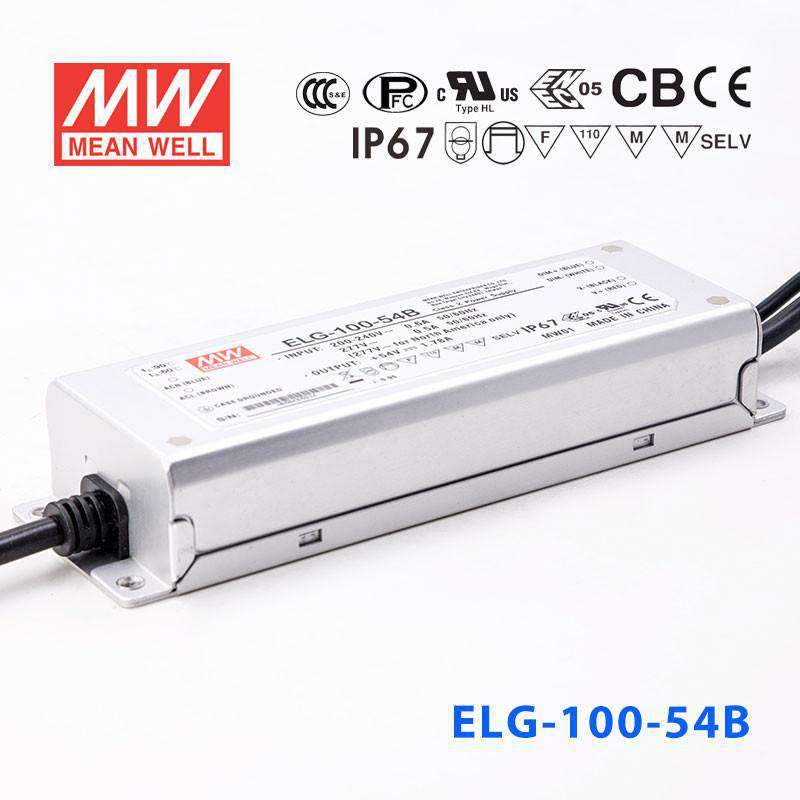

Name: Mean Well ELG-100-54B Power Supply 96.12W 54V - Dimmable 1.78A
Brand: Mean Well
SKU: ELG-100-54B
Price: 44.05 USD
Availability: InStock

Overview

ELG-100-54B is the 54V output model of this series: rated current 1.78A, typical efficiency 91%.

ELG-100 series is a 100W AC/DC LED driver featuring the dual mode constant voltage and constant current output. ELG-100 operates from 100~360VAC and offers models with different rated voltage ranging between 24V and 54V. Thanks to the high efficiency up to 91%, with the fanless design, the entire series is able to operate for -40℃ ~ +90℃ case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. ELG-100 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system

Features

Constant Voltage + Constant Current mode output
Metal housing design with functional Ground
Built-in active PFC function
Class 2 power unit
No load / Standby power consumption <0.5W
IP67 / IP65 rating for indoor or outdoor installations
Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off); Smart timer dimming; DALI
Typical lifetime>50000 hours
5 years warranty

Specifications

ELG-100-54BSpecifications from the official datasheet (2026-07-06 edition)

OUTPUT

DC VOLTAGE: 54V
CONSTANT CURRENT REGION^Note.2: 27 ~ 54V
RATED CURRENT: 1.78A
RATED POWER 200VAC ~ 305VAC: 96.12W
RATED POWER 100VAC ~ 180VAC: 70W
RIPPLE & NOISE (max.)^Note.3: 350mVp-p
VOLTAGE ADJ. RANGE: Adjustable for A/AB-Type only (via the built-in potentiometer) 48.6 ~ 59.4V
CURRENT ADJ. RANGE: Adjustable for A/AB-Type only (via the built-in potentiometer) 0.89 ~ 1.78A
VOLTAGE TOLERANCE^Note.4: ±2.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±0.5%
SETUP, RISE TIME^Note.6: 1000ms, 80ms/115VAC 500ms, 100ms/230VAC
HOLD UP TIME (Typ.): 15ms/115VAC 10ms/230VAC

INPUT

VOLTAGE RANGE^Note.5: 100 ~ 305VAC 142 ~ 431VDC continue,320VAC for 24Hrs; 360VAC for 1Hr (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR: PF≧0.97/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20%(@load≧50%/115VC; @load≧60%/230VAC; @load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
EFFICIENCY (Typ.): 91%
AC CURRENT: 1.1A / 115VAC 0.6A / 230VAC 0.5A/277VAC
INRUSH CURRENT(Typ.): COLD START 60A(twidth=850μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 3 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC
NO LOAD / STANDBY POWER CONSUMPTION: No load power consumption <0.5W for Blank / A -Type Standby power consumption <0.5W for B / AB / DA-Type

PROTECTION

OVER CURRENT: 95 ~ 108% Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT: Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 62 ~ 72V Shut down output voltage, re-power on to recover
OVER TEMPERATURE: Shut down output voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: Tcase=-40 ~ +90℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP.: Tcase=+90℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 60℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL8750(type”HL”), CSA C22.2 No. 250.13-12; IEC/BS EN/EN/AS/NZS 61347-1, IEC/BS EN/EN/AS/NZS 61347-2-13 independent, BS EN/EN62384; EAC TP TC 004;BIS IS15885(for 24/24A/24B/24DA/36/36A/36B/42/42A/42ADA/42B/48/48B/54/54A/54ADA/54B only); GB/T19510.1, GB/T19510.213; IP65 or IP67;KC61347-1,KC61347-2-13 approved
DALI STANDARDS: Compliance to IEC62386-101,102,(207 by request) for DA Type only
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2.0KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55015,BS EN/EN61000-3-2 Class C (@load≧60%); BS EN/EN61000-3-3;GB/T 17743, GB17625.1; EAC TP TC 020; KC KN15,KN61547
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level (surge immunity Line-Earth 6KV, Line-Line 4KV); EAC TP TC 020; KC KN15,KN61547

OTHERS

MTBF: 2920.8K hrs min. Telcordia SR-332 (Bellcore) 282.9Khrs min. MIL-HDBK-217F (25℃)
DIMENSION: 199*63*35.5mm (L*W*H)
PACKING: 0.85kg; 16pcs/14.2kg/0.72CUFT

Certifications & ratings

Type: HL

Test conditions and notes13

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Please refer to "DRIVING METHODS OF LED MODULE". For DA-Type, Constant Current region is 60%~100% of maximum voltage under rated power delivery.
3. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
4. Tolerance : includes set up tolerance, line regulation and load regulation.
5. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
6. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
7. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
8. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 80℃ or less.
9. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
10. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
11. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
12. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.
13. For A/AB type need to consider build in using to comply with Type HL application.

Technical drawings

ELG-100-54B Block Diagram — Block Diagram

ELG-100-54B DIMMING OPERATION — DIMMING OPERATION

ELG-100-54B OUTPUT LOAD vs TEMPERATURE(Note.9) — OUTPUT LOAD vs TEMPERATURE(Note.9)

ELG-100-54B STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

ELG-100-54B TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

ELG-100-54B Mechanical Specification — Mechanical Specification

ELG-100-54B ※ 3Y Model (3-wire input) — ※ 3Y Model (3-wire input)

ELG-100-54B Recommend Mounting Direction — Recommend Mounting Direction

Typical applications

LED street lighting
LED architectural lighting
LED bay lighting
LED floodlighting
Type “HL” for use in Class I, Division 2 hazardous (Classified) location.

Downloads

Datasheet1

ELG-100-54B datasheetELG-100-SPEC.PDF · 2026-07-06 edition PDF Download

Certificates5

CB Certificate (ELG-100)(EN) PDF Download

UL Certificate (ELG-100)(EN) PDF Download

EMC Certificate (ELG-100)(EN) PDF Download

ERP Certificate (ELG-100)(EN) PDF Download

ENEC Certificate (ELG-100)(EN) PDF Download

Test reports1

Test Report (ELG-100-54)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can the ELG-100-54B be installed in a fully exposed outdoor sign that may be rained on directly?

Yes. The ELG-100-54B is rated IP67, meaning it is dust-tight and protected against temporary immersion in water. It is well suited for outdoor sign cabinets, wall-wash fixtures, and other applications where the driver may be directly exposed to rain.

Is the ELG-100-54B appropriate for powering 54V LED strips in a waterproof outdoor cove lighting installation?

Yes. With 96.12W output, 54V DC, and IP67 protection, this driver is a strong match for outdoor cove or soffit lighting using 54V strips. The case temperature (Tcase) rating of -40°C to +90°C covers extreme climate conditions, with load derating at high temperatures.

How much 54V LED strip length can the ELG-100-54B support?

The driver outputs 96.12W at 1.78A on 200–305VAC input (70W on 100–180VAC, e.g. 120VAC). At 96.12W, a 54V strip rated at 12 W/m allows roughly 8 m per driver; a denser 20 W/m strip, about 4.8 m. Always verify your strip's actual rated wattage per meter and leave a safety margin of 10–20%.

Can I use the ELG-100-54B for LED lighting inside a cold-storage facility?

Yes. The case temperature rating starts at -40°C, which covers industrial cold-storage and freezer environments. Its working humidity rating is 20–95% RH non-condensing, so mount it where condensation from temperature cycling near refrigerated areas will not form on the driver.

Does the ELG-100-54B support dimming, and what dimming method does it use?

Yes. The B suffix in Mean Well's naming convention indicates the driver supports built-in dimming via a 3-in-1 interface: 10V PWM signal, 0–10VDC analog control, or resistance-based adjustment. This allows integration with 0–10V dimmers or building management systems that provide these signals.

Is the ELG-100-54B suitable for LED retrofit kits installed on outdoor architectural facades?

Yes. Its IP67 waterproof rating and wide input voltage range of 100–305VAC (70W rated at 100–180VAC) make it compatible with international mains voltage and suitable for outdoor facade lighting projects.
