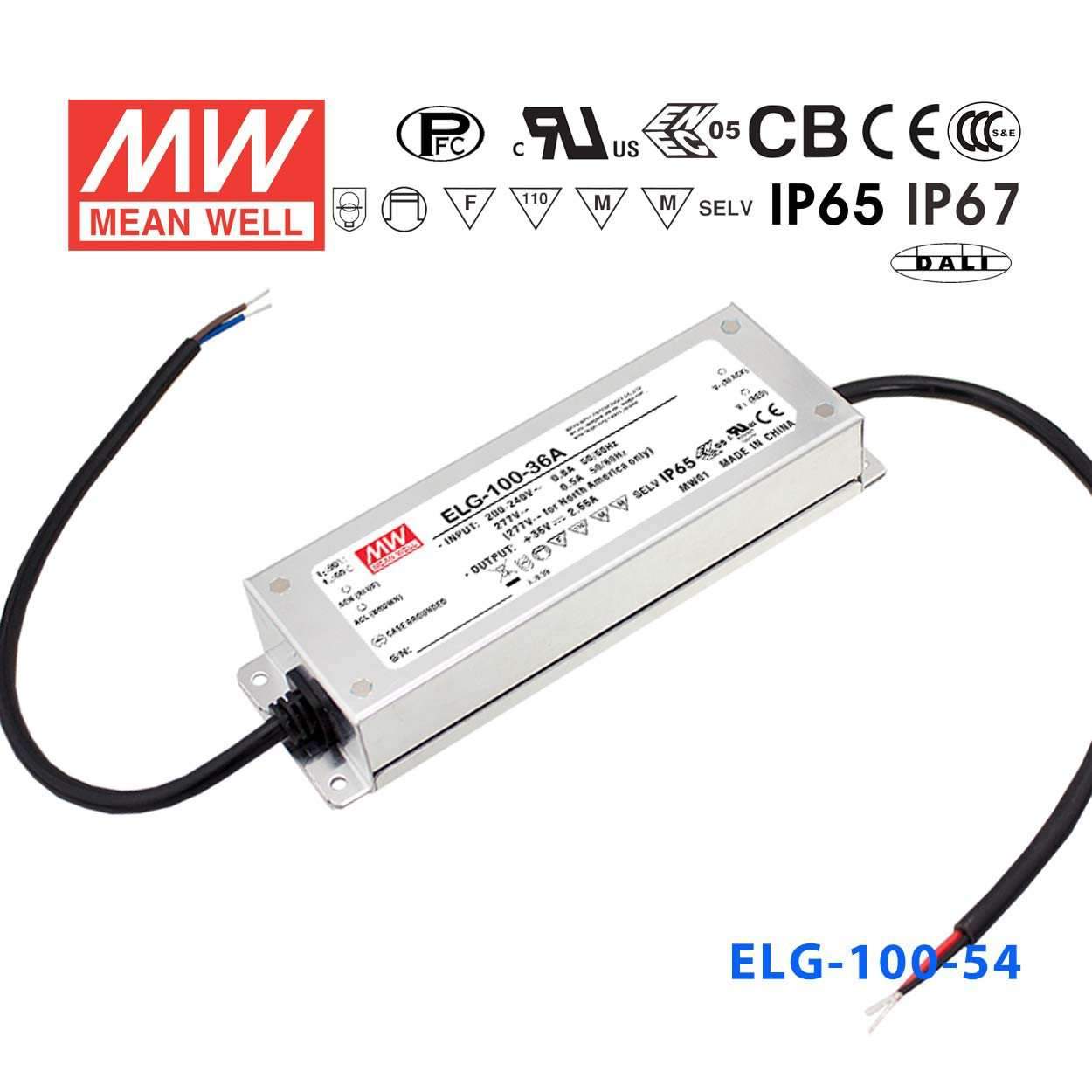

Mean Well ELG-100-54AB Power Supply 100W 54V - Adjustable and Dimma...
Overview
ELG-100-54AB is the 54V output model of this series: rated current 1.78A, typical efficiency 91%.
ELG-100 series is a 100W AC/DC LED driver featuring the dual mode constant voltage and constant current output. ELG-100 operates from 100~360VAC and offers models with different rated voltage ranging between 24V and 54V. Thanks to the high efficiency up to 91%, with the fanless design, the entire series is able to operate for -40℃ ~ +90℃ case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. ELG-100 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system
Features
- Constant Voltage + Constant Current mode output
- Metal housing design with functional Ground
- Built-in active PFC function
- Class 2 power unit
- No load / Standby power consumption <0.5W
- IP67 / IP65 rating for indoor or outdoor installations
- Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off); Smart timer dimming; DALI
- Typical lifetime>50000 hours
- 5 years warranty
Specifications
OUTPUT
- DC VOLTAGE
- 54V
- CONSTANT CURRENT REGIONNote.2
- 27 ~ 54V
- RATED CURRENT
- 1.78A
- RATED POWER 200VAC ~ 305VAC
- 96.12W
- RATED POWER 100VAC ~ 180VAC
- 70W
- RIPPLE & NOISE (max.)Note.3
- 350mVp-p
- VOLTAGE ADJ. RANGE
- Adjustable for A/AB-Type only (via the built-in potentiometer) 48.6 ~ 59.4V
- CURRENT ADJ. RANGE
- Adjustable for A/AB-Type only (via the built-in potentiometer) 0.89 ~ 1.78A
- VOLTAGE TOLERANCENote.4
- ±2.0%
- LINE REGULATION
- ±0.5%
- LOAD REGULATION
- ±0.5%
- SETUP, RISE TIMENote.6
- 1000ms, 80ms/115VAC 500ms, 100ms/230VAC
- HOLD UP TIME (Typ.)
- 15ms/115VAC 10ms/230VAC
INPUT
- VOLTAGE RANGENote.5
- 100 ~ 305VAC 142 ~ 431VDC continue,320VAC for 24Hrs; 360VAC for 1Hr (Please refer to "STATIC CHARACTERISTIC" section)
- FREQUENCY RANGE
- 47 ~ 63Hz
- POWER FACTOR
- PF≧0.97/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
- TOTAL HARMONIC DISTORTION
- THD< 20%(@load≧50%/115VC; @load≧60%/230VAC; @load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
- EFFICIENCY (Typ.)
- 91%
- AC CURRENT
- 1.1A / 115VAC 0.6A / 230VAC 0.5A/277VAC
- INRUSH CURRENT(Typ.)
- COLD START 60A(twidth=850μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
- MAX. No. of PSUs on 16A CIRCUIT BREAKER
- 3 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 230VAC
- LEAKAGE CURRENT
- <0.75mA / 277VAC
- NO LOAD / STANDBY POWER CONSUMPTION
- No load power consumption <0.5W for Blank / A -Type Standby power consumption <0.5W for B / AB / DA-Type
PROTECTION
- OVER CURRENT
- 95 ~ 108% Constant current limiting, recovers automatically after fault condition is removed
- SHORT CIRCUIT
- Hiccup mode, recovers automatically after fault condition is removed
- OVER VOLTAGE
- 62 ~ 72V Shut down output voltage, re-power on to recover
- OVER TEMPERATURE
- Shut down output voltage, re-power on to recover
ENVIRONMENT
- WORKING TEMP.
- Tcase=-40 ~ +90℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
- MAX. CASE TEMP.
- Tcase=+90℃
- WORKING HUMIDITY
- 20 ~ 95% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +80℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.03%/℃ (0 ~ 60℃)
- VIBRATION
- 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY & EMC
- SAFETY STANDARDS
- UL8750(type”HL”), CSA C22.2 No. 250.13-12; IEC/BS EN/EN/AS/NZS 61347-1, IEC/BS EN/EN/AS/NZS 61347-2-13 independent, BS EN/EN62384; EAC TP TC 004;BIS IS15885(for 24/24A/24B/24DA/36/36A/36B/42/42A/42ADA/42B/48/48B/54/54A/54ADA/54B only); GB/T19510.1, GB/T19510.213; IP65 or IP67;KC61347-1,KC61347-2-13 approved
- DALI STANDARDS
- Compliance to IEC62386-101,102,(207 by request) for DA Type only
- WITHSTAND VOLTAGE
- I/P-O/P:3.75KVAC I/P-FG:2.0KVAC O/P-FG:1.5KVAC
- ISOLATION RESISTANCE
- I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
- Compliance to BS EN/EN55015,BS EN/EN61000-3-2 Class C (@load≧60%); BS EN/EN61000-3-3;GB/T 17743, GB17625.1; EAC TP TC 020; KC KN15,KN61547
- EMC IMMUNITY
- Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level (surge immunity Line-Earth 6KV, Line-Line 4KV); EAC TP TC 020; KC KN15,KN61547
OTHERS
- MTBF
- 2920.8K hrs min. Telcordia SR-332 (Bellcore) 282.9Khrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 199*63*35.5mm (L*W*H)
- PACKING
- 0.85kg; 16pcs/14.2kg/0.72CUFT
Certifications & ratings
- Type
- HL
Test conditions and notes13
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
- 2. Please refer to "DRIVING METHODS OF LED MODULE". For DA-Type, Constant Current region is 60%~100% of maximum voltage under rated power delivery.
- 3. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
- 4. Tolerance : includes set up tolerance, line regulation and load regulation.
- 5. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
- 6. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
- 7. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
- 8. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 80℃ or less.
- 9. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
- 10. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
- 11. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
- 12. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.
- 13. For A/AB type need to consider build in using to comply with Type HL application.
Technical drawings
Typical applications
- LED street lighting
- LED architectural lighting
- LED bay lighting
- LED floodlighting
- Type “HL” for use in Class I, Division 2 hazardous (Classified) location.
Downloads
Datasheet1
Certificates5
Test reports1
Catalogues1
FAQ
Can I use the ELG-100-54AB to power 54V LED signage in a covered outdoor location?
Yes. The ELG-100-54AB carries an IP65 water-resistant rating, which protects against low-pressure water jets and dust ingress, making it suitable for covered outdoor enclosures such as cabinet signs or canopy lighting. It is rated for a case temperature (Tcase) of -40°C to +90°C, with load derating at high temperatures.
Is the ELG-100-54AB a good fit for architectural LED strip lighting in a commercial build-out?
Yes. Operating at 54V DC with up to 96.12W of output, it suits longer runs of 54V LED strip used in cove lighting, retail displays, or architectural accent applications. The potentiometer-adjustable output current and built-in dimming input (AB suffix) allow fine-tuning brightness to match design intent.
How much 54V LED strip can the ELG-100-54AB realistically drive?
The driver delivers 96.12W at 1.78A on 200–305VAC input (70W on 100–180VAC, e.g. 120VAC). If your strip is rated at 14 W/m, you can run up to approximately 6.9 m per driver at 96.12W. Always check your specific strip's rated power per meter and apply a 10–20% derating margin for thermal headroom.
Can this driver be used for illuminated outdoor channel letters on a building facade?
Yes, provided the letters' enclosure offers additional mechanical protection from direct rain exposure. The IP65 rating protects against splashing water but is not fully submersible. For fully exposed, unenclosed outdoor signs subject to driving rain, consider the IP67-rated ELG-100-54B variant instead.
Does the ELG-100-54AB support 0–10V or PWM dimming for dynamic lighting control?
Yes. The AB suffix indicates the driver supports 3-in-1 dimming: 0–10VDC, 10V PWM signal, and resistance control. This makes it compatible with building automation systems and dimmer controllers that provide these signals.
What are the key differences between the ELG-100-54AB and its 24V and 48V siblings in the ELG-100 series?
Within the ELG-100 family, the primary difference is output voltage and corresponding current: the 24V models deliver 4A at 96W, the 48V models deliver 2A at 96W, and the 54V models (including this one) deliver 1.78A at 96.12W. All share the same 100–305VAC input range and similar power rating; choose the voltage that matches your LED strip or luminaire system.
Is the ELG-100-54AB suitable for museum or gallery accent lighting where precise brightness control is needed?
Yes. The adjustable output current (AB model) combined with 3-in-1 dimming allows fine-grained brightness adjustment down to a minimum dimming level of about 8%, which suits display lighting where glare control and exact lumen output are important.
