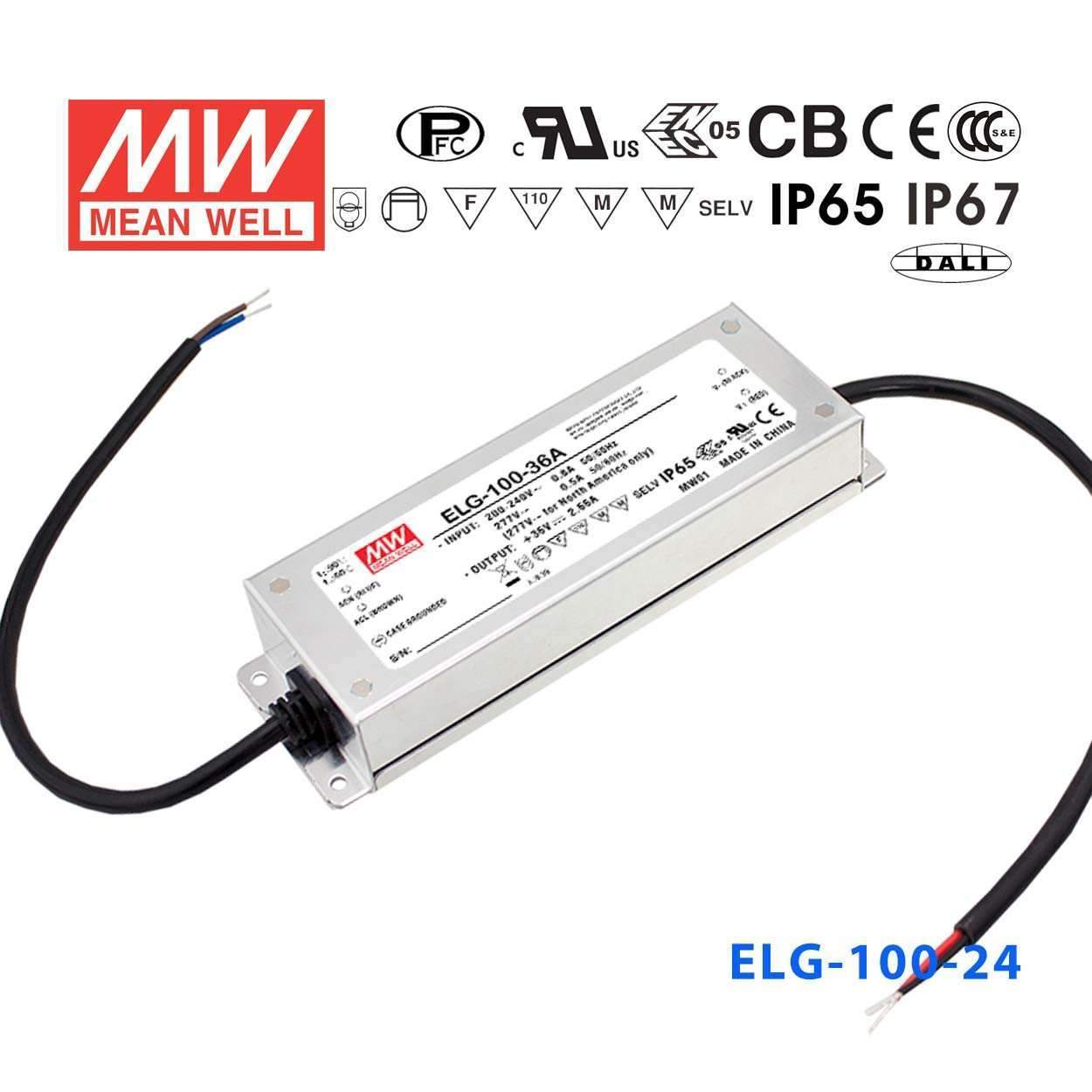

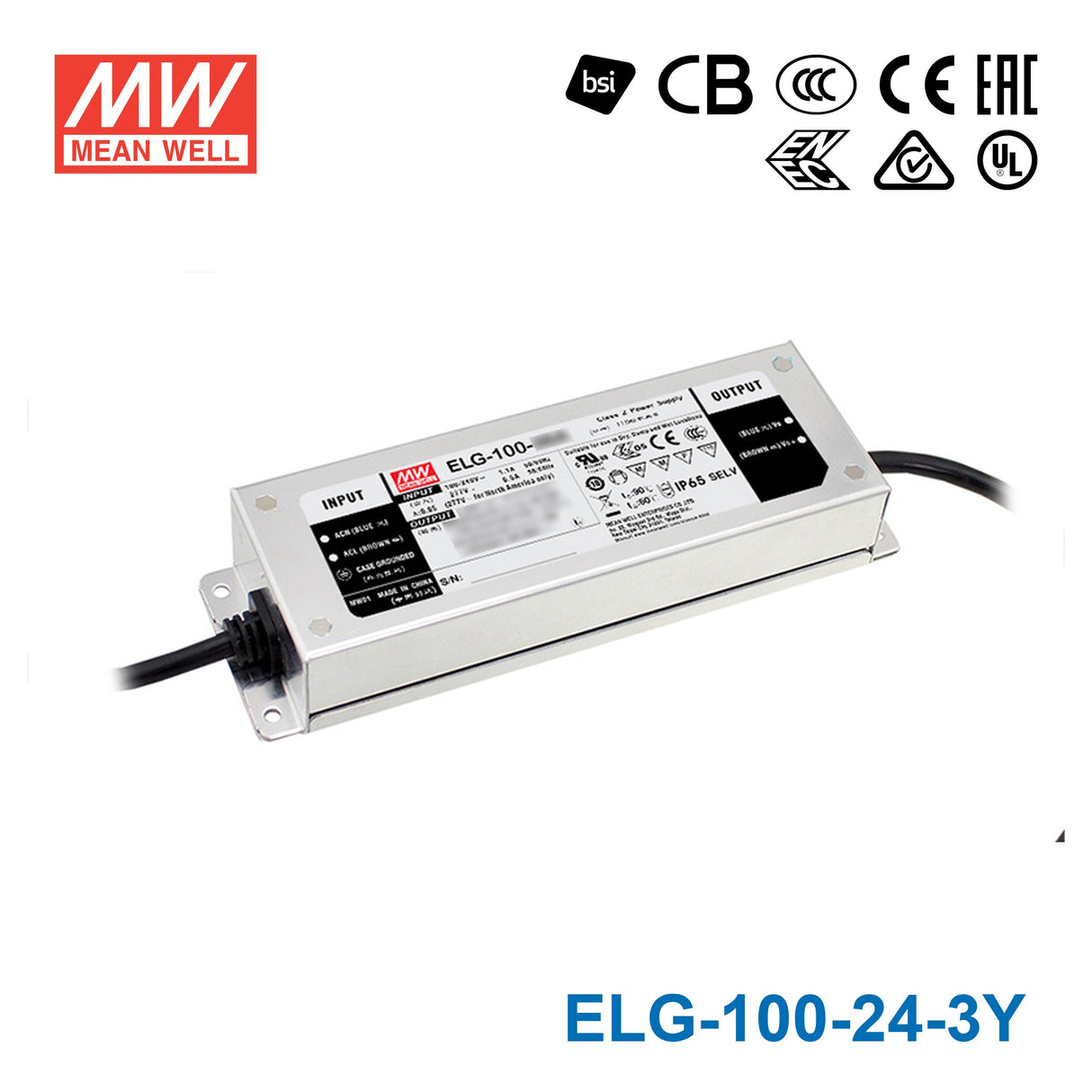

Mean Well ELG-100-24-3Y Power Supply 96W 24V 4A — 3-Wire Input (wit...
$65.99 USD
Unit price /
Unavailable
Description
Description
The ELG-100 is a 96W Mean Well AC-DC LED driver (input: 100~305VAC, output: 24V, operating temperature: -40~+90°C). This is the 3Y variant, supplied with a 3-wire input cable (live, neutral and protective earth).
Key Features
- ✓ 3-wire input with protective earth (L, N + PE)
- ✓ Input voltage: 100~305VAC
- ✓ Output voltage: 24V
- ✓ Rated output current: 4A
- ✓ Ingress protection: IP67
- ✓ Operating temperature: -40~+90°C
- ✓ Safety certifications: BSI, CB, CCC, CE, EAC, ENEC, RCM, UL
- ✓ 5 year warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesELG Series
-
Power Rating100 Watt
-
Output Voltage24 Volt
-
Rated Current4 Ampere
-
Input Voltage100V~305V
-
Standards MetBSI,CB,CCC,CE,EAC,ENEC,RCM,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length7.83 in
-
Width2.48 in
-
Height1.4 in
-
Weight1.87 lb
