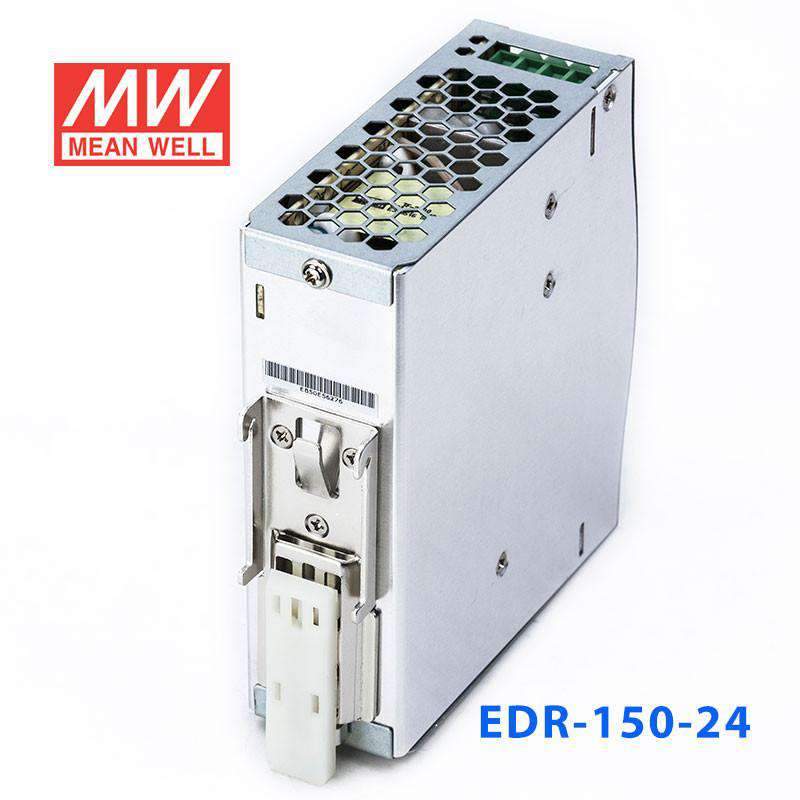

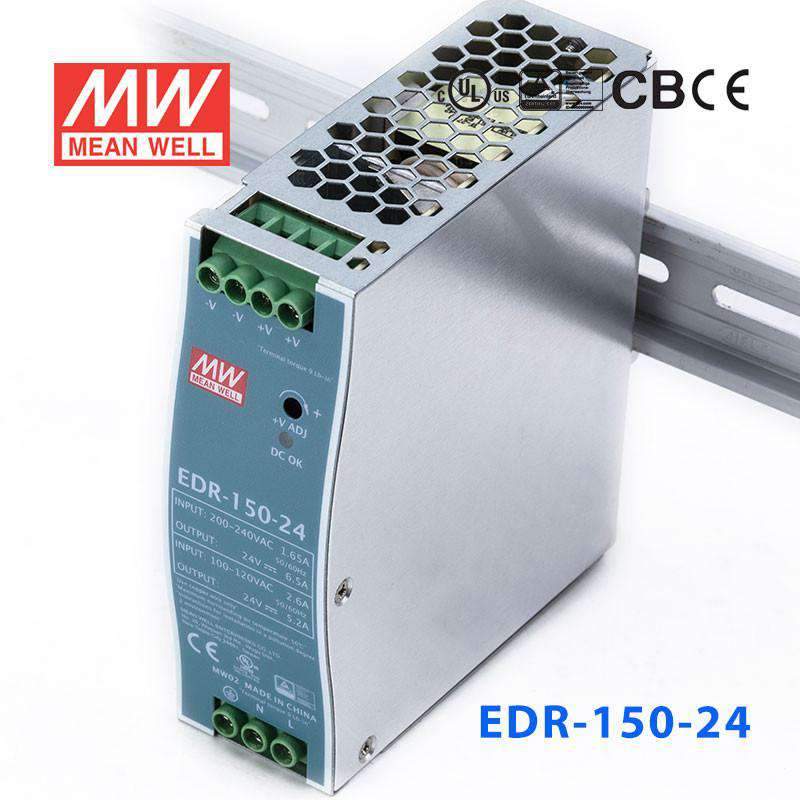

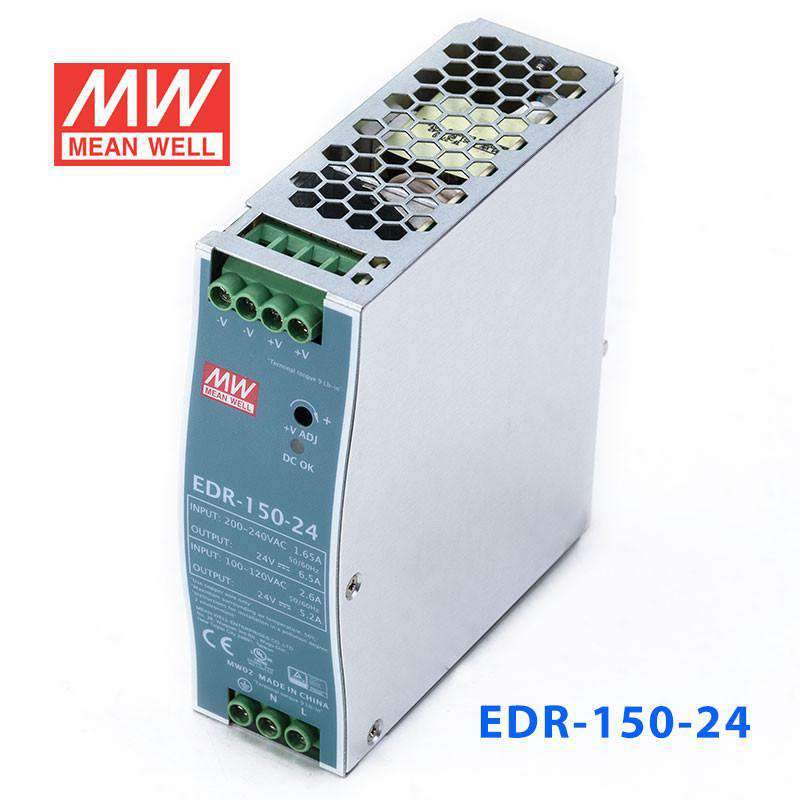

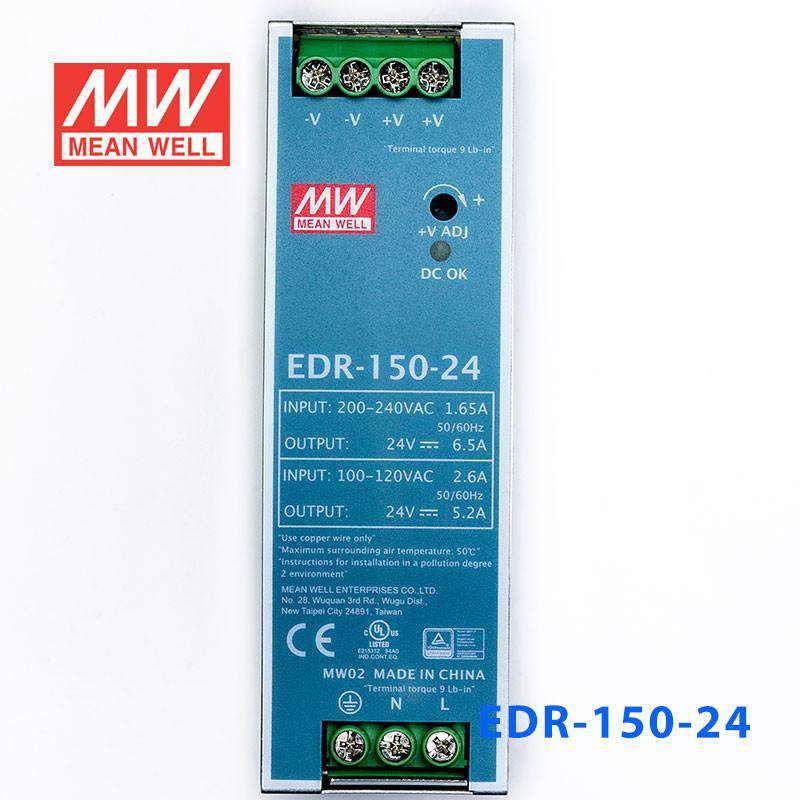

Mean Well EDR-150-24 Single Output Industrial Power Supply 150W 24V 6.5A - DIN Rail

Name: Mean Well EDR-150-24 Single Output Industrial Power Supply 150W 24V 6.5A - DIN Rail
Brand: Mean Well
SKU: EDR-150-24
Price: 38.73 USD
Availability: InStock

metal caselow costslim sizewidth:32~40mmEMC EN55022 class A

SKU EDR-150-24

$38.73 USD

Shipping calculated at checkout.

Select model — 3 in this family

EDR-150-24

EDR-75-24 75W 24V In stock$32.09 USD

EDR-120-24 120W 24V In stock$37.08 USD

EDR-150-24 150W 24V In stock$38.73 USD

Product variants

In stock

Overview

EDR-150-24 is the 24V output model of this series: rated current 6.5A / 230VAC 5.2A / 115VAC, rated power 156W / 230VAC 125W / 115VAC, typical efficiency 87%.

EDR-150-24 is one economical slim DIN rail power supply series, providing up to 156W at 230VAC input. This series is adapt to be installed on TS-35/7.5 or TS-35/15 mounting rails. The body is designed 40mm in width, which allows space saving inside the cabinets. The entire series adopts the full range AC input from 90VAC to 264VAC and conforms to BS EN/EN61000-3-2(≦80% Load), the norm the European Union regulates for harmonic current. EDR-150-24 is designed with metal housing that enhances the unit's power dissipation. With working efficiency up to 87%, the entire series can operate at the ambient temperature between -20℃ and 60℃ under air convection. It is equipped with constant current mode for over-load protection, fitting various inductive or capacitive applications. The complete protection functions and relevant certificates for industrial control apparatus (UL508, TUV BS EN/EN62368-1, and etc.) make EDR-150-24 a very competitive power supply solution for industrial applications.

Features

Universal AC input / Full range
Protections: Short circuit / Overload / Over voltage / Over temperature
Cooling by free air convection

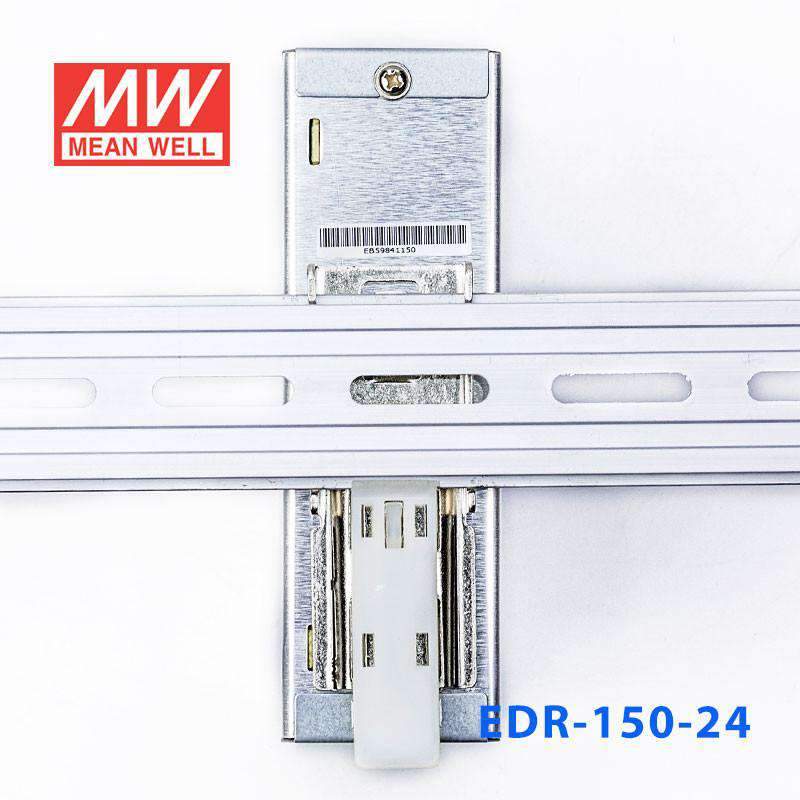

Can be installed on DIN rail TS-35/7.5 or 15
UL 508 (industrial control equipment) approved
BS EN/EN61000-6-2(BS EN/EN50082-2) industrial immunity level
100% full load burn-in test
2 years warranty

Specifications

EDR-150-24Specifications from the official datasheet (2026-03-31 edition)

OUTPUT

DC VOLTAGE: 24V
RATED CURRENT: 6.5A / 230VAC 5.2A / 115VAC
CURRENT RANGE: 0 ~ 6.5A / 230VAC 0 ~ 5.2A / 115VAC
RATED POWER: 156W / 230VAC 125W / 115VAC
RIPPLE & NOISE (max.)^Note.2: 150mVp-p
VOLTAGE ADJ. RANGE: 24 ~ 28V
VOLTAGE TOLERANCE^Note.3: ±1.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±1.0%
SETUP, RISE TIME: 1500ms, 60ms/230VAC 3000ms, 60ms/115VAC at full load
HOLD UP TIME (Typ.): 16ms/230VAC 10ms/115VAC at full load

INPUT

VOLTAGE RANGE^Note.6: 90 ~ 264VAC 127 ~ 370VDC [DC input operation possible by connecting AC/L(+), AC/N(-)]
FREQUENCY RANGE: 47 ~ 63Hz
EFFICIENCY (Typ.): 87%
AC CURRENT (Typ.): 2.6A/115VAC 1.7A/230VAC
INRUSH CURRENT (Typ.): 20A/115VAC 35A/230VAC
LEAKAGE CURRENT: <1mA / 240VAC

PROTECTION

OVERLOAD^Note.7: 105 ~ 130% rated output power Protection type : Constant current limiting, recovers automatically after fault condition is removed / 230VAC 105 ~ 150% rated output power Protection type : Constant current limiting, recovers automatically after fault condition is removed / 115VAC
OVER VOLTAGE: 29 ~ 33V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: -20 ~ +60℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: Component:10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6

SAFETY & EMC (Note 4)

SAFETY STANDARDS: Ul508, TUV BS EN/EN62368-1, EAC TP TC 004, BSMI CNS15598-1 approved;(meet BS EN/EN60204-1)
WITHSTAND VOLTAGE: I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:>100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55032 (CISPR32) Class A, BS EN/EN61000-3-2, Class A (≦80% Load), BS EN/EN61000-3-3, EAC TP TC 020, CNS15936 Class A
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, BS EN/EN61000-6-2 (BS EN/EN50082-2), heavy industry level, EAC TP TC 020

OTHERS

MTBF: 2717.1K hrs min. Telcordia SR-332 (Bellcore) ; 472.5K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 40*125.2*113.5mm (W*H*D)
PACKING: 0.6Kg; 20pcs/13Kg/1.02CUFT

Test conditions and notes8

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
5. Installation clearances : 40mm on top, 20mm on the bottom, 5mm on the left and right side are recommended when loaded permanently with full power. In case the adjacent device is a heat source, 15mm clearance is recommended.
6. Derating may be needed under low input voltage. Please check the derating curve for more details.
7. Hiccup mode at 90~100VAC, recovers automatically after fault condition is removed.
8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

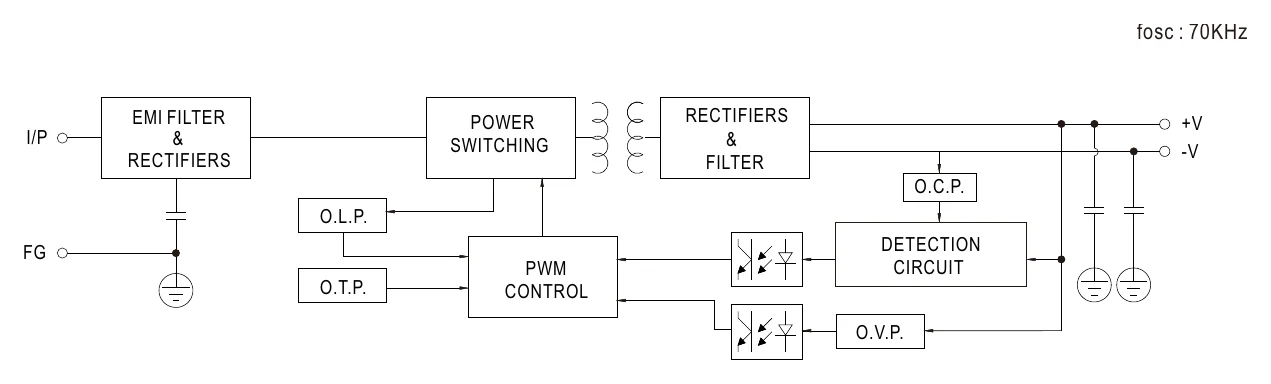

EDR-150-24 Block Diagram — Block Diagram

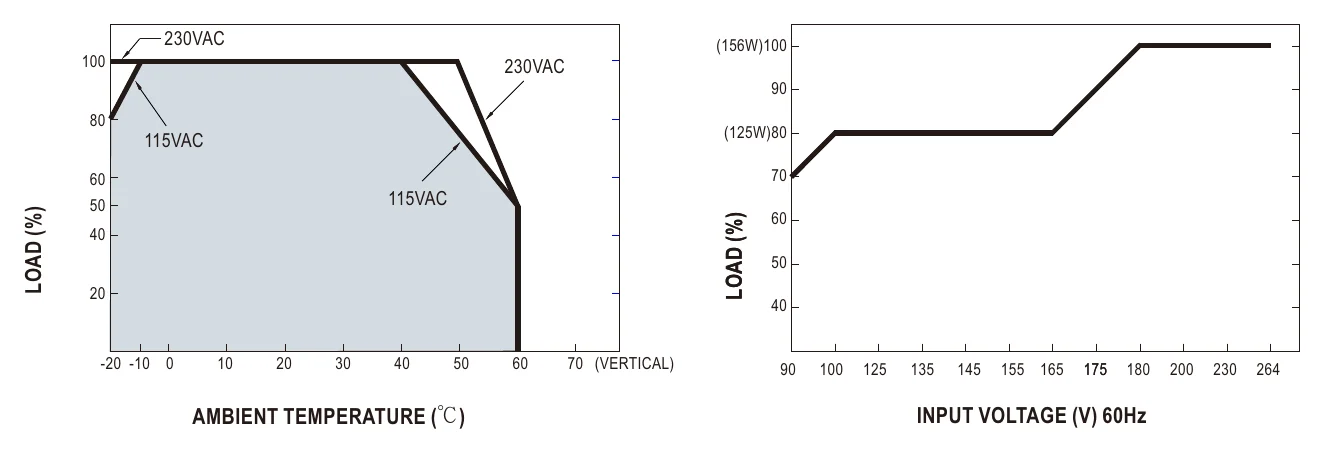

EDR-150-24 Derating Curve — Derating Curve

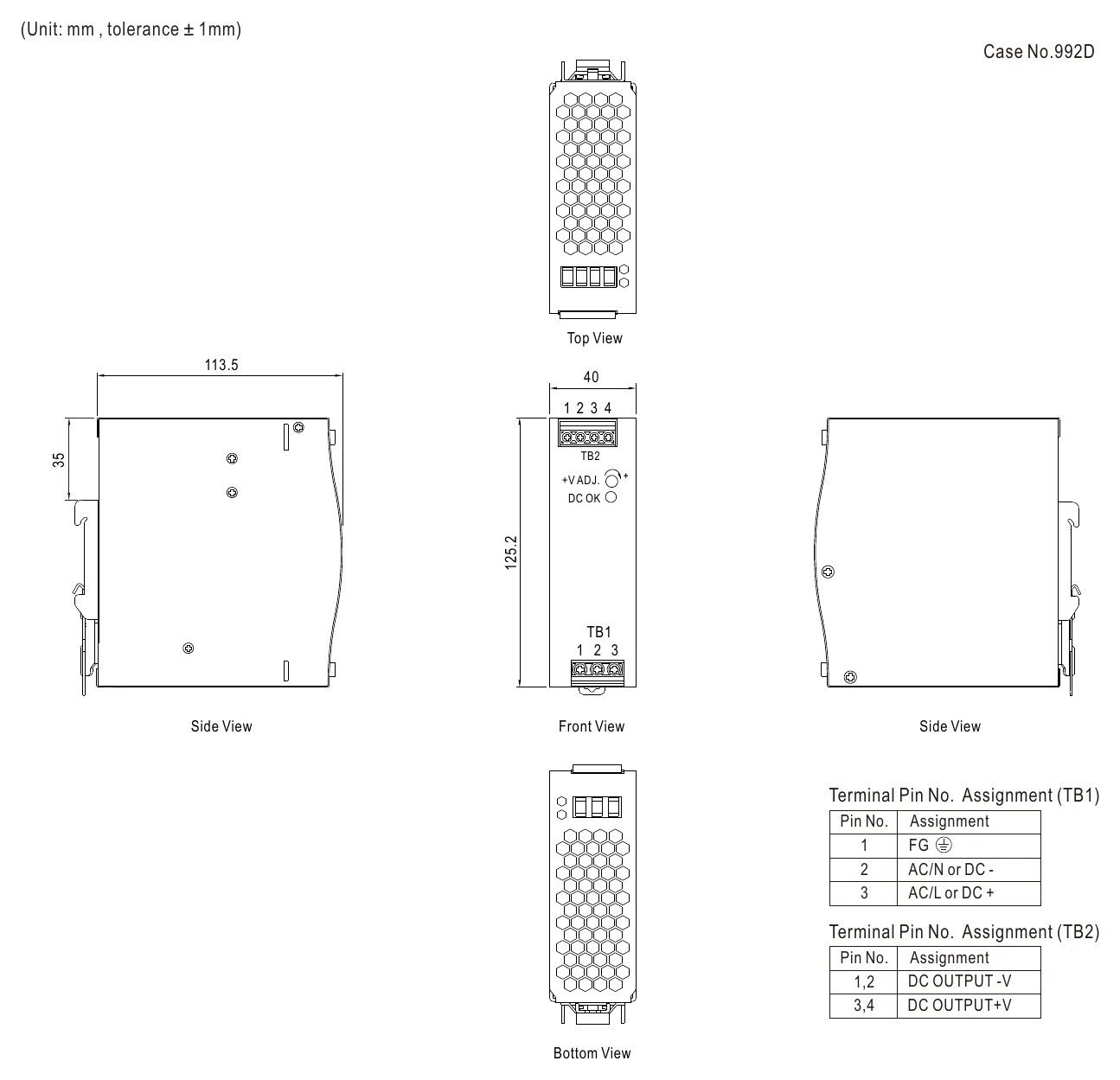

EDR-150-24 Mechanical Specification — Mechanical Specification

Typical applications

Industrial control system
Semiconductor fabrication equipment
Factory automation
Electro-mechanical apparatus

Downloads

Datasheet1

EDR-150-24 datasheetEDR-150-SPEC.PDF · 2026-03-31 edition PDF Download

Certificates4

CB Certificate (EDR-150)(EN) PDF Download

UL Certificate (EDR-150)(EN) PDF Download

EMC Certificate (EDR-150)(EN) PDF Download

TUV Certificate (EDR-150)(EN) PDF Download

Test reports1

Test Report (ERD-150-24)(EN) PDF Download

Catalogues2

Mean Well Catalog (Industrial) PDF Download

Mean Well DIN RAIL Catalog PDF Download

FAQ

Can I use the EDR-150-24 for a 24V PLC control panel?

Yes. The EDR-150-24 provides 24V output at 6.5A for 156W at 230VAC input (5.2A / 125W at 115VAC), which suits many 24V PLC control panels and associated cabinet power needs. Its DIN rail format and slim 40 mm width are useful where panel space is limited.

Is the EDR-150-24 suitable for industrial automation cabinets with 24V DC loads?

It is a practical fit for industrial automation cabinets that standardize on 24V DC and stay within 6.5A total output current at 230VAC input (5.2A at 115VAC). DIN rail mounting on TS35/7.5 or TS35/15 rails is aligned with enclosed industrial panel use. Its 40 × 125.2 × 113.5 mm (W × H × D) body also supports compact cabinet layouts.

Can this power supply be used in building management or control enclosures?

Yes, for building management or control enclosures that need a 24V DIN rail power supply up to 156W at 230VAC input (125W at 115VAC). The wide 90-264VAC input also helps when the supply needs to fit common AC input ranges. Its slim size is especially useful in crowded enclosure designs.

Is the EDR-150-24 a good option when I need a slim 24V DIN rail supply?

Yes. This model combines 24V output, 6.5A current, and 156W capacity (at 230VAC input; 5.2A / 125W at 115VAC) with a slim 40 mm width, making it suitable for narrow DIN rail spaces. That makes it easier to use in dense control cabinets without moving to a lower-power class.

Is the EDR-150-24 intended for open-air use, or should it be installed in a cabinet?

It is better suited to control cabinets or enclosures. The operating temperature range is -20°C to +60°C (refer to the derating curve), and the DIN rail design is aligned with enclosed industrial or building control environments. The EMC emission rating is EN55032 (CISPR32) Class A, which also points to industrial cabinet use rather than general open-area consumer environments.
