Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

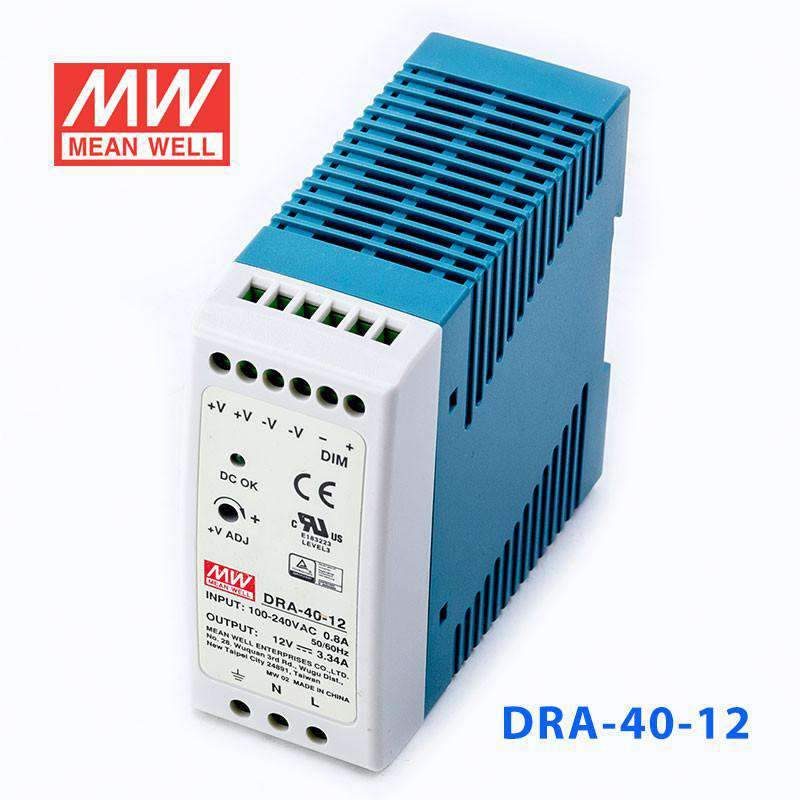

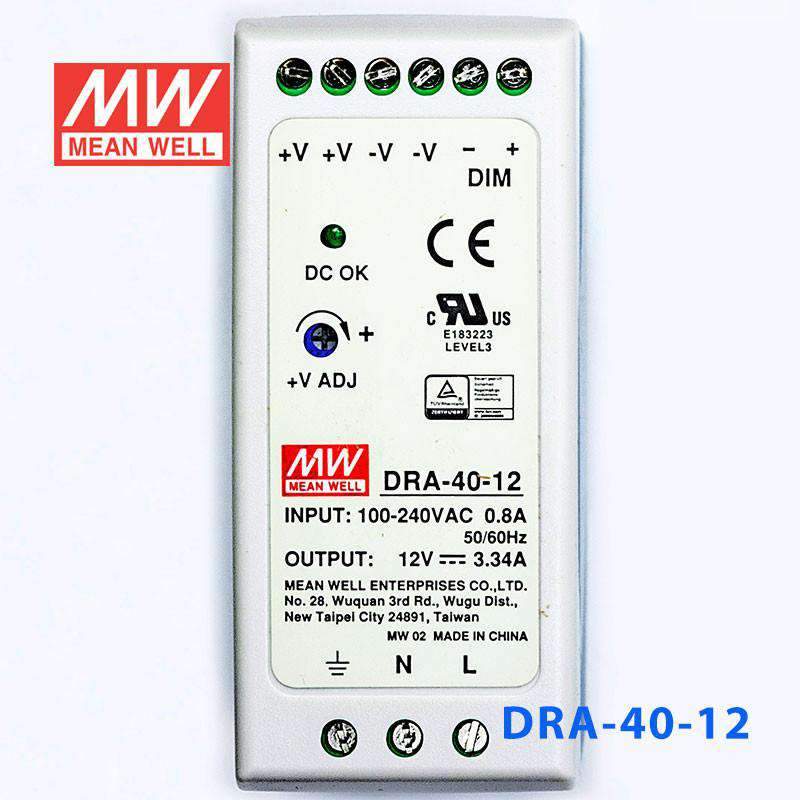

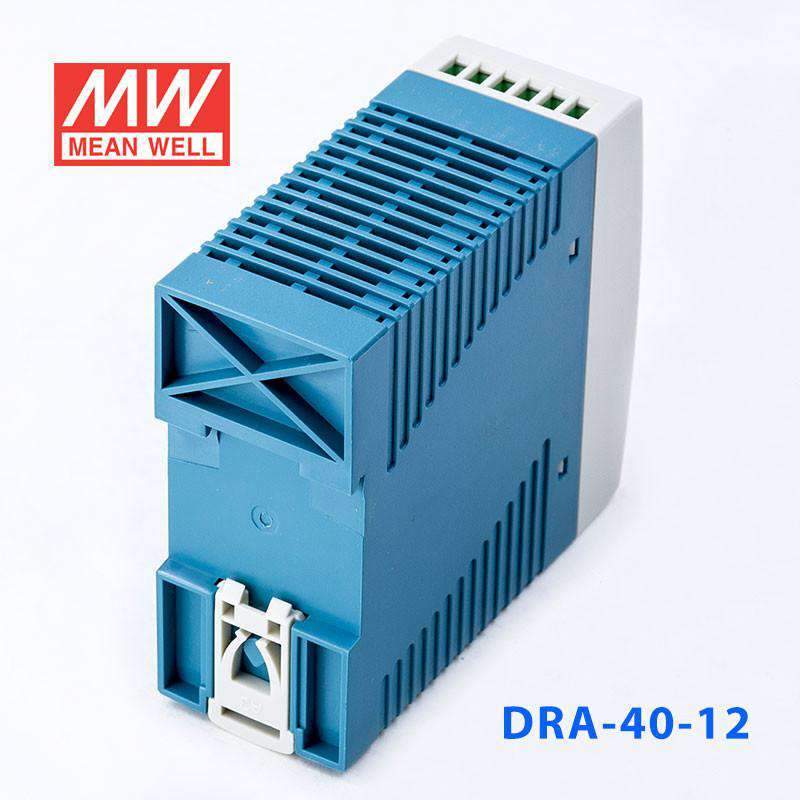

Mean Well DRA-40-12 Single Output Switching Power Supply 40W 12V - ...
$30.51 USD
Unit price /
Unavailable
Description
Description
Features
| Universal AC input / Full range |

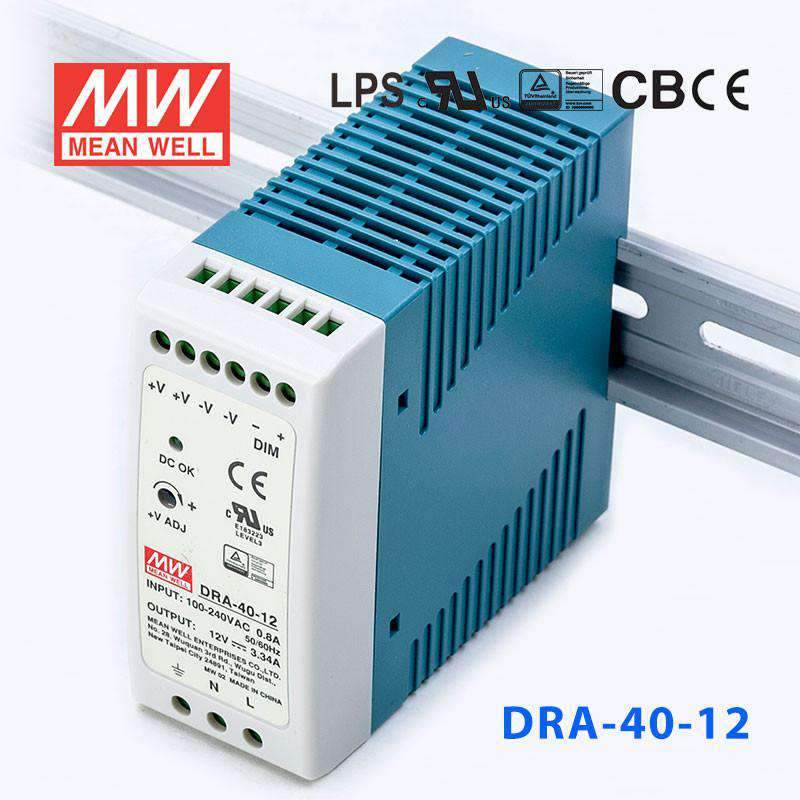

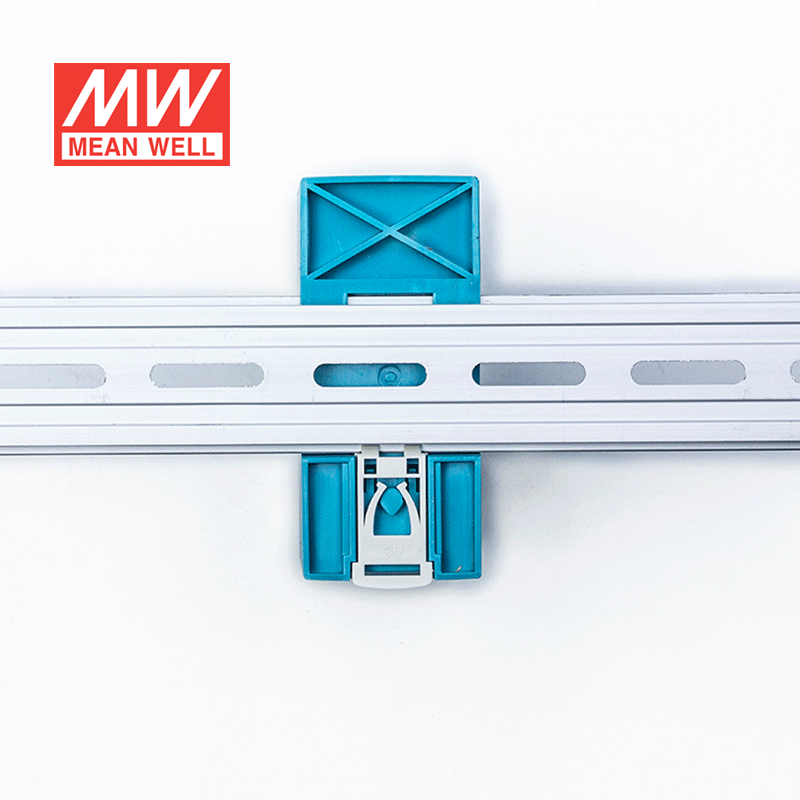

| Can be installed on DIN rail TS-35/7.5 or 15 |
| Output Voltage adjustable through internal potentiometer |
| Protections: Short circuit / Overload /Over voltage |
| Output Current adjustable through external 1~10Vdc, PWM signal or resistance |
| Cooling by free air convection |
| Pass LPS |
| LED indicator for power on |
| 100% full load burn-in test |
| 3 years warranty |
General Specification
| AC input voltage range | 90~264VAC ; 127~370VDC |
| AC inrush current (max.) | Cold start 30A/115VAC 60A/230VAC |
| Over voltage protection | Protection type : Shut down o/p voltage, re-power on to recover |
| Withstand voltage | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC |
| Working temperature | -30~+70ºC (refer to output derating curve) |
| Safety standards | UL60950-1, TUV EN60950-1 approved |
| EMC standards | Compliance to EN55022 (CISPR22) Class B, EN61000-3-2,-3 |
| Dimension (LxWxH)(mm) | 40 x 90 x 100 mm |
Detailed Datasheet
| Please download from the RELATED FILE section on this page |
Specifications
Specifications
-
BrandMean Well
-
SeriesDRA Series
-
Power Rating40.08 Watt
-
Output Voltage12 Volt
-
Rated Current3.34 Ampere
-
Input Voltage90V~264V
-
Standards MetCB,CE,EAC,TUV,UL
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length3.94 in
-
Width3.54 in
-
Height1.57 in
-
Weight0.66 lb
