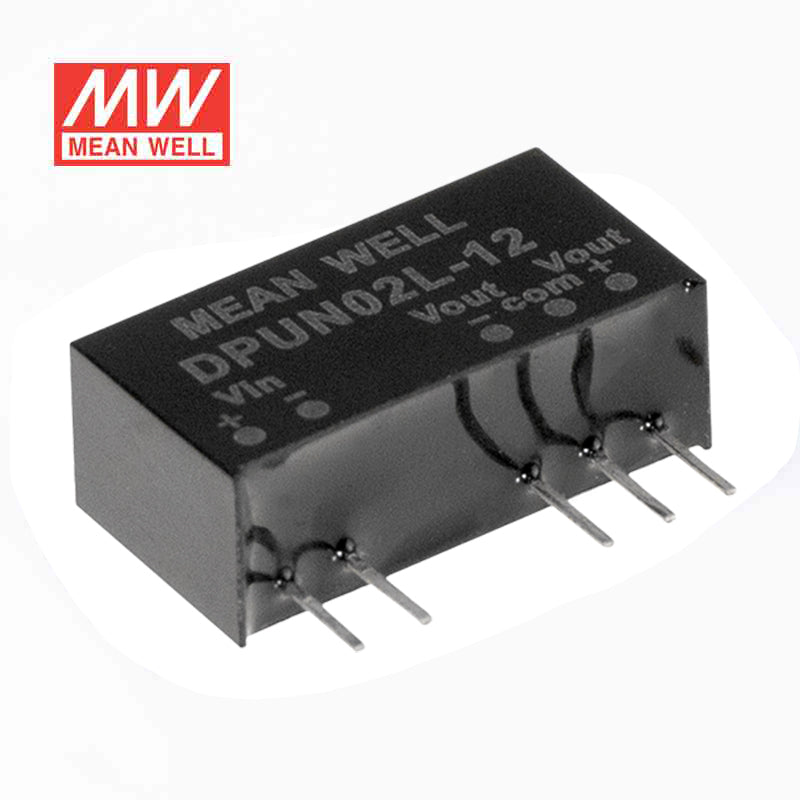

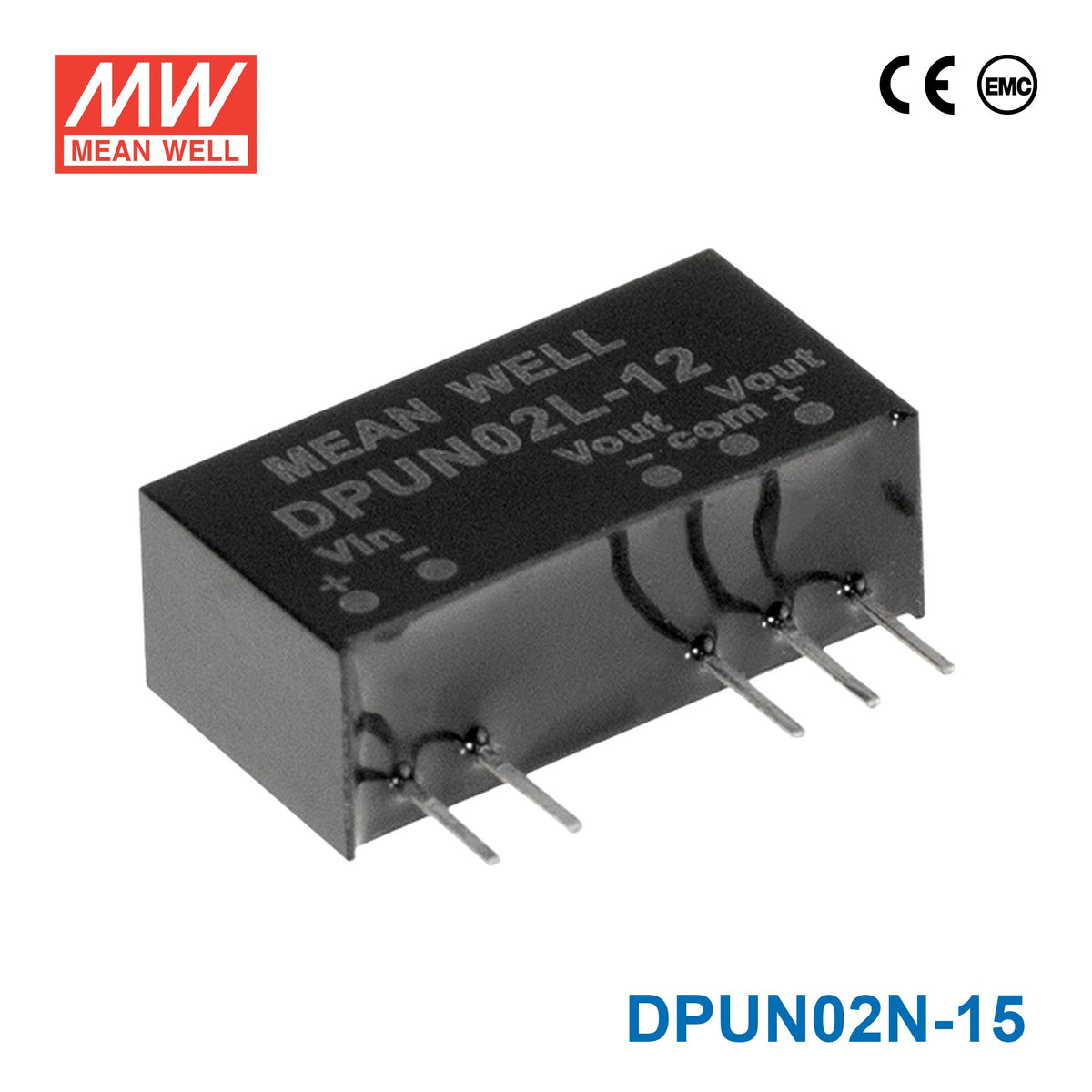

Mean Well DPUN02N-15 DC-DC Converter - 2W - 21.6~26.4V in ±15V out
$5.19 USD
Unit price /
Unavailable
Description
Description
Features
| SIP7 package with industry-standard pinout |
| Wide operating temperature range -40~+105°C |
| High efficiency up to 87% |
| Comply to BS EN/EN55032 radiated Class A without additional components |
| Low cost |
| Protection: Short circuit(continuous)/Overload |
| 3KVDC I/O isolation |
| 3 years warranty |
General Specification
| Voltage accuracy | ±3% |
| Vibration | 10~500Hz, 2G 10min./1 cycle, the period for 60 min, each along X, Y, Z axes |
| Cooling | Free-air convection |
| Short circuit protection | Continuous, auto-recovery |
| Working temperature | -40°C to +105°C |
| EMC | Compliance to EN55032 Class A, EN61000-4-2,3,4,5,6,8 |
| Temp. Coefficient | ±0.05% / °C |
| Dimension (LxWxH) (mm) | 19.6x7.2x10.2mm |
| Potting material | UL 94V-0 rated |
Specifications
Specifications
-
BrandMean Well
-
SeriesDPUN Series
-
Power Rating2 Watt
-
Output Voltage15 Volt
-
Rated Current0.06 Ampere
-
Input Voltage21.6V~26.4V
-
Standards MetCE,EMC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~105°C
-
Warranty3 Year
-
Length0.77 in
-
Width0.4 in
-
Height0.28 in
-
Weight0.01 lb
