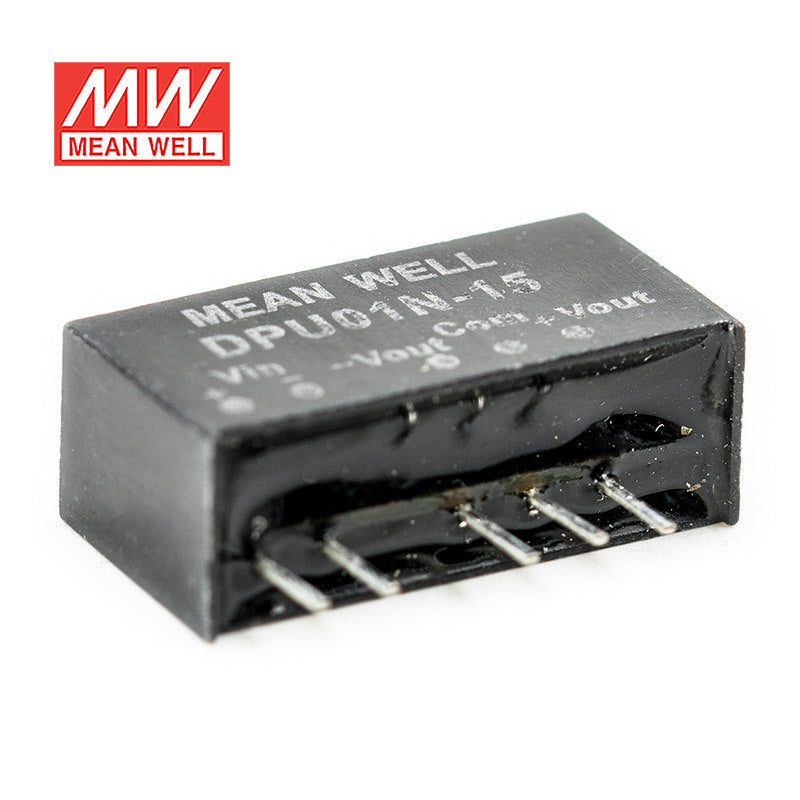

Mean Well DPU01N-15 DC-DC Converter - 1W - 21.6~26.4V in ±15V out
$3.52 USD
Unit price /
Unavailable
Description
Description
Features
| SIP6 package with industry-standard pinout |
| Wide operating temperature range -40~+90°C |
| High efficiency up to 84% |
| Comply to BS EN/EN55032 radiated Class A without additional components |
| Low cost |
| Protection: Short circuit |
| 1.5KVDC I/O isolation |
| Low cost |
| 3 years warranty |
General Specification
| Voltage accuracy | ±3.0% |
| Vibration | 10 ~ 500Hz, 2G 10min./1 cycle, the period for 60min. each along X, Y, and Z axes |
| Cooling | Free-air convection |
| Short circuit protection | 1-second max |
| Working temperature | -40°C to +90°C |
| EMC | Compliance to EN55032 Class A, EN61000-4-2,3,4,5,6,8 |
| Temp. Coefficient | 0.03% / ℃ (0 ~ 85℃) |
| Dimension (LxWxH) (mm) | 5/12Vin models:19.5*6.1*10.2mm (0.77*0.24*0.40 inch); 24Vin models:19.5*7.2*10.2mm (0.77*0.28*0.40 inch) |
| Potting material | UL 94V-0 rated |
Specifications
Specifications
-
BrandMean Well
-
SeriesDPU Series
-
Power Rating1 Watt
-
Output Voltage15 Volt
-
Rated Current0.03 Ampere
-
Input Voltage21.6V~26.4V
-
Standards MetCE
-
Operation ModeConstant Voltage
-
Operating Temperature-55°C~125°C
-
Warranty3 Year
-
Length0.77 in
-
Width0.4 in
-
Height0.28 in
-
Weight0.01 lb
