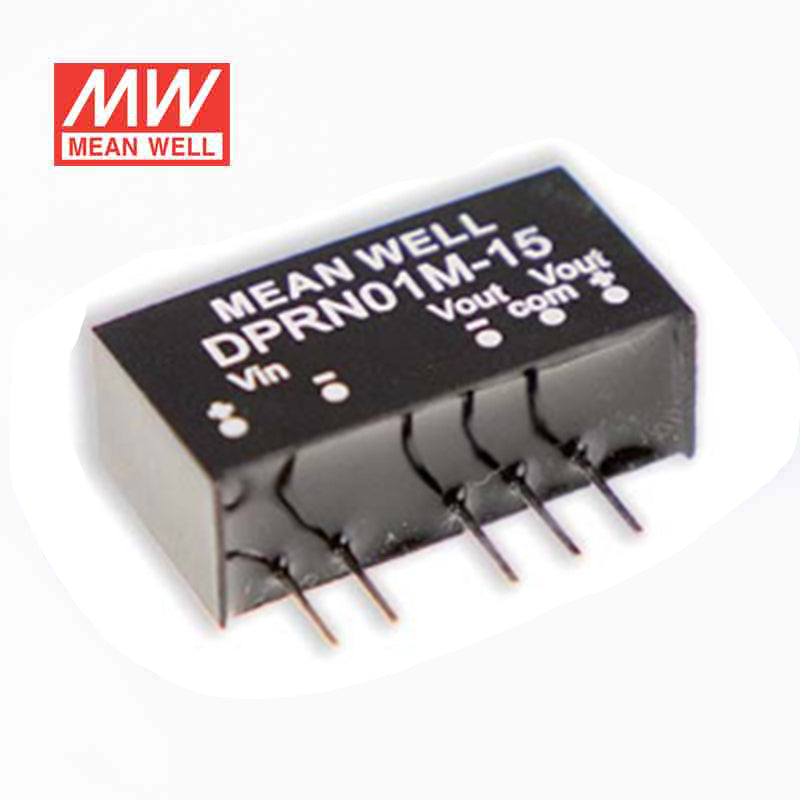

Mean Well DPRN01N-15 DC-DC Converter - 1W - 22.8~26.4V in ±15V out
$5.94 USD
Unit price /
Unavailable
Description
Description
Features
| SIP6 package with industry-standard pinout |
| Wide operating temperature range -40~+90°C |
| Comply to BS EN/EN55032 radiated Class B without additional components |
| Low cost |
| Protection: Short circuit |
| 1.5KVDC I/O isolation |
| 3 years warranty |
General Specification
| Voltage accuracy | ±3% |
| Vibration | 10~500Hz, 2G 10min./1 cycle, the period for 60 min, each along the X, Y, and Z axes |
| Cooling | Free-air convection |
| Short circuit protection | SPRN01: Current limit protection 60 sec. max., DPRN01: 1 sec. max. |
| Working temperature | -40°C to +90°C |
| EMC | Compliance to EN55032 class B, EN61000-4-2,3,4,5,6,8 |
| Temp. Coefficient | 0.05% / ℃ (0 ~ 71℃) |
| Dimension (LxWxH) (mm) | 19.6*7.1*10.14mm |
| Potting material | UL 94V-0 rated |
Specifications
Specifications
-
BrandMean Well
-
SeriesDPRN Series
-
Power Rating1 Watt
-
Output Voltage15 Volt
-
Rated Current0.03 Ampere
-
Input Voltage22.8V~26.4V
-
Standards MetCE,EMC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty3 Year
-
Length0.77 in
-
Width0.4 in
-
Height0.28 in
-
Weight0.01 lb
