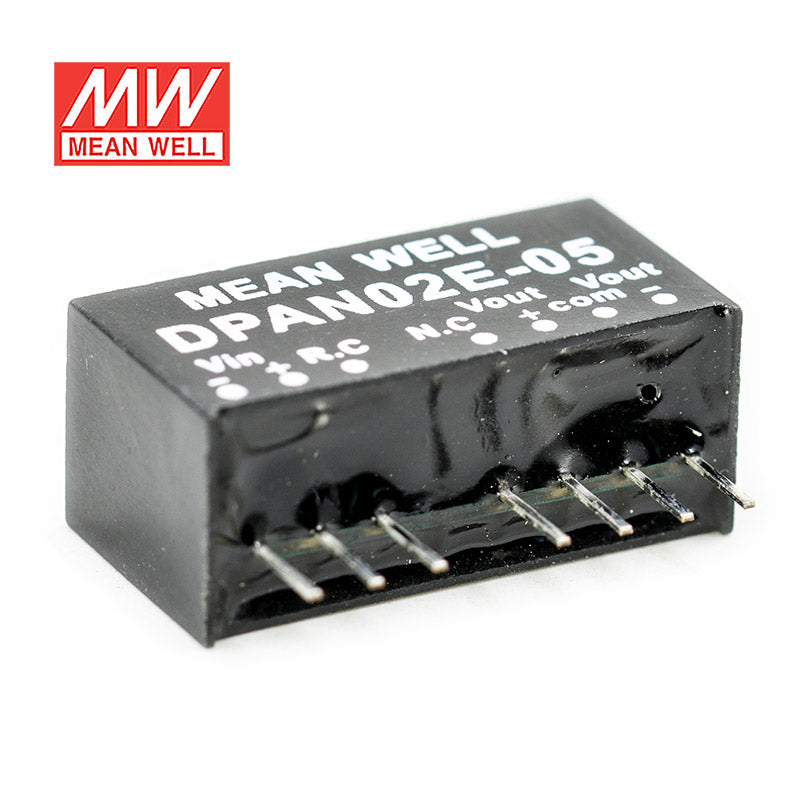

Mean Well DPAN02E-05 DC-DC Converter - 2W - 4.5~9V in ±5V out

Name: Mean Well DPAN02E-05 DC-DC Converter - 2W - 4.5~9V in ±5V out
Brand: Mean Well
SKU: DPAN02E-05
Price: 8.76 USD
Availability: InStock

$8.76 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

SPAN02 and DPAN02 series are 2W isolated and regulated module type DC-DC converter with SIP8 package. It features international standard pins, a high efficiency up to 85%, wide working temperature range -40~+90℃, 1.5KVDC I/P-O/P isolation voltage, compliance to EN55032 radiated class A without additional components, overload and continuous-mode short circuit protection, etc. The models account for different input voltage 4.5~9V, 9~18V, 18~36V and 36~75V 2:1 wide input range, and various output voltage, 3.3V/5V/12V/15V for single output and ±5V/±12V/±15V for dual outputs, which are suitable for all kinds of systems, such as industrial control, telecommunication field, distributed power architecture, and so on.

Features

SIP8 package with industry standard pinout 2:1 wide input range
Operating temperature range -40 ~ +90℃
No minimum load required
Comply to EN55032 radiated Class A without additional
Hcoigmhpeofnfiecinetnscy up to 85%
Protections: Short circuit (Continuous) / Overload
1.5KVDC I/O isolation
Remote ON/OFF control
3 years warranty

Applications

Telecom/datacom system
Wireless network
Industrial control facility
Instrument
Analyzer
Detector
Data switch

Specifications

Brand

Mean Well
Series

DPAN Series
Power Rating

2 Watt
Output Voltage

5 Volt
Rated Current

0.2 Ampere
Input Voltage

4.5V~9V
Standards Met

CE,EAC
Operation Mode

Constant Voltage
Operating Temperature

-40°C~90°C
Warranty

3 Year
Length

0.86 in
Width

0.44 in
Height

0.36 in
Weight

0.01 lb
