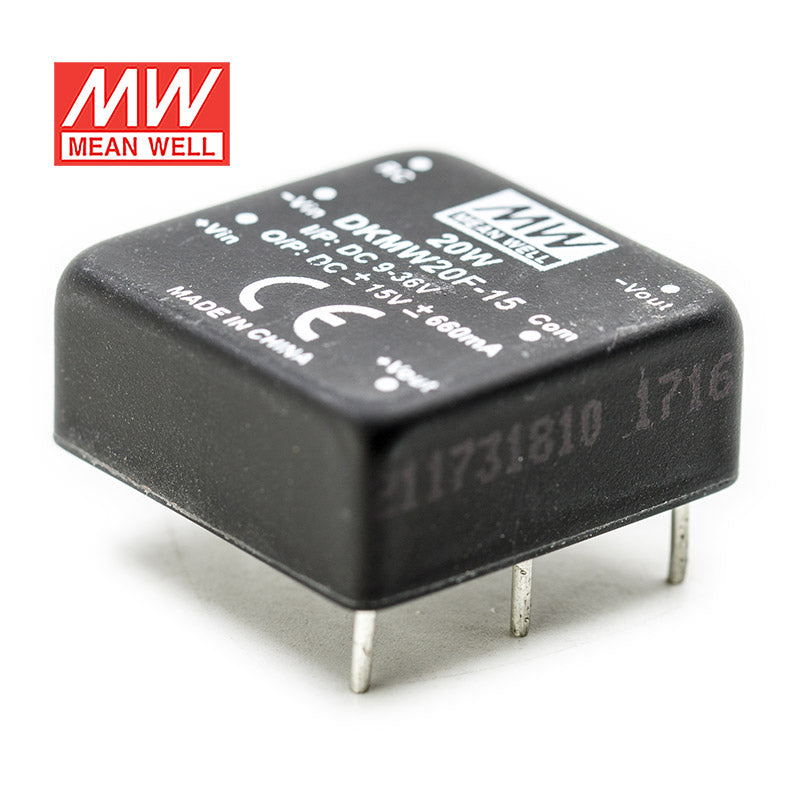

Mean Well DKMW20F-15 DC-DC Converter - 20W - 9~36V in ±15V out 660mA

Name: Mean Well DKMW20F-15 DC-DC Converter - 20W - 9~36V in ±15V out 660mA
Brand: Mean Well
SKU: DKMW20F-15
Price: 39.26 USD
Availability: InStock

SKU DKMW20F-15

$39.26 USD

Shipping calculated at checkout.

In stock

Overview

DKMW20F-15 is the ±15V output model of this series: rated power 20W, typical efficiency 87%.

SKMW20 and DKMW20 series are 20W isolated and regulated module type DC-DC converter with DIP 1"x1" package. It features international standard pins, a high efficiency up to 89%, wide working temperature range -40~+85℃, 1.5KVDC I/P-O/P isolation voltage, compliance to BS EN/EN55032 radiated Class A without additional components, continuous-mode short circuit, overload, over temperature, input under voltage protection, remote ON/OFF and trimmable output voltage etc. The models account for different input voltage 9~36V and 18~75V 4:1 ultrawide input range, and various output voltage, 3.3V /5V/12V/15V for single output and ±12V/±15V for dual outputs, which are suitable for all kinds of systems, such as industrial control, telecommunication field, distributed power architecture, and so on.

Features

DIP 1"x1" package with industry standard pinout
4:1 ultrawide input range
Operating temperature range -40 ~ +85℃
No minimum load required
Comply to BS EN/EN55032 radiated Class A without additional components
High efficiency up to 89%
Protections: Short circuit (Continuous) / Overload / Over voltage / Input under voltage
1.5KVDC I/O isolation
Remote ON/OFF control and Triming output (±10%)
3 years warranty

Specifications

DKMW20F-15Specifications from the official datasheet (2024-04-30 edition)

INPUT

INPUT VOLTAGE (RANGE): 24V (9 ~ 36V)
INPUT CURRENT NO LOAD: 10mA
INPUT CURRENT FULL LOAD: 936mA
VOLTAGE RANGE: 9~36Vdc ,
SURGE VOLTAGE (100ms max.): 24Vin models : 50Vdc, 48Vin models : 100Vdc
FILTER: Pi type
PROTECTION: Fuse recommended. 24Vin models: 3A delay time Type, 48Vin models: 1.5A delay time Type
INTERNAL POWER DISSIPATION: 500mW

OUTPUT

OUTPUT VOLTAGE: ±15V
OUTPUT CURRENT: ±0 ~660mA
EFFICIENCY (TYP.): 87%
CAPACITOR LOAD (MAX.)^{* For each output}: *650μF
VOLTAGE ACCURACY: ±1.5%
RATED POWER: 20W
RIPPLE & NOISE^Note.2: 3.3/5Vout models: 75mVp-p, other models:100mVp-p
LINE REGULATION^Note.3: ±0.2%
LOAD REGULATION^Note.4: Single output models: ±0.2%, Dual output models:±1%
SWITCHING FREQUENCY (Typ.): 3.3/5Vout models: 270KHz, other models: 330KHz
EXTERNAL TRIM ADJ. RANGE (Typ.): ±10% (Single output model only)

PROTECTION

SHORT CIRCUIT: Protection type : Continuous, automatic recovery
OVERLOAD: 110 ~ 170% rated output power Protection type : Recovers automatically after fault condition is removed
OVER VOLTAGE: Protection type : Clamp by diode
UNDER VOLTAGE LOCKOUT Start-up voltage: 24Vin (F-type): 8.8Vdc, 48Vin (G-type): 17Vdc
UNDER VOLTAGE LOCKOUT Shutdown voltage: 24Vin (F-type): 8Vdc, 48Vin (G-type): 16Vdc

FUNCTION

REMOTE CONTROL: Power ON: R.C. ~ -Vin >3.5~75Vdc or open circuit ; Power OFF: R.C. ~ -Vin <1.2Vdc or short

ENVIRONMENT

COOLING: Free-air convection
WORKING TEMP.: -40 ~ +85℃ (Refer to "Derating Curve")
CASE TEMPERATURE: +105℃ max.
WORKING HUMIDITY: 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -55 ~ +125℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: 0.03% / ℃ (0 ~ 60℃)
SOLDERING TEMPERATURE: 1.5mm from case of 1 ~ 5 sec./260℃ max.
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC (Note.5)

SAFETY STANDARDS: EAC TP TC 020/2011 (EAC TP TC 004 for 48Vin type only) approved
WITHSTAND VOLTAGE: I/P-O/P:1.5KVDC
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
ISOLATION CAPACITANCE (Typ.): 1500pF
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/EN55032(CISPR32) N/A
Radiated BS EN/EN55032(CISPR32) Class A
EMC IMMUNITY: Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 2, ±8KV air, ±4KV contact
Radiated Susceptibility BS EN/EN61000-4-3 Level 2, 3V/m
EFT/Bursts BS EN/EN61000-4-4 Level 1, 0.5KV
Surge BS EN/EN61000-4-5 Level 1, 0.5KV Line-Line
Conducted BS EN/EN61000-4-6 Level 2, 3V(e.m.f.)
Magnetic Field BS EN/EN61000-4-8 Level 2, 3A/m

Parameter	Standard	Test Level
Conducted	BS EN/EN55032(CISPR32)	N/A
Radiated	BS EN/EN55032(CISPR32)	Class A

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 2, ±8KV air, ±4KV contact
Radiated Susceptibility	BS EN/EN61000-4-3	Level 2, 3V/m
EFT/Bursts	BS EN/EN61000-4-4	Level 1, 0.5KV
Surge	BS EN/EN61000-4-5	Level 1, 0.5KV Line-Line
Conducted	BS EN/EN61000-4-6	Level 2, 3V(e.m.f.)
Magnetic Field	BS EN/EN61000-4-8	Level 2, 3A/m

OTHERS

MTBF: 3.3/5Vout models: 910Khrs, Other models: 1220Khrs MIL-HDBK-217F(25℃)
DIMENSION (L*W*H): 25.4*25.4*10.2mm (1*1*0.4 inch)
CASE MATERIAL: Black coated copper with non-conductive base
PACKING: 19g ; 12pcs/per tube, 600pcs/50 tube/per carton

Test conditions and notes5

1.All parameters are specified at normal input(F:24Vdc, G:48Vdc), rated load, 25℃ 70% RH ambient.
2.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1μf & 47μf capacitor.
3.Line regulation is measured from low line to high line at rated load.
4.Load regulation is measured from 0% to 100% rated load.
5.The final equipment must be re-confirm that it still meet EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.”(as available on http://www.meanwell.com)

Technical drawings

DKMW20F-15 SKMW20 & DKMW20 series — SKMW20 & DKMW20 series

DKMW20F-15 SKMW20 & DKMW20 series (2) — SKMW20 & DKMW20 series (2)

DKMW20F-15 Plug Assignment — Plug Assignment

Typical applications

Downloads

Certificates2

Certificate (SKMW20-DKMW20-CE-dec)(EN) PDF Download

Certificate (SKMW-DKMW20-UK-dec)(EN) PDF Download

Test reports1

Test Report (DKMW20F-15)(EN) PDF Download

Catalogues2

Mean Well DC-DC Catalog PDF Download

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the DKMW20F-15 for a 15V industrial or embedded control circuit?

It is intended for constant ±15V output applications with a 9-36VDC input range. That makes it a fit for low-power industrial, embedded, or automation electronics that stay within 20W and the listed ±660mA output current.

Is the DKMW20F-15 suitable for 15V automation electronics where input voltage may vary?

This model accepts 9-36VDC input, so it suits applications that need a wider allowable input range than a narrow low-voltage design. On the output side, it provides constant ±15V up to its 20W rating.

Would the DKMW20F-15 fit in space-limited embedded hardware?

Its dimensions are 25.4 × 25.4 × 10.2 mm, so it can fit compact boards and dense electronic assemblies. It is designed for constant-voltage ±15V use cases within 20W.

Can the DKMW20F-15 be used in outdoor equipment cabinets?

The operating temperature range is -40°C to +85°C, which supports use across a broad temperature span. However, no IP rating is given, so the product data does not confirm suitability for exposed outdoor or washdown environments.

How does the DKMW20F-15 compare with the DKMW20F-12?

The two listed DKMW20F models share the same 20W power rating, 9-36VDC input range, 25.4 × 25.4 × 10.2 mm size, 19g weight, and -40°C to +85°C operating range. The difference in the listed specs is output: the DKMW20F-15 is ±15V at ±660mA, while the DKMW20F-12 is ±12V at ±830mA.
