Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

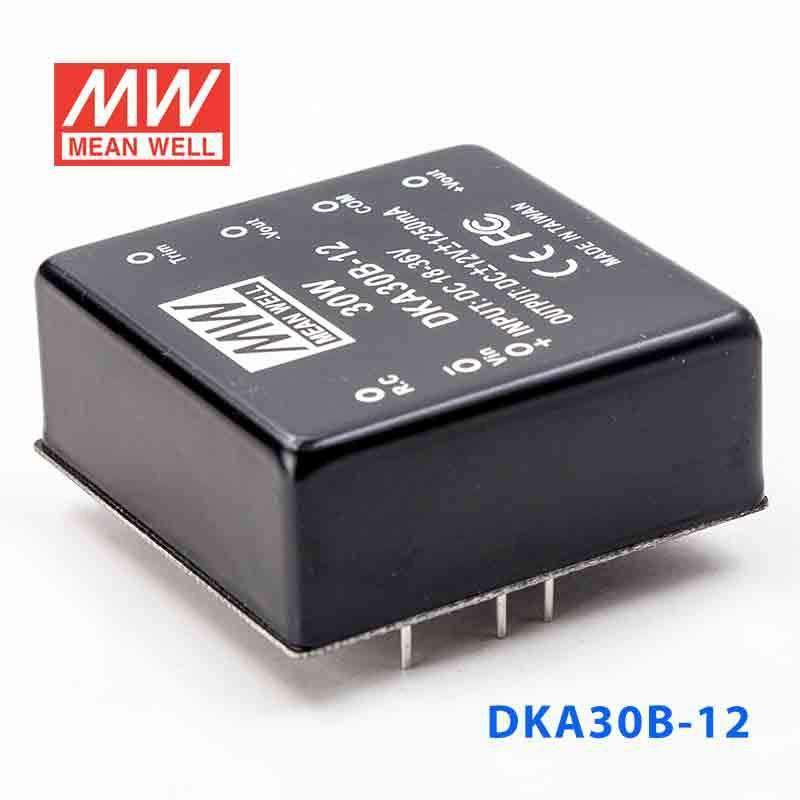

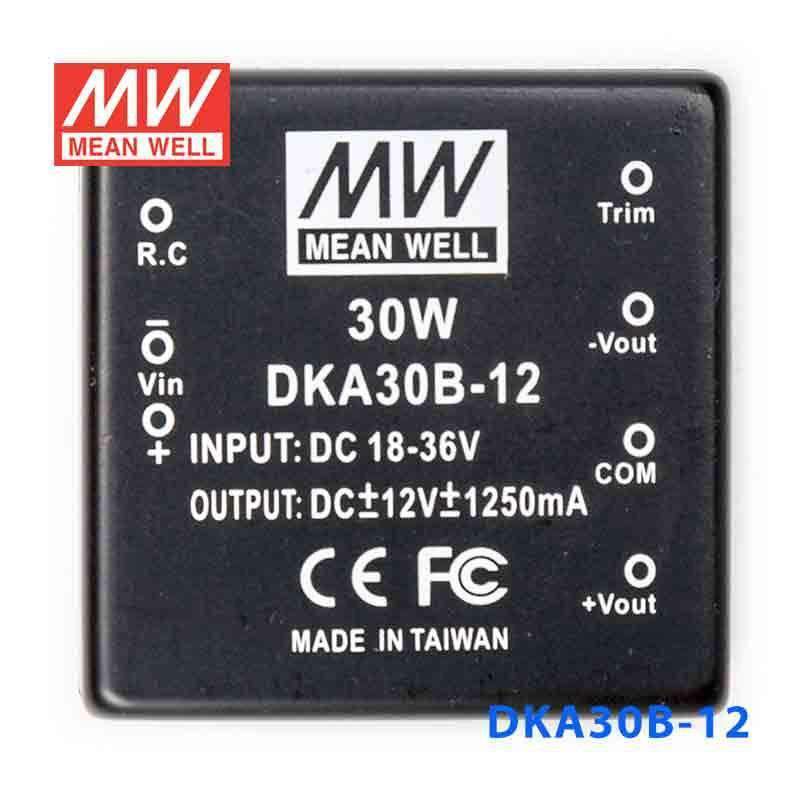

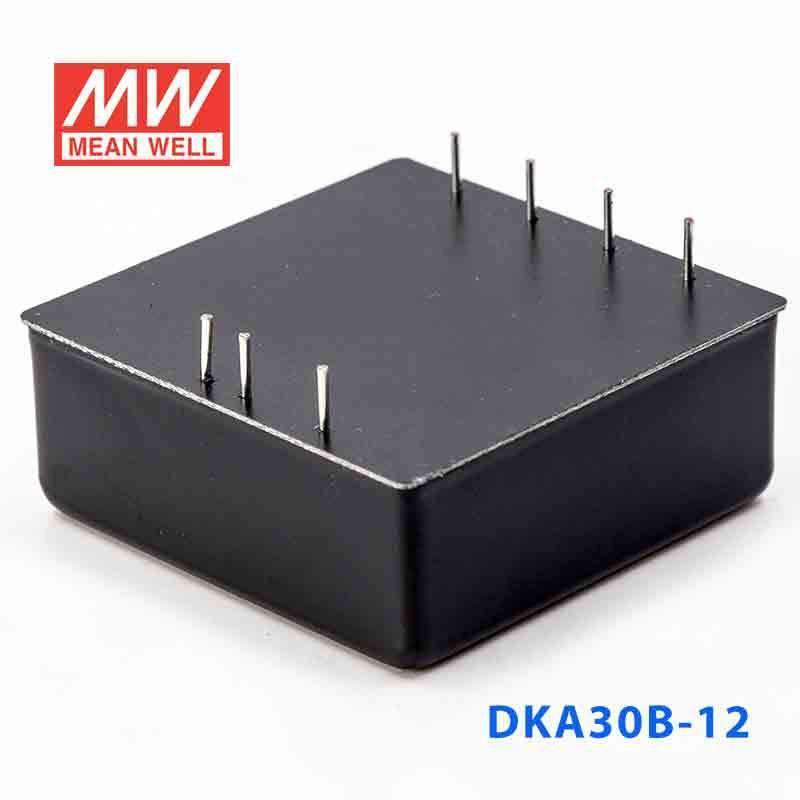

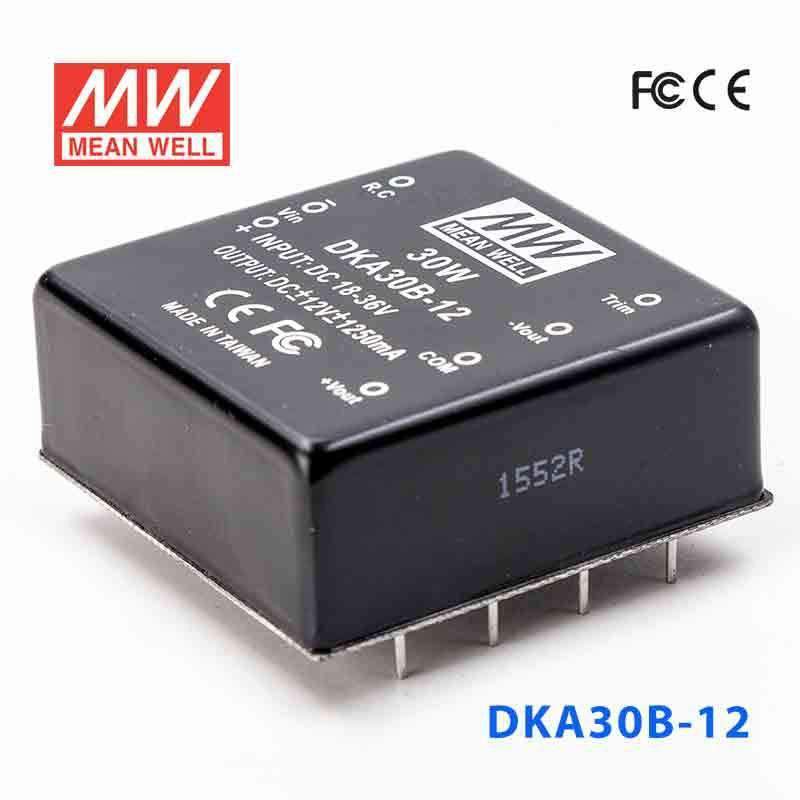

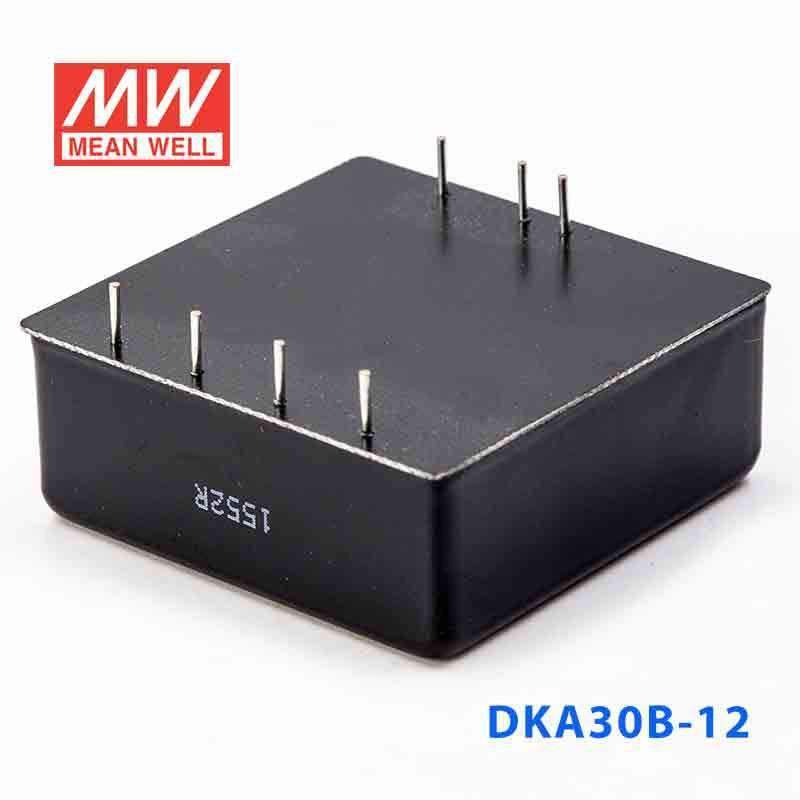

Mean Well DKA30B-12 DC-DC Converter - 30W - 18~36V in ±12V out
$31.61 USD
Unit price /
Unavailable
Description
Description
Features
| 2:1 wide input range |
| 4:1 wide input range(option) |
| 1000VDC I/O isolation |
| Built-in remote ON/OFF control |
| Built-in EMI filter |
| Protection: Short circuit / Overload Input and output over voltage |
| Cooling by free air convection |
| Six-sided shield metal case |
| 100% full load burn-in test |
| Low cost, high reliability |
| Trimming output (±10%) for dual output |
| 1 years warranty |
General Specification
| Voltage set point accuracy | ±2% (max.) |
| Line regulation | ±0.5% (max.) for dual output; ±1% (max.) for triple output |
| Load regulation | ±0.5% (10~100% load)(Dual); ±5% (20~100% load)(Triple) |
| Overload protection | 110%~180%, auto-recovery |
| Efficiency | 83% (typical) |
| Short circuit protection | Continuous, auto-recovery |
| I/O isolation voltage | 1000VDC (min.) |
| I/O isolation resistance | 100MQ(min.) @500VDC |
| Working temperature | -40~+85°C (refer to output derating curve) |
| Storage temperature | -40°C to +105°C |
| Temp. Coefficient | ±0.03% / °C (max.) |
| EMC | Compliance to EN55022 class B, EN61000-4-2,3,4,5,6,8, FCC part15 class B |
| Dimension (LxWxH) (mm) | 2" x 2" x 0.82" |
| Case material | Six-sided shield metal case |
Specifications
Specifications
-
BrandMean Well
-
SeriesDKA Series
-
Power Rating30 Watt
-
Output Voltage12 Volt
-
Rated Current1.25 Ampere
-
Input Voltage18V~36V
-
Standards MetCE,EMC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty2 Year
-
Length2 in
-
Width2 in
-
Height0.83 in
-
Weight0.24 lb
