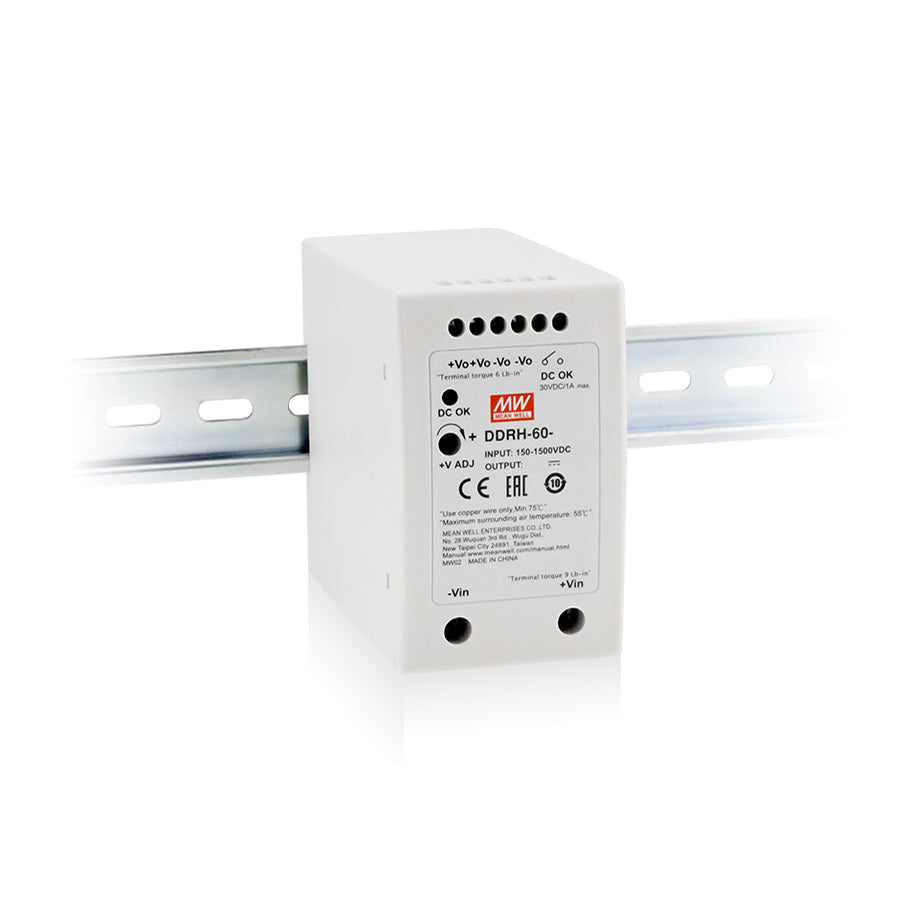

Mean Well DDRH-60-5 Ultra Wide Input DC-DC Converter, 50W 5V

$128.57 USD
Shipping calculated at checkout.

|

Your order will be processed within 24 hours

Description

Features:

  • 150~1500Vdc 10:1 ultra-wide input range
  • 57mm slim width
  • 4KVac I/O high isolation(Reinforced isolation)
  • Protections: Short Circuit / Overload / Over voltage / DC input under voltage / DC input Reverse Polarity
  • Cooling by free air convection
  • Can be installed on DIN rail TS-35/7.5 or 15
  • -30 ~ +80℃ ultra-wide operating temperature (>+55℃ derating)
  • Over Voltage Category II
  • Operating altitude up to 5000 meters
  • DC OK relay contact
  • DC output voltage adjustable(+20%)
  • 3 years warranty

General Specification

AC input voltage range

150 1500Vdc

AC inrush current (max.)

COLD START 120A /1500Vdc | 80A/800Vdc | 30A/150Vdc

Over-voltage protection

6.6 8.4V | 16.5 21V | 30 38V | 55 60V

Protection type: Hiccup up mode, recovers automatically after fault condition is removed

Withstand voltage

I/P-O/P:4KVAC O/P-DC OK:0.5KVAC

Working temperature

-30 ~ +80℃ (Refer to "Derating Curve")

Safety standards

IEC62109-1 approved; Design refer to UL1741(By request)

Dimension (LxWxH)

57x93.5x105mm

Specifications

  • Brand
    Mean Well
  • Series
    DDRH Series
  • Power Rating
    50 Watt
  • Output Voltage
    5 Volt
  • Rated Current
    10 Ampere
  • Input Voltage
    150V~1500V
  • Standards Met
    CE,EAC
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -30°C~80°C
  • Warranty
    3 Year
  • Length
    2.24 in
  • Width
    3.68 in
  • Height
    4.13 in
  • Weight
    1.76 lb
