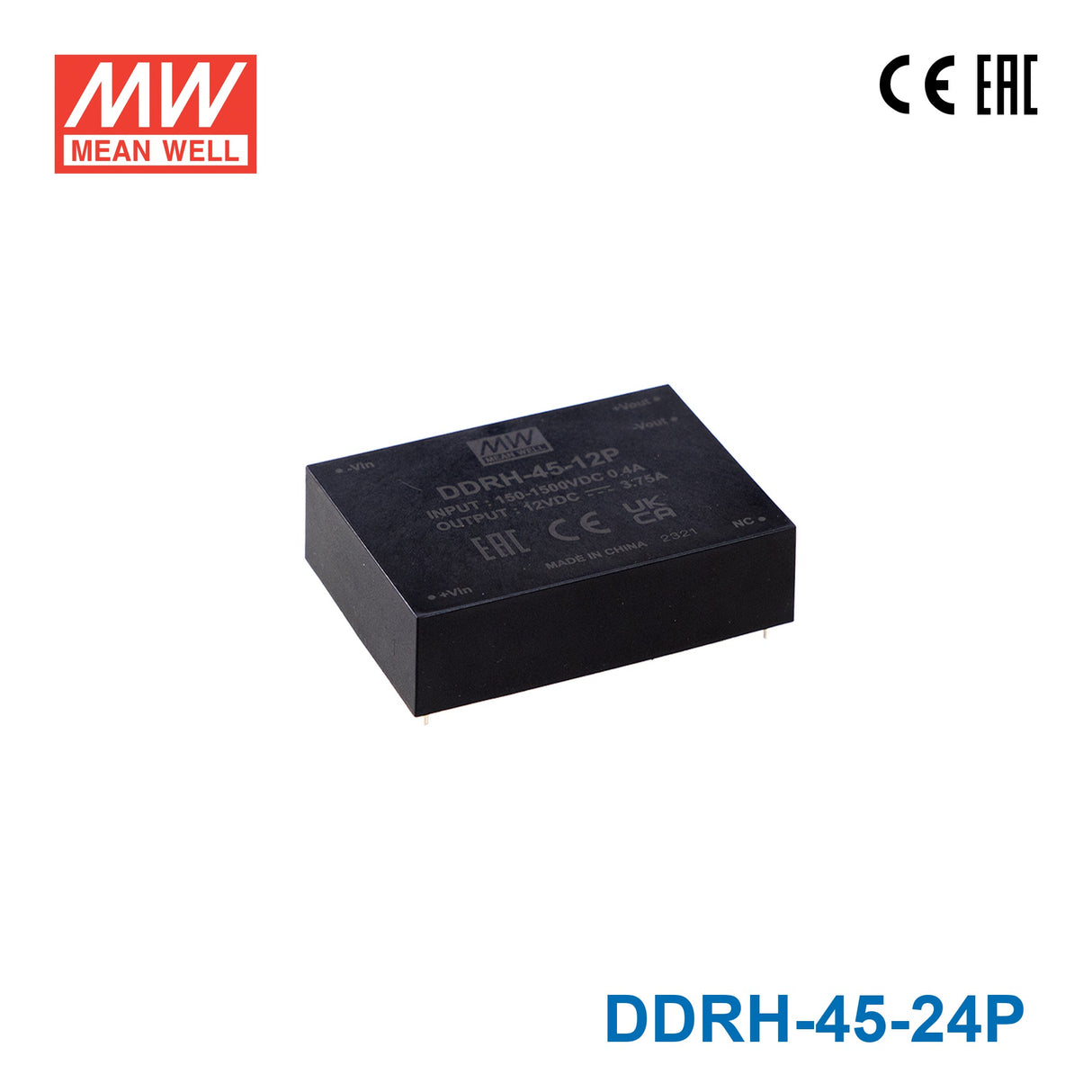

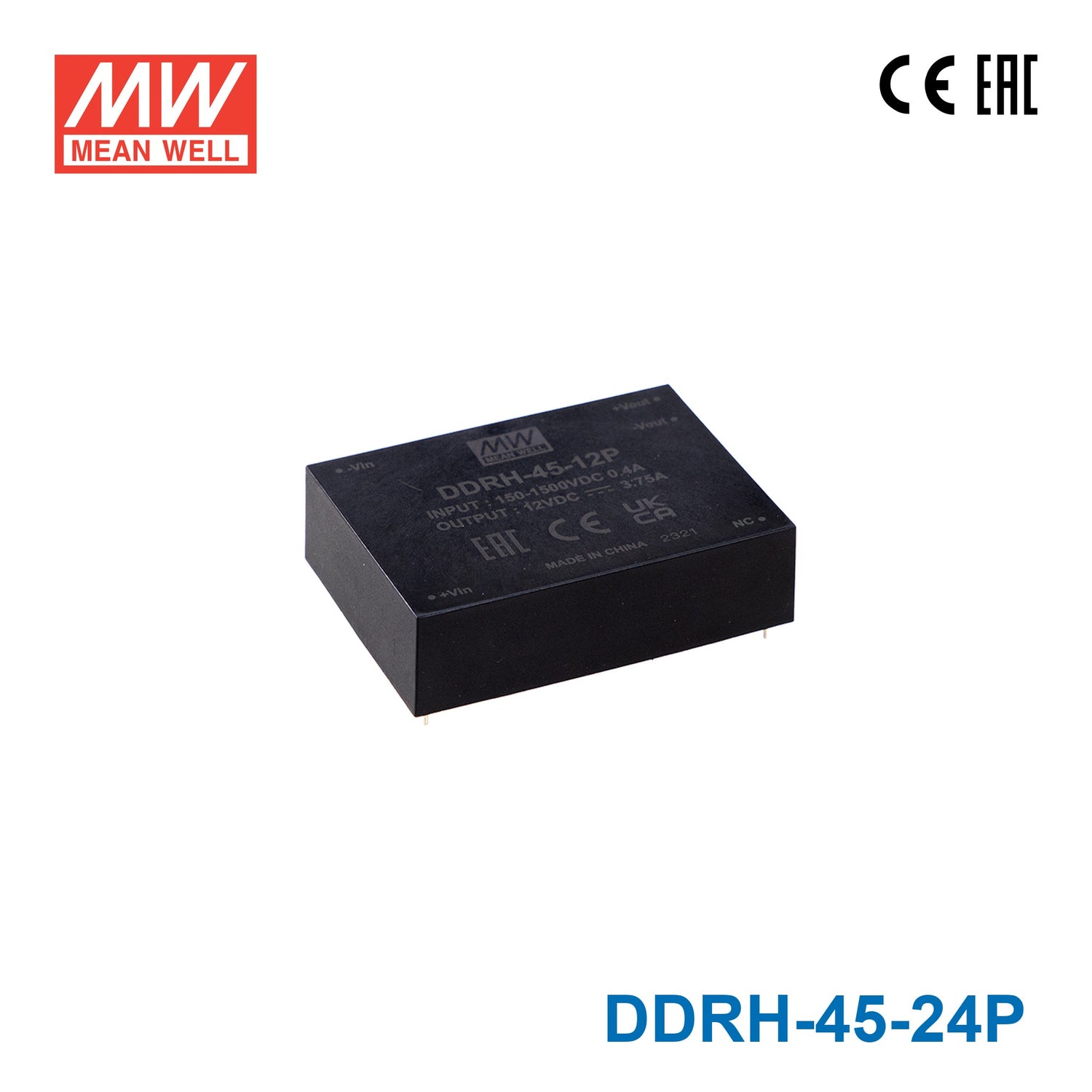

Mean Well DDRH-45-24P Ultra Wide Input DC-DC Converter

Name: Mean Well DDRH-45-24P Ultra Wide Input DC-DC Converter, 45W 24V, PCB Type 1.87A
Brand: Mean Well
SKU: DDRH-45-24P
Price: 88.23 USD
Availability: InStock

Overview

DDRH-45-24P is the 24V output model of this series: rated power 45W, typical efficiency 86%.

DDRH-45 series is a 150 ~ 1500Vdc high reliable ultra-high input DC-DC converter which can supply stable working voltage for the load. Main features are as following: compact size, -40~+80℃ wide range operating temperature, 4KVac high isolation voltage, operation at 5000m altitude, low ripple & noise, complete protections and so on. Futhermore, this series also has DIN Rail type, it is suitable to be mounted on TS-35/7.5 or TS-35/15 rails. DDRH-45 is designed to meet UL1741and IEC62109-1 standard. It is suitable for industrial automation, surveillance, telecommunication and can be widely deployed in the applications of new energy generation such as solar power, and windmill power generation, for instances, photovoltaic power systems, high voltage inverting , DC bus centralized application , ESS, charging pile, railway and so forth.

Features

150~1500Vdc 10:1 ultra-wide input range
4KVac I/O high isolation(Reinforced isolation)
Protections: Short circuit / Overload / Over voltage / DC input under voltage / DC input reverse Polarity
Fanless design, fully encapsulated, cooling by free air convection
Can be installed on DIN rail TS-35/7.5 or 15 (DR-Type)
-40~+80℃ ultra-wide operating temperature (＞+50℃ derating)
Operating altitude up to 5000 meters
3 years warranty

Specifications

DDRH-45-24PSpecifications from the official datasheet (2024-10-18 edition)

INPUT

INPUT VOLTAGE (RANGE): Nominal 800Vdc (150~1500Vdc)
INPUT CURRENT NO LOAD: 0.2mA
INPUT CURRENT FULL LOAD: 75mA
VOLTAGE RANGE: 150 ~ 1500Vdc
FILTER: Internal capacitor
EXTERNAL INPUT FUSE: 4A/1500Vdc, required (Please refer to page 6 for more details)
INRUSH CURRENT (Typ.): Cold start 150A max. @ Vin=800Vdc

OUTPUT

OUTPUT VOLTAGE: 24V
OUTPUT CURRENT: 1.87A
EFFICIENCY (Typ.): 86%
CAPACITOR LOAD (MAX.): 1870μF
VOLTAGE ACCURACY: ±2.0%
RATED POWER: 45W
RIPPLE & NOISE^Note.2: 12 ~ 24Vo: 100mVp-p 48Vo: 150mVp-p
LINE REGULATION: ±1%
LOAD REGULATION: ±1% (10% Load to Full Load)
SWITCHING FREQUENCY (Typ.): 28 ~ 75.6KHz
HOLD UP TIME: 20ms min. @Vin=800Vdc
SETUP TIME: 2s max. @150~1500Vdc

PROTECTION

SHORT CIRCUIT: Protection type : Hiccup mode, continuous, automatic recovery
OVERLOAD: 110 ~ 300% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: Hiccup mode, recovers automatically after fault condition is removed
DC INPUT REVERSE POLARITY: By internal Bridge Diode, no damage, recovers automatically after fault condition removed
DC INPUT UNDER VOLTAGE LOCKOUT Start-up voltage: 132Vdc
DC INPUT UNDER VOLTAGE LOCKOUT Shutdown voltage: 121Vdc

ENVIRONMENT

WORKING TEMP.: -40 ~ +80℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.02% / ℃ (-40℃ ~ 50℃) Typ.
VIBRATION: Meets: MIL.STD-810F Table 514.5C-VⅢ, 15-2000Hz, X,Y,Z axis, 1hr (each axis), total 3hrs
OPERATING ALTITUDE^Note.3: 5000 meters
OVER VOLTAGE CATEGORY: Ⅱ; According to EN62109-1; altitude up to 5000 meters

SAFETY & EMC (Note.4)

SAFETY STANDARDS: UL1741 , CSA C22.2 No.107.1-16 , IEC62109-1 (LVD), EAC TP TC 004 approved
WITHSTAND VOLTAGE: I/P-O/P:4KVac
ISOLATION RESISTANCE: I/P-O/P, 100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/EN55032 Class A (with external components)
Radiated BS EN/EN55032 Class A (with external components)
EMC IMMUNITY: BS EN/EN55035

Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact, criteria A
Radiated Susceptibility BS EN/EN61000-4-3 Level 3, 10V, criteria A
EFT/Bursts BS EN/EN61000-4-4 Level 2, 0.5KV, criteria A
Surge BS EN/EN61000-4-5 Level 4, 2KV/Vin+ ~ Vin-, criteria A
Conducted BS EN/EN61000-4-6 Level 3, 10V, criteria A

Parameter	Standard	Test Level
Conducted	BS EN/EN55032	Class A (with external components)
Radiated	BS EN/EN55032	Class A (with external components)

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 3, 8KV air; Level 2, 4KV contact, criteria A
Radiated Susceptibility	BS EN/EN61000-4-3	Level 3, 10V, criteria A
EFT/Bursts	BS EN/EN61000-4-4	Level 2, 0.5KV, criteria A
Surge	BS EN/EN61000-4-5	Level 4, 2KV/Vin+ ~ Vin-, criteria A
Conducted	BS EN/EN61000-4-6	Level 3, 10V, criteria A

OTHERS

MTBF: 316Khrs MIL-HDBK-217F(25℃)
DIMENSION (L*W*H): P Type: 89*63.5*25mm, ST Type: 135*70*32mm, DR Type: 135*70*43.5mm
CASE MATERIAL: Non-conductive black plastic (UL 94V-0 rated)
POTTING MATERIAL: UL 94V-0
PIN MATERIAL: Base: copper, Plating: Matte Tin
PACKING: P Type : 240g ; 6pcs/Tray, 18pcs/per carton ST Type : 305g ; 6pcs/Tray, 18pcs/per carton DR Type : 310g ; 6pcs/Tray, 18pcs/per carton

Test conditions and notes4

1. All parameters NOT specially mentioned are measured at 800Vdc input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μf & 47μf parallel capacitor.
3. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on http://www.meanwell.com)

Technical drawings

DDRH-45-24P ‧Tolerance: x.x±0.7mm (x.x±0.0275") — ‧Tolerance: x.x±0.7mm (x.x±0.0275")

DDRH-45-24P ‧Tolerance: x.x±0.7mm (x.x±0.0275") (2) — ‧Tolerance: x.x±0.7mm (x.x±0.0275") (2)

DDRH-45-24P DDRH-45-xxST (Screw Terminal Type) — DDRH-45-xxST (Screw Terminal Type)

DDRH-45-24P DDRH-45-xxDR (DIN Rail Type) — DDRH-45-xxDR (DIN Rail Type)

DDRH-45-24P Installation Instruction(DDRH-45-xxDR only) — Installation Instruction(DDRH-45-xxDR only)

DDRH-45-24P External Fuse Wiring Instruction — External Fuse Wiring Instruction

Typical applications

Downloads

Datasheet1

DDRH-45-24P datasheetDDRH_45_spec_sheet.pdf · 2024-10-18 edition PDF Download

FAQ

Can the DDRH-45-24P power a 24V embedded controller inside a motor drive assembly?

Yes. The PCB-mount format makes the DDRH-45-24P easy to integrate directly into a drive assembly or custom controller board. It supplies 24V at 1.87A (45W) from a 150–1500VDC input, covering the high bus voltages typical of variable-frequency drives.

Is the DDRH-45-24P suitable for supplying 24V to an industrial wireless gateway in a smart factory application?

Yes. Industrial wireless gateways and IIoT edge devices commonly run on 24VDC and draw well under 45W. The PCB-mount module can be integrated into a custom gateway board or mounted inside an enclosure fed from any bus voltage in the 150–1500VDC range.

Can this module be used in a mining or heavy-industry application with high DC bus voltages above 800VDC?

The DDRH-45-24P accepts up to 1500VDC, making it compatible with the elevated bus voltages found in mining conveyor drives, longwall equipment, and heavy-industry automation. At 45W it serves auxiliary control and instrumentation loads.

How does the DDRH-45-24P PCB module compare to the other 45W 24V variants in the DDRH series?

All three 45W 24V models output 24V at 1.87A with a 150–1500VDC input. The DDRH-45-24P is the smallest at 89×63.5×25 mm (0.24 kg) and mounts on a PCB. The DDRH-45-24DR (135×70×43.5 mm, 0.31 kg) clips to a DIN rail. The DDRH-45-24ST (135×70×32 mm, 0.305 kg) uses screw terminals.

Does the DDRH-45-24P need any thermal management when embedded in a sealed device?

The sheet does not specify a cooling method, and output must be derated at higher ambient temperatures per the derating curve. In a sealed housing, ensure the enclosure provides sufficient thermal mass or surface area to keep the ambient around the converter within its –40°C to +80°C range.

Can the DDRH-45-24P handle the cold temperatures experienced in arctic or high-altitude outdoor equipment?

The –40°C lower temperature limit covers arctic and high-altitude cold-start conditions. Because the unit has no IP rating, it must be housed in an appropriately sealed enclosure to protect against condensation and precipitation in outdoor installations.
