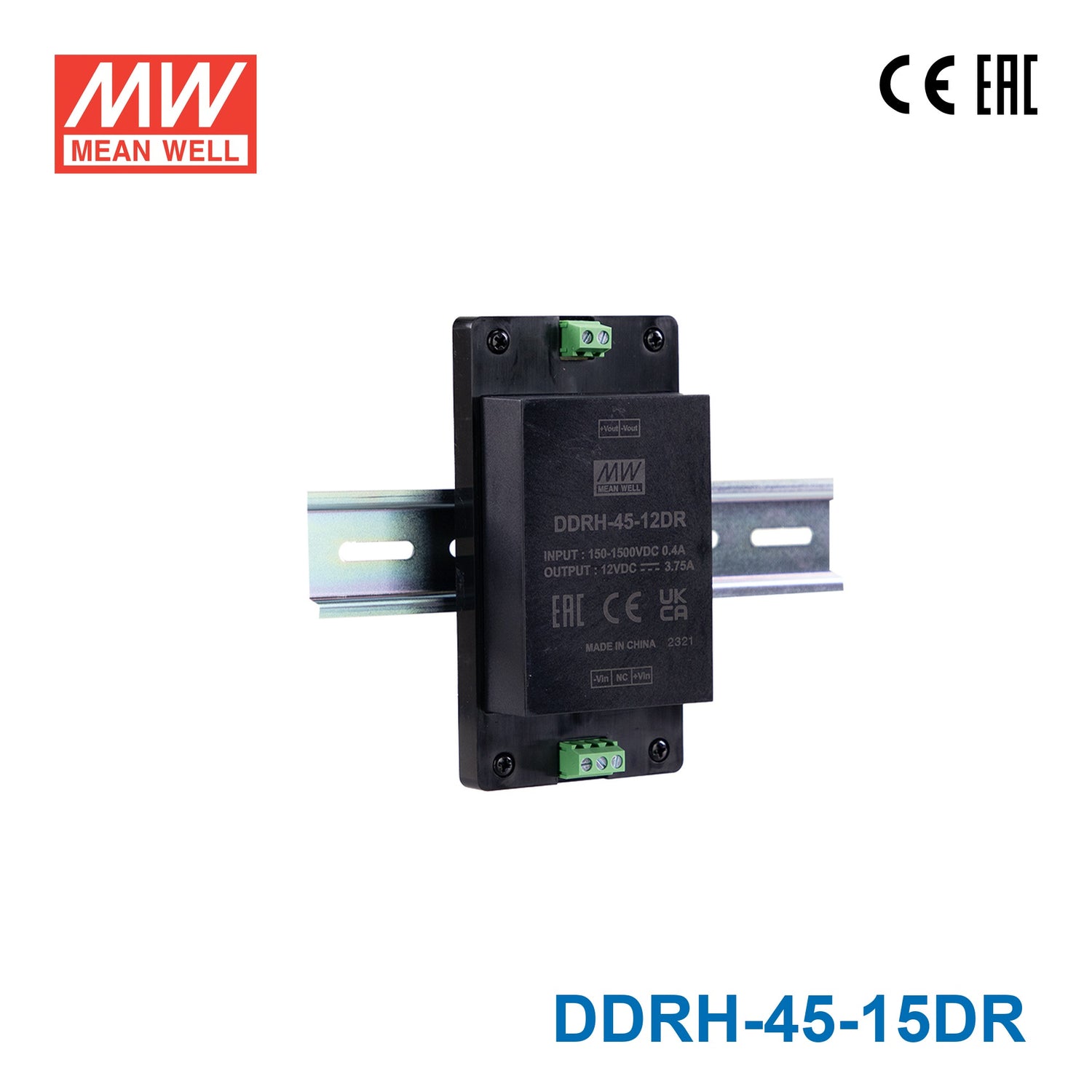

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well DDRH-45-15DR Ultra Wide Input DC-DC Converter, 45W 15V, Din Rail Type

Name: Mean Well DDRH-45-15DR Ultra Wide Input DC-DC Converter, 45W 15V, Din Rail Type
Brand: Mean Well
SKU: DDRH-45-15DR
Price: 99.68 USD
Availability: InStock

$99.68 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

The DDRH-45 is a 45W high-reliability ultra-wide input DC-DC converter designed for photovoltaic, renewable energy storage, and demanding high-voltage industrial systems. Supporting a 150~1500Vdc input range, it adapts to solar, battery string, and DC bus supply sources. With 4KVac reinforced I/O isolation, fanless free air convection cooling, and no minimum load requirement, the DDRH-45 offers reliable power conversion across a -40~+80°C operating range.

Key Features

✓ Ultra-wide 150~1500Vdc input range — covers solar, ESS, and DC bus sources
✓ DC output voltage adjustable ±10%
✓ 4KVac reinforced I/O isolation
✓ Cooling by free air convection — fanless design, no minimum load required
✓ Wide operating temperature: -40°C ~ +80°C
✓ Protections: Short circuit / Overload / Over voltage / Reverse polarity / Under voltage lockout
✓ DIN rail TS-35/7.5 or 15 compatible (DR type)
✓ Safety approvals: IEC62109-1 (LVD), EAC TP TC 004
✓ 3 years warranty

Specifications

Brand

Mean Well
Series

DDRH Series
Power Rating

45 Watt
Output Voltage

15 Volt
Rated Current

3 Ampere
Input Voltage

150V~1500V
Standards Met

CE,EAC
Operation Mode

Constant Voltage
Operating Temperature

-40°C~80°C
Warranty

3 Year
Length

5.32 in
Width

2.76 in
Height

1.71 in
Weight

0.68 lb

File Downloads

::specification::
