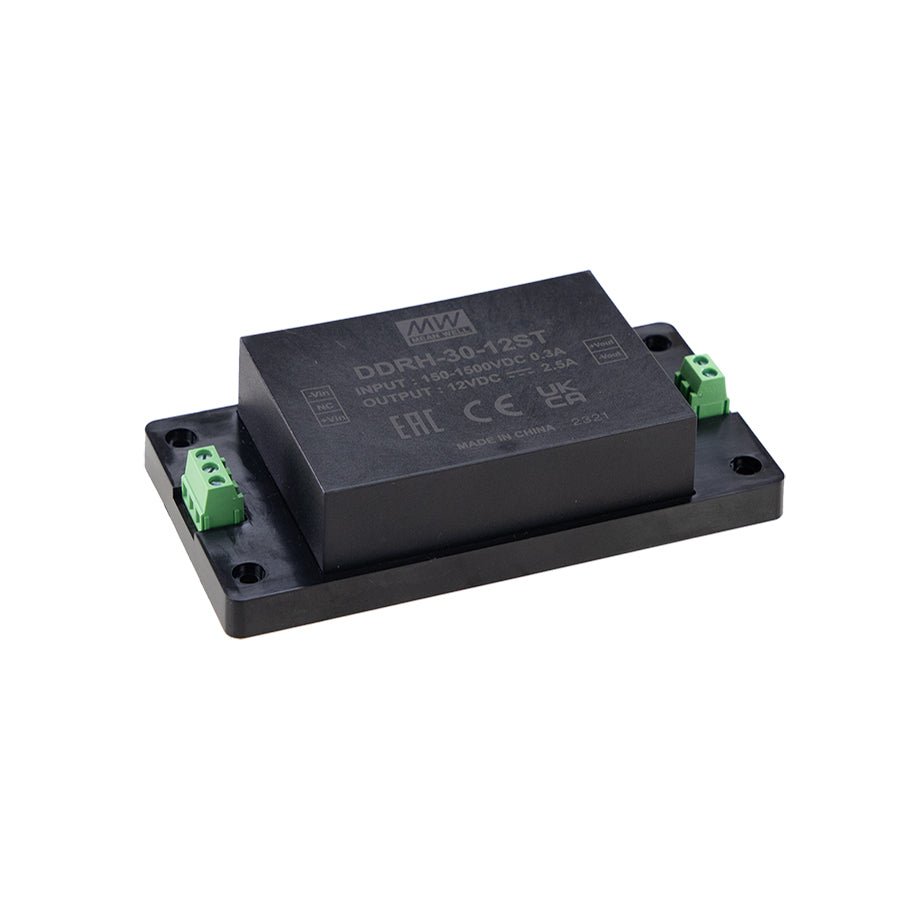

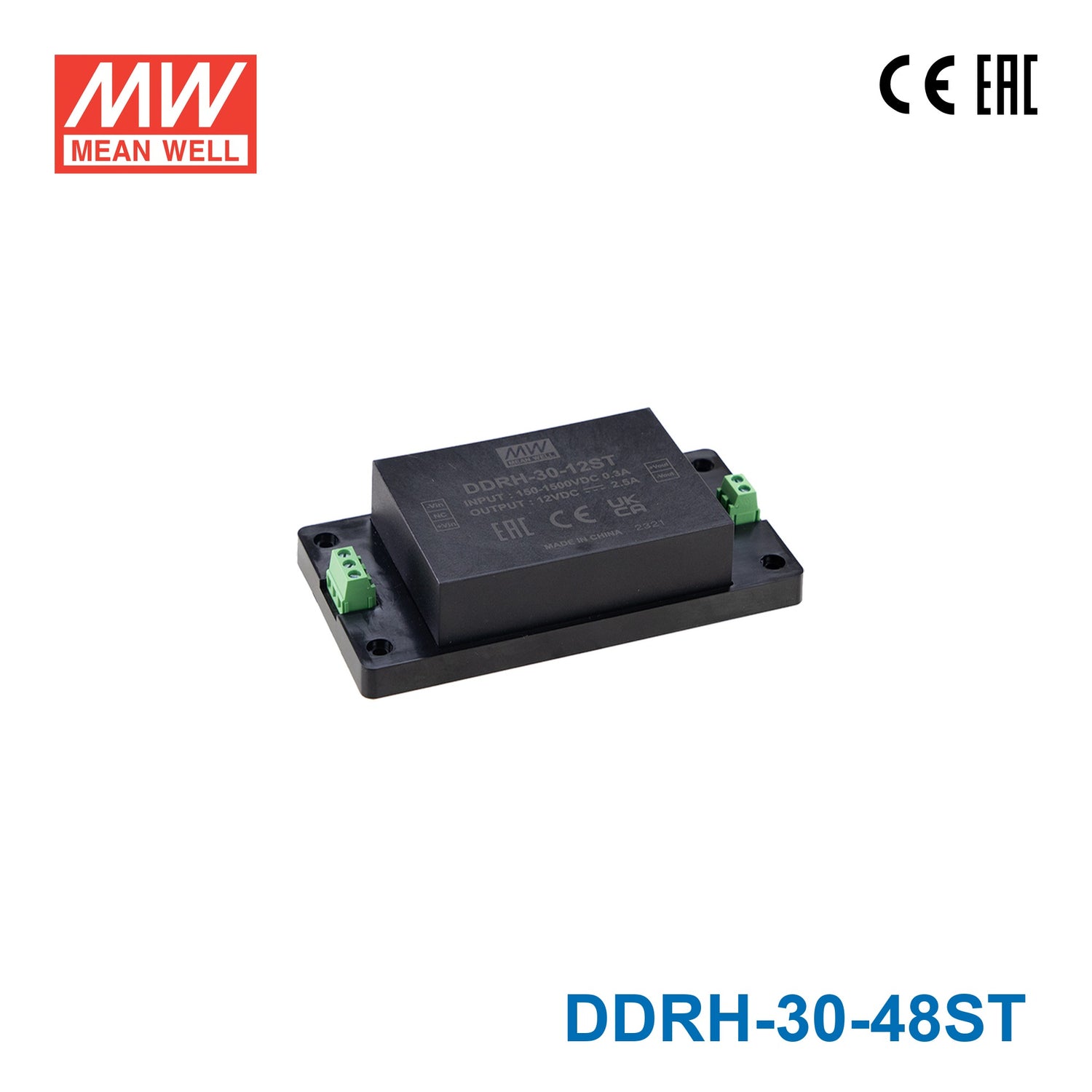

Mean Well DDRH-30-48ST Ultra Wide Input DC-DC Converter, 30W 48V, Screw Terminal Type

Name: Mean Well DDRH-30-48ST Ultra Wide Input DC-DC Converter, 30W 48V, Screw Terminal Type
Brand: Mean Well
SKU: DDRH-30-48ST
Price: 93.95 USD
Availability: InStock

$93.95 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

The DDRH-30 is a 30W high-reliability ultra-wide input DC-DC converter engineered for photovoltaic, energy storage, and high-voltage industrial applications. Its 150~1500Vdc input range spans solar, battery string, and DC bus supply sources. Featuring 4KVac reinforced I/O isolation and fanless free air convection cooling, the DDRH-30 delivers dependable isolated power with no minimum load requirement across a -40~+80°C operating range.

Key Features

✓ Ultra-wide 150~1500Vdc input range — covers solar, ESS, and DC bus sources
✓ DC output voltage adjustable ±10%
✓ 4KVac reinforced I/O isolation
✓ Cooling by free air convection — fanless design, no minimum load required
✓ Wide operating temperature: -40°C ~ +80°C
✓ Protections: Short circuit / Overload / Over voltage / Reverse polarity / Under voltage lockout
✓ DIN rail TS-35/7.5 or 15 compatible (DR type)
✓ Safety approvals: IEC62109-1 (LVD), EAC TP TC 004
✓ 3 years warranty

Specifications

Brand

Mean Well
Series

DDRH Series
Power Rating

30 Watt
Output Voltage

48 Volt
Rated Current

0.62 Ampere
Input Voltage

150V~1500V
Standards Met

CE,EAC
Operation Mode

Constant Voltage
Operating Temperature

-40°C~80°C
Warranty

3 Year
Length

5.32 in
Width

2.76 in
Height

1.26 in
Weight

0.67 lb
