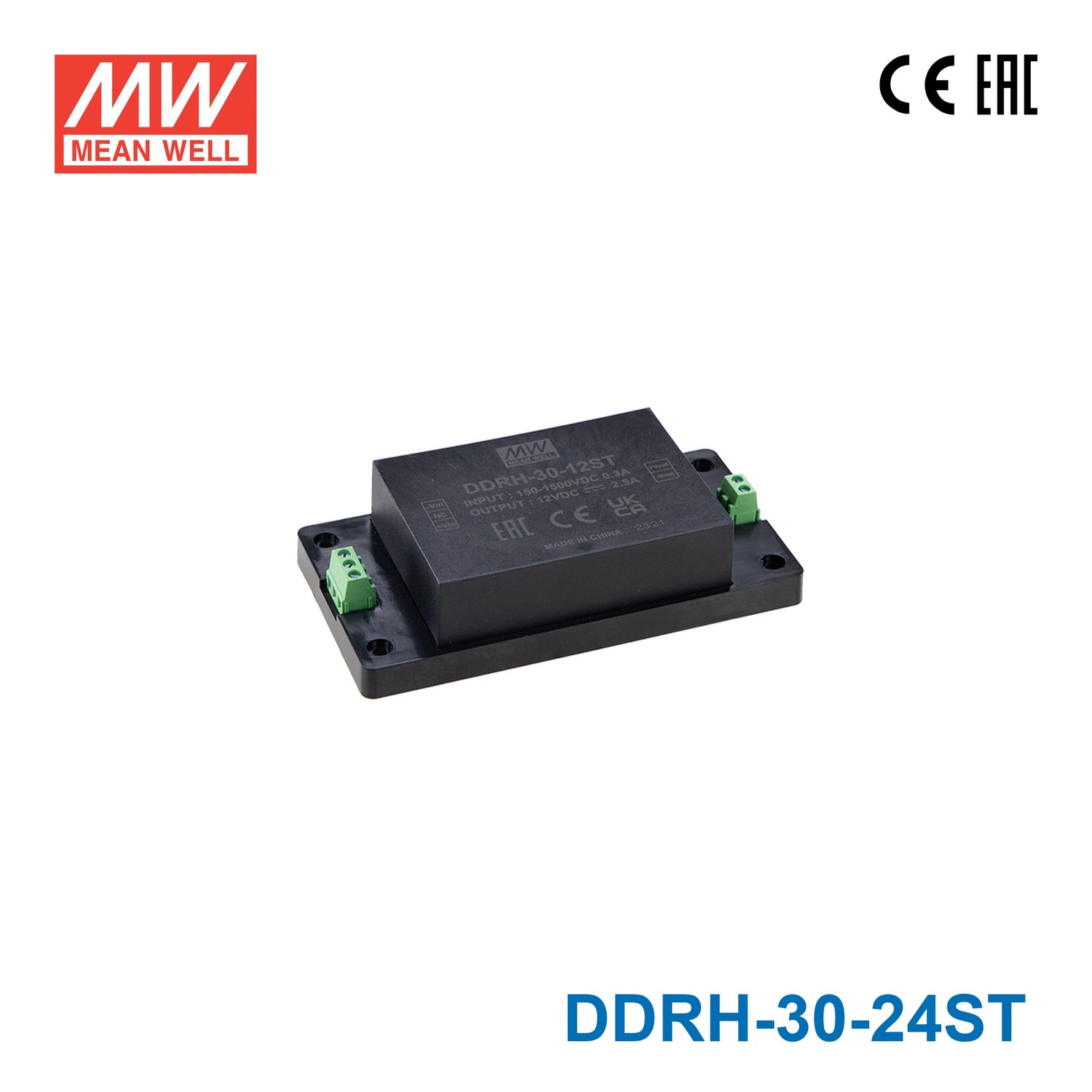

Mean Well DDRH-30-24ST Ultra Wide Input DC-DC Converter, 30W 24V, Screw Terminal Type

Name: Mean Well DDRH-30-24ST Ultra Wide Input DC-DC Converter, 30W 24V, Screw Terminal Type
Brand: Mean Well
SKU: DDRH-30-24ST
Price: 93.95 USD
Availability: InStock

$93.95 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Features:

150~1500Vdc 10:1 ultra-wide input range
4KVac I/O high isolation(Reinforced isolation)
Protections: Short Circuit / Overload / Over voltage / DC input under voltage / DC input Reverse Polarity
Fanless design, fully encapsulated, cooling by free air convection
Can be installed on DIN rail TS-35/7.5 or 15 (DR-type)
-40 ~ +80℃ ultra-wide operating temperature (>+50℃ derating)
Operating altitude up to 5000 meters
3 years warranty

General Specification

AC input voltage range

Nominal 800Vdc (150~1500Vdc)

AC inrush current (max.)

Cold start 150A max. @ Vin=800Vdc

Over-voltage protection

Hiccup mode recovers automatically after the fault condition is removed

Withstand voltage

I/P-O/P:4KVac

Working temperature

-40 ~ +80℃ (Refer to "Derating Curve")

Safety standards

IEC62109-1(LVD), EAC TP TC 004 approved; Design refer to UL1741(By requested)

Dimension (LxWxH)

135x70x32mm

Specifications

Brand

Mean Well
Series

DDRH Series
Power Rating

30 Watt
Output Voltage

24 Volt
Rated Current

1.25 Ampere
Input Voltage

150V~1500V
Standards Met

CE,EAC
Operation Mode

Constant Voltage
Operating Temperature

-40°C~80°C
Warranty

3 Year
Length

5.32 in
Width

2.76 in
Height

1.26 in
Weight

0.67 lb

File Downloads

::specification::
