Mean Well DDRH-30-24DR DC-DC Converter | 30W 24V, Din Rail Type

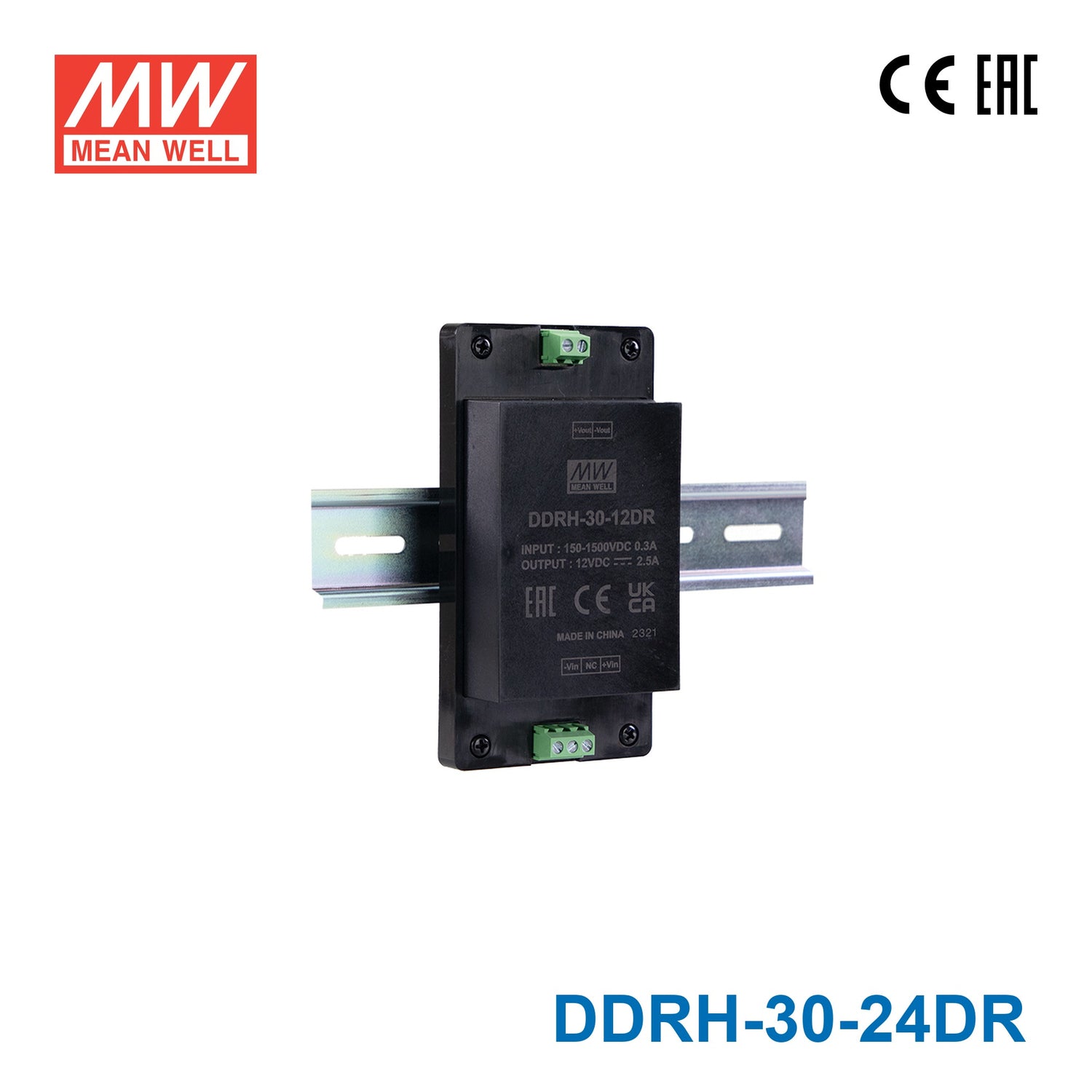

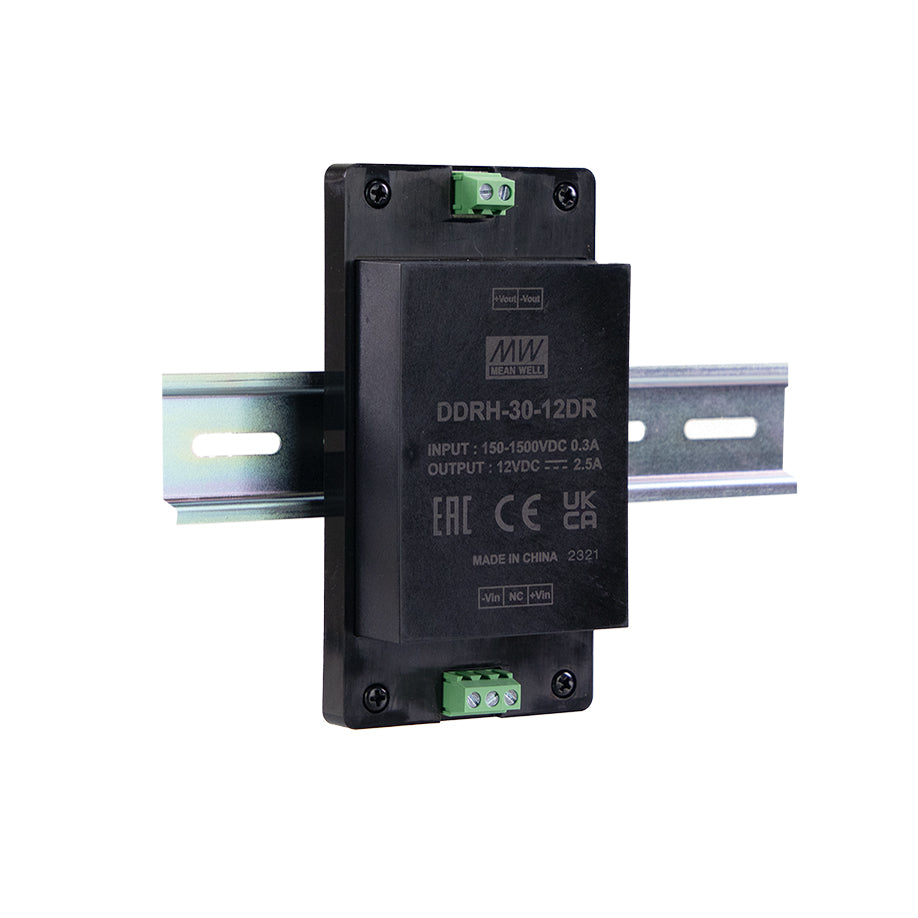

Name: Mean Well DDRH-30-24DR Ultra Wide Input DC-DC Converter, 30W 24V, Din Rail Type 1.25A
Brand: Mean Well
SKU: DDRH-30-24DR
Price: 93.95 USD
Availability: InStock

Overview

DDRH-30-24DR is the 24V output model of this series: rated power 30W, typical efficiency 91%.

DDRH-30 series is a 150 ~ 1500Vdc high reliable ultra-high input DC-DC converter which can supply stable working voltage for the load. Main features are as following: compact size, -40~+80℃ wide range operating temperature, 4KVac high isolation voltage, operation at 5000m altitude, low ripple & noise, complete protections and so on. Futhermore, this series also has DIN Rail type, it is suitable to be mounted on TS-35/7.5 or TS-35/15 rails. DDRH-30 is designed to meet UL1741and IEC62109-1 standard. It is suitable for industrial automation, surveillance, telecommunication and can be widely deployed in the applications of new energy generation such as solar power, and windmill power generation, for instances, photovoltaic power systems, high voltage inverting , DC bus centralized application , ESS, charging pile, railway and so forth.

Features

150~1500Vdc 10:1 ultra-wide input range
4KVac I/O high isolation(Reinforced isolation)
Protections: Short circuit / Overload / Over voltage / DC input under voltage / DC input reverse Polarity
Fanless design, fully encapsulated, cooling by free air convection
Can be installed on DIN rail TS-35/7.5 or 15 (DR-Type)
-40~+80℃ ultra-wide operating temperature (＞+50℃ derating)
Operating altitude up to 5000 meters
3 years warranty

Specifications

DDRH-30-24DRSpecifications from the official datasheet (2024-10-18 edition)

INPUT

INPUT VOLTAGE (RANGE): Nominal 800Vdc (150~1500Vdc)
INPUT CURRENT NO LOAD: 0.2mA
INPUT CURRENT FULL LOAD: 50mA
VOLTAGE RANGE: 150 ~ 1500Vdc
FILTER: Internal capacitor
EXTERNAL INPUT FUSE: 4A/1500Vdc, required (Please refer to page 6 for more details)
INRUSH CURRENT (Typ.): Cold start 150A max. @ Vin=800Vdc

OUTPUT

OUTPUT VOLTAGE: 24V
OUTPUT CURRENT: 1.25A
EFFICIENCY (Typ.): 91%
CAPACITOR LOAD (MAX.): 1250μF
VOLTAGE ACCURACY: ±2.0%
RATED POWER: 30W
RIPPLE & NOISE^Note.2: 12 ~ 24Vo: 100mVp-p 48Vo: 150mVp-p
LINE REGULATION: ±1%
LOAD REGULATION: ±1% (10% Load to Full Load)
SWITCHING FREQUENCY (Typ.): 28 ~ 75.6KHz
HOLD UP TIME: 16ms min. @Vin=800Vdc
SETUP TIME: 2s max. @150~1500Vdc

PROTECTION

SHORT CIRCUIT: Protection type : Hiccup mode, continuous, automatic recovery
OVERLOAD: 110 ~ 300% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: Hiccup mode, recovers automatically after fault condition is removed
DC INPUT REVERSE POLARITY: By internal Bridge Diode, no damage, recovers automatically after fault condition removed
DC INPUT UNDER VOLTAGE LOCKOUT Start-up voltage: 144Vdc
DC INPUT UNDER VOLTAGE LOCKOUT Shutdown voltage: 132Vdc

ENVIRONMENT

WORKING TEMP.: -40 ~ +80℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.02% / ℃ (-40℃ ~ 50℃) Typ.
VIBRATION: Meets: MIL.STD-810F Table 514.5C-VⅢ, 15-2000Hz, X,Y,Z axis, 1hr (each axis), total 3hrs
OPERATING ALTITUDE^Note.3: 5000 meters
OVER VOLTAGE CATEGORY: Ⅱ; According to EN62109-1; altitude up to 5000 meters

SAFETY & EMC

SAFETY STANDARDS: UL1741 , CSA C22.2 No.107.1-16 , IEC62109-1 (LVD), EAC TP TC 004 approved
WITHSTAND VOLTAGE: I/P-O/P:4KVac
ISOLATION RESISTANCE: I/P-O/P, 100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/EN55032 Class A (with external components)
Radiated BS EN/EN55032 Class A (with external components)
EMC IMMUNITY^Note.4: BS EN/EN55035

Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact, criteria A
Radiated Susceptibility BS EN/EN61000-4-3 Level 3, 10V, criteria A
EFT/Burest BS EN/EN61000-4-4 Level 2, 0.5KV, criteria A
Surge BS EN/EN61000-4-5 Level 4, 2KV/Vin+ ~ Vin-, criteria A
Conducted BS EN/EN61000-4-6 Level 3, 10V, criteria A

Parameter	Standard	Test Level
Conducted	BS EN/EN55032	Class A (with external components)
Radiated	BS EN/EN55032	Class A (with external components)

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 3, 8KV air; Level 2, 4KV contact, criteria A
Radiated Susceptibility	BS EN/EN61000-4-3	Level 3, 10V, criteria A
EFT/Burest	BS EN/EN61000-4-4	Level 2, 0.5KV, criteria A
Surge	BS EN/EN61000-4-5	Level 4, 2KV/Vin+ ~ Vin-, criteria A
Conducted	BS EN/EN61000-4-6	Level 3, 10V, criteria A

OTHERS

MTBF: 318Khrs MIL-HDBK-217F(25℃)
DIMENSION (L*W*H): P Type: 89*63.5*25mm, ST Type: 135*70*32mm, DR Type: 135*70*43.5mm
CASE MATERIAL: Non-conductive black plastic (UL 94V-0 rated)
POTTING MATERIAL: UL 94V-0
PIN MATERIAL: Base: copper, Plating: Matte Tin
PACKING: P Type : 240g ; 6pcs/Tray, 18pcs/per carton ST Type : 305g ; 6pcs/Tray, 18pcs/per carton DR Type : 310g ; 6pcs/Tray, 18pcs/per carton

Test conditions and notes4

1. All parameters NOT specially mentioned are measured at 800Vdc input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μf & 47μf parallel capacitor.
3. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on http://www.meanwell.com)

Technical drawings

DDRH-30-24DR ‧Tolerance: x.x±0.7mm (x.x±0.0275") — ‧Tolerance: x.x±0.7mm (x.x±0.0275")

DDRH-30-24DR ‧Tolerance: x.x±0.7mm (x.x±0.0275") (2) — ‧Tolerance: x.x±0.7mm (x.x±0.0275") (2)

DDRH-30-24DR DDRH-30-xxST (Screw Terminal Type) — DDRH-30-xxST (Screw Terminal Type)

DDRH-30-24DR DDRH-30-xxDR (DIN Rail Type) — DDRH-30-xxDR (DIN Rail Type)

DDRH-30-24DR Installation Instruction(DDRH-30-xxDR only) — Installation Instruction(DDRH-30-xxDR only)

DDRH-30-24DR External Fuse Wiring Instruction — External Fuse Wiring Instruction

DDRH-30-24DR DDRH-30-xxST — DDRH-30-xxST

DDRH-30-24DR DDRH-30-xxDR — DDRH-30-xxDR

Typical applications

Downloads

Datasheet1

DDRH-30-24DR datasheetDDRH_30_spec_sheet.pdf · 2024-10-18 edition PDF Download

FAQ

Can the DDRH-30-24DR power 24 V PLCs or I/O modules from a high-voltage DC bus in an industrial panel?

Yes. The DDRH-30-24DR mounts on a DIN rail and accepts 150–1500 VDC input, allowing it to step down a high-voltage DC bus to 24 V for PLCs, I/O modules, or relay coils. It delivers up to 1.25 A at 24 V (30 W total), which covers many single-channel 24 V control loads.

Is this converter a good fit for solar or energy storage systems that use a high-voltage DC intermediate bus?

The DDRH-30-24DR's 150–1500 VDC 10:1 ultra-wide input is well suited to the variable high-voltage DC buses found in solar string inverters and battery energy storage systems where bus voltage fluctuates widely. It provides a stable 24 V / 1.25 A auxiliary supply for control electronics, communication boards, or monitoring equipment.

Can the DDRH-30-24DR be installed in outdoor switchgear enclosures or in environments with wide temperature swings?

Yes, inside a suitable enclosure. The operating temperature range of –40°C to +80°C (with load derating at higher ambient temperatures per the derating curve) covers wide winter and summer swings. No IP rating is given and humidity must stay within 20–90% RH non-condensing, so the switchgear enclosure must provide environmental protection.

Is the DDRH-30-24DR suitable for powering 24 V instrumentation in oil-and-gas or heavy industrial plants?

It can supply 24 V / 1.25 A (30 W) to field instruments, signal conditioners, or loop-powered devices in plants where a high-voltage DC distribution rail is present and falls within 150–1500 VDC. The –40°C to +80°C operating range and vibration rating per MIL-STD-810F are advantages in these environments; the sheet lists no hazardous-location approvals.

How does the DIN rail version compare to the PCB and screw terminal variants of the DDRH-30-24?

All three deliver 30 W at 24 V / 1.25 A with 150–1500 VDC input and –40°C to +80°C range. The DDRH-30-24DR (DIN rail) measures 135.0 × 70.0 × 43.5 mm and weighs 0.31 kg; the DDRH-30-24P (PCB mount) is 89.0 × 63.5 × 25.0 mm and 0.24 kg; the DDRH-30-24ST (screw terminal) is 135.0 × 70.0 × 32.0 mm and 0.305 kg.

What certifications does the DDRH-30-24DR carry and what is the warranty period?

The DDRH-30-24DR is approved to UL1741, CSA C22.2 No.107.1-16, IEC62109-1 (LVD) and EAC TP TC 004. The spec sheet does not state a warranty period.
