Mean Well DDRH-240-24 Ultra Wide Input DC-DC Converter, 240W 24V | US Stock Availability

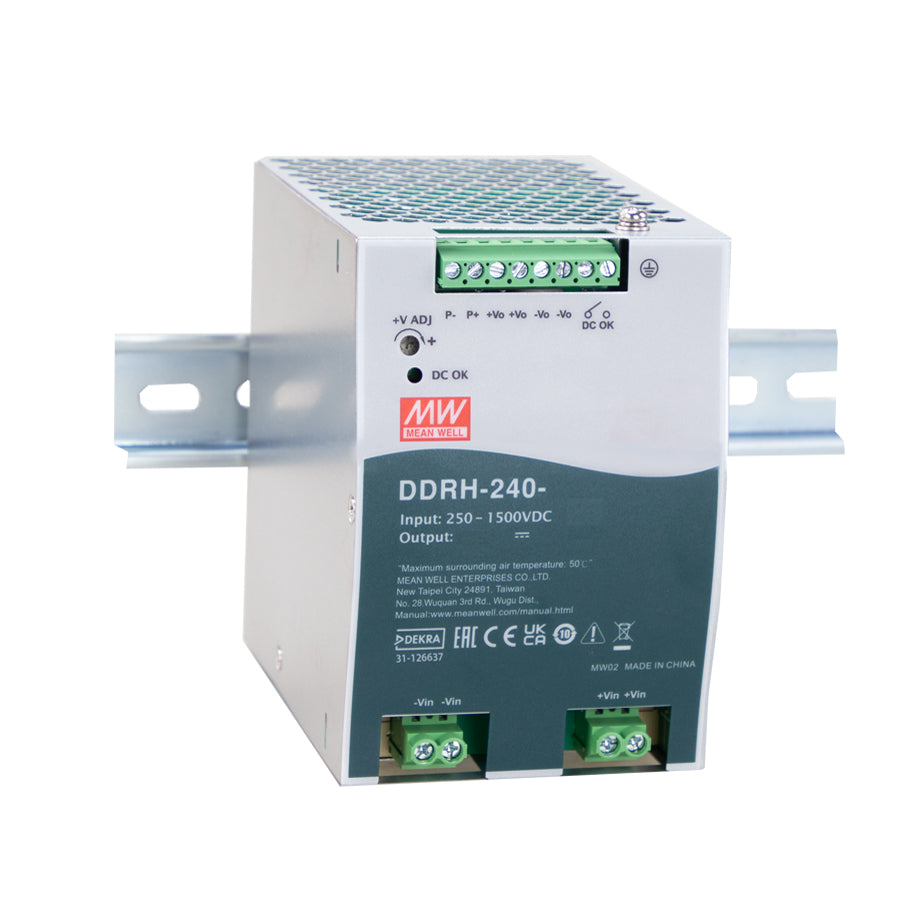

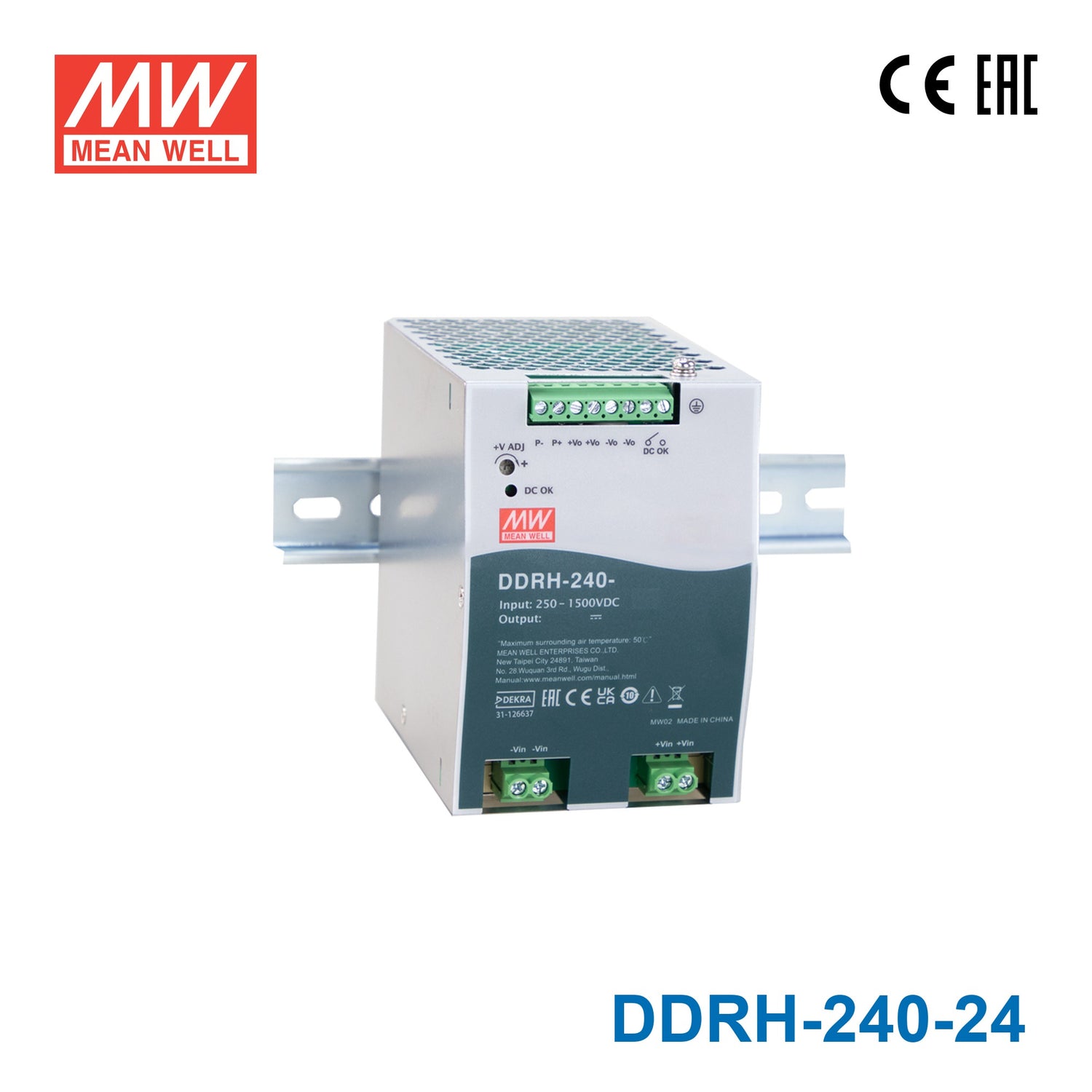

Name: Mean Well DDRH-240-24 Ultra Wide Input DC-DC Converter, 240W 24V 10A
Brand: Mean Well
SKU: DDRH-240-24
Price: 194.04 USD
Availability: InStock

Overview

DDRH-240-24 is the 24V output model of this series: rated current 10A, rated power 240W, typical efficiency 87%.

DDRH-240 series is a 250 ~ 1500Vdc high reliable ultra-high input DIN rail type DC-DC converter which can supply stable working voltage for the load. It is suitable to be mounted on TS-35/7.5 or 15 rails. Main features are as following: easy to install DIN rail type, narrow width(85.5mm) in slim design, -40~+80°C wide range operating temperature, 4KVac high isolation voltage, current sharing up to 960W(3+1), operation at 5000m altitude, high efficiency, low ripple & noise, complete protections and so on. DDRH-240 is compliant with UL1741 and BS EN/EN61000-6-2 standard regarding immunity for industrial environments. It is suitable for industrial automation, surveillance, telecommunication and can be widely deployed in the applications of new energy generation such as solar power, and windmill power generation, photovoltaic power systems, high voltage inverting , DC bus centralized application, ESS, charging pile, railway and so forth.

Features

250~ 1500Vdc 6:1 ultra-wide input range
Withstand 1700Vdc surge input for 10 seconds
85.5mm slim width
4KVac I/O high isolation(Reinforced isolation)
Protections: Short circuit / Overload / Over voltage / Over temperature DC input under voltage / DC input reverse polarity
Fanless design, cooling by free air convection
Can be installed on DIN rail TS-35/7.5 or 15
-40~+80°C ultra-wide operating temperature (＞+50°C derating)
Current sharing up to 960W(3+1)
Over voltage categoryⅡ
Operating altitude up to 5000 meters
DC OK relay contact
DC output voltage adjustable(12~15V, 24~29V, 30~36V, 48~58V)
Conformal coating
3 years warranty

Specifications

DDRH-240-24Specifications from the official datasheet (2026-03-31 edition)

OUTPUT

DC VOLTAGE: 24V
RATED CURRENT: 10A
CURRENT RANGE: 0 ~ 10A
RATED POWER: 240W
RIPPLE & NOISE (max.)^Note.2: 240mVp-p
VOLTAGE ADJ. RANGE: 24 ~ 29V
VOLTAGE TOLERANCE^Note.3: ±1.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±0.5%
EXTERNAL CAPACITANCE LOAD (Max.): 5000μF

INPUT

VOLTAGE RANGE^Note.4: 250 ~ 1500Vdc
EFFICIENCY (Typ.) 300Vdc: 87%
EFFICIENCY (Typ.) 800Vdc: 90%
EFFICIENCY (Typ.) 1500Vdc: 86%
INRUSH CURRENT (max.): COLD START 500A /1500Vdc 300A/800Vdc 120A/300Vdc
EXTERNAL INPUT FUSE: 4A/1500VDC, required(Please refer to page 5 for more details)
INTERNAL INPUT FUSE: 2A/1500VDC (optional)

PROTECTION

OVERLOAD: 105 ~ 135% rated output power Protection type : Hiccup mode when output voltage<35%, recovers automatically after condition is removed; Constant current limiting, recovers automatically after fault condition is removed within 35% ~ 100% rated output voltage
OVER VOLTAGE: 32 ~ 42V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Protection type : Hiccup mode, recovers automatically after fault condition is removed
DC INPUT REVERSE POLARITY: By internal Bridge Diode, no damage, recovers automatically after fault condition removed
DC INPUT UNDER VOLTAGE LOCKOUT: Under voltage protection range:200 ~ 230Vdc , Under voltage release range:230 ~ 245Vdc

FUNCTION

DC OK SIGNAL: Relay contact rating(max.) : 30V / 1A resistive
CURRENT SHARING: Up to 960W(3+1 units).Please refer to the Function Manual

ENVIRONMENT

WORKING TEMP.: -40 ~ +80℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: Component: 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting clip: Compliance to IEC60068-2-6
OPERATING ALTITUDE^Note.5: 5000m
OVER VOLTAGE CATEGORY: OVCⅡ2000m, According to EN62109-1

SAFETY & EMC

SAFETY STANDARDS: UL1741, CSA C22.2 No.107.1-16 , IEC62109-1, BS EN/EN62109-1, EAC TP TC 004 approved
WITHSTAND VOLTAGE: I/P-O/P:4KVAC I/P-FG:3.75KVAC O/P-FG:2KVAC O/P-DC OK:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, 100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/EN55032(CISPR32) Class A
Radiated BS EN/EN55032(CISPR32) Class A
EMC IMMUNITY: BS EN/EN55035, BS EN/EN61000-6-2

Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact, criteria A
Radiated Susceptibility BS EN/EN61000-4-3 Level 3, 10V, criteria A
EFT/Burest BS EN/EN61000-4-4 Level 3, 2KV, criteria A
Surge BS EN/EN61000-4-5 Level 4, 2KV/Vin+ ~ Vin-, 4KV/Vin~FG , criteria A
Conducted BS EN/EN61000-4-6 Level 3, 10V, criteria A
Magnetic Field BS EN/EN61000-4-8 Level 4, 30A, criteria A

Parameter	Standard	Test Level
Conducted	BS EN/EN55032(CISPR32)	Class A
Radiated	BS EN/EN55032(CISPR32)	Class A

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 3, 8KV air; Level 2, 4KV contact, criteria A
Radiated Susceptibility	BS EN/EN61000-4-3	Level 3, 10V, criteria A
EFT/Burest	BS EN/EN61000-4-4	Level 3, 2KV, criteria A
Surge	BS EN/EN61000-4-5	Level 4, 2KV/Vin+ ~ Vin-, 4KV/Vin~FG , criteria A
Conducted	BS EN/EN61000-4-6	Level 3, 10V, criteria A
Magnetic Field	BS EN/EN61000-4-8	Level 4, 30A, criteria A

OTHERS

MTBF: 214.2Khrs min. MIL-HDBK-217F (25℃); 1391.8Khrs min. Telcordia TR/SR-332 (Bellcore) (25℃)
DIMENSION: 85.5*125.2*129.2mm (W*H*D)
PACKING: 0.96Kg; 8pcs/10.3Kg/1.02CUFT

Test conditions and notes7

1. All parameters NOT specially mentioned are measured at 800Vdc input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Derating may be needed under low input voltage. Please check the derating curve for more details.
5. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
6. Installation clearances : 40mm on top, 20mm on the bottom, 5mm on the left and right side are recommended when loaded permanently with full power. In case the adjacent device is a heat source, 15mm clearance is recommended.
7. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )

Technical drawings

DDRH-240-24 Block Diagram — Block Diagram

DDRH-240-24 Derating Curve — Derating Curve

DDRH-240-24 Function Manual — Function Manual

DDRH-240-24 Function Manual (2) — Function Manual (2)

DDRH-240-24 Mechanical Specification — Mechanical Specification

DDRH-240-24 External FUSE wiring instruction — External FUSE wiring instruction

DDRH-240-24 Installation Instruction — Installation Instruction

Typical applications

Downloads

Datasheet1

DDRH-240-24 datasheetDDRH_240_spec_sheet.pdf · 2026-03-31 edition PDF Download

FAQ

Can the DDRH-240-24 power 24V automation equipment such as PLCs, servo drives, or solenoid valves?

Yes. The DDRH-240-24 outputs 240W at 24V and 10A, which covers the power needs of typical 24V industrial automation components including PLCs, servo drive controllers, and solenoid valve banks. Its DIN rail form factor allows it to mount directly alongside the equipment it powers in a control panel.

Is the DDRH-240-24 suitable for use in DC microgrid or high-voltage DC distribution systems?

Yes. With a 250–1500VDC ultra-wide input range and 6:1 ratio, this converter is designed for high-voltage DC sources such as DC microgrids, solar arrays, and battery storage buses. It also has input reverse polarity protection and under-voltage lockout (200–230VDC); an external 4A/1500VDC input fuse is required.

Can I use the DDRH-240-24 to power 24V industrial sensors and field instruments?

Yes. At 240W and 10A, the DDRH-240-24 provides ample capacity to supply multiple 24V sensors, transmitters, and field instruments simultaneously. The output voltage is also adjustable from 24V to 29V, which can accommodate loads with slightly higher voltage requirements.

What temperature range does the DDRH-240-24 support, and is it suitable for cold storage or extreme-heat environments?

The DDRH-240-24 is rated for -40°C to +80°C operation, with output derating at higher ambient temperatures per the derating curve, covering both cold storage facilities and high-ambient industrial environments. No IP rating is listed for the unit itself, so it should be installed in an appropriately sealed enclosure when deployed in wet or dusty conditions.
