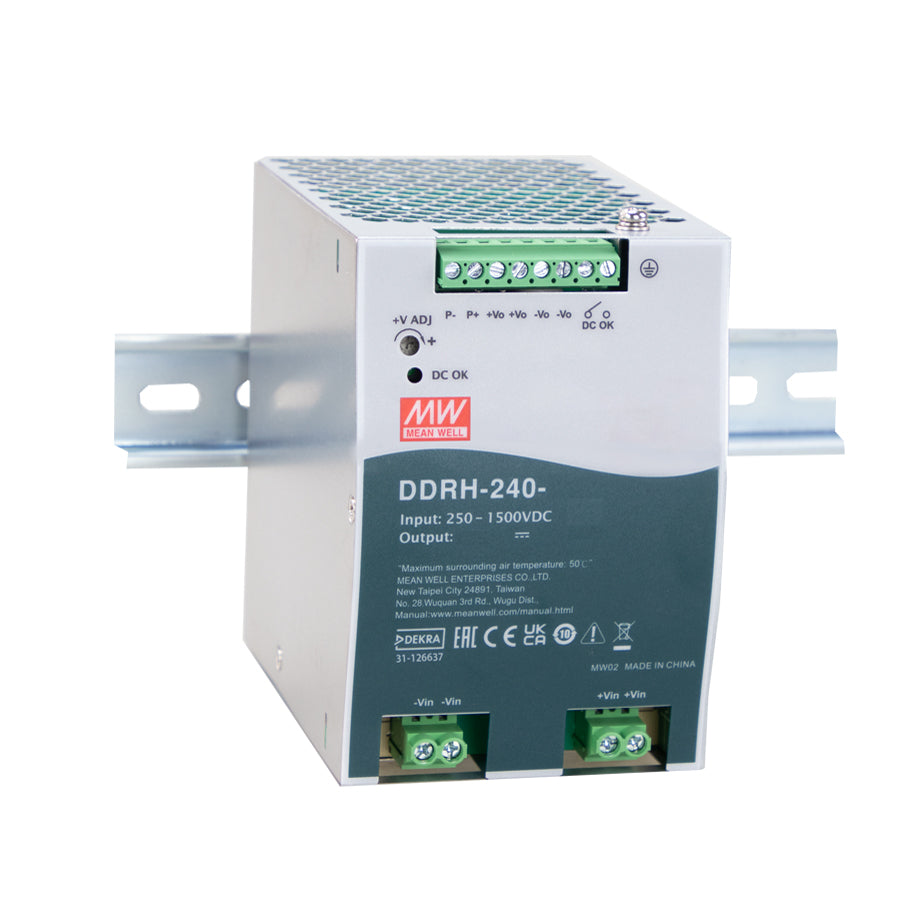

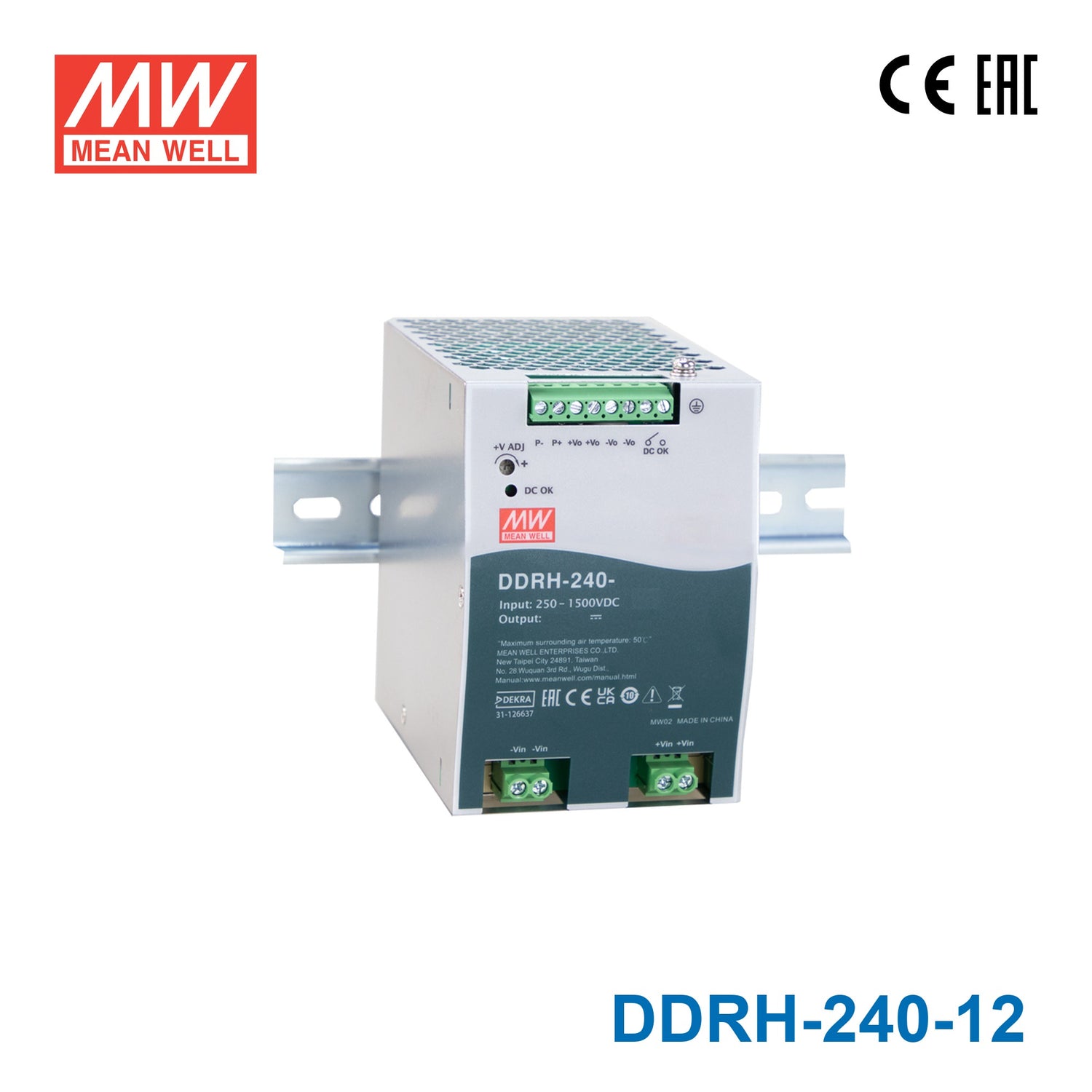

Mean Well DDRH-240-12 Ultra Wide Input DC-DC Converter, 200.4W 12V - US Stock & Prices

Name: Mean Well DDRH-240-12 Ultra Wide Input DC-DC Converter, 200.4W 12V 16.7A
Brand: Mean Well
SKU: DDRH-240-12
Price: 194.04 USD
Availability: InStock

Overview

DDRH-240-12 is the 12V output model of this series: rated current 16.7A, rated power 200.4W, typical efficiency 85%.

DDRH-240 series is a 250 ~ 1500Vdc high reliable ultra-high input DIN rail type DC-DC converter which can supply stable working voltage for the load. It is suitable to be mounted on TS-35/7.5 or 15 rails. Main features are as following: easy to install DIN rail type, narrow width(85.5mm) in slim design, -40~+80°C wide range operating temperature, 4KVac high isolation voltage, current sharing up to 960W(3+1), operation at 5000m altitude, high efficiency, low ripple & noise, complete protections and so on. DDRH-240 is compliant with UL1741 and BS EN/EN61000-6-2 standard regarding immunity for industrial environments. It is suitable for industrial automation, surveillance, telecommunication and can be widely deployed in the applications of new energy generation such as solar power, and windmill power generation, photovoltaic power systems, high voltage inverting , DC bus centralized application, ESS, charging pile, railway and so forth.

Features

250~ 1500Vdc 6:1 ultra-wide input range
Withstand 1700Vdc surge input for 10 seconds
85.5mm slim width
4KVac I/O high isolation(Reinforced isolation)
Protections: Short circuit / Overload / Over voltage / Over temperature DC input under voltage / DC input reverse polarity
Fanless design, cooling by free air convection
Can be installed on DIN rail TS-35/7.5 or 15
-40~+80°C ultra-wide operating temperature (＞+50°C derating)
Current sharing up to 960W(3+1)
Over voltage categoryⅡ
Operating altitude up to 5000 meters
DC OK relay contact
DC output voltage adjustable(12~15V, 24~29V, 30~36V, 48~58V)
Conformal coating
3 years warranty

Specifications

DDRH-240-12Specifications from the official datasheet (2026-03-31 edition)

OUTPUT

DC VOLTAGE: 12V
RATED CURRENT: 16.7A
CURRENT RANGE: 0 ~ 16.7A
RATED POWER: 200.4W
RIPPLE & NOISE (max.)^Note.2: 120mVp-p
VOLTAGE ADJ. RANGE: 12 ~ 15V
VOLTAGE TOLERANCE^Note.3: ±1.5%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±1.0%
EXTERNAL CAPACITANCE LOAD (Max.): 8000μF

INPUT

VOLTAGE RANGE^Note.4: 250 ~ 1500Vdc
EFFICIENCY (Typ.) 300Vdc: 85%
EFFICIENCY (Typ.) 800Vdc: 88%
EFFICIENCY (Typ.) 1500Vdc: 85%
INRUSH CURRENT (max.): COLD START 500A /1500Vdc 300A/800Vdc 120A/300Vdc
EXTERNAL INPUT FUSE: 4A/1500VDC, required(Please refer to page 5 for more details)
INTERNAL INPUT FUSE: 2A/1500VDC (optional)

PROTECTION

OVERLOAD: 105 ~ 135% rated output power Protection type : Hiccup mode when output voltage<35%, recovers automatically after condition is removed; Constant current limiting, recovers automatically after fault condition is removed within 35% ~ 100% rated output voltage
OVER VOLTAGE: 16.5 ~ 21V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Protection type : Hiccup mode, recovers automatically after fault condition is removed
DC INPUT REVERSE POLARITY: By internal Bridge Diode, no damage, recovers automatically after fault condition removed
DC INPUT UNDER VOLTAGE LOCKOUT: Under voltage protection range:200 ~ 230Vdc , Under voltage release range:230 ~ 245Vdc

FUNCTION

DC OK SIGNAL: Relay contact rating(max.) : 30V / 1A resistive
CURRENT SHARING: Up to 960W(3+1 units).Please refer to the Function Manual

ENVIRONMENT

WORKING TEMP.: -40 ~ +80℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: Component: 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting clip: Compliance to IEC60068-2-6
OPERATING ALTITUDE^Note.5: 5000m
OVER VOLTAGE CATEGORY: OVCⅡ2000m, According to EN62109-1

SAFETY & EMC

SAFETY STANDARDS: UL1741, CSA C22.2 No.107.1-16 , IEC62109-1, BS EN/EN62109-1, EAC TP TC 004 approved
WITHSTAND VOLTAGE: I/P-O/P:4KVAC I/P-FG:3.75KVAC O/P-FG:2KVAC O/P-DC OK:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, 100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/EN55032(CISPR32) Class A
Radiated BS EN/EN55032(CISPR32) Class A
EMC IMMUNITY: BS EN/EN55035, BS EN/EN61000-6-2

Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact, criteria A
Radiated Susceptibility BS EN/EN61000-4-3 Level 3, 10V, criteria A
EFT/Burest BS EN/EN61000-4-4 Level 3, 2KV, criteria A
Surge BS EN/EN61000-4-5 Level 4, 2KV/Vin+ ~ Vin-, 4KV/Vin~FG , criteria A
Conducted BS EN/EN61000-4-6 Level 3, 10V, criteria A
Magnetic Field BS EN/EN61000-4-8 Level 4, 30A, criteria A

Parameter	Standard	Test Level
Conducted	BS EN/EN55032(CISPR32)	Class A
Radiated	BS EN/EN55032(CISPR32)	Class A

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 3, 8KV air; Level 2, 4KV contact, criteria A
Radiated Susceptibility	BS EN/EN61000-4-3	Level 3, 10V, criteria A
EFT/Burest	BS EN/EN61000-4-4	Level 3, 2KV, criteria A
Surge	BS EN/EN61000-4-5	Level 4, 2KV/Vin+ ~ Vin-, 4KV/Vin~FG , criteria A
Conducted	BS EN/EN61000-4-6	Level 3, 10V, criteria A
Magnetic Field	BS EN/EN61000-4-8	Level 4, 30A, criteria A

OTHERS

MTBF: 214.2Khrs min. MIL-HDBK-217F (25℃); 1391.8Khrs min. Telcordia TR/SR-332 (Bellcore) (25℃)
DIMENSION: 85.5*125.2*129.2mm (W*H*D)
PACKING: 0.96Kg; 8pcs/10.3Kg/1.02CUFT

Test conditions and notes7

1. All parameters NOT specially mentioned are measured at 800Vdc input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Derating may be needed under low input voltage. Please check the derating curve for more details.
5. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
6. Installation clearances : 40mm on top, 20mm on the bottom, 5mm on the left and right side are recommended when loaded permanently with full power. In case the adjacent device is a heat source, 15mm clearance is recommended.
7. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )

Technical drawings

DDRH-240-12 Block Diagram — Block Diagram

DDRH-240-12 Derating Curve — Derating Curve

DDRH-240-12 Function Manual — Function Manual

DDRH-240-12 Function Manual (2) — Function Manual (2)

DDRH-240-12 Mechanical Specification — Mechanical Specification

DDRH-240-12 External FUSE wiring instruction — External FUSE wiring instruction

DDRH-240-12 Installation Instruction — Installation Instruction

Typical applications

Downloads

Datasheet1

DDRH-240-12 datasheetDDRH_240_spec_sheet.pdf · 2026-03-31 edition PDF Download

FAQ

Can the DDRH-240-12 power industrial 12V DC bus loads in a rail-mounted control cabinet?

Yes. The DDRH-240-12 delivers 200.4W at 12V and 16.7A on a DIN rail form factor 85.5mm wide, making it suitable for mounting alongside PLCs and I/O modules in industrial control cabinets. Its 6:1 ultra-wide input range (250–1500VDC) allows it to accept power from a wide variety of high-voltage DC bus sources found in industrial environments.

Is the DDRH-240-12 suitable for powering embedded computing or networking equipment in a 12V system?

Yes. At 200.4W and 16.7A output, the DDRH-240-12 can handle mid- to high-power embedded systems, industrial PCs, or networking switches that operate at 12V. The output voltage is also adjustable from 12V to 15V, providing some flexibility for load tuning without changing the unit.

Can this converter handle high-voltage DC inputs from a solar or battery storage bus?

Yes. The DDRH-240-12 accepts 250–1500VDC input with a 6:1 ratio ultra-wide range and is certified to UL1741 and IEC62109-1. This makes it well-suited for high-voltage DC sources such as solar strings or battery bank buses commonly found in energy storage and off-grid installations; an external 4A/1500VDC input fuse is required.

Can the DDRH-240-12 be used in outdoor enclosures or harsh environments?

The DDRH-240-12 operates across -40°C to +80°C, with output derating at higher ambient temperatures per the derating curve. However, no IP rating is listed, so the unit should be installed inside a suitably rated protective enclosure if deployed outdoors or in areas with moisture or dust ingress.

How does the DDRH-240-12 compare to the other 240W models in the DDRH series?

The DDRH-240 series includes four models: DDRH-240-12 (200.4W, 12V, 16.7A), DDRH-240-24 (240W, 24V, 10A), DDRH-240-32 (240W, 32V, 7.5A) and DDRH-240-48 (240W, 48V, 5A). All share the same 250–1500VDC input range, 85.5mm width, and UL1741, IEC62109-1 and EAC approvals. The choice depends on the output voltage required by the load.
