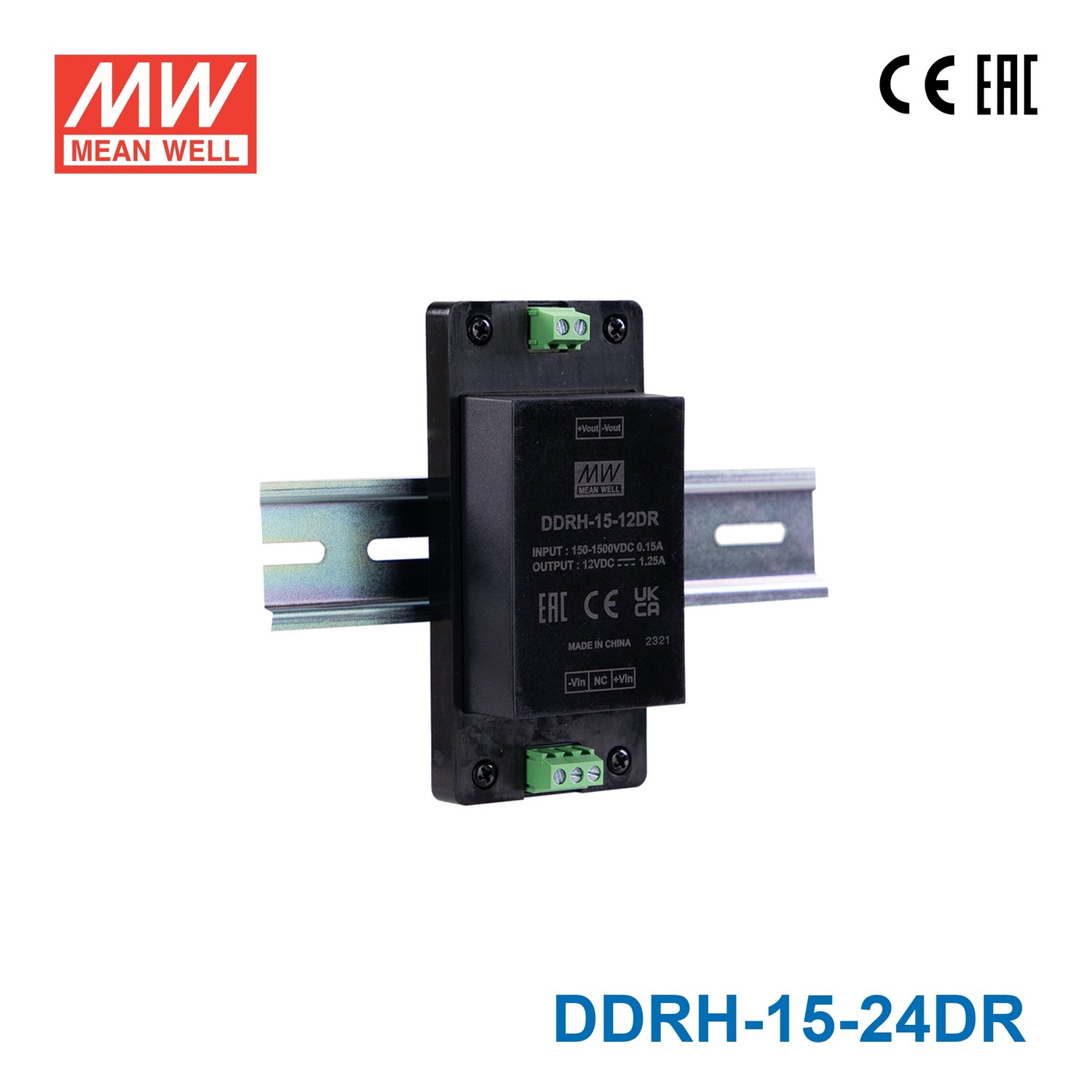

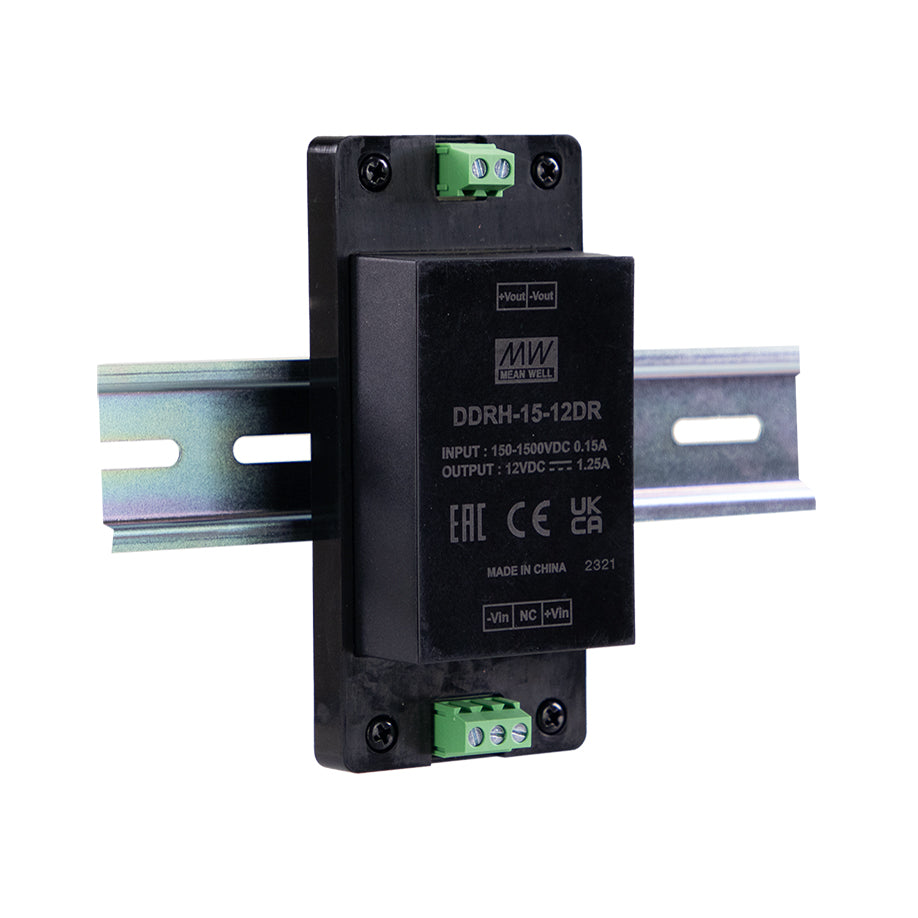

Mean Well DDRH-15-24DR Ultra Wide Input DC-DC Converter, 15W 24V

Name: Mean Well DDRH-15-24DR Ultra Wide Input DC-DC Converter, 15W 24V, Din Rail Type 625mA
Brand: Mean Well
SKU: DDRH-15-24DR
Price: 69.03 USD
Availability: InStock

Overview

DDRH-15-24DR is the 24V output model of this series: rated power 5Vo: 10W 12Vo ~ 24Vo: 15W, typical efficiency 88%.

DDRH-15 series is a 150 ~ 1500Vdc high reliable ultra-high input DC-DC converter which can supply stable working voltage for the load. Main features are as following: compact size, -40~+80℃ wide range operating temperature, 4KVac high isolation voltage, operation at 5000m altitude, low ripple & noise, complete protections and so on. Futhermore, this series also has DIN Rail type, it is suitable to be mounted on TS-35/7.5 or TS-35/15 rails. DDRH-15 is designed to meet UL1741 and IEC62109-1 standard. It is suitable for industrial automation, surveillance, telecommunication and can be widely deployed in the applications of new energy generation such as solar power, and windmill power generation, for instances, photovoltaic power systems, high voltage inverting , DC bus centralized application , ESS, charging pile, railway and so forth.

Features

150~1500Vdc 10:1 ultra-wide input range
4KVac I/O high isolation(Reinforced isolation)
Protections: Short circuit / Overload / Over voltage / DC input under voltage / DC input reverse Polarity
Fanless design, fully encapsulated, cooling by free air convection
Can be installed on DIN rail TS-35/7.5 or 15 (DR-Type)
-40~+80℃ ultra-wide operating temperature (＞+50℃ derating)
Operating altitude up to 5000 meters
3 years warranty

Specifications

DDRH-15-24DRSpecifications from the official datasheet (2024-10-18 edition)

MODEL SELECTION TABLE

INPUT VOLTAGE (RANGE): Nominal 800Vdc (150~1500Vdc)
INPUT CURRENT NO LOAD: 0.2mA
INPUT CURRENT FULL LOAD: 30mA
OUTPUT VOLTAGE: 24V
OUTPUT CURRENT: 0.625A
EFFICIENCY (Typ.): 88%
CAPACITOR LOAD (MAX.): 625μF

INPUT

VOLTAGE RANGE: 150 ~ 1500Vdc
FILTER: Internal capacitor
EXTERNAL INPUT FUSE: 4A/1500Vdc, required (Please refer to page 6 for more details)
INRUSH CURRENT (Typ.): Cold start 150A max. @ Vin=800Vdc

OUTPUT

VOLTAGE ACCURACY: ±2.0%
RATED POWER: 5Vo: 10W 12Vo ~ 24Vo: 15W
RIPPLE & NOISE^Note.2: 5 ~ 15Vo: 100mVp-p 24Vo: 150mVp-p
LINE REGULATION: ±1%
LOAD REGULATION: ±1% (10% Load to Full Load)
SWITCHING FREQUENCY (Typ.): 25 ~ 75.6KHz
HOLD UP TIME: 16ms min. @Vin=800Vdc
SETUP TIME: 1s max. @150~1500Vdc

PROTECTION

SHORT CIRCUIT: Protection type : Hiccup mode, continuous, automatic recovery
OVERLOAD: 110 ~ 300% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: Hiccup mode, recovers automatically after fault condition is removed
DC INPUT REVERSE POLARITY: By internal Bridge Diode, no damage, recovers automatically after fault condition removed
DC INPUT UNDER VOLTAGE LOCKOUT Start-up voltage: 147Vdc
DC INPUT UNDER VOLTAGE LOCKOUT Shutdown voltage: 137Vdc

ENVIRONMENT

WORKING TEMP.: -40 ~ +80℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.02% / ℃ (0 ~ 50℃)
VIBRATION: Component: 10 ~ 500Hz, 3G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting clip: Compliance to IEC60068-2-6
OPERATING ALTITUDE^Note.3: 5000 meters
OVER VOLTAGE CATEGORY: Ⅱ ; According to EN62109-1; altitude up to 5000 meters

SAFETY & EMC

SAFETY STANDARDS: UL1741 , CSA C22.2 No.107.1-16 , IEC62109-1 (LVD), EAC TP TC 004 approved
WITHSTAND VOLTAGE: I/P-O/P:4KVac
ISOLATION RESISTANCE: I/P-O/P, 100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/EN55032 Class A (with external components)
Radiated BS EN/EN55032 Class A (with external components)
EMC IMMUNITY: BS EN/EN55035

Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact, criteria A
Radiated Susceptibility BS EN/EN61000-4-3 Level 3, 10V, criteria A
EFT/Bursts BS EN/EN61000-4-4 Level 2, 0.5KV, criteria A
Surge BS EN/EN61000-4-5 Level 4, 2KV/Vin+ ~ Vin-, criteria A
Conducted BS EN/EN61000-4-6 Level 3, 10V, criteria A

Parameter	Standard	Test Level
Conducted	BS EN/EN55032	Class A (with external components)
Radiated	BS EN/EN55032	Class A (with external components)

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 3, 8KV air; Level 2, 4KV contact, criteria A
Radiated Susceptibility	BS EN/EN61000-4-3	Level 3, 10V, criteria A
EFT/Bursts	BS EN/EN61000-4-4	Level 2, 0.5KV, criteria A
Surge	BS EN/EN61000-4-5	Level 4, 2KV/Vin+ ~ Vin-, criteria A
Conducted	BS EN/EN61000-4-6	Level 3, 10V, criteria A

OTHERS

MTBF: 388Khrs MIL-HDBK-217F(25℃)
DIMENSION (L*W*H): P Type: 76.2*50.8*25mm, ST Type: 122.3*57.3*32mm, DR Type: 122.3*57.3*43.5mm
CASE MATERIAL: Non-conductive black plastic (UL 94V-0 rated)
POTTING MATERIAL: UL 94V-0
PIN MATERIAL: Base: copper, Plating: Matte Tin
PACKING: P Type : 170g ; 6pcs/Tray, 18pcs/per carton ST Type : 210g ; 6pcs/Tray, 18pcs/per carton DR Type : 215g ; 6pcs/Tray, 18pcs/per carton

Test conditions and notes4

1. All parameters NOT specially mentioned are measured at 800Vdc input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μf & 47μf parallel capacitor.
3. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on http://www.meanwell.com)

Technical drawings

DDRH-15-24DR ‧Tolerance: x.x±0.7mm (x.x±0.0275") — ‧Tolerance: x.x±0.7mm (x.x±0.0275")

DDRH-15-24DR ‧Tolerance: x.x±0.7mm (x.x±0.0275") (2) — ‧Tolerance: x.x±0.7mm (x.x±0.0275") (2)

DDRH-15-24DR DDRH-15-xxST (Screw Terminal Type) — DDRH-15-xxST (Screw Terminal Type)

DDRH-15-24DR DDRH-15-xxDR (DIN Rail Type) — DDRH-15-xxDR (DIN Rail Type)

DDRH-15-24DR Installation Instruction(DDRH-15-xxDR only) — Installation Instruction(DDRH-15-xxDR only)

DDRH-15-24DR External Fuse Wiring Instruction — External Fuse Wiring Instruction

DDRH-15-24DR DDRH-15-xxST — DDRH-15-xxST

DDRH-15-24DR DDRH-15-xxDR — DDRH-15-xxDR

Typical applications

Downloads

Datasheet1

DDRH-15-24DR datasheetDDRH_15_spec_sheet.pdf · 2024-10-18 edition PDF Download

FAQ

Can the DDRH-15-24DR power a 24V industrial sensor or proximity switch mounted in a DIN rail panel fed from a high-voltage DC bus?

Yes. The DDRH-15-24DR provides a regulated 24V/0.625A (15W) output from a 150–1500VDC input. DIN rail mounting allows it to be installed alongside PLCs and I/O modules, and it can power low-current 24V sensors, proximity switches, or encoder interfaces within the same panel.

Is the DDRH-15-24DR suitable for supplying 24V logic power to a field bus gateway or industrial Ethernet interface in a high-voltage DC cabinet?

The DDRH-15-24DR can supply 24V/0.625A to field bus gateways, industrial Ethernet interfaces, or HMI panel power inputs that require 24VDC at low current. Its DIN rail form factor integrates directly with standard control panel layouts, and the 150–1500VDC input range accommodates high-voltage DC distribution buses.

Can this DIN rail converter provide 24V auxiliary power in a battery management system or energy storage application?

Yes. With an input range extending to 1500VDC, the DDRH-15-24DR is compatible with the high-voltage bus voltages present in battery energy storage systems and EV battery management modules. It delivers 24V/0.625A for powering BMS control electronics, isolated communication interfaces, or safety relay coils.

What is the operating temperature range of the DDRH-15-24DR, and is it suitable for use in cold industrial environments?

The DDRH-15-24DR operates from -40°C to +80°C (with load derating at high ambient per the derating curve) and uses a fanless design, providing reliable cold-start operation in unheated industrial buildings or outdoor control cabinets. A protective enclosure is required for outdoor use since no IP rating is specified for the converter.

How does the DDRH-15-24DR compare to the DDRH-15-24P and DDRH-15-24ST variants?

All three 15W 24V variants deliver 24V/0.625A from a 150–1500VDC input. The DDRH-15-24DR (DIN rail, 122.3 × 57.3 × 43.5 mm, 0.215 kg) mounts on standard DIN rail; the DDRH-15-24P (PCB mount, 76.2 × 50.8 × 25.0 mm, 0.17 kg) is the smallest and mounts on a circuit board; the DDRH-15-24ST (screw terminal, 122.3 × 57.3 × 32.0 mm, 0.21 kg) connects via screw terminals for direct wiring. Selection depends on the mechanical integration required.

Is the 0.625A output current of the DDRH-15-24DR sufficient for common 24V control devices?

At 0.625A (15W), the DDRH-15-24DR can power 24V devices with modest current demands such as individual sensors, relays, signal isolators, or communication modules. Loads above 0.625A at 24V require a higher-power converter.
