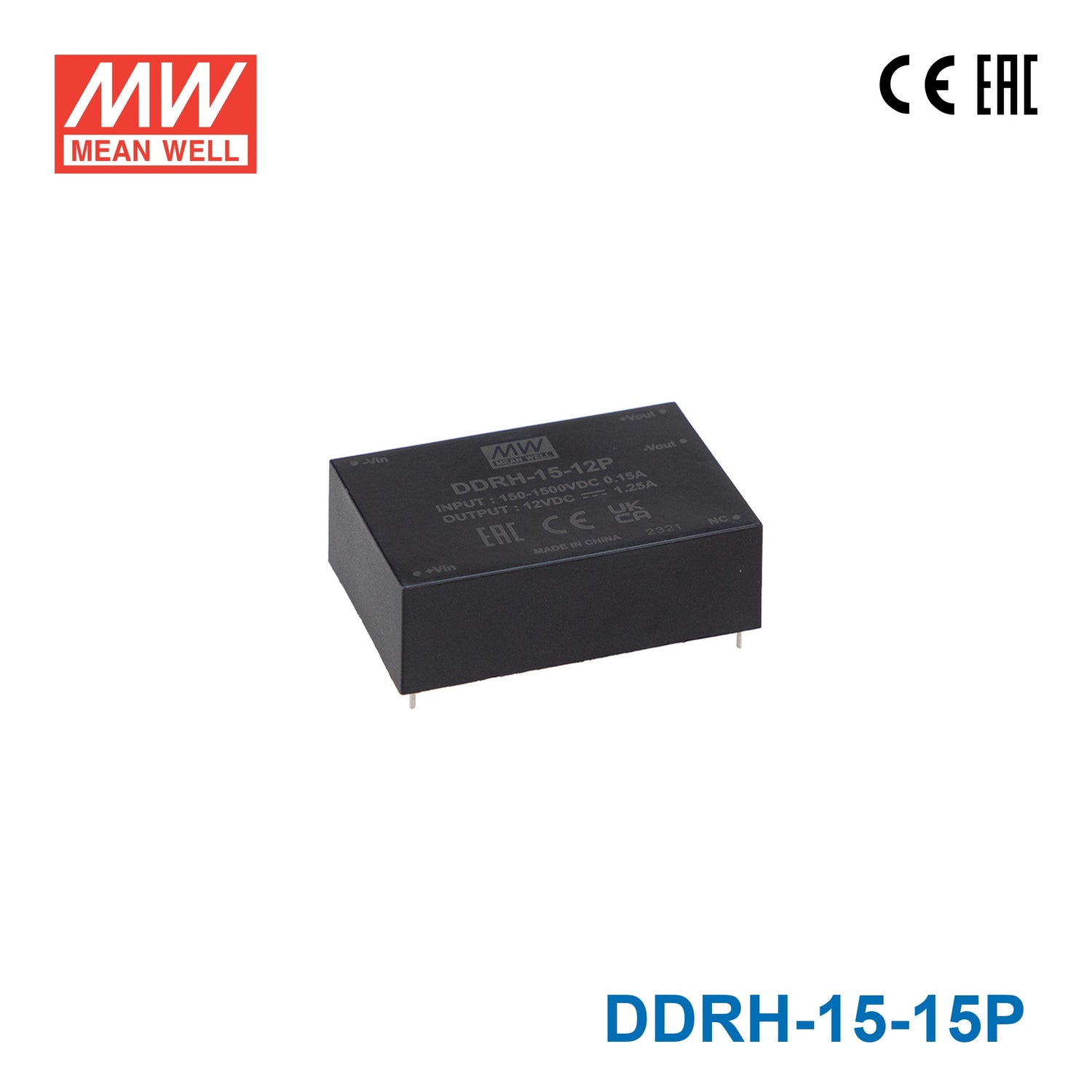

Mean Well DDRH-15-15P Ultra Wide Input DC-DC Converter, 15W 15V, PCB Mounting Type 1A

Name: Mean Well DDRH-15-15P Ultra Wide Input DC-DC Converter, 15W 15V, PCB Mounting Type 1A
Brand: Mean Well
SKU: DDRH-15-15P
Price: 69.03 USD
Availability: InStock

150~1500VDC 10:1 ultra-wide input rangefanless design-40~80°C ultra-wide operating temperature

SKU DDRH-15-15P

$69.03 USD

Shipping calculated at checkout.

Select model — 9 in this family

DDRH-15-15P

DDRH-15-15DR Din Backorder$80.48 USD

DDRH-15-15P PCB Backorder$69.03 USD

DDRH-15-15ST Screw Backorder$80.48 USD

DDRH-30-15DR Din Backorder$93.95 USD

DDRH-30-15P PCB Backorder$93.95 USD

DDRH-30-15ST Screw Backorder$82.50 USD

DDRH-45-15DR Din Backorder$99.68 USD

DDRH-45-15P PCB Backorder$99.68 USD

DDRH-45-15ST Screw Backorder$88.23 USD

Product variants

Available to order

Overview

DDRH-15-15P is the 15V output model of this series: rated power 5Vo: 10W 12Vo ~ 24Vo: 15W, typical efficiency 87%.

DDRH-15 series is a 150 ~ 1500Vdc high reliable ultra-high input DC-DC converter which can supply stable working voltage for the load. Main features are as following: compact size, -40~+80℃ wide range operating temperature, 4KVac high isolation voltage, operation at 5000m altitude, low ripple & noise, complete protections and so on. Futhermore, this series also has DIN Rail type, it is suitable to be mounted on TS-35/7.5 or TS-35/15 rails. DDRH-15 is designed to meet UL1741 and IEC62109-1 standard. It is suitable for industrial automation, surveillance, telecommunication and can be widely deployed in the applications of new energy generation such as solar power, and windmill power generation, for instances, photovoltaic power systems, high voltage inverting , DC bus centralized application , ESS, charging pile, railway and so forth.

Features

150~1500Vdc 10:1 ultra-wide input range
4KVac I/O high isolation(Reinforced isolation)
Protections: Short circuit / Overload / Over voltage / DC input under voltage / DC input reverse Polarity
Fanless design, fully encapsulated, cooling by free air convection
Can be installed on DIN rail TS-35/7.5 or 15 (DR-Type)
-40~+80℃ ultra-wide operating temperature (＞+50℃ derating)
Operating altitude up to 5000 meters
3 years warranty

Specifications

DDRH-15-15PSpecifications from the official datasheet (2024-10-18 edition)

MODEL SELECTION TABLE

INPUT VOLTAGE (RANGE): Nominal 800Vdc (150~1500Vdc)
INPUT CURRENT NO LOAD: 0.2mA
INPUT CURRENT FULL LOAD: 30mA
OUTPUT VOLTAGE: 15V
OUTPUT CURRENT: 1A
EFFICIENCY (Typ.): 87%
CAPACITOR LOAD (MAX.): 1000μF

INPUT

VOLTAGE RANGE: 150 ~ 1500Vdc
FILTER: Internal capacitor
EXTERNAL INPUT FUSE: 4A/1500Vdc, required (Please refer to page 6 for more details)
INRUSH CURRENT (Typ.): Cold start 150A max. @ Vin=800Vdc

OUTPUT

VOLTAGE ACCURACY: ±2.0%
RATED POWER: 5Vo: 10W 12Vo ~ 24Vo: 15W
RIPPLE & NOISE^Note.2: 5 ~ 15Vo: 100mVp-p 24Vo: 150mVp-p
LINE REGULATION: ±1%
LOAD REGULATION: ±1% (10% Load to Full Load)
SWITCHING FREQUENCY (Typ.): 25 ~ 75.6KHz
HOLD UP TIME: 16ms min. @Vin=800Vdc
SETUP TIME: 1s max. @150~1500Vdc

PROTECTION

SHORT CIRCUIT: Protection type : Hiccup mode, continuous, automatic recovery
OVERLOAD: 110 ~ 300% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: Hiccup mode, recovers automatically after fault condition is removed
DC INPUT REVERSE POLARITY: By internal Bridge Diode, no damage, recovers automatically after fault condition removed
DC INPUT UNDER VOLTAGE LOCKOUT Start-up voltage: 147Vdc
DC INPUT UNDER VOLTAGE LOCKOUT Shutdown voltage: 137Vdc

ENVIRONMENT

WORKING TEMP.: -40 ~ +80℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.02% / ℃ (0 ~ 50℃)
VIBRATION: Component: 10 ~ 500Hz, 3G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting clip: Compliance to IEC60068-2-6
OPERATING ALTITUDE^Note.3: 5000 meters
OVER VOLTAGE CATEGORY: Ⅱ ; According to EN62109-1; altitude up to 5000 meters

SAFETY & EMC

SAFETY STANDARDS: UL1741 , CSA C22.2 No.107.1-16 , IEC62109-1 (LVD), EAC TP TC 004 approved
WITHSTAND VOLTAGE: I/P-O/P:4KVac
ISOLATION RESISTANCE: I/P-O/P, 100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/EN55032 Class A (with external components)
Radiated BS EN/EN55032 Class A (with external components)
EMC IMMUNITY: BS EN/EN55035

Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact, criteria A
Radiated Susceptibility BS EN/EN61000-4-3 Level 3, 10V, criteria A
EFT/Bursts BS EN/EN61000-4-4 Level 2, 0.5KV, criteria A
Surge BS EN/EN61000-4-5 Level 4, 2KV/Vin+ ~ Vin-, criteria A
Conducted BS EN/EN61000-4-6 Level 3, 10V, criteria A

Parameter	Standard	Test Level
Conducted	BS EN/EN55032	Class A (with external components)
Radiated	BS EN/EN55032	Class A (with external components)

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 3, 8KV air; Level 2, 4KV contact, criteria A
Radiated Susceptibility	BS EN/EN61000-4-3	Level 3, 10V, criteria A
EFT/Bursts	BS EN/EN61000-4-4	Level 2, 0.5KV, criteria A
Surge	BS EN/EN61000-4-5	Level 4, 2KV/Vin+ ~ Vin-, criteria A
Conducted	BS EN/EN61000-4-6	Level 3, 10V, criteria A

OTHERS

MTBF: 388Khrs MIL-HDBK-217F(25℃)
DIMENSION (L*W*H): P Type: 76.2*50.8*25mm, ST Type: 122.3*57.3*32mm, DR Type: 122.3*57.3*43.5mm
CASE MATERIAL: Non-conductive black plastic (UL 94V-0 rated)
POTTING MATERIAL: UL 94V-0
PIN MATERIAL: Base: copper, Plating: Matte Tin
PACKING: P Type : 170g ; 6pcs/Tray, 18pcs/per carton ST Type : 210g ; 6pcs/Tray, 18pcs/per carton DR Type : 215g ; 6pcs/Tray, 18pcs/per carton

Test conditions and notes4

1. All parameters NOT specially mentioned are measured at 800Vdc input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μf & 47μf parallel capacitor.
3. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on http://www.meanwell.com)

Technical drawings

DDRH-15-15P ‧Tolerance: x.x±0.7mm (x.x±0.0275") — ‧Tolerance: x.x±0.7mm (x.x±0.0275")

DDRH-15-15P ‧Tolerance: x.x±0.7mm (x.x±0.0275") (2) — ‧Tolerance: x.x±0.7mm (x.x±0.0275") (2)

DDRH-15-15P DDRH-15-xxST (Screw Terminal Type) — DDRH-15-xxST (Screw Terminal Type)

DDRH-15-15P DDRH-15-xxDR (DIN Rail Type) — DDRH-15-xxDR (DIN Rail Type)

DDRH-15-15P Installation Instruction(DDRH-15-xxDR only) — Installation Instruction(DDRH-15-xxDR only)

DDRH-15-15P External Fuse Wiring Instruction — External Fuse Wiring Instruction

Typical applications

Downloads

Datasheet1

DDRH-15-15P datasheetDDRH_15_spec.pdf · 2024-10-18 edition PDF Download

FAQ

Can the DDRH-15-15P supply 15V power to an embedded DSP or FPGA board operating in a high-voltage DC power system?

Yes. The DDRH-15-15P is a PCB-mount DC-DC converter with a 150–1500VDC ultra-wide input and a regulated 15V/1A (15W) output. Its compact form factor (76.2 × 50.8 × 25.0 mm) allows it to be integrated directly onto a PCB within a power electronics or embedded control system that rides on a high-voltage DC bus.

Is the DDRH-15-15P appropriate for generating 15V bias rails in a grid-tied inverter or UPS system?

Yes. The DDRH-15-15P accepts inputs from 150V to 1500VDC and can generate a stable 15V/1A auxiliary rail for gate drive bias circuits, cooling fan controllers, or monitoring electronics inside grid-tied inverters and UPS systems. Its fanless operation is advantageous in sealed power converter housings.

Can this PCB-mount converter power a 15V industrial field bus interface card or I/O module?

The DDRH-15-15P can provide 15V supply power to low-current field bus interface cards or digital I/O modules requiring up to 1A at 15V. Its PCB mounting makes it convenient to co-locate with the interface circuitry inside the same enclosure or board assembly.

What is the operating temperature range of the DDRH-15-15P, and is it suitable for use in an unheated industrial enclosure?

The DDRH-15-15P operates from -40°C to +80°C (with load derating at high ambient per the derating curve), which covers unheated industrial enclosures in cold climates. The fanless design eliminates concerns about fan failure in low-temperature environments. The unit should be housed inside a rated protective enclosure rather than exposed directly to outdoor elements.

How does the PCB-mount DDRH-15-15P compare to the DIN rail and screw terminal variants at 15W 15V?

The DDRH-15-15P (PCB mount) is the most compact option at 76.2 × 50.8 × 25.0 mm and 0.17 kg. The DDRH-15-15DR (DIN rail) and DDRH-15-15ST (screw terminal) are both larger at 122.3 × 57.3 mm footprint and approximately 0.21–0.215 kg. All three deliver identical 15V/1A/15W output from a 150–1500VDC input. PCB mounting is preferred for board-level integration, while DIN rail and screw terminal versions suit panel-level wiring.

Can the DDRH-15-15P be used in automation equipment rated for use in harsh industrial environments?

The DDRH-15-15P is approved to IEC62109-1 (LVD) and EAC TP TC 004 and operates across a -40°C to +80°C range (with derating), with components vibration-tested at 10–500Hz, 3G. Its fanless design reduces maintenance requirements in dusty automation applications. Integration within a sealed or filtered enclosure is recommended for protection against contaminants.
