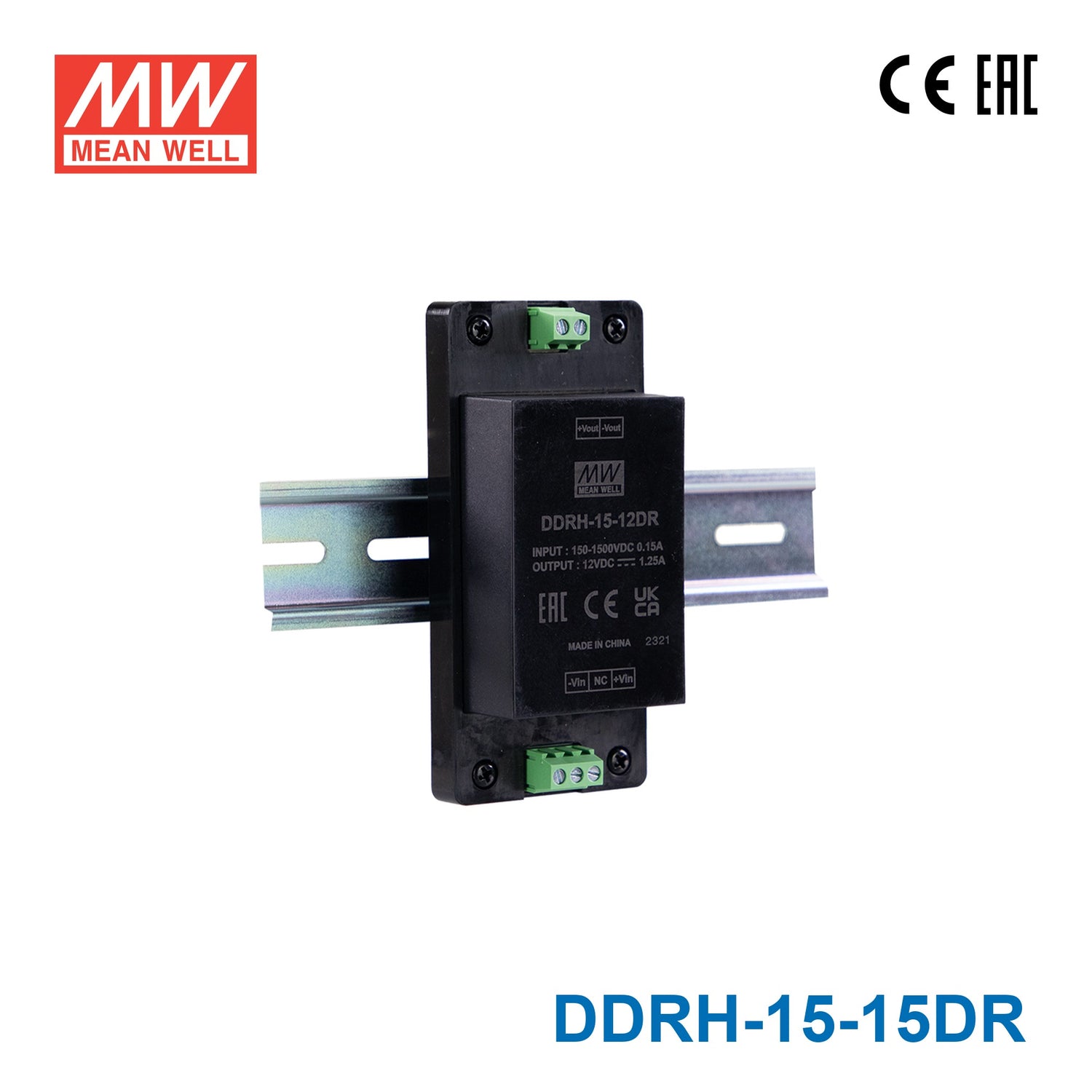

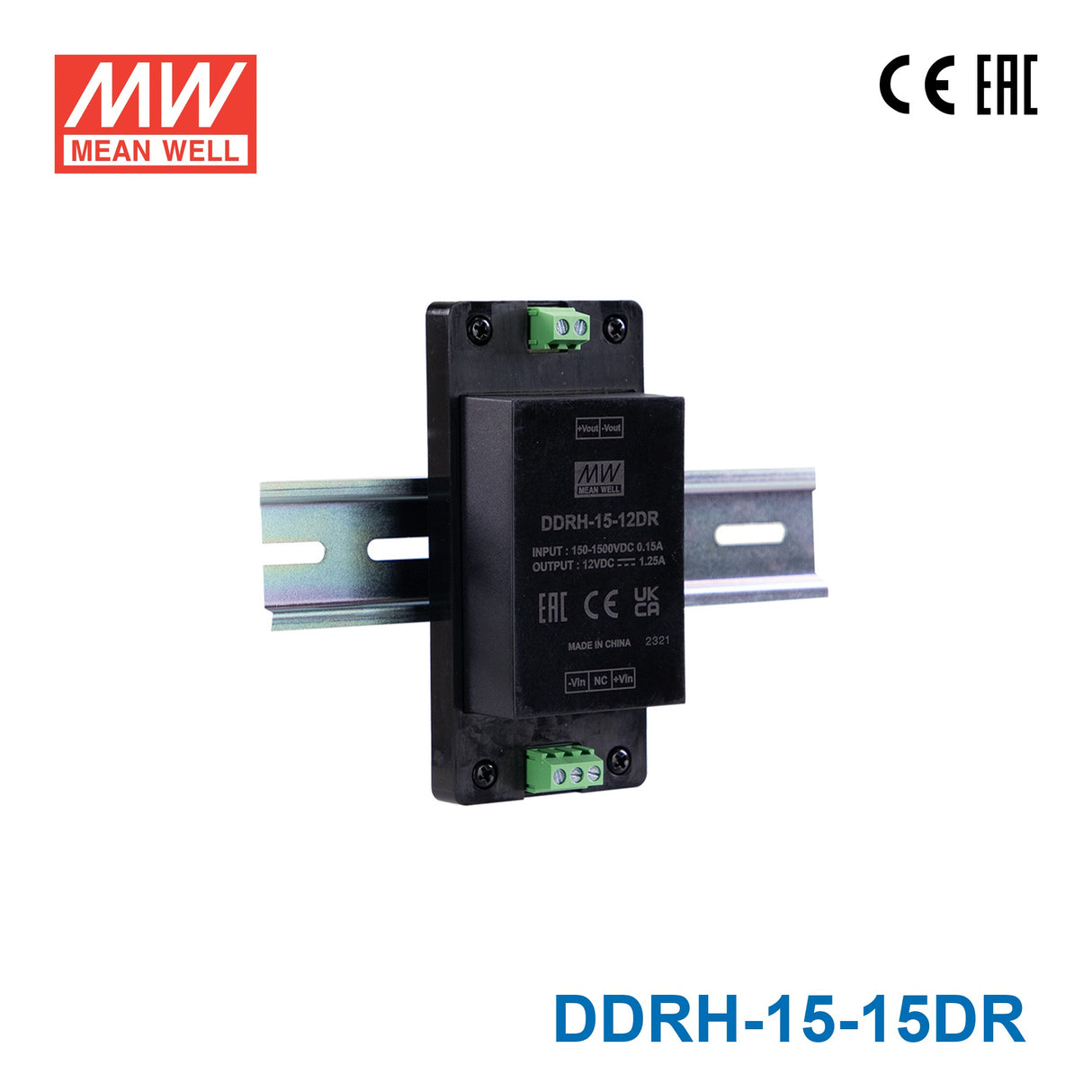

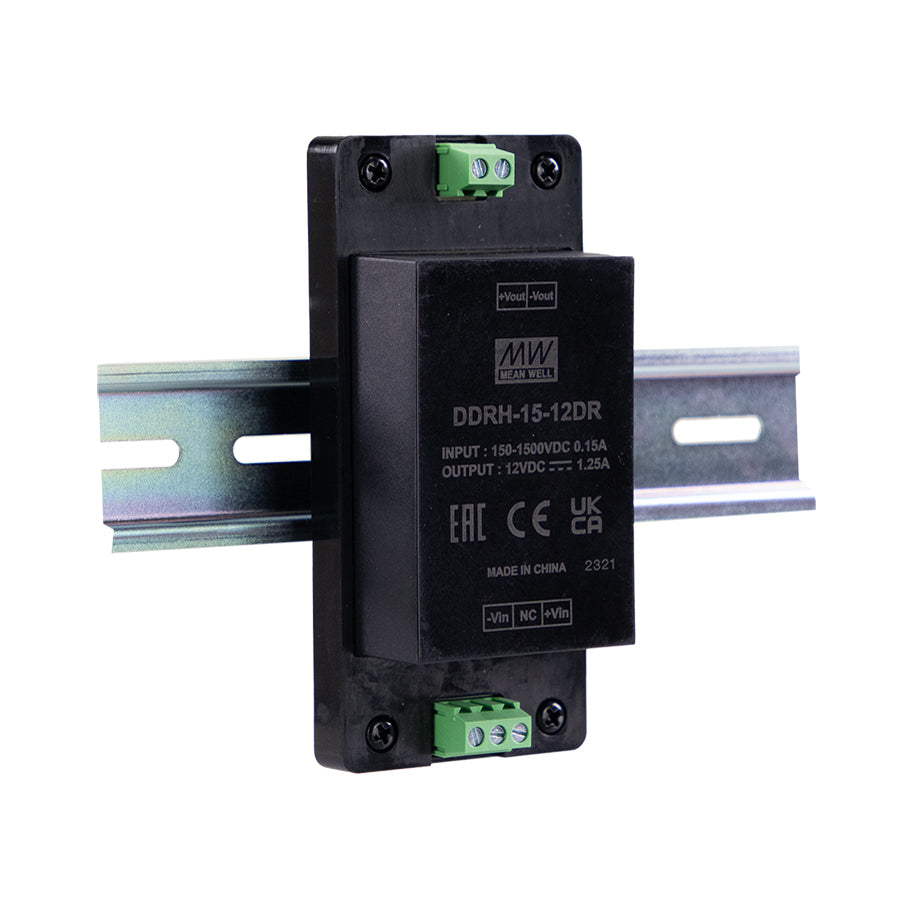

Mean Well DDRH-15-15DR Ultra Wide Input DC-DC Converter, 15W 15V, Din Rail Type 1A

Name: Mean Well DDRH-15-15DR Ultra Wide Input DC-DC Converter, 15W 15V, Din Rail Type 1A
Brand: Mean Well
SKU: DDRH-15-15DR
Price: 80.48 USD
Availability: InStock

150~1500VDC 10:1 ultra-wide input rangefanless design-40~80°C ultra-wide operating temperature

SKU DDRH-15-15DR

$80.48 USD

Shipping calculated at checkout.

Select model — 9 in this family

DDRH-15-15DR

DDRH-15-15DR Din Backorder$80.48 USD

DDRH-15-15P PCB Backorder$69.03 USD

DDRH-15-15ST Screw Backorder$80.48 USD

DDRH-30-15DR Din Backorder$93.95 USD

DDRH-30-15P PCB Backorder$93.95 USD

DDRH-30-15ST Screw Backorder$82.50 USD

DDRH-45-15DR Din Backorder$99.68 USD

DDRH-45-15P PCB Backorder$99.68 USD

DDRH-45-15ST Screw Backorder$88.23 USD

Product variants

Available to order

Overview

DDRH-15-15DR is the 15V output model of this series: rated power 5Vo: 10W 12Vo ~ 24Vo: 15W, typical efficiency 87%.

DDRH-15 series is a 150 ~ 1500Vdc high reliable ultra-high input DC-DC converter which can supply stable working voltage for the load. Main features are as following: compact size, -40~+80℃ wide range operating temperature, 4KVac high isolation voltage, operation at 5000m altitude, low ripple & noise, complete protections and so on. Futhermore, this series also has DIN Rail type, it is suitable to be mounted on TS-35/7.5 or TS-35/15 rails. DDRH-15 is designed to meet UL1741 and IEC62109-1 standard. It is suitable for industrial automation, surveillance, telecommunication and can be widely deployed in the applications of new energy generation such as solar power, and windmill power generation, for instances, photovoltaic power systems, high voltage inverting , DC bus centralized application , ESS, charging pile, railway and so forth.

Features

150~1500Vdc 10:1 ultra-wide input range
4KVac I/O high isolation(Reinforced isolation)
Protections: Short circuit / Overload / Over voltage / DC input under voltage / DC input reverse Polarity
Fanless design, fully encapsulated, cooling by free air convection
Can be installed on DIN rail TS-35/7.5 or 15 (DR-Type)
-40~+80℃ ultra-wide operating temperature (＞+50℃ derating)
Operating altitude up to 5000 meters
3 years warranty

Specifications

DDRH-15-15DRSpecifications from the official datasheet (2024-10-18 edition)

MODEL SELECTION TABLE

INPUT VOLTAGE (RANGE): Nominal 800Vdc (150~1500Vdc)
INPUT CURRENT NO LOAD: 0.2mA
INPUT CURRENT FULL LOAD: 30mA
OUTPUT VOLTAGE: 15V
OUTPUT CURRENT: 1A
EFFICIENCY (Typ.): 87%
CAPACITOR LOAD (MAX.): 1000μF

INPUT

VOLTAGE RANGE: 150 ~ 1500Vdc
FILTER: Internal capacitor
EXTERNAL INPUT FUSE: 4A/1500Vdc, required (Please refer to page 6 for more details)
INRUSH CURRENT (Typ.): Cold start 150A max. @ Vin=800Vdc

OUTPUT

VOLTAGE ACCURACY: ±2.0%
RATED POWER: 5Vo: 10W 12Vo ~ 24Vo: 15W
RIPPLE & NOISE^Note.2: 5 ~ 15Vo: 100mVp-p 24Vo: 150mVp-p
LINE REGULATION: ±1%
LOAD REGULATION: ±1% (10% Load to Full Load)
SWITCHING FREQUENCY (Typ.): 25 ~ 75.6KHz
HOLD UP TIME: 16ms min. @Vin=800Vdc
SETUP TIME: 1s max. @150~1500Vdc

PROTECTION

SHORT CIRCUIT: Protection type : Hiccup mode, continuous, automatic recovery
OVERLOAD: 110 ~ 300% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: Hiccup mode, recovers automatically after fault condition is removed
DC INPUT REVERSE POLARITY: By internal Bridge Diode, no damage, recovers automatically after fault condition removed
DC INPUT UNDER VOLTAGE LOCKOUT Start-up voltage: 147Vdc
DC INPUT UNDER VOLTAGE LOCKOUT Shutdown voltage: 137Vdc

ENVIRONMENT

WORKING TEMP.: -40 ~ +80℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.02% / ℃ (0 ~ 50℃)
VIBRATION: Component: 10 ~ 500Hz, 3G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting clip: Compliance to IEC60068-2-6
OPERATING ALTITUDE^Note.3: 5000 meters
OVER VOLTAGE CATEGORY: Ⅱ ; According to EN62109-1; altitude up to 5000 meters

SAFETY & EMC

SAFETY STANDARDS: UL1741 , CSA C22.2 No.107.1-16 , IEC62109-1 (LVD), EAC TP TC 004 approved
WITHSTAND VOLTAGE: I/P-O/P:4KVac
ISOLATION RESISTANCE: I/P-O/P, 100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/EN55032 Class A (with external components)
Radiated BS EN/EN55032 Class A (with external components)
EMC IMMUNITY: BS EN/EN55035

Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact, criteria A
Radiated Susceptibility BS EN/EN61000-4-3 Level 3, 10V, criteria A
EFT/Bursts BS EN/EN61000-4-4 Level 2, 0.5KV, criteria A
Surge BS EN/EN61000-4-5 Level 4, 2KV/Vin+ ~ Vin-, criteria A
Conducted BS EN/EN61000-4-6 Level 3, 10V, criteria A

Parameter	Standard	Test Level
Conducted	BS EN/EN55032	Class A (with external components)
Radiated	BS EN/EN55032	Class A (with external components)

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 3, 8KV air; Level 2, 4KV contact, criteria A
Radiated Susceptibility	BS EN/EN61000-4-3	Level 3, 10V, criteria A
EFT/Bursts	BS EN/EN61000-4-4	Level 2, 0.5KV, criteria A
Surge	BS EN/EN61000-4-5	Level 4, 2KV/Vin+ ~ Vin-, criteria A
Conducted	BS EN/EN61000-4-6	Level 3, 10V, criteria A

OTHERS

MTBF: 388Khrs MIL-HDBK-217F(25℃)
DIMENSION (L*W*H): P Type: 76.2*50.8*25mm, ST Type: 122.3*57.3*32mm, DR Type: 122.3*57.3*43.5mm
CASE MATERIAL: Non-conductive black plastic (UL 94V-0 rated)
POTTING MATERIAL: UL 94V-0
PIN MATERIAL: Base: copper, Plating: Matte Tin
PACKING: P Type : 170g ; 6pcs/Tray, 18pcs/per carton ST Type : 210g ; 6pcs/Tray, 18pcs/per carton DR Type : 215g ; 6pcs/Tray, 18pcs/per carton

Test conditions and notes4

1. All parameters NOT specially mentioned are measured at 800Vdc input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μf & 47μf parallel capacitor.
3. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on http://www.meanwell.com)

Technical drawings

DDRH-15-15DR ‧Tolerance: x.x±0.7mm (x.x±0.0275") — ‧Tolerance: x.x±0.7mm (x.x±0.0275")

DDRH-15-15DR ‧Tolerance: x.x±0.7mm (x.x±0.0275") (2) — ‧Tolerance: x.x±0.7mm (x.x±0.0275") (2)

DDRH-15-15DR DDRH-15-xxST (Screw Terminal Type) — DDRH-15-xxST (Screw Terminal Type)

DDRH-15-15DR DDRH-15-xxDR (DIN Rail Type) — DDRH-15-xxDR (DIN Rail Type)

DDRH-15-15DR Installation Instruction(DDRH-15-xxDR only) — Installation Instruction(DDRH-15-xxDR only)

DDRH-15-15DR External Fuse Wiring Instruction — External Fuse Wiring Instruction

DDRH-15-15DR DDRH-15-xxST — DDRH-15-xxST

DDRH-15-15DR DDRH-15-xxDR — DDRH-15-xxDR

Typical applications

Downloads

Datasheet1

DDRH-15-15DR datasheetDDRH_15_spec_sheet.pdf · 2024-10-18 edition PDF Download

FAQ

Can the DDRH-15-15DR power a 15V analog signal conditioner or isolated amplifier in a DIN rail panel with a high-voltage DC bus?

Yes. The DDRH-15-15DR is a DIN rail-mounted DC-DC converter accepting 150–1500VDC input and delivering a regulated 15V/1A output (15W). It is appropriate for 15V analog instrumentation, signal conditioners, or isolated measurement modules mounted alongside other DIN rail components in industrial control cabinets.

Is the DDRH-15-15DR suitable for providing 15V excitation to strain gauge bridges or transducers in process control systems?

The DDRH-15-15DR provides a constant voltage 15V output at up to 1A, which can supply excitation to low-current transducers, strain gauges, or pressure sensors in process automation. Its wide input range (150–1500VDC) allows it to operate from high-voltage DC process bus supplies.

Can this DIN rail converter power a 15V DC relay coil array or solenoid valve driver in an automation panel?

The DDRH-15-15DR can drive 15V relay coils or solenoid valve circuitry within its 15W/1A capacity. Care should be taken to ensure the total inrush and steady-state current of the connected coils remains within 1A, and that output capacitance does not exceed 1000μF.

How does the DDRH-15-15DR perform in cold-start or outdoor-adjacent applications with extreme ambient temperatures?

The DDRH-15-15DR is specified for operation from -40°C to +80°C (with load derating at high ambient per the derating curve), enabling cold-start capability in sub-zero environments such as outdoor control cabinets or northern industrial facilities. Its fanless construction ensures no fan wear at temperature extremes. For outdoor installation, a rated enclosure is required since no IP rating is specified for the unit.

What is the difference between the DDRH-15-15DR, DDRH-15-15P, and DDRH-15-15ST?

All three share the same electrical specs: 15W output, 15V/1A, and 150–1500VDC input. The DDRH-15-15DR (DIN rail, 122.3 × 57.3 × 43.5 mm, 0.215 kg) mounts on a standard DIN rail; the DDRH-15-15P (PCB mount, 76.2 × 50.8 × 25.0 mm, 0.17 kg) mounts onto a PCB; and the DDRH-15-15ST (screw terminal, 122.3 × 57.3 × 32.0 mm, 0.21 kg) provides screw terminal wiring. The choice depends on mechanical integration requirements.

Does the DDRH-15-15DR carry relevant certifications for use in European industrial machinery?

The DDRH-15-15DR is approved to IEC62109-1 (LVD) and EAC TP TC 004, and meets BS EN/EN55032 Class A emissions (with external components) and BS EN/EN55035 immunity. As a component, the final machine must be re-confirmed to meet EMC directives.
