Mean Well DDRH-15-12P Ultra Wide Input DC-DC Converter - USA Stock & Best Prices

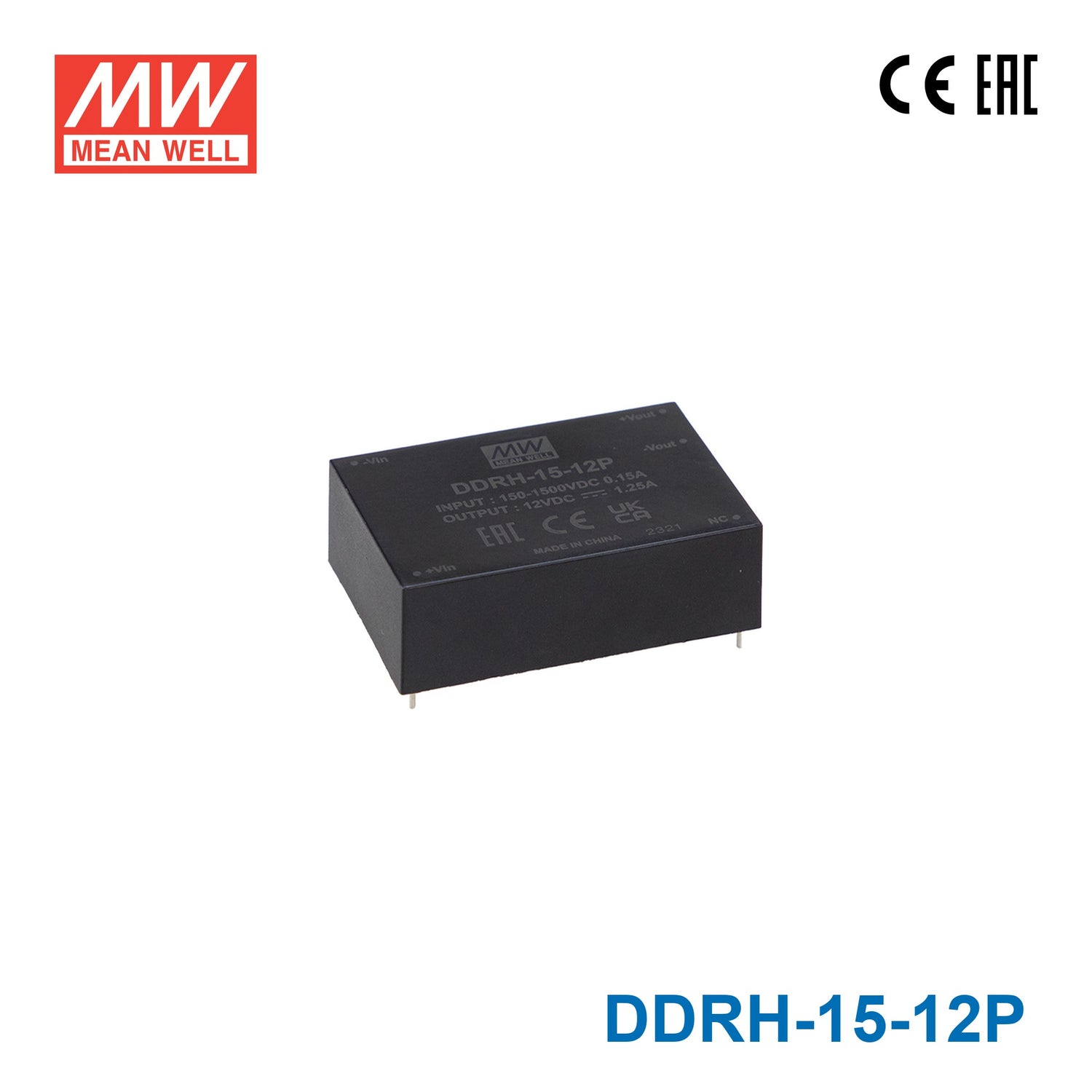

Name: Mean Well DDRH-15-12P Ultra Wide Input DC-DC Converter, 15W 12V, PCB Mounting Type 1.25A
Brand: Mean Well
SKU: DDRH-15-12P
Price: 80.48 USD
Availability: InStock

Overview

DDRH-15-12P is the 12V output model of this series: rated power 5Vo: 10W 12Vo ~ 24Vo: 15W, typical efficiency 79%.

DDRH-15 series is a 150 ~ 1500Vdc high reliable ultra-high input DC-DC converter which can supply stable working voltage for the load. Main features are as following: compact size, -40~+80℃ wide range operating temperature, 4KVac high isolation voltage, operation at 5000m altitude, low ripple & noise, complete protections and so on. Futhermore, this series also has DIN Rail type, it is suitable to be mounted on TS-35/7.5 or TS-35/15 rails. DDRH-15 is designed to meet UL1741 and IEC62109-1 standard. It is suitable for industrial automation, surveillance, telecommunication and can be widely deployed in the applications of new energy generation such as solar power, and windmill power generation, for instances, photovoltaic power systems, high voltage inverting , DC bus centralized application , ESS, charging pile, railway and so forth.

Features

150~1500Vdc 10:1 ultra-wide input range
4KVac I/O high isolation(Reinforced isolation)
Protections: Short circuit / Overload / Over voltage / DC input under voltage / DC input reverse Polarity
Fanless design, fully encapsulated, cooling by free air convection
Can be installed on DIN rail TS-35/7.5 or 15 (DR-Type)
-40~+80℃ ultra-wide operating temperature (＞+50℃ derating)
Operating altitude up to 5000 meters
3 years warranty

Specifications

DDRH-15-12PSpecifications from the official datasheet (2024-10-18 edition)

MODEL SELECTION TABLE

INPUT VOLTAGE (RANGE): Nominal 800Vdc (150~1500Vdc)
INPUT CURRENT NO LOAD: 0.2mA
INPUT CURRENT FULL LOAD: 30mA
OUTPUT VOLTAGE: 12V
OUTPUT CURRENT: 1.25A
EFFICIENCY (Typ.): 79%
CAPACITOR LOAD (MAX.): 1250μF

INPUT

VOLTAGE RANGE: 150 ~ 1500Vdc
FILTER: Internal capacitor
EXTERNAL INPUT FUSE: 4A/1500Vdc, required (Please refer to page 6 for more details)
INRUSH CURRENT (Typ.): Cold start 150A max. @ Vin=800Vdc

OUTPUT

VOLTAGE ACCURACY: ±2.0%
RATED POWER: 5Vo: 10W 12Vo ~ 24Vo: 15W
RIPPLE & NOISE^Note.2: 5 ~ 15Vo: 100mVp-p 24Vo: 150mVp-p
LINE REGULATION: ±1%
LOAD REGULATION: ±1% (10% Load to Full Load)
SWITCHING FREQUENCY (Typ.): 25 ~ 75.6KHz
HOLD UP TIME: 16ms min. @Vin=800Vdc
SETUP TIME: 1s max. @150~1500Vdc

PROTECTION

SHORT CIRCUIT: Protection type : Hiccup mode, continuous, automatic recovery
OVERLOAD: 110 ~ 300% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: Hiccup mode, recovers automatically after fault condition is removed
DC INPUT REVERSE POLARITY: By internal Bridge Diode, no damage, recovers automatically after fault condition removed
DC INPUT UNDER VOLTAGE LOCKOUT Start-up voltage: 147Vdc
DC INPUT UNDER VOLTAGE LOCKOUT Shutdown voltage: 137Vdc

ENVIRONMENT

WORKING TEMP.: -40 ~ +80℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.02% / ℃ (0 ~ 50℃)
VIBRATION: Component: 10 ~ 500Hz, 3G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting clip: Compliance to IEC60068-2-6
OPERATING ALTITUDE^Note.3: 5000 meters
OVER VOLTAGE CATEGORY: Ⅱ ; According to EN62109-1; altitude up to 5000 meters

SAFETY & EMC

SAFETY STANDARDS: UL1741 , CSA C22.2 No.107.1-16 , IEC62109-1 (LVD), EAC TP TC 004 approved
WITHSTAND VOLTAGE: I/P-O/P:4KVac
ISOLATION RESISTANCE: I/P-O/P, 100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/EN55032 Class A (with external components)
Radiated BS EN/EN55032 Class A (with external components)
EMC IMMUNITY: BS EN/EN55035

Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact, criteria A
Radiated Susceptibility BS EN/EN61000-4-3 Level 3, 10V, criteria A
EFT/Bursts BS EN/EN61000-4-4 Level 2, 0.5KV, criteria A
Surge BS EN/EN61000-4-5 Level 4, 2KV/Vin+ ~ Vin-, criteria A
Conducted BS EN/EN61000-4-6 Level 3, 10V, criteria A

Parameter	Standard	Test Level
Conducted	BS EN/EN55032	Class A (with external components)
Radiated	BS EN/EN55032	Class A (with external components)

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 3, 8KV air; Level 2, 4KV contact, criteria A
Radiated Susceptibility	BS EN/EN61000-4-3	Level 3, 10V, criteria A
EFT/Bursts	BS EN/EN61000-4-4	Level 2, 0.5KV, criteria A
Surge	BS EN/EN61000-4-5	Level 4, 2KV/Vin+ ~ Vin-, criteria A
Conducted	BS EN/EN61000-4-6	Level 3, 10V, criteria A

OTHERS

MTBF: 388Khrs MIL-HDBK-217F(25℃)
DIMENSION (L*W*H): P Type: 76.2*50.8*25mm, ST Type: 122.3*57.3*32mm, DR Type: 122.3*57.3*43.5mm
CASE MATERIAL: Non-conductive black plastic (UL 94V-0 rated)
POTTING MATERIAL: UL 94V-0
PIN MATERIAL: Base: copper, Plating: Matte Tin
PACKING: P Type : 170g ; 6pcs/Tray, 18pcs/per carton ST Type : 210g ; 6pcs/Tray, 18pcs/per carton DR Type : 215g ; 6pcs/Tray, 18pcs/per carton

Test conditions and notes4

1. All parameters NOT specially mentioned are measured at 800Vdc input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μf & 47μf parallel capacitor.
3. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on http://www.meanwell.com)

Technical drawings

DDRH-15-12P ‧Tolerance: x.x±0.7mm (x.x±0.0275") — ‧Tolerance: x.x±0.7mm (x.x±0.0275")

DDRH-15-12P ‧Tolerance: x.x±0.7mm (x.x±0.0275") (2) — ‧Tolerance: x.x±0.7mm (x.x±0.0275") (2)

DDRH-15-12P DDRH-15-xxST (Screw Terminal Type) — DDRH-15-xxST (Screw Terminal Type)

DDRH-15-12P DDRH-15-xxDR (DIN Rail Type) — DDRH-15-xxDR (DIN Rail Type)

DDRH-15-12P Installation Instruction(DDRH-15-xxDR only) — Installation Instruction(DDRH-15-xxDR only)

DDRH-15-12P External Fuse Wiring Instruction — External Fuse Wiring Instruction

Typical applications

Downloads

Datasheet1

DDRH-15-12P datasheetDDRH_15_spec.pdf · 2024-10-18 edition PDF Download

FAQ

Can I use the DDRH-15-12P to power a 12V embedded controller board in a high-voltage DC bus system?

Yes. The DDRH-15-12P accepts a 150–1500VDC ultra-wide input range, making it suitable for powering 12V embedded controllers or microcontroller boards directly off high-voltage DC distribution buses found in industrial and renewable energy systems. It delivers up to 1.25A at 12V for a maximum of 15W.

Is the DDRH-15-12P suitable for powering a 12V PLC or industrial sensor in a DIN rail cabinet that uses a high-voltage DC bus?

The DDRH-15-12P can power low-wattage 12V industrial devices such as sensors, signal isolators, or small PLCs. Its 10:1 ultra-wide input range (150–1500VDC) makes it appropriate for cabinets supplied from high-voltage DC buses, and its PCB mounting form factor fits compactly onto circuit boards within the enclosure.

Can this converter supply 12V bias power to a gate driver or auxiliary circuit in a power electronics system?

Yes. The DDRH-15-12P can supply 12V auxiliary or bias power in power electronics, motor drives, and inverter systems where a high-voltage DC bus (up to 1500VDC) is present. At 15W and 1.25A output, it is well-suited for logic-level bias circuits rather than high-current loads.

What temperature range does the DDRH-15-12P support for outdoor or harsh-environment deployments?

The DDRH-15-12P is rated for an operating temperature range of -40°C to +80°C, with load derating at high ambient temperatures per the derating curve. Its fanless design allows it to operate passively without airflow, making it suitable for sealed enclosures or locations with wide ambient temperature variation. No IP rating is specified, so it should be mounted inside a suitable protective enclosure for outdoor use.

How does the PCB-mount DDRH-15-12P differ from the DIN rail and screw terminal variants in the same 15W 12V family?

All three 15W 12V variants — DDRH-15-12P (PCB mount, 76.2 × 50.8 × 25.0 mm, 0.17 kg), DDRH-15-12DR (DIN rail, 122.3 × 57.3 × 43.5 mm, 0.215 kg), and DDRH-15-12ST (screw terminal, 122.3 × 57.3 × 32.0 mm, 0.21 kg) — share the same 15W output, 12V/1.25A rating, and 150–1500VDC input range. The difference is the mechanical mounting style: PCB mounting for board-level integration, DIN rail for panel mounting, and screw terminals for direct wire termination in enclosures.

Does the DDRH-15-12P carry CE certification, and is it suitable for use in European industrial equipment?

The DDRH-15-12P is approved to IEC62109-1 (LVD) and EAC TP TC 004, and meets BS EN/EN55032 Class A emissions (with external components) and BS EN/EN55035 immunity. As a component, the final equipment must be re-confirmed to meet EMC directives.
