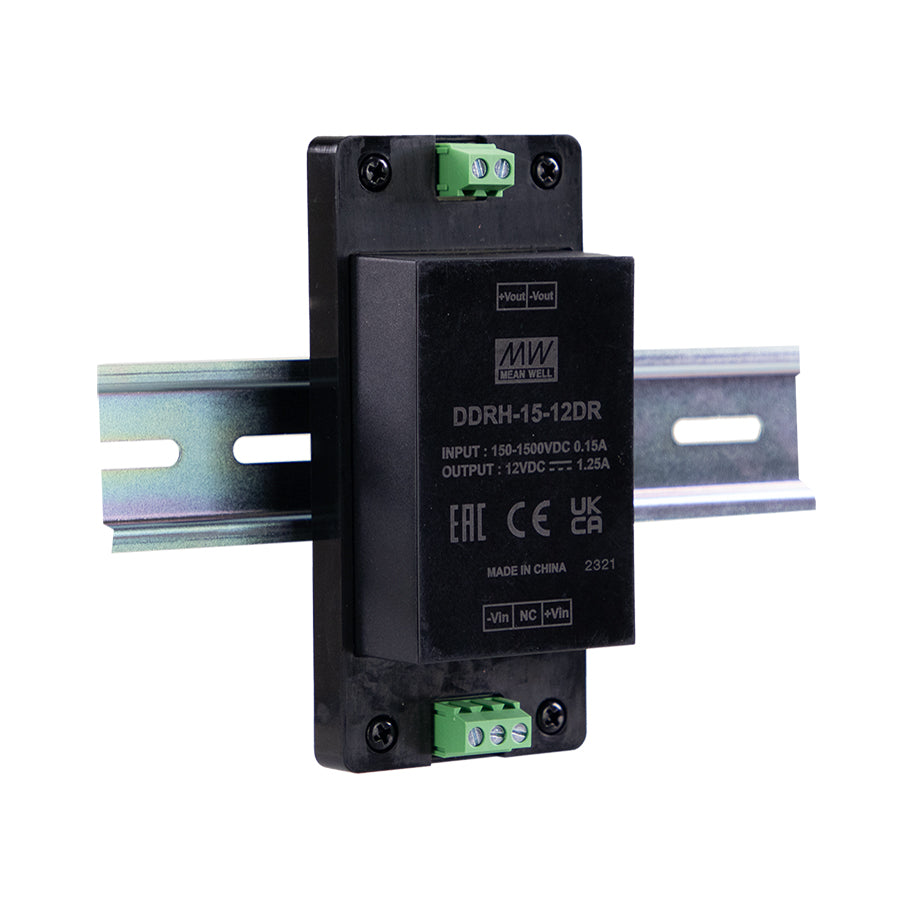

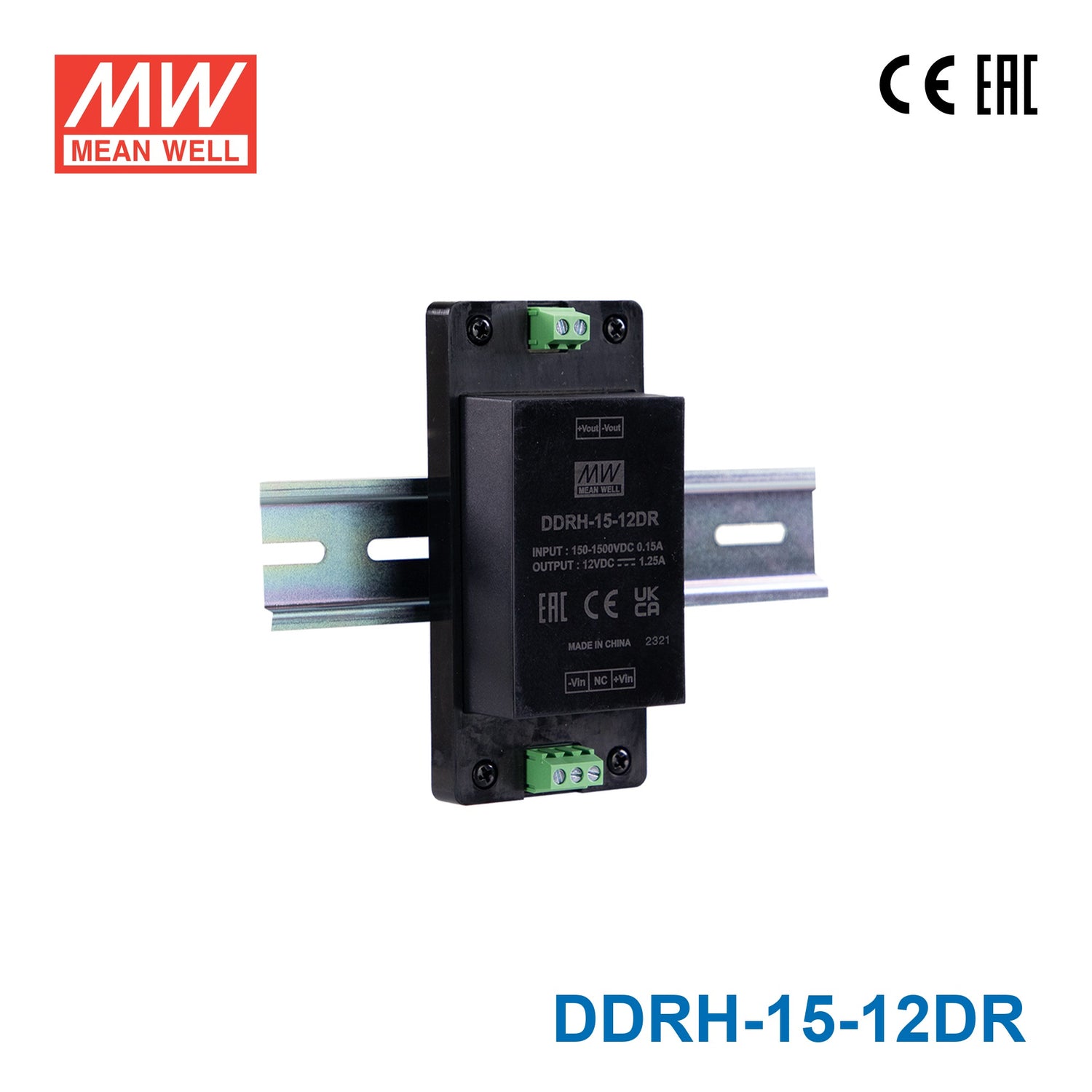

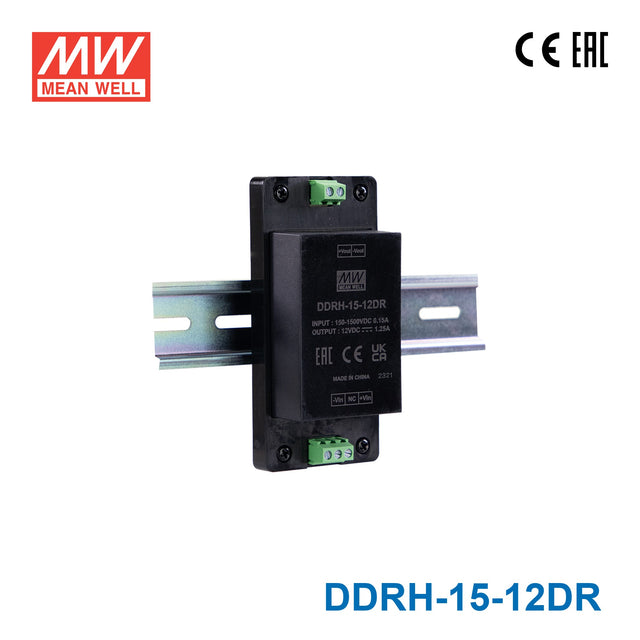

Mean Well DDRH-15-12DR Ultra Wide Input DC-DC Converter, 15W 12V, Din Rail Type

Name: Mean Well DDRH-15-12DR Ultra Wide Input DC-DC Converter, 15W 12V, Din Rail Type
Brand: Mean Well
SKU: DDRH-15-12DR
Price: 80.48 USD
Availability: InStock

$80.48 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

The DDRH-15 is a 15W high-reliability ultra-wide input DC-DC converter designed for photovoltaic, renewable energy, and demanding high-voltage industrial applications. Its exceptional 150~1500Vdc input range — a 10:1 ratio — covers solar panels, battery strings, and high-voltage DC bus sources. With 4KVac reinforced I/O isolation, fanless free air convection cooling, and no minimum load requirement, the DDRH-15 provides stable, isolated power conversion across a wide -40~+80°C operating range.

Key Features

✓ Ultra-wide 150~1500Vdc input range — covers solar, ESS, and DC bus sources
✓ DC output voltage adjustable ±10%
✓ 4KVac reinforced I/O isolation
✓ Cooling by free air convection — fanless design, no minimum load required
✓ Wide operating temperature: -40°C ~ +80°C
✓ Protections: Short circuit / Overload / Over voltage / Reverse polarity / Under voltage lockout
✓ DIN rail TS-35/7.5 or 15 compatible (DR type)
✓ Safety approvals: IEC62109-1 (LVD), EAC TP TC 004
✓ 3 years warranty

Specifications

Brand

Mean Well
Series

DDRH Series
Power Rating

15 Watt
Output Voltage

12 Volt
Rated Current

1.25 Ampere
Input Voltage

150V~1500V
Standards Met

CE,EAC
Operation Mode

Constant Voltage
Operating Temperature

-40°C~80°C
Warranty

3 Year
Length

4.82 in
Width

2.26 in
Height

1.71 in
Weight

0.47 lb
