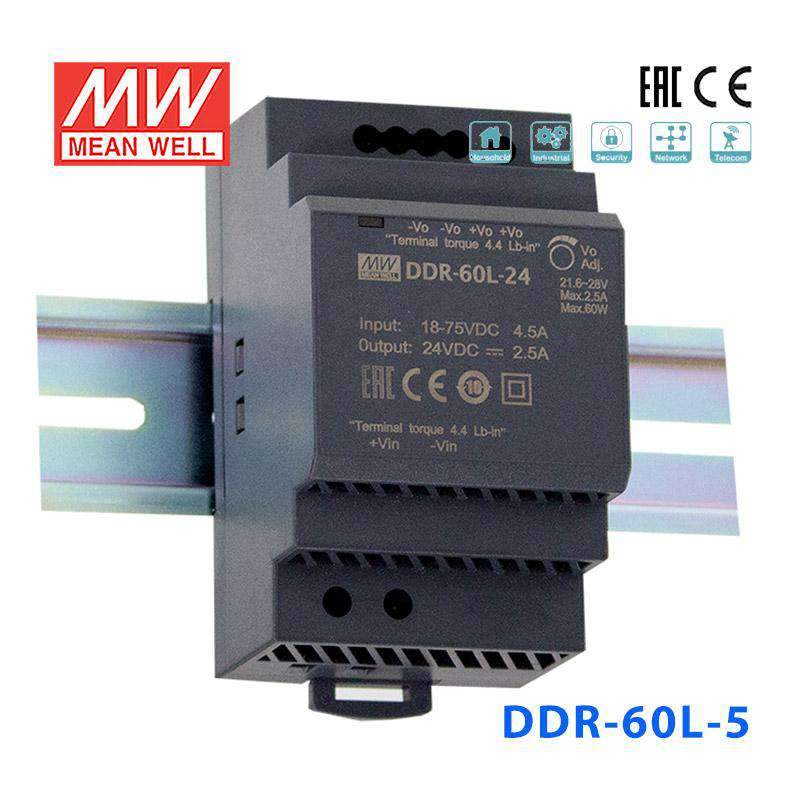

Mean Well DDR-60L-5 DC-DC Converter - 60W - 18~75V in 5V out
$41.08 USD
Unit price /
Unavailable
Description
Description
Features
| Width only 52.5mm (3SU) |
| DC output adjustable ( 10%) |
| 4:1 ultra wide input range |
| No minimum load required |
| Protections: Short circuit / Overload / Over voltage /Input reverse polarity / Input under voltage protection |
| 4KVdc I/O isolation(Reinforced isolation) |
| Can be installed on DIN rail TS-35/7.5 or 15 |
| -40~+85°C wide working temperature |
| Cooling by free air convection |
| 3 years warranty |
General Specification
| Over current protection | 110%~150% rated output power;Protection type:Constant current limiting, recovers automatically after fault condition is removed |
| Over voltage protection |
5V:5.75~7V ; 12V:13.8~16.2V ; 15V:17.25~20.25V ; 24V:28.8~32.4V; Protection mode:Shut down o/p voltage, re-power on to recover |
| REVERSE POLARITY | By internal MOSFET, no damage, recovers automatically after fault condition removed |
| Withstand voltage | I/P-O/P:4KVDC |
| Working temperature | -40~+85°C (Refer to ""Derating Curve"") |
| Safety standards | IEC 62368-1 (LVD) approved, Design refer to UL508 |
| EMC standards | With external components Compliance to EN55032 Class A for 1m I/O cable,Class B for 30cm I/O cable ;EN61000-3-,3，EN61000-4-2,3,4,5,6,8 |
| Dimension (LxWxH)(mm) | 52.5 x 90 x 54.5 mm |
Specifications
Specifications
-
BrandMean Well
-
SeriesDDR Series
-
Power Rating60 Watt
-
Output Voltage5 Volt
-
Rated Current12 Ampere
-
Input Voltage18V~75V
-
Standards MetCE,EAC,EMC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty2 Year
-
Length3.54 in
-
Width2.15 in
-
Height2.07 in
-
Weight0.48 lb
