Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

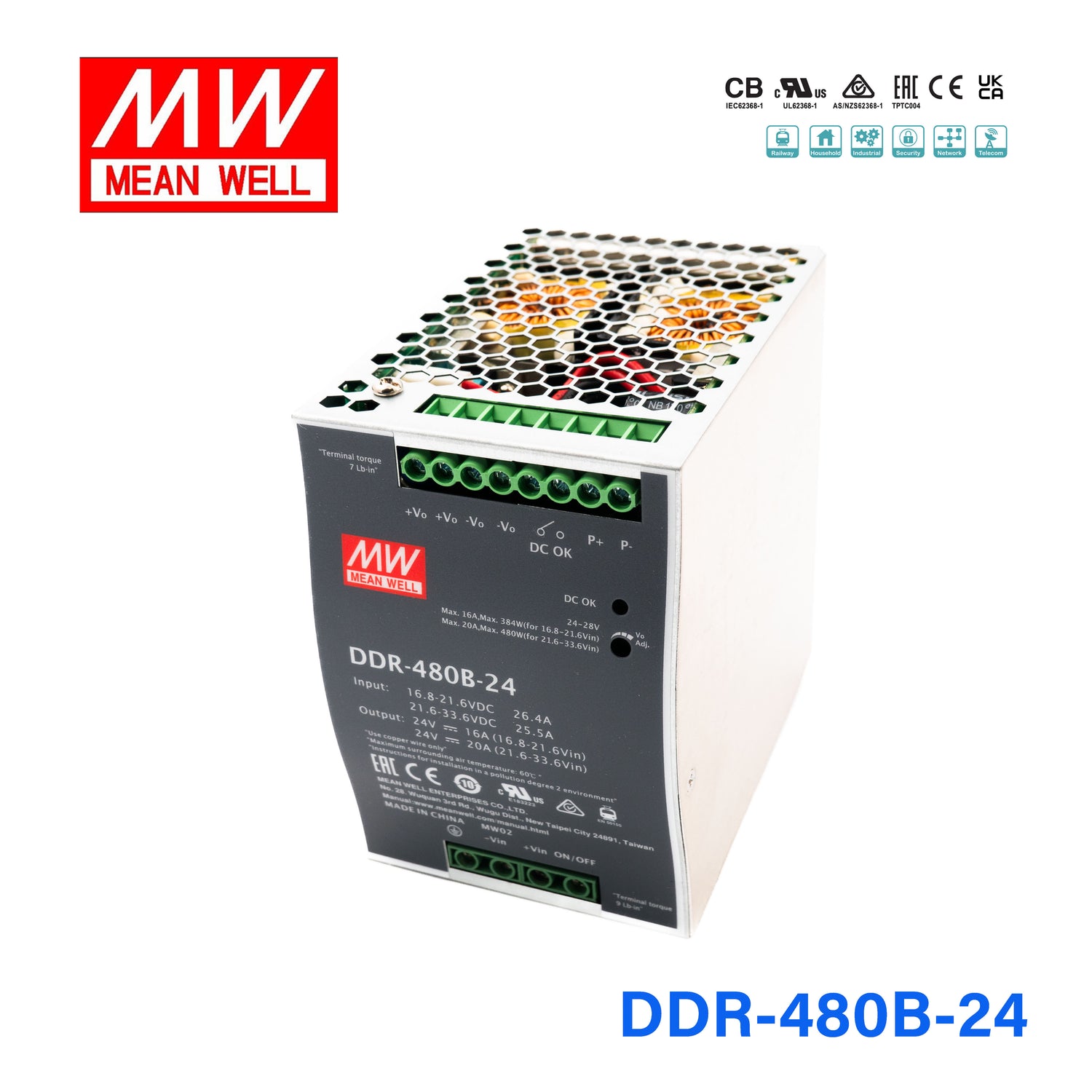

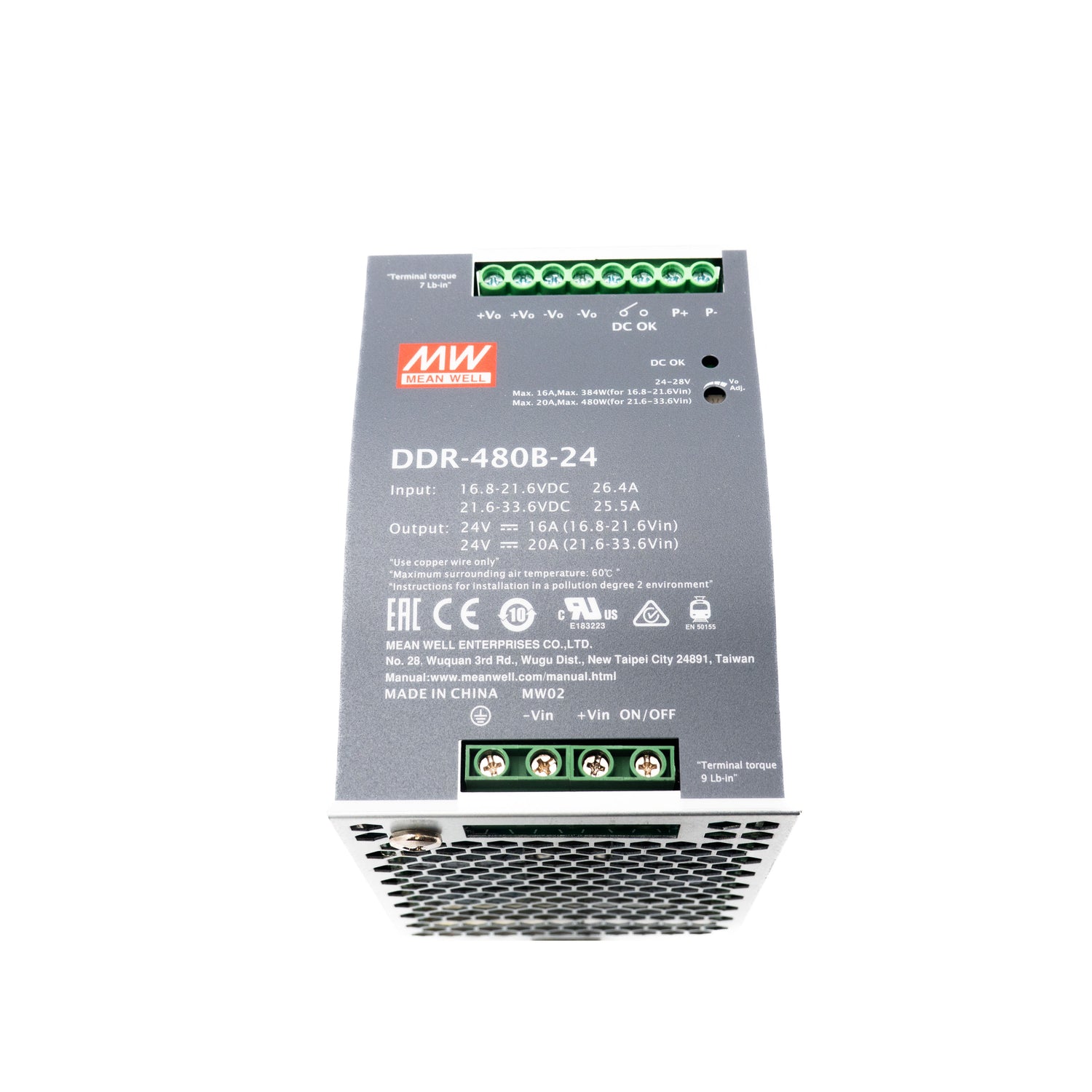

Mean Well DDR-480B-24 DC-DC Converter - 480W - 16.8~33.6V in 24V out
$198.56 USD
Unit price /
Unavailable
Description
Description
Features
| Width only 32mm |
| Compliance with EN50155 and EN45545-2 railway standard |
| DC output adjustable ( 10%) |
| 2:1 wide input range |
| 150% peak load capability |
| Protections: Short circuit / Overload / Over voltage /Input reverse polarity / Input under voltage protection |
| 4KVdc I/O isolation(Reinforced isolation) |

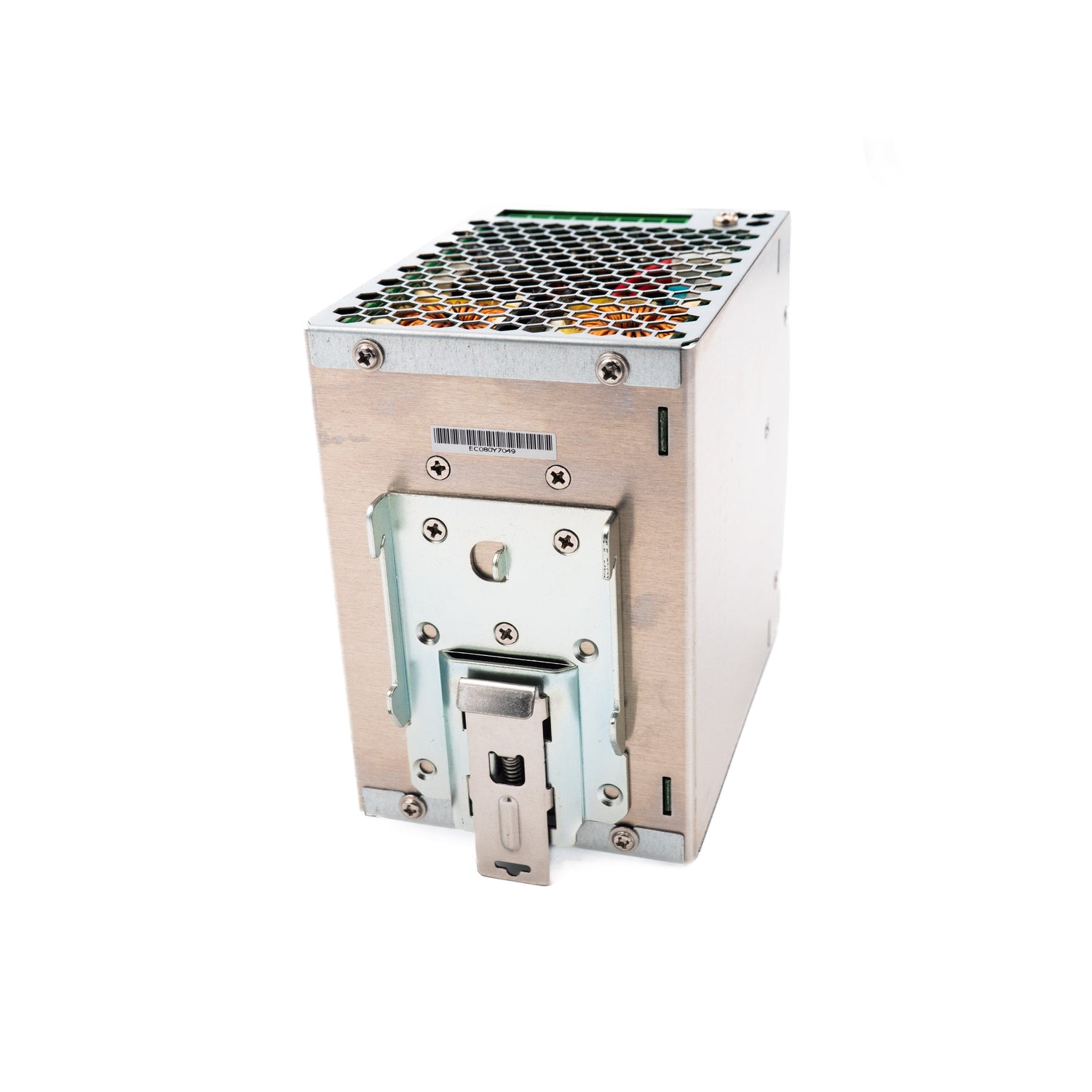

| Can be installed on DIN rail TS-35/7.5 or 15 |
| -40~+70°C wide working temperature |
| Cooling by free air convection |
| 3 years warranty |
General Specification
| Over current protection | Normally works within 150% rated output power for more than 3 seconds and then constant current protection 105~135% rated output power with auto-recovery |
| Over-voltage protection |
12V:13.8~16.2V ; 15V:17.25~20.25V ; 24V:28.8~32.4V; Protection mode: Shut down o/p voltage, re-power on to recover |
| REVERSE POLARITY | By internal MOSFET, no damage recovers automatically after the fault condition removed |
| Withstand voltage | I/P-O/P:4KVDC I/P-FG:2.5KVDC O/P-FG:2.5KVDC |
| Working temperature | -40~+70°C (Refer to " Derating Curve"") |
| Safety standards | IEC 62368-1 (LVD), EAC TP TC 004 approved, Design refer to UL508 |
| EMC standards | With external components Compliance to EN55032 Class B;EN61000-3-,3，EN61000-4-2,3,4,5,6,8 |
| Dimension (LxWxH)(mm) | 32 x 125.2 x 102 mm |
Specifications
Specifications
-
BrandMean Well
-
SeriesDDR Series
-
Power Rating480 Watt
-
Output Voltage24 Volt
-
Rated Current20 Ampere
-
Input Voltage16.8V~33.6V
-
Standards MetEMC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~80°C
-
Warranty3 Year
-
Length5.06 in
-
Width4.93 in
-
Height3.37 in
-
Weight3.03 lb
