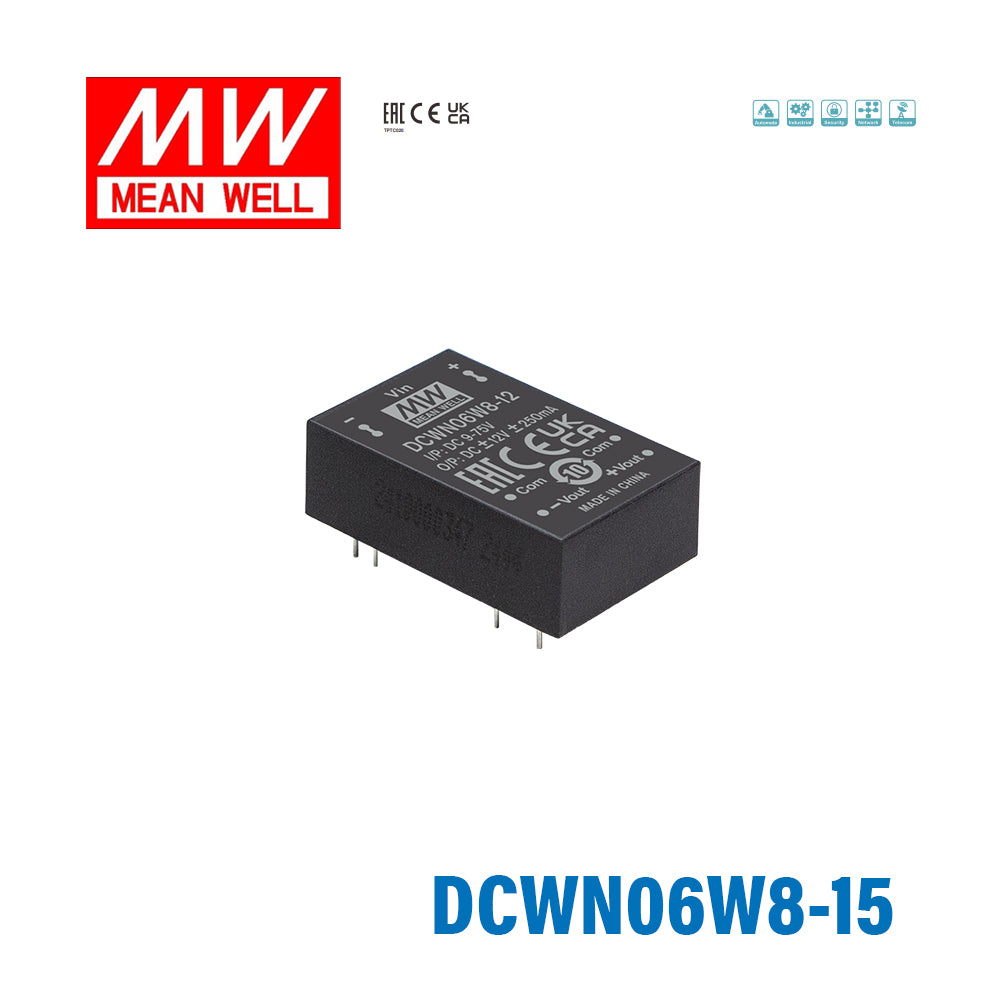

Mean Well DCWN06W8-15 DC-DC Converter - 6W 9~75V DC in ±15V out
$10.70 USD
Unit price /
Unavailable
Description
Description
The DCWN06W8 is a 6W Mean Well. power converter. and an input range of 9~75Vdc.
Key Features
- ✓ Input voltage range: 9~75Vdc
- ✓ 3KVdc reinforced I/O isolation
- ✓ Wide operating temperature: -40~+95℃
- ✓ Protections: Short circuit / Overload / Over voltage / Under voltage
- ✓ Remote ON/OFF control
- ✓ Safety approvals: WITHSTAND VOLTAGE ISOLATION RESISTANCE ISOLATION CAPACITANCE (Typ.) EMC EMISSION EMC IMMUNITY OTHERS MTBF (Typ.) DIMENSION (L*W*H) CASE MATERIAL PACKING 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes EAC TP TC 020/2011
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesDCWN Series
-
Power Rating6 Watt
-
Output Voltage15 Volt
-
Rated Current0.01 Ampere
-
Input Voltage9V~75V
-
Standards MetCE,EAC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~95°C
-
Warranty3 Year
-
Length1.25 in
-
Width0.8 in
-
Height0.4 in
-
Weight0.03 lb
