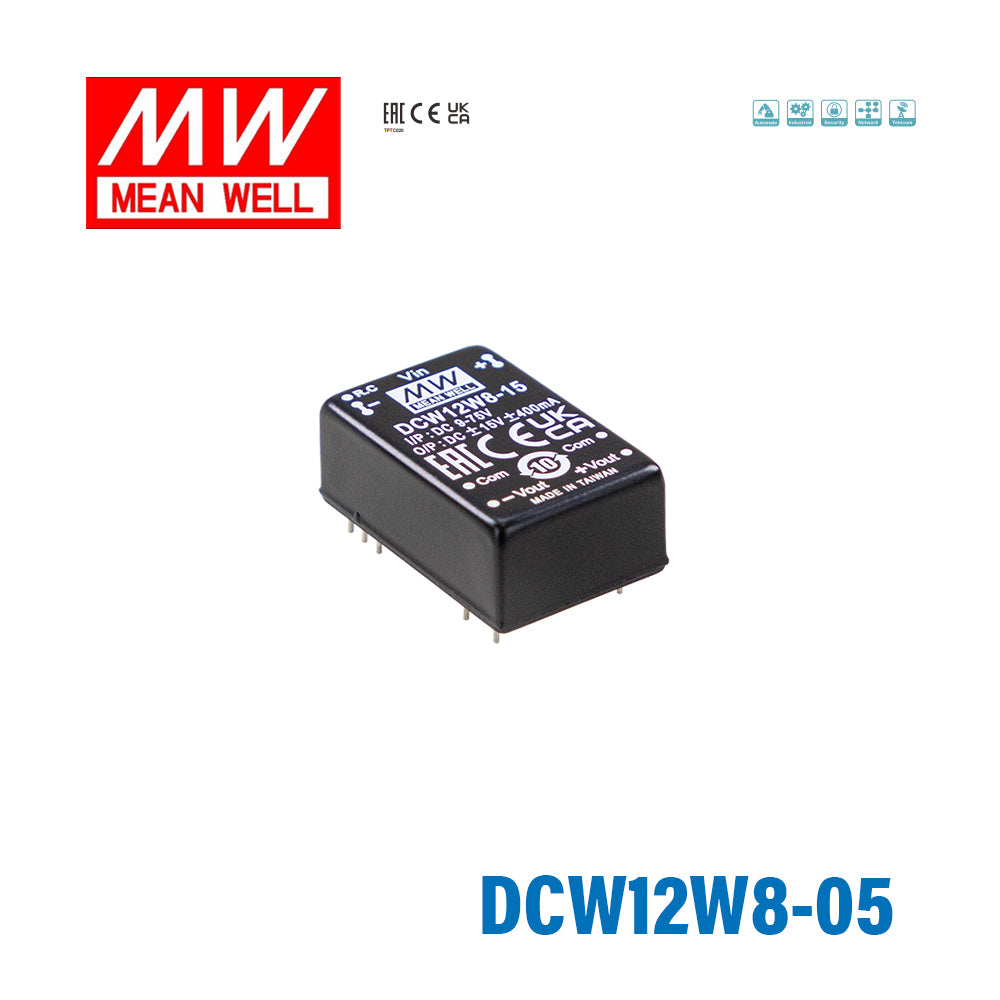

Mean Well DCW12W8-05 DC-DC Converter - 12W 9~75V DC in ±5V out 10mA
$18.56 USD
Unit price /
Unavailable
Description
Description
The DCW12W8-05 is a 12W Mean Well DC-DC converter (input: 9~75VDC, operating temperature: -40~+85°C).
Key Features
- ✓ Input voltage: 9~75VDC
- ✓ Output voltage (max): 5V
- ✓ Rated output current: 2.4A
- ✓ I/O isolation: 500V
- ✓ Operating temperature: -40~+85°C
- ✓ Safety certifications: CE, EAC
- ✓ 3 year warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesDCWN Series
-
Power Rating12 Watt
-
Output Voltage5 Volt
-
Rated Current0.01 Ampere
-
Input Voltage9V~75V
-
Standards MetCE,EAC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty3 Year
-
Length1.25 in
-
Width0.8 in
-
Height0.48 in
-
Weight0.04 lb
