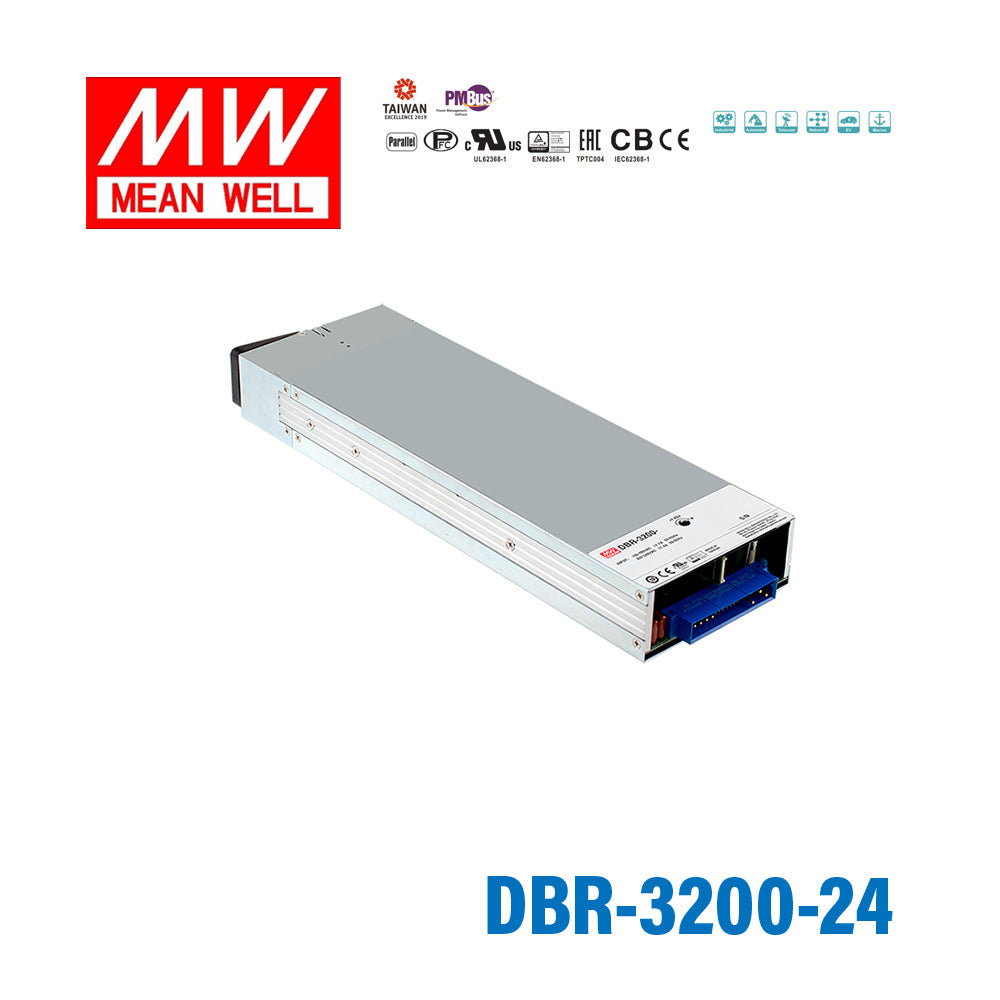

Mean Well DBR-3200-24 Rack Mountable Front End Battery Charger 3200W 24V 110A

Name: Mean Well DBR-3200-24 Rack Mountable Front End Battery Charger 3200W 24V 110A
Brand: Mean Well
SKU: DBR-3200-24
Price: 797.67 USD
Availability: InStock

output voltage and current programmableactive current sharing up to 12800W for one 19" rack shelfbuilt-in OR-ing FETsupport hot swap

SKU DBR-3200-24

$797.67 USD

Shipping calculated at checkout.

In stock

Overview

DBR-3200-24 is the model of this series: typical efficiency 93.5%.

DBR-3200 is a 3200W single output AC/DC front-end charger in 1U low profile with high power density, 37W/inch 3 . It is an intelligent charger that has pre-loaded programmable charging curves for different types of lead-acid and li-ion batteries. Output programmable function allows user to adjust the charging voltage and current via the built-in potentiometer or PMBus protocol. Various protection mechanisms as well as the temperature compensation function are provided to assure normal and safe system operation. The rack-mountable attribute fits DBR-3200 perfectly for the charging, backup or constant current source applications exploiting the rack architecture or central power management.

Features

Charger for lead-acid batteries (Gel, flooded and AGM) and Li-ion batteries (lithium iron and lithium manganese)
Built-in default 3 stage charging curves and programmable curve
Built-in I2C interface, PMBus protocol (Optional CANBus protocol)
Output voltage and current programmable
Universal AC input / Full range
Built-in active PFC function
Forced air cooling by built-in thermal controlled DC fans
Built-in OR-ing FET, support hot swap (hot plug)
Active current sharing up to 12800W for one 19" rack shelf
Protections: Battery under voltage / Battery no connection / Short circuit / Over voltage / Over temperature
Optional conformal coating
5 years warranty

Specifications

DBR-3200-24Specifications from the official datasheet (2025-10-23 edition)

OUTPUT

BOOST CHARGE VOLTAGE(Vboost)(default): 28.8V
FLOAT CHARGE VOLTAGE(Vfloat)(default): 27.6V
CONSTANT CURRENT(CC)(default): 110A
VOLTAGE ADJ. RANGE: By built-in potentiometer, SVR 23.5 ~ 30V
RECOMMENDED BATTERY CAPACITY(AMP HOURS)^Note.3: 330 ~ 1000Ah
LEAKAGE CURRENT FROM BATTERY (Typ.): <1.5mA

INPUT

VOLTAGE RANGE^Note.4: 90 ~ 264VAC 127 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): 0.97/230VAC at full load
EFFICIENCY (Typ.): 93.5%
AC CURRENT (Typ.)^Note.4: 17A/230VAC
INRUSH CURRENT (Typ.): COLD START 55A/230VAC
LEAKAGE CURRENT: <1.5mA / 230VAC

PROTECTION

OVER VOLTAGE: 31.5 ~ 37.5V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, recovers automatically after temperature goes down

FUNCTION

OUTPUT VOLTAGE PROGRAMMABLE(PV): Adjustment of output voltage is allowable to 75 ~ 125% of nominal output voltage. Please refer to the Function Manual.
OUTPUT CURRENT PROGRAMMABLE(PC): Adjustment of output voltage is allowable to 20 ~ 100% of rated current. Please refer to the Function Manual.
AUXILIARY POWER: 5V @ 0.3A, tolerance ±10%, ripple 150mVp-p, 12V @ 0.8A, tolerance ±10%, ripple 450mVp-p
REMOTE ON-OFF CONTROL: By electrical signal or dry contact Power ON:short Power OFF:open. Please refer to the Function Manual
TEMPERATURE COMPENSATION: -3mV / ℃ / cell / (12V = 6 cells ; 24V = 12 cells ; 48V = 24 cells)
DC OK SIGNAL: The isolated TTL signal out. Please refer to the Installation Manual
AC OK SIGNAL: The isolated TTL signal out. Please refer to the Installation Manual

ENVIRONMENT

WORKING TEMP.: -30 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL62368-1, CSA C22.2 No. 62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved
WITHSTAND VOLTAGE: I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/EN55032 (CISPR32) Class B
Radiated BS EN/EN55032 (CISPR32) Class A
Harmonic Current BS EN/EN61000-3-2 Class A
Voltage Flicker BS EN/EN61000-3-3
EMC IMMUNITY: BS EN/EN55035, BS EN/EN61000-6-2

Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact
Radiated BS EN/EN61000-4-3 Level 3
EFT / Burst BS EN/EN61000-4-4 Level 3
Surge BS EN/EN61000-4-5 2KV/Line-Line 4KV/Line-Earth
Conducted BS EN/EN61000-4-6 Level 3
Magnetic Field BS EN/EN61000-4-8 Level 4
Voltage Dips and Interruptions BS EN/EN61000-4-11 >95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods

Parameter	Standard	Test Level
Conducted	BS EN/EN55032 (CISPR32)	Class B
Radiated	BS EN/EN55032 (CISPR32)	Class A
Harmonic Current	BS EN/EN61000-3-2	Class A
Voltage Flicker	BS EN/EN61000-3-3

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 3, 8KV air; Level 2, 4KV contact
Radiated	BS EN/EN61000-4-3	Level 3
EFT / Burst	BS EN/EN61000-4-4	Level 3
Surge	BS EN/EN61000-4-5	2KV/Line-Line 4KV/Line-Earth
Conducted	BS EN/EN61000-4-6	Level 3
Magnetic Field	BS EN/EN61000-4-8	Level 4
Voltage Dips and Interruptions	BS EN/EN61000-4-11	>95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods

OTHERS

MTBF: 528.8K hrs min. Telcordia SR-332 (Bellcore) ; 44.4K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 325*107*41mm (L*W*H)
PACKING: 2.65Kg;4pcs/11.6Kg/0.93CUFT

Test conditions and notes6

1. Modification for charger specification may be required for different battery specification. Please contact battery vendor and MEAN WELL for details.
2. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
3. This is MEAN WELL's suggested range. Please consult your battery manufacturer for their suggestions about maximum charging current limitation.
4. Derating may be needed under low input voltages. Please check the derating curve for more details.
5. The charger is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 600mm*900mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to "EMI testing of component power supplies." (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
6. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

DBR-3200-24 BLOCK DIAGRAM — BLOCK DIAGRAM

DBR-3200-24 DERATING CURVE — DERATING CURVE

DBR-3200-24 FUNCTION MANUAL — FUNCTION MANUAL

DBR-3200-24 D B R - 3 2 0 0 series — D B R - 3 2 0 0 series

DBR-3200-24 D B R - 3 2 0 0 series (2) — D B R - 3 2 0 0 series (2)

DBR-3200-24 OUTPUTVOLTAGE(V) — OUTPUTVOLTAGE(V)

DBR-3200-24 OUTPUTCURRENT(%) — OUTPUTCURRENT(%)

DBR-3200-24 ◎ To exploit the temperature compensation function, please — ◎ To exploit the temperature compensation function, please

DBR-3200-24 MECHANICAL SPECIFICATION — MECHANICAL SPECIFICATION

Typical applications

Large scale DC UPS or emergency backup system
Marine battery charger module
Electric scooter or vehicle charger station
Wastewater treatment system
Electrolysis system

Downloads

Certificates5

Mean Well DBR-DRP-DBU-DPU-NSP-3200-DHP-1UT-TUV-3nd Certificate PDF Download

Mean Well DBR-DRP-DBU-DPU-NSP-3200-DHP-1UT-CB(UL)-3nd Certificate PDF Download

Mean Well DBR-DRP-DBU-DPU-NSP-3200-DHP-1UT-CB-(UL)-2nd Certificate PDF Download

Mean Well DBR-DBU-DPU-3200-DHB-DHP-12K1UT-DHP-1UT-A-CB(60950) Certificate PDF Download

Mean Well DBR-DBU-DPU-3200-DHB-DHP-12K1UT-DHP-1UT-A-CB(62368) Certificate PDF Download

Test reports1

Test Report (DBR-3200-24)(EN) PDF Download

FAQ

What is the Mean Well DBR-3200-24 designed for?

The DBR-3200-24 is a rack mountable front end battery charger rated at 3200W with a 24V output. It is intended for charging, backup or constant current source applications that use a rack architecture or central power management, in a 1U low profile format. Its built-in OR-ing FET and parallel control signals make it suitable for larger multi-unit systems.

What battery types is the DBR-3200-24 compatible with?

This model supports lead-acid batteries including gel, flooded, and AGM types. It also supports Li-ion batteries, specifically lithium iron and lithium manganese chemistries. The unit includes built-in default 3-stage charging curves as well as a programmable curve for broader application flexibility.

What are the main electrical ratings of the DBR-3200-24?

The DBR-3200-24 is rated for 3200W output power at 24V with a default constant current of 110A. It accepts a universal AC input range of 90 to 264VAC, or 127 to 370VDC. The output voltage can be programmed from 75% up to 125% of the nominal output voltage.

Can the DBR-3200-24 be used in rack power systems with multiple units?

Yes, this charger provides DA/DB differential signals for parallel control, and units in parallel can be switched on and off together with the Remote ON-OFF function. It also has a built-in OR-ing FET on the output. Those features make it a practical choice for expandable rack-based power architectures.

What protection features are included in the DBR-3200-24?

The DBR-3200-24 includes over voltage, over temperature and overload protection, plus battery low protection signalled through DC OK. Its over temperature protection shuts down the output voltage and then recovers automatically. Over voltage protection is specified at 31.5V to 37.5V and shuts down the output until the unit is re-powered.

Is the DBR-3200-24 suitable for demanding industrial environments?

This model is designed for operation from -30°C to +70°C, subject to the output derating curve. It uses a built-in fan for forced air cooling, with fan-fail and temperature alarm signalling, and is rated for 10 to 500Hz, 2G vibration. These characteristics make it well suited to industrial settings.

What communications and monitoring interfaces are available on the DBR-3200-24?

The DBR-3200-24 supports the PMBus Rev. 1.1 protocol for information reading, status monitoring and output trimming. A CANBus model is also available. These interface options help it fit into monitored or managed power systems where centralized supervision is important.

What certifications and warranty does the DBR-3200-24 include?

This charger is approved to UL62368-1, CSA C22.2 No. 62368-1, TUV BS EN/EN62368-1, and EAC TP TC 004 safety standards. Its EMC compliance includes EN55032 Class B conducted and Class A radiated emissions, and EN61000-4-2, -4, -6, -8, and -11 immunity. The warranty period is not stated on the spec sheet.
