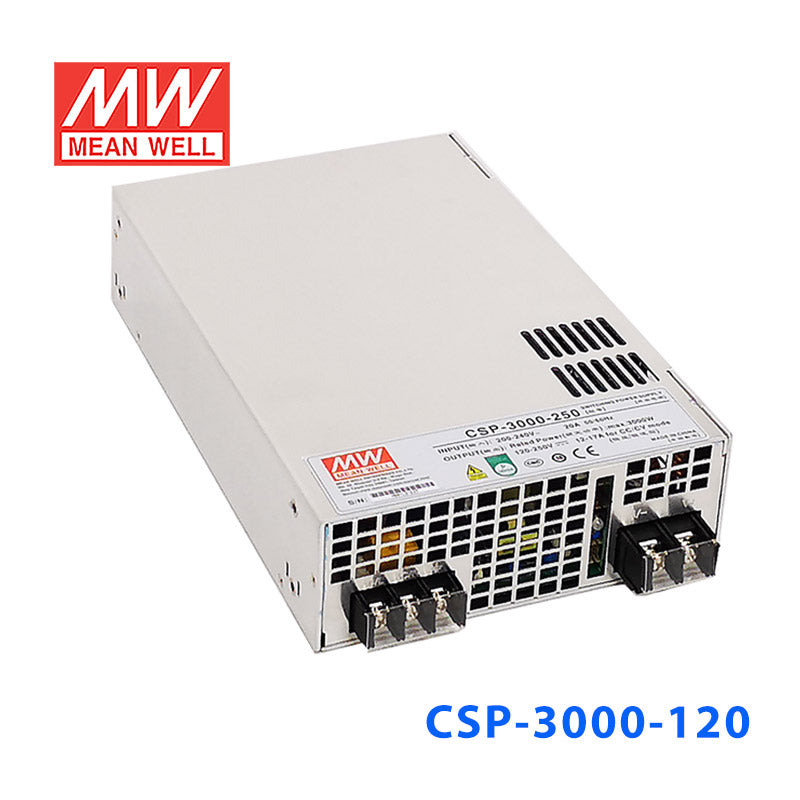

Mean Well CSP-3000-120 Power Supply with Single Output 3000W 120V 25A

Name: Mean Well CSP-3000-120 Power Supply with Single Output 3000W 120V 25A
Brand: Mean Well
SKU: CSP-3000-120
Price: 468.07 USD
Availability: InStock

high efficiency up to 93%active current sharing up to 9000W(2+1)

SKU CSP-3000-120

$468.07 USD

Shipping calculated at checkout.

In stock

Overview

CSP-3000-120 is the 120V output model of this series: rated current 25A, rated power 3000W, typical efficiency 92%.

CSP-3000 is a 3KW single output enclosed type AC/DC power supply. This series operates for 180~264VAC input voltage and offers the models with the DC output mostly demanded from the industry. Each model is cooled by the built-in fan with fan speed control, working for the temperature up to 65℃. Moreover, CSP-3000 provides vast design flexiblity by equipping various built-in functions such as the output programming, active current sharing, remote ON-OFF control, auxiliary power, etc.

Features

AC input 180~264VAC
Built-in active PFC function
High efficiency up to 93%
Forced air cooling by built-in DC fans
Output voltage / current programmable
Active current sharing up to 9000W(2+1)
Built-in remote ON-OFF control / auxiliary power / power OK signal
Protections: Short circuit / Overload / Over voltage / Over temperature / Fan failure
Conformal coating
Programmable output voltage & constant current function
5 years warranty

Specifications

CSP-3000-120Specifications from the official datasheet (2025-08-08 edition)

OUTPUT

DC VOLTAGE: 120V
RATED CURRENT: 25A
CURRENT RANGE: 0 ~ 25A
RATED POWER: 3000W
RIPPLE & NOISE (max.)^Note.2: 800mVp-p
CONSTANT CURRENT REGION: 90 ~ 120V
VOLTAGE TOLERANCE^Note.3: ±1.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±0.5%
SETUP, RISE TIME: 1000ms, 80ms / 230VAC at full load
HOLD UP TIME (Typ.): 10ms at full load

INPUT

VOLTAGE RANGE^Note.4: 180 ~ 264VAC 254 ~ 370VDC
FREQUENCY RANGE: 47~63Hz
POWER FACTOR (Typ.): PF≧0.95/230VAC at full load
EFFICIENCY (Typ.): 92%
AC CURRENT (Typ.): 20A/180VAC 16A/230VAC
INRUSH CURRENT (Typ.): Cold start 60A/230VAC
LEAKAGE CURRENT: <0.3mA / 240VAC

PROTECTION

SHORT CIRCUIT: Shut down and latch off o/p voltage, re-power on to recover
OVER CURRENT: 105 ~ 120% rated output power User adjustable continuous constant current limiting or constant current limiting with delay shutdown after 3 seconds, re-power on to recover (Please refer to the Function Manual)
OVER VOLTAGE: 127 ~ 150V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, recovers automatically after temperature goes down or re-power on to recover

FUNCTION

OUTPUT VOLTAGE PROGRAMMABLE(PV): Please refer to the Function Manual.
OUTPUT CONSTANT CURRENT PROGRAMMABLE(PC): Please refer to the Function Manual.
CURRENT SHARING: Please refer to the Function Manual.
AUXILIARY POWER(AUX): 12V @ 0.4A
REMOTE ON-OFF CONTROL: Please refer to the Function Manual
ALARM SIGNAL OUTPUT: Power OK signal. Please refer to the Function Manual

ENVIRONMENT

WORKING TEMP.: -20 ~ +65℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.05%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL62368-1, BS EN/EN62368-1, EAC TP TC004, GB4943.1
WITHSTAND VOLTAGE: I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/EN55032(CISPR32) Class A
Radiated BS EN/EN55032(CISPR32) Class A
Harmonic Current BS EN/EN61000-3-2
Voltage Flicker BS EN/EN61000-3-3
EMC IMMUNITY: BS EN/EN55035 ,BS EN/EN61000-6-2

Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact
Radiated BS EN/EN61000-4-3 Level 3
EFT / Burst BS EN/EN61000-4-4 Level 3
Surge BS EN/EN61000-4-5 Level 3, 2KV/Line-Earth; Level 2, 1KV/Line-Line
Conducted BS EN/EN61000-4-6 Level 3
Magnetic Field BS EN/EN61000-4-8 Level 4
Voltage Dips and Interruptions BS EN/EN61000-4-11 >95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods

Parameter	Standard	Test Level
Conducted	BS EN/EN55032(CISPR32)	Class A
Radiated	BS EN/EN55032(CISPR32)	Class A
Harmonic Current	BS EN/EN61000-3-2
Voltage Flicker	BS EN/EN61000-3-3

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 3, 8KV air; Level 2, 4KV contact
Radiated	BS EN/EN61000-4-3	Level 3
EFT / Burst	BS EN/EN61000-4-4	Level 3
Surge	BS EN/EN61000-4-5	Level 3, 2KV/Line-Earth; Level 2, 1KV/Line-Line
Conducted	BS EN/EN61000-4-6	Level 3
Magnetic Field	BS EN/EN61000-4-8	Level 4
Voltage Dips and Interruptions	BS EN/EN61000-4-11	>95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods

OTHERS

MTBF: 721.1K hrs min. Telcordia SR-332 (Bellcore) ; 80.5K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 278*177.8*63.5mm (L*W*H)
PACKING: 3.5Kg; 4pcs/14.4Kg/1.39CUFT

Test conditions and notes6

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. In the PV Mode: Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Turn off the output when input voltage is less than 160VAC.
5. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 720mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to "EMI testing of component power supplies." (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
6. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

CSP-3000-120 Block Diagram — Block Diagram

CSP-3000-120 Static Characteristics — Static Characteristics

CSP-3000-120 Efficiency vs Load (400V Model) — Efficiency vs Load (400V Model)

CSP-3000-120 DRIVING METHODS OF LED MODULE — DRIVING METHODS OF LED MODULE

CSP-3000-120 Function Manual — Function Manual

CSP-3000-120 C S P - 3 0 0 0 series — C S P - 3 0 0 0 series

CSP-3000-120 Example 2.2(A): Using external voltage source — Example 2.2(A): Using external voltage source

CSP-3000-120 Example 2.2(B): Using internal 12V auxiliary output — Example 2.2(B): Using internal 12V auxiliary output

CSP-3000-120 C S P - 3 0 0 0 series (2) — C S P - 3 0 0 0 series (2)

CSP-3000-120 PIN9(P-OK-GND) — PIN9(P-OK-GND)

CSP-3000-120 Illustration (page 7) — Illustration (page 7)

CSP-3000-120 Mechanical Specification — Mechanical Specification

Typical applications

Downloads

Certificates7

Mean Well CSP-3000 DEKRA Certificate PDF Download

Mean Well CSP-3000 CB Certificate PDF Download

Mean Well CSP-3000 EMC Certificate PDF Download

Mean Well CSP-3000 CE-dec Certificate PDF Download

Mean Well CSP-3000 UK-dec Certificate PDF Download

Mean Well CSP-3000 CQC Certificate PDF Download

Mean Well E183223 UL Certificate PDF Download

Test reports1

Mean Well CSP-3000-120 Test Report PDF Download

Catalogues1

Mean Well Catalog (Industrial) PDF Download

FAQ

What is the CSP-3000-120 typically used for?

The Mean Well CSP-3000-120 is typically used in high-power 120V DC systems that need a single-output 3000W enclosed power supply. With 120V output at 25A, it is intended for demanding industrial or specialized DC applications that need a high-voltage, high-power DC source.

Is the CSP-3000-120 suitable for large high-voltage DC loads?

Yes. The CSP-3000-120 provides 3000W at 120V and 25A, which makes it suitable for heavy-duty high-voltage DC applications that need significantly more power than standard enclosed supplies can provide.

Can the CSP-3000-120 be used in systems that need adjustable output behavior?

Yes. The product features list programmable output voltage and current, so the CSP-3000-120 is relevant for applications that need a more configurable high-power DC source rather than a strictly fixed-output platform.

Does the CSP-3000-120 support larger-capacity multi-unit systems?

Yes. Up to 3 units can be connected in parallel with the built-in active current sharing function, so the CSP-3000-120 is intended for larger power systems where multiple units may be combined to increase total available output (total output current limited to rated current × number of units × 0.9).

What AC input range does the CSP-3000-120 support?

The specified AC input range is 180-264VAC, with 254-370VDC also listed. That makes the CSP-3000-120 suitable for 230V-class AC mains environments and other installations within that published range.

Is the CSP-3000-120 intended for exposed outdoor installation?

The current product data does not list a waterproof IP rating, so the CSP-3000-120 should be installed in a protected indoor or cabinet environment rather than directly exposed outdoor conditions. Its working temperature is listed as -20°C to +65°C (refer to the derating curve), but enclosure protection is still required.

What published high-end features does the CSP-3000-120 include?

The published features include PFC (PF≥0.95 at 230VAC), 92% typical efficiency, programmable output voltage and current, parallel operation of up to 3 units with built-in active current sharing, remote ON-OFF control, 12V/0.4A auxiliary power and a Power OK signal. Listed protections include short circuit, overload, over-voltage and over-temperature, and a status LED indicates fan faults.
