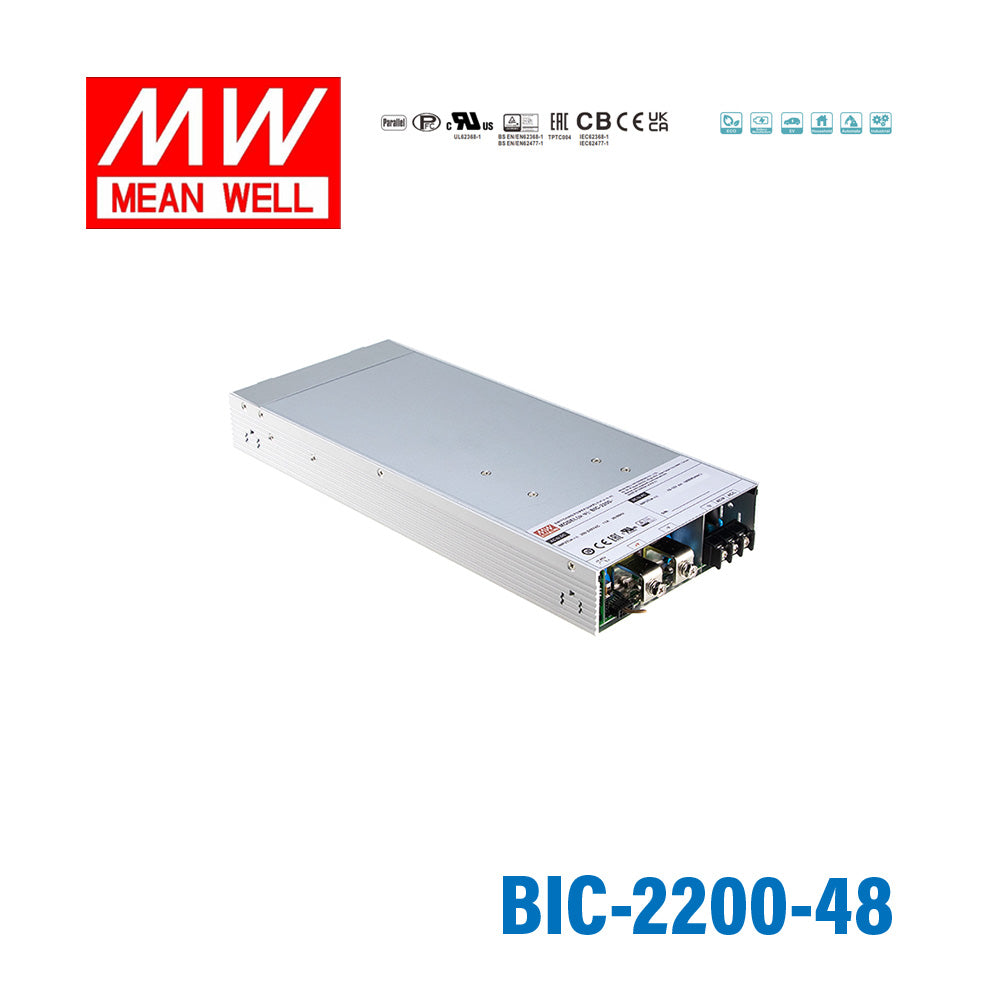

Mean Well BIC-2200-48 Power Supply 2200W 48V 45A

Name: Mean Well BIC-2200-48 Power Supply 2200W 48V 45A
Brand: Mean Well
SKU: BIC-2200-48
Price: 671.55 USD
Availability: InStock

1U low profile design93% conversion efficiencyultrafast switching time of 1msactive current sharing up to 11000W

SKU BIC-2200-48

$671.55 USD

Shipping calculated at checkout.

In stock

Overview

The BIC-2200 is a 2.2KW bidirectional power supply with energy recycle function. It is fully digital and 1U height designed. It is designed to control the power transferred from AC grid to DC and DC to AC grid for energy recycle. The implementation of a bidirectional power supply of the BIC-2200 allows battery manufactures to charge the battery from AC grid and recycle the DC energy back into AC grid in one single unit. With built-in functions such as active current sharing, remote ON/OFF control and CANBus model available, the BIC-2200 provides vast design flexibility for battery formation & test equipment, V2G(Vehicle-to-grid) system, charging station, laser system and kinetic recovery system.

Features

1U low profile design
Full digital design with 93% conversion efficiency for both AC/DC and DC/AC conversion
Ultrafast switching time between AC/DC and DC/AC of 1ms
CB/TUV/UL 62368-1 and CB/TUV 62477-1 certified
Active current sharing up to 19800W (up to 9 unit)
<3% Low THDi in both conversion mode
Force charging and discharging mode with CANBus model
Complete protections: Anti-islanding protection, AC fail protection, DC OVP,OLP, OCP, OTP
Apply BIC-2200 to a three-phase AC power system
5 years warranty

Specifications

BIC-2200-48Specifications from the official datasheet (2024-10-21 edition)

AC to DC Direction

OUTPUT DC VOLTAGE: 48V
OUTPUT RATED CURRENT: 45A
OUTPUT RATED POWER: 2160W
OUTPUT FULL POWER VOLTAGE RANGE: 48 ~ 65V
OUTPUT RIPPLE & NOISE (max.)^Note.2: 300mVp-p
OUTPUT VOLTAGE ADJ. RANGE: 38 ~ 65V
OUTPUT CURRENT RANGE: 0 ~ 45A
OUTPUT VOLTAGE TOLERANCE^Note.3: ±1.0%
OUTPUT LINE REGULATION: ±0.5%
OUTPUT LOAD REGULATION: ±0.5%
OUTPUT SETUP, RISE TIME: 1800ms, 60ms/230VAC at full load
INPUT AC VOLTAGE RANGE: 180 ~ 264VAC
INPUT FREQUENCY RANGE: 47 ~ 63Hz
INPUT POWER FACTOR (Typ.): 0.98/230VAC at full load
INPUT EFFICIENCY (Typ.)^Note.5: 93%
INPUT AC CURRENT (Typ.): 11A/230VAC
INPUT INRUSH CURRENT (Typ.): COLD START 35A/230VAC
INPUT LEAKAGE CURRENT: <2mA/230VAC
INPUT TOTAL HARMONIC DISTORTION: <3%(@load=100%/230VAC)

DC to AC Direction

INPUT RATED INPUT POWER: 1800W
INPUT FULL POWER VOLTAGE RANGE^Note.4: 48 ~ 65V
INPUT DC VOLTAGE RANGE^Note.4: 38 ~ 65V
INPUT MAX. INPUT CURRENT^Note.4: 37.5A
OUTPUT OUTPUT POWER (Typ.) (@240V): 1720W
OUTPUT VOLTAGE RANGE: 180 ~ 264VAC determined by AC main
OUTPUT FREQUENCY RANGE: 47 ~ 63Hz determined by AC main
OUTPUT AC CURRENT (Typ.): 7.5A/230VAC
OUTPUT POWER FACTOR (Typ.): 0.99/230VAC at full load
OUTPUT EFFICIENCY (Typ.)^Note.5: 93%
OUTPUT TOTAL HARMONIC DISTORTION: <3%(@load=100%/230VAC)

PROTECTION

OVER LOAD: 105 ~ 115% rated output power
OVER LOAD AC to DC: Constant current limiting, shut down DC O/P voltage 5 sec. after DC O/P voltage is down low, re-power on to recover
OVER LOAD DC to AC: Not accurable with constant power design
SHORT CIRCUIT: Shut down O/P current, re-power on to recover
OVER VOLTAGE: 72.6 ~ 86V Protection type : Shut down O/P voltage, re-power on to recover
OVER TEMPERATURE: Shut down O/P voltage, recovers automatically after temperature goes down
ISLANDING PROTECTION: Shut down AC O/P voltage, re-power on to recover

FUNCTION

REMOTE ON-OFF CONTROL: By electrical signal or dry contact Short: Power ON Open: Power OFF Please refer to the Function Manual infollowing
BIDIRECTION SWITCH TIME (Typ.): 1ms
ALARM SIGNAL: Isolated TTL signal output for T-Alarm, DC-OK and Fault. Please refer to the Function Manual in following pages
AUXILIARY POWER: 12V@0.5A tolerance±5%, ripple 150mVp-p
BATTERY MODE RATED CURRENT(default) AC to DC^Note.7: 40A Can be adjusted by communication
BATTERY MODE RATED CURRENT(default) DC to AC^Note.7: 32A Can be adjusted by communication

ENVIRONMENT

WORKING TEMP.: -30 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 45℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL62368-1, IEC62368-1, CAN/CSA C22.2 No.62368-1,TUV BS EN/EN62368-1, EAC TP TC 004, IEC62477-1, TUV BS EN/EN62477-1 approved
WITHSTAND VOLTAGE^Note.8: I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:500VAC
ISOLATION RESISTANCE^Note.8: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: BS EN/EN55032

Parameter Standard Test Level

Conducted BS EN/EN55032 (CISPR32) Class A
Radiated BS EN/EN55032 (CISPR32) Class A
Harmonic Current BS EN/EN61000-3-2 Class A
Voltage Flicker BS EN/EN61000-3-3
EMC IMMUNITY: BS EN/EN55035, BS EN/EN61000-6-2

Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact
Radiated BS EN/EN61000-4-3 Level 3
EFT / Burst BS EN/EN61000-4-4 Level 3
Surge BS EN/EN61000-6-2 2KV/Line-Line 4KV/Line-Earth
Conducted BS EN/EN61000-4-6 Level 3
Magnetic Field BS EN/EN61000-4-8 Level 4
Voltage Dips and Interruptions BS EN/EN61000-4-11 >95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods

Parameter	Standard	Test Level
Conducted	BS EN/EN55032 (CISPR32)	Class A
Radiated	BS EN/EN55032 (CISPR32)	Class A
Harmonic Current	BS EN/EN61000-3-2	Class A
Voltage Flicker	BS EN/EN61000-3-3

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 3, 8KV air; Level 2, 4KV contact
Radiated	BS EN/EN61000-4-3	Level 3
EFT / Burst	BS EN/EN61000-4-4	Level 3
Surge	BS EN/EN61000-6-2	2KV/Line-Line 4KV/Line-Earth
Conducted	BS EN/EN61000-4-6	Level 3
Magnetic Field	BS EN/EN61000-4-8	Level 4
Voltage Dips and Interruptions	BS EN/EN61000-4-11	>95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods

OTHERS

MTBF: 462.9K hrs min. Telcordia SR-332 (Bellcore) ; 46K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 330*140*41mm (L*W*H)
PACKING: 2.9Kg; 4pcs/12.6Kg/1.25CUFT

Test conditions and notes8

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. As a constant power output, the driver will auto derating the current limitation when voltage raise above rated voltage(12V,24V,48V,96V) in order to remain 1800W output. On the other hand, when voltage is below rated voltage(12V,24V,48V,96V), the maximum current limitation will set at Max input current.
5. The efficiency is measured at 75% load.
6. The ambient temperature derating of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
7. CANBus model only.
8. During withstandstandards voltage and isolation resistance testing, the screw "A" shall be temporarily removed, and shall be istalled back after the testing.

Technical drawings

BIC-2200-48 BLOCK DIAGRAM — BLOCK DIAGRAM

BIC-2200-48 DERATING CURVE — DERATING CURVE

BIC-2200-48 MECHANICAL SPECIFICATION — MECHANICAL SPECIFICATION

BIC-2200-48 BIC-2200 series — BIC-2200 series

BIC-2200-48 DC to AC (Energy recycling and discharging) — DC to AC (Energy recycling and discharging)

BIC-2200-48 "VTarget"(Default: BIC-2200 rated voltage) — "VTarget"(Default: BIC-2200 rated voltage)

BIC-2200-48 Bi-direction battery mode — Bi-direction battery mode

BIC-2200-48 BIC-2200 series (2) — BIC-2200 series (2)

BIC-2200-48 BIC-2200 series (3) — BIC-2200 series (3)

Typical applications

Battery cell formation & grading
V2G (Vehicle-to-grid) system
Marine battery charger module
Electric scooter or vehicle charger station
Kinetic energy recovery system
Electrolysis system
Wastewater treatment system

Downloads

Certificates5

Mean Well BIC-2200-CB(UL) Certificate PDF Download

Mean Well BIC-2200-EMC Certificate PDF Download

Mean Well BIC-2200-TUV Certificate PDF Download

Mean Well BIC-2200-CE-dec Certificate PDF Download

Mean Well BIC-2200-UK-dec Certificate PDF Download

Test reports1

Mean Well BIC-2200-48 Test Report PDF Download

FAQ

What is the BIC-2200-48 typically used for?

The Mean Well BIC-2200-48 is typically used in high-power 48V DC systems that need a bidirectional 2160W power platform with energy recycle function. With 48V output at 45A, it is suited to large 48V battery, telecom-style DC bus, and industrial high-power applications built around a 48V rail.

Is the BIC-2200-48 a good fit for high-capacity 48V DC systems?

Yes. The BIC-2200-48 provides 2160W at 48V and 45A, which makes it a strong fit for large 48V systems that need significantly more power than smaller enclosed supplies can provide.

Can the BIC-2200-48 be used where fast transfer behavior is important?

Yes. The specification lists a typical bidirection switch time of 1ms between AC/DC and DC/AC, making it relevant for systems where rapid power transition behavior is a requirement.

Does the BIC-2200-48 support power scaling above a single unit?

Yes. The sheet lists built-in active current sharing for up to 9 units in parallel, with total current limited to rated current per unit × number of units × 0.95, so the BIC-2200-48 suits larger-capacity installations.

What AC input range does the BIC-2200-48 support?

The specified AC input range is 180-264VAC, which suits 230V-class mains environments and other installations within that range. It should be selected accordingly rather than assumed to support the wider 90-264VAC range used by many smaller supplies.

Is the BIC-2200-48 suitable for direct outdoor exposure?

The current product data does not list a waterproof IP rating, so the BIC-2200-48 should be installed in a protected indoor or enclosure-based environment instead of direct outdoor exposure. Its working temperature is listed as -30°C to +70°C (refer to the derating curve), but that does not replace enclosure protection.

How does the BIC-2200-48 compare with the other BIC-2200 voltage options?

The BIC-2200-48 provides 2160W at 48V and 45A. Other BIC-2200 versions shift the same 2160W rating to 12V at 180A, 24V at 90A, and 96V at 22.5A. The main distinction is the DC bus voltage and resulting current available for the target application.

What are the main published durability and protection features of the BIC-2200-48?

The published specifications include 93% typical efficiency, active current sharing for up to 9 units, and an MTBF of 462.9K hrs min. (Telcordia SR-332). Listed protections include islanding, short circuit, over-voltage, overload, and over-temperature protection, with a Fault signal for AC fail.
