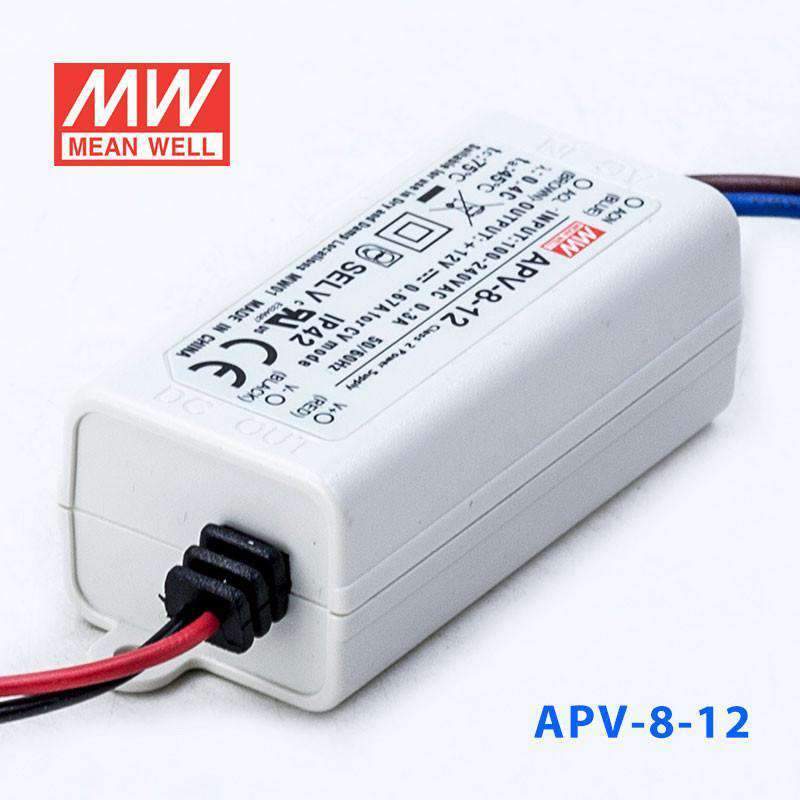

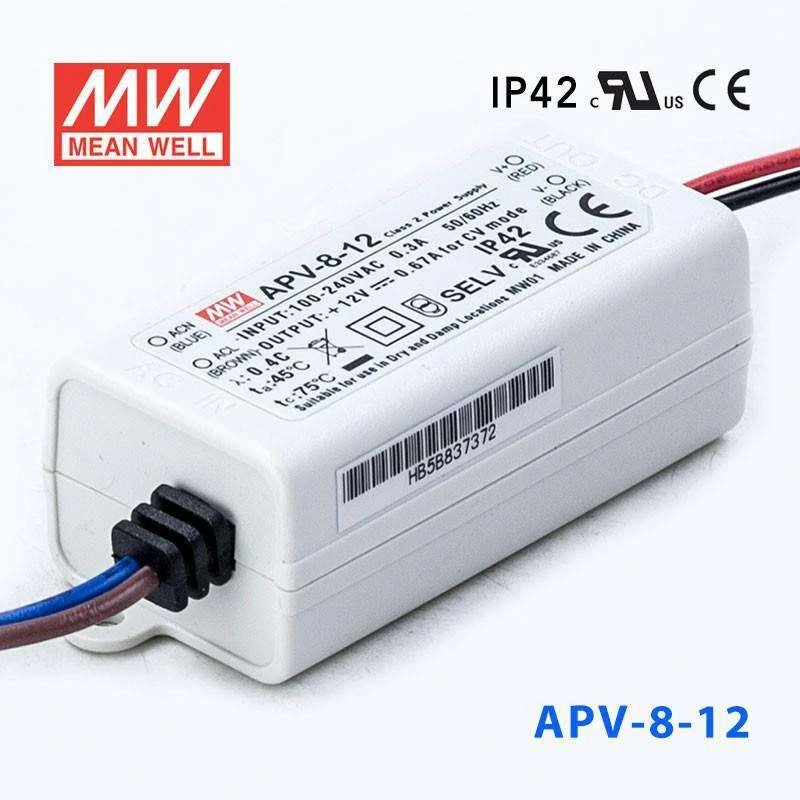

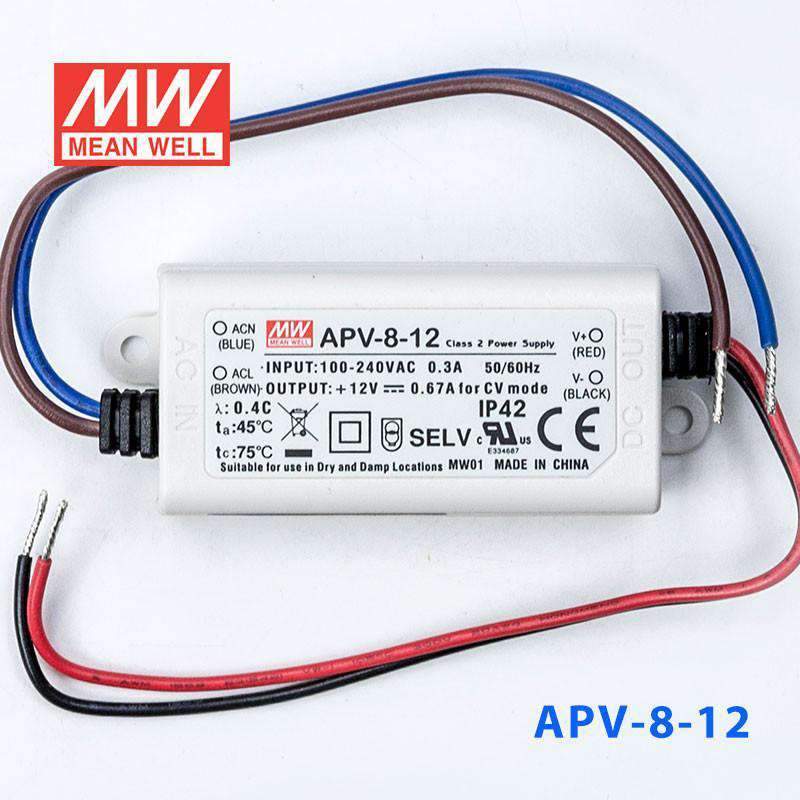

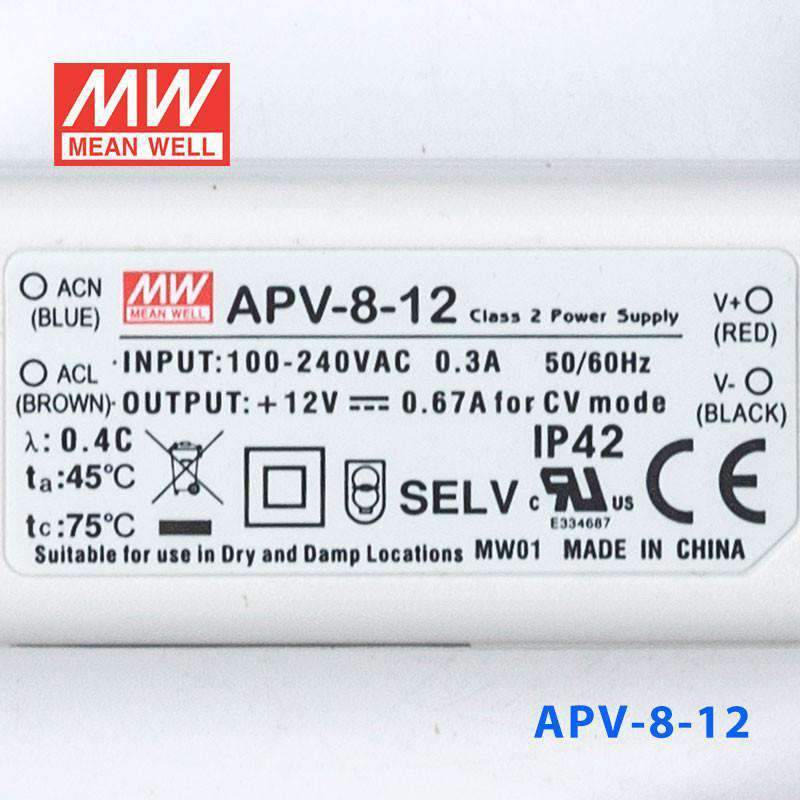

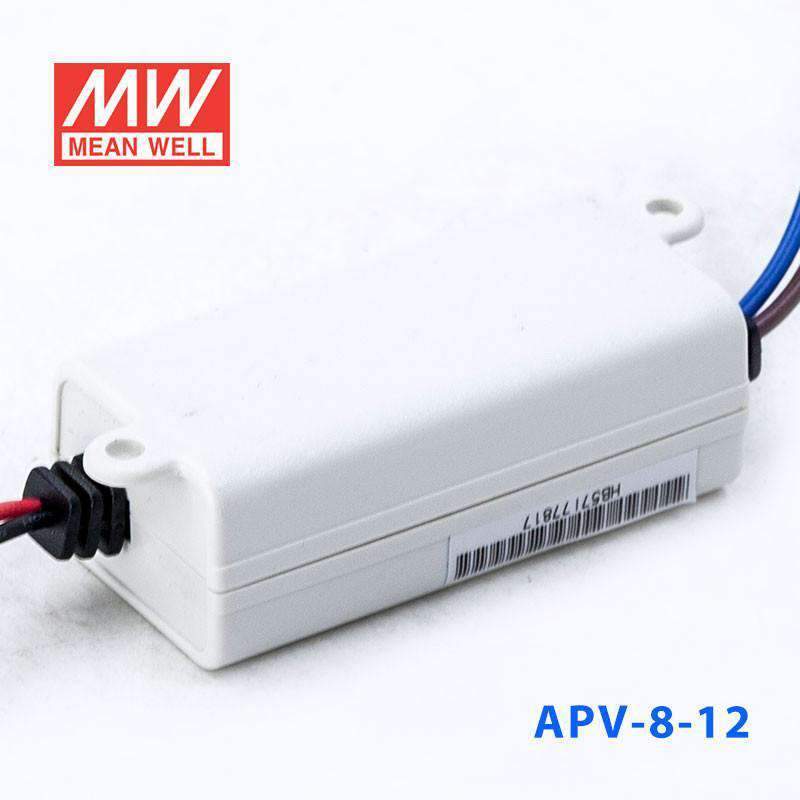

Mean Well APV-8-12 Power Supply 8W 12V 670mA
$7.25 USD
Unit price /
Unavailable
Description
Description
The APV-8 is a 8.04W Mean Well AC-DC constant voltage LED driver (input: 90~264VAC, output: 12V, operating temperature: -30~+70°C).
Key Features
- ✓ Input voltage: 90~264VAC
- ✓ Output voltage: 12V
- ✓ Rated output current: 0.67A
- ✓ Class II design — no earth connection required
- ✓ Ingress protection: IP42
- ✓ Operating temperature: -30~+70°C
- ✓ Safety certifications: CE, EAC, UL
- ✓ 2 year warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesAPV Series
-
Power Rating8.04 Watt
-
Output Voltage12 Volt
-
Rated Current0.67 Ampere
-
Input Voltage90V~264V
-
Standards MetCE,EAC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty2 Year
-
Length2.36 in
-
Width1.18 in
-
Height0.93 in
-
Weight0.11 lb
File Downloads
File Downloads
::specification::
