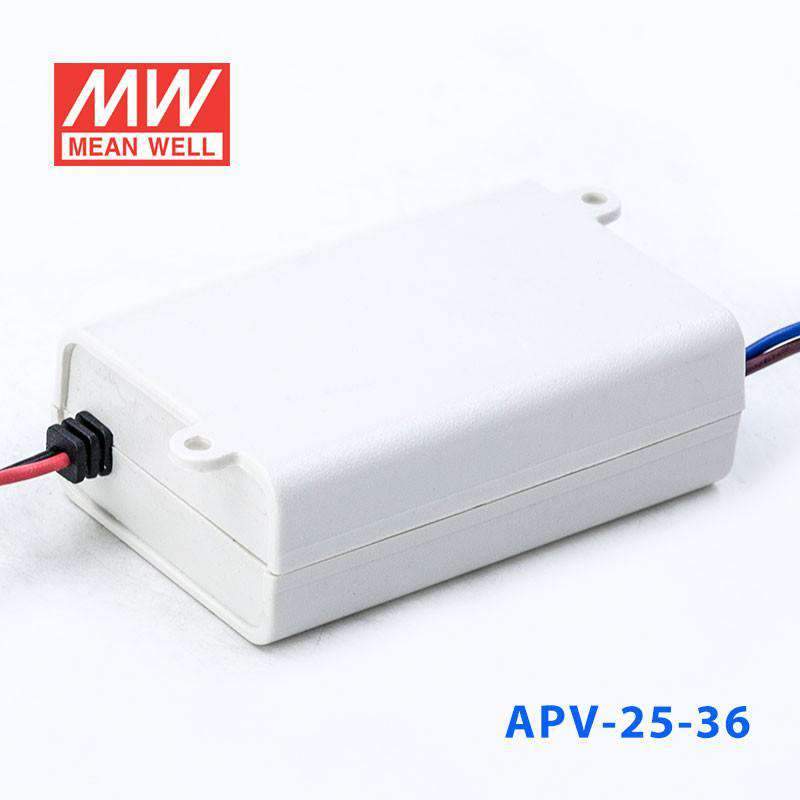

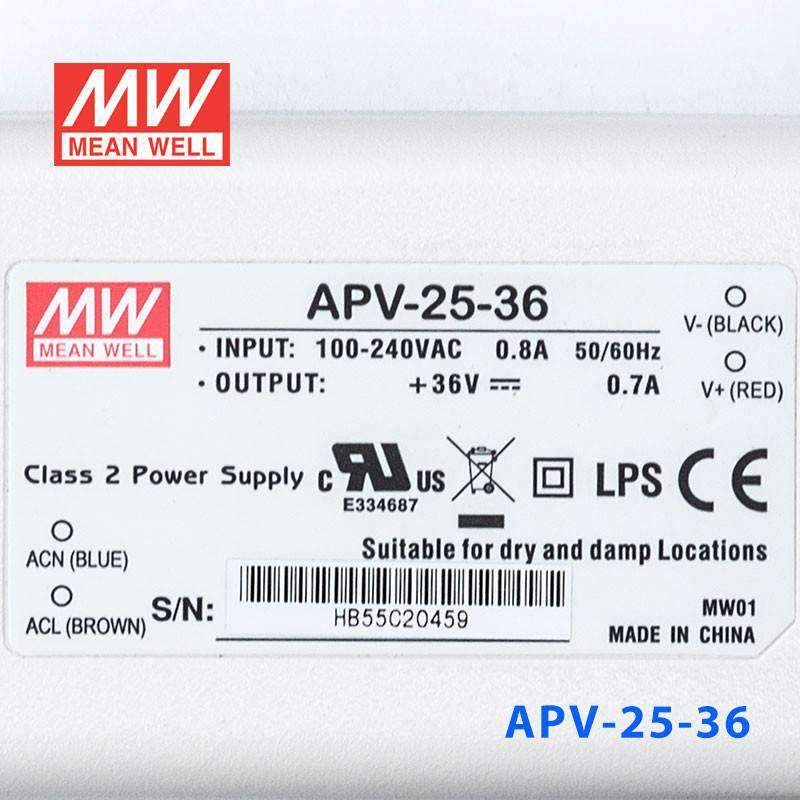

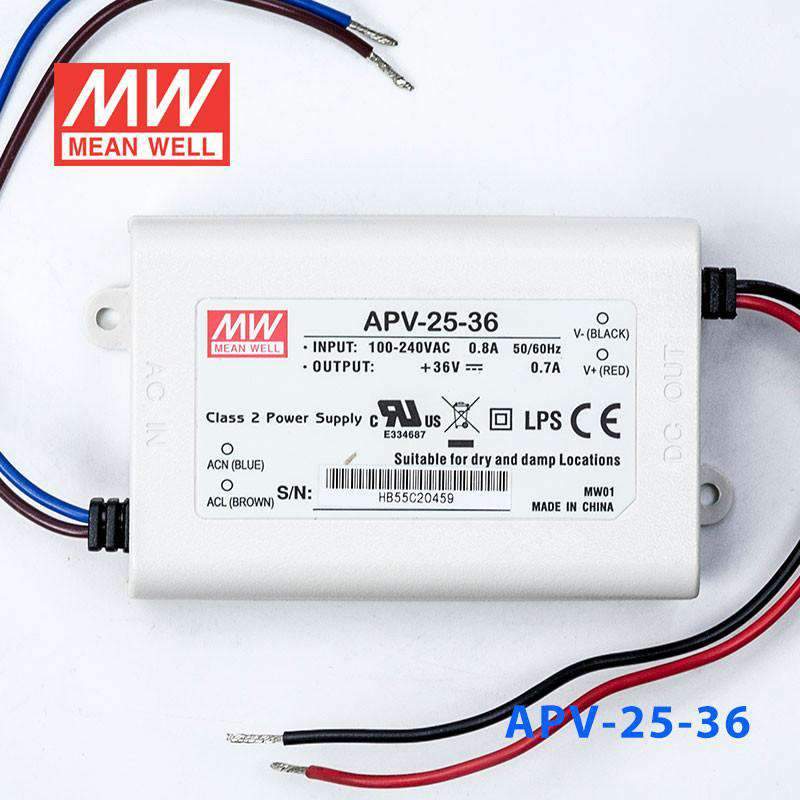

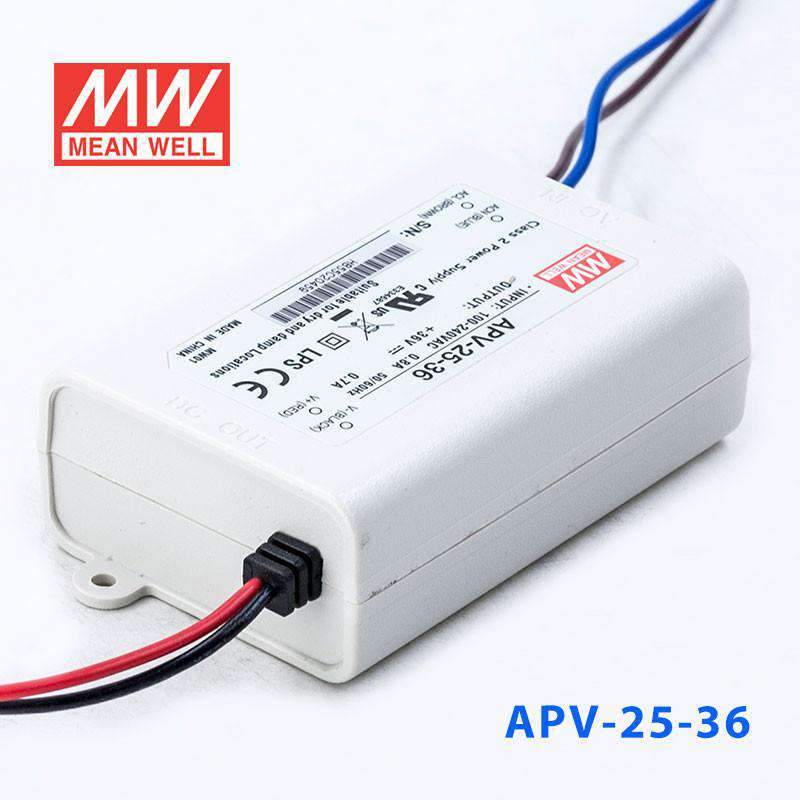

Mean Well APV-25-36 Power Supply 25W 36V 700mA

Name: Mean Well APV-25-36 Power Supply 25W 36V 700mA
Brand: Mean Well
SKU: APV-25-36
Price: 13.54 USD
Availability: InStock

Class II designlow costsmall and compactIP42

SKU APV-25-36

$13.54 USD

Shipping calculated at checkout.

Select model — 2 in this family

APV-25-36

APV-25-36 25W 36V Low stock$13.54 USD

APV-35-36 35W 36V Low stock$15.96 USD

Product variants

In stock

Overview

APV-25-36 is the 36V output model of this series: rated current 0.7A, rated power 25.2W, typical efficiency 84%.

Features

Constant voltage mode power supply
Universal AC input / Full range
Withstand 300VAC Surge input for 5 seconds
Protections: Short circuit / Over load / Over voltage
Fully isolated plastic case
Cooling by free air convection
Small and compact size
IP42 design
Class 2 power unit
Pass LPS
100% full load burn-in test
Low cost, high reliability
Display devices for decorative & advertising accessories (Note.9)
General-purpose electronics operated in dusty or damp environments
2 years warranty

Specifications

APV-25-36Specifications from the official datasheet (2026-09-04 edition)

OUTPUT

DC VOLTAGE: 36V
RATED CURRENT: 0.7A
CURRENT RANGE: 0 ~ 0.7A
RATED POWER: 25.2W
RIPPLE & NOISE (max.)^Note.2: 150mVp-p
VOLTAGE TOLERANCE^Note.3: ±5.0%
LINE REGULATION: ±1.0%
LOAD REGULATION: ±2.0%
SETUP, RISE TIME^Note.6: 1500ms, 30ms / 230VAC 1500ms,30ms / 115VAC at full load
HOLD UP TIME (Typ.): 20ms/230VAC 12ms/115VAC at full load

INPUT

VOLTAGE RANGE^Note.4: 90 ~ 264VAC 127 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
EFFICIENCY (Typ.): 84%
AC CURRENT: 0.4A/230VAC 0.8A/115VAC
INRUSH CURRENT(Typ.): COLD START 45A(twidth=310μs measured at 50% Ipeak) at 230VAC
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 9 units (circuit breaker of type B) / 15 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: 0.25mA / 240VAC

PROTECTION

OVER LOAD: Above 105% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 41.4 ~ 48.6V Protection type : Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: -30 ~ 70℃(Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL8750 , CSA-C22.2 No. 250.0-13, BIS IS15885, EAC TP TC 004,IP42 BS EN/EN 62368-1 approved
WITHSTAND VOLTAGE: I/P-O/P:3KVAC
ISOLATION RESISTANCE: I/P-O/P:>100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55032,BS EN/EN61000-3-2 Class A,BS EN/EN61000-3-3, EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN55035,BS EN/EN61000-4-2,3,4,5,6,8,11; light industry level(surge 2KV), EAC TP TC 020

OTHERS

MTBF: 5489.6K hrs min. Telcordia SR-332 (Bellcore) ; 600.0K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 84*57*29.5mm (L*W*H)
PACKING: 0.13Kg; 72pcs / 10.4Kg / 0.92CUFT

Test conditions and notes9

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Derating may be needed under low input voltage. Please check the static characteristics for more details.
5. The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
6. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
8. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
9. This product is not intended for LED lighting luminaire applications in the EU and China.(In the EU and China the LPF/NPF/XLG/XLC/XLN series are recommended.)

Technical drawings

Downloads

Datasheet1

APV-25-36 datasheetAPV-25-SPEC.PDF · 2026-09-04 edition PDF Download

Certificates1

EMC Certificate (APV-25)(EN) PDF Download

Test reports1

Test Report (APV-25-36)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

What LED lighting systems operate at 36V and would use the APV-25-36?

The APV-25-36 outputs 36V at 0.7A for a maximum of 25.2W. It suits 36V LED strip products, some LED module arrays designed for 36V nominal supply, and specialty LED signage components rated at 36V. Always verify your LED product's nominal voltage is 36V before selecting this driver.

How does the APV-25-36 differ from the APV-25-24 and APV-25-12 in the same wattage class?

All three APV-25 variants provide approximately 25.2W from the same 84.0 × 57.0 × 29.5 mm housing and 90–264VAC input. The APV-25-12 outputs 12V at 2.1A; the APV-25-24 outputs 24V at 1.05A; the APV-25-36 outputs 36V at 0.7A. The output voltage determines which load voltage they match — wattage and form factor are identical.

How much 36V LED strip can the APV-25-36 support?

The APV-25-36 delivers 25.2W at 36V. At a 36V strip rated 7.2 W/m, the maximum length is approximately 3.5 m. Divide 25.2W by your strip's rated power per meter to calculate your specific maximum, and check your strip's rated power per meter before purchasing.

Is the APV-25-36 suitable for outdoor LED signage?

The APV-25-36 carries an IP42 rating, which protects against solid objects larger than 1 mm and light dripping water only. It is not rated for outdoor, rain, or splash environments. For outdoor 36V LED signage, the driver must be installed in a sealed IP65 or higher rated enclosure, or a driver with higher native IP protection must be selected.
